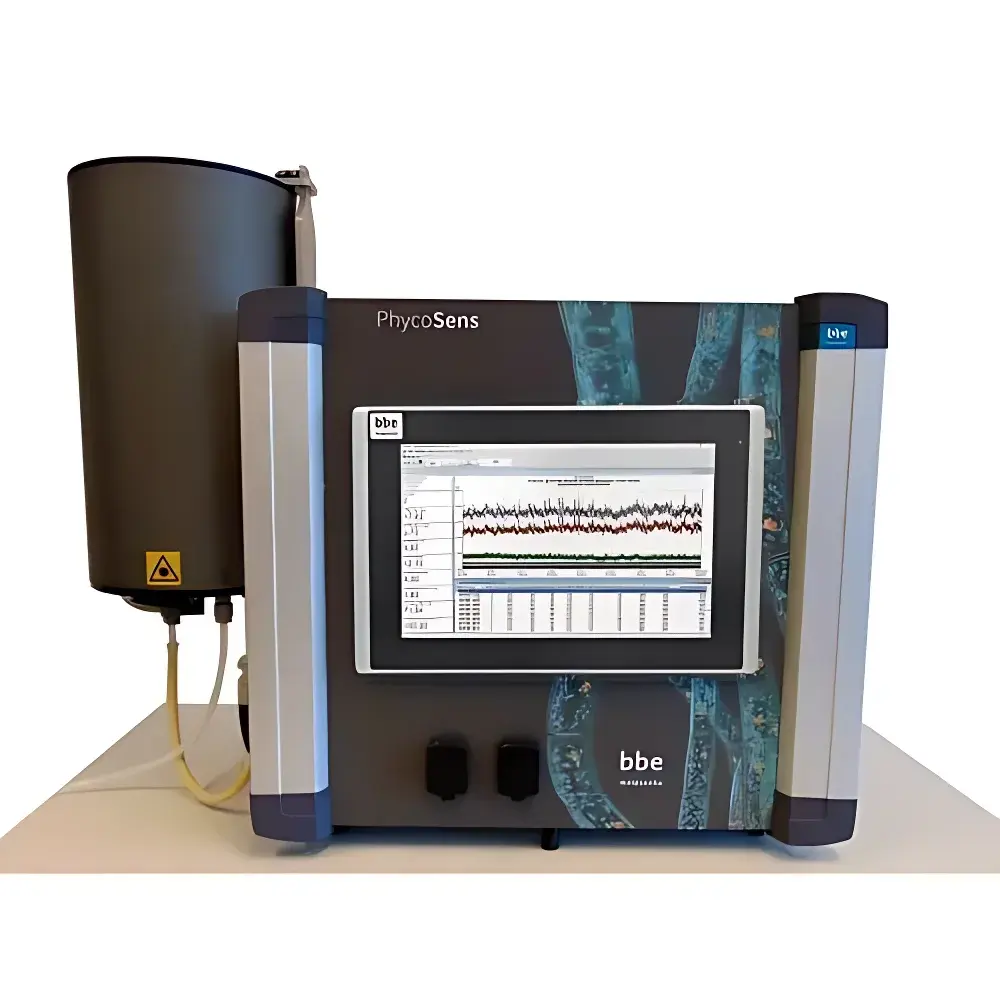

bbe PhycoSens PS Online Phycocyanin & Algal Classification Analyzer

Overview

The bbe PhycoSens PS is an advanced online algal monitoring instrument engineered for continuous, real-time assessment of cyanobacterial risk in freshwater systems. It employs multi-wavelength fluorescence spectroscopy coupled with proprietary spectral deconvolution algorithms to quantify free phycocyanin—the primary pigment marker of Microcystis, Anabaena, and other bloom-forming cyanobacteria—as well as chlorophyll a concentration and photosynthetic activity (Fv/Fm). Unlike conventional chlorophyll-only sensors, the PhycoSens PS distinguishes between intact algal cells and lysed or extracellular phycocyanin, providing early warning of cell lysis events that precede toxin release and taste-and-odor compound formation (e.g., geosmin and 2-methylisoborneol). The system simultaneously measures spectral absorbance across the UV–vis range (300–700 nm) to quantify dissolved yellow substances (DYS), enabling dynamic correction of fluorescence quenching effects and improving measurement robustness under variable water quality conditions.

Key Features

• Online, fully automated operation with 15–60 minute configurable measurement cycles—no manual sampling or reagent preparation required.
• Dual-channel fluorescence detection: excitation at 615 nm (phycocyanin-specific) and 450 nm (chlorophyll a), with temperature-stabilized LED sources and high-sensitivity photodiodes.
• Integrated optical path cleaning: ultrasonic transducer and mechanical wiper prevent biofouling on flow-cell windows, ensuring >12 months of unattended operation in eutrophic waters.
• Real-time algal classification: spectral fingerprinting enables differentiation of cyanobacteria, green algae, diatoms, and cryptophytes based on pigment composition—output as relative abundance (%) per taxonomic group.
• Photosynthetic efficiency quantification: pulse-amplitude modulated (PAM)-inspired dark-adapted Fv/Fm calculation derived from variable fluorescence kinetics during controlled light exposure.
• Onboard data logging with SD card backup and dual communication interfaces: Modbus TCP/IP and RS-485 for seamless integration into SCADA and telemetry networks.

Sample Compatibility & Compliance

The PhycoSens PS is validated for use with raw surface water, reservoir outflow, river intakes, and pre-chlorination points in drinking water treatment plants. It meets ISO 24510:2022 requirements for performance testing of instruments used in water utility monitoring and complies with EN 14893:2018 for algal biomass quantification in environmental monitoring applications. All wetted components are constructed from PTFE, quartz, and 316L stainless steel—resistant to chlorine residuals up to 2 mg/L and pH 5.5–9.0. The system supports GLP-compliant data integrity through time-stamped audit trails, user access levels, and non-volatile memory retention of calibration history and diagnostic logs.

Software & Data Management

The instrument operates with bbe’s PhycoSoft v4.x control and visualization suite, deployable on Windows-based local PCs or virtualized server environments. Data export formats include CSV, XML, and OPC UA—compatible with LIMS, PI System, and cloud platforms such as Azure IoT Hub. Software features include automated drift compensation using reference channel normalization, adaptive baseline correction for turbidity interference, and configurable alarm thresholds with hysteresis logic for false-positive suppression. All firmware updates and method configurations are digitally signed and verified, satisfying FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed in regulated utilities.

Applications

• Early-warning monitoring of cyanobacterial blooms in lakes, reservoirs, and slow-moving rivers—triggering operational responses before microcystin concentrations exceed WHO provisional guideline values (1 µg/L).
• Process optimization in drinking water treatment: correlating phycocyanin spikes with coagulant demand, activated carbon breakthrough, and ozone dosing efficacy.
• Regulatory compliance reporting: generating auditable datasets for national water framework directives (e.g., EU WFD Annex V, US EPA 2012 Cyanobacteria Guidance).
• Research-grade phytoplankton dynamics studies: long-term deployment with synchronized meteorological and hydrological data ingestion for ecological modeling.
• Odor precursor tracking: establishing empirical relationships between free phycocyanin concentration and geosmin/2-MIB concentrations measured via GC-MS in parallel lab analysis.

FAQ

Does the PhycoSens PS measure microcystin directly?
No—it measures free phycocyanin as a highly correlated proxy for cyanobacterial cell lysis and associated toxin release potential. Direct toxin quantification requires complementary laboratory analysis (e.g., ELISA or LC-MS/MS).
Can it operate in turbid or high-sediment water?
Yes—built-in DYS correction and scattering compensation algorithms maintain accuracy up to 100 NTU; optional inline filtration (50 µm) is recommended for waters exceeding 200 NTU.
What maintenance is required beyond the self-cleaning cycle?
Annual verification of optical path alignment and fluorescence standard calibration using traceable NIST-traceable cuvette kits—no consumables or reagents are used during routine operation.
Is remote firmware update supported?
Yes—secure HTTPS-based over-the-air (OTA) updates with SHA-256 signature validation and rollback capability.
How is data security ensured in networked deployments?
TLS 1.2 encryption for all remote communications, role-based access control (RBAC), and hardware-enforced secure boot ensure protection against unauthorized access and tampering.
