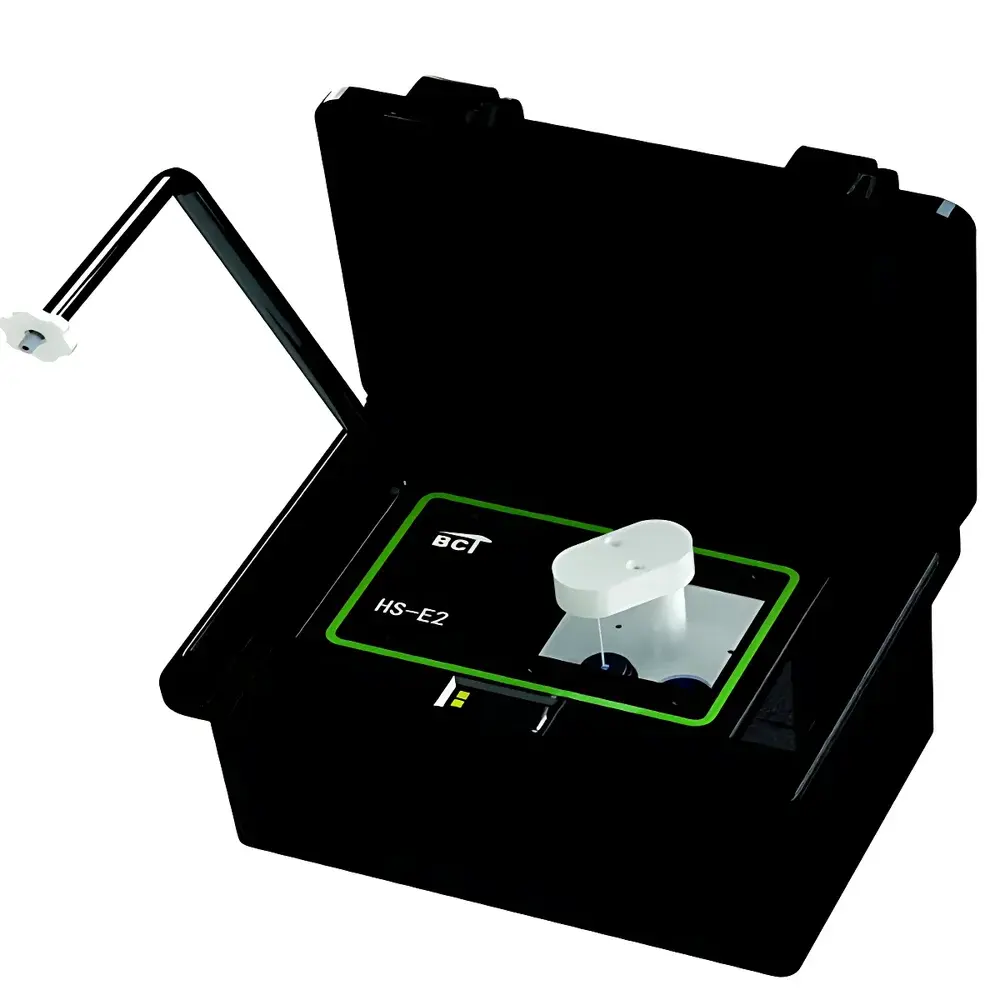

BCT HS-E2 Portable Static Headspace Sampler

Overview

The BCT HS-E2 Portable Static Headspace Sampler is a compact, field-deployable analytical accessory engineered for direct integration with gas chromatography (GC) systems. It operates on the principle of static headspace analysis—equilibrating a sealed sample vial at controlled temperature and pressure, then extracting the volatile organic compound (VOC)-enriched vapor phase above the sample matrix for injection into the GC column. Unlike dynamic (purge-and-trap) or automated multi-vial carousel systems, the HS-E2 implements a single-vial, real-time equilibrium approach optimized for rapid on-site screening of environmental and regulatory samples. Its lightweight mechanical architecture (under 8.5 kg), integrated thermal control module, and battery-compatible power interface enable operation in mobile labs, field vehicles, or remote sampling locations without reliance on fixed infrastructure.

Key Features

• Portable form factor with integrated carrying handle and shock-absorbing chassis for transport stability and ruggedized field use
• Fully automatic operation sequence: vial pressurization, incubation, equilibration timing, headspace extraction, and GC injection synchronization via standard GC trigger signal (TTL or contact closure)
• Precise temperature control (30–200 °C, ±0.1 °C stability) across both sample incubation block and transfer line to prevent condensation or adsorption losses
• Programmable equilibration time (0.1–99.9 min) and injection volume (0.1–2.0 mL, adjustable via syringe drive calibration)
• Gas-tight sealing mechanism compliant with ASTM D6866-22 and ISO 17993:2021 requirements for VOC preservation during vial handling
• Low dead-volume transfer pathway (<15 µL internal volume) minimizing carryover and ensuring high reproducibility (RSD < 2.5% for replicate n-hexane injections)

Sample Compatibility & Compliance

The HS-E2 supports standard 10 mL and 20 mL crimp-top headspace vials (with PTFE/silicone septa) and accommodates heterogeneous matrices including aqueous solutions, soil slurries, sediment extracts, polymer leachates, and pharmaceutical suspensions. It is validated for compliance with EPA Method 502.2 (VOCs in drinking water), EPA Method 8260D (VOCs in solid waste), and ISO 15681-2:2021 (water quality—determination of VOCs by static headspace/GC-MS). All wetted components are inert (electropolished stainless steel, fused silica-lined tubing, PEEK fittings), eliminating catalytic degradation or surface adsorption artifacts. The system’s design adheres to GLP documentation requirements, supporting audit-ready electronic logs when paired with compatible GC data systems.

Software & Data Management

The HS-E2 operates via embedded firmware with local LCD interface for method setup, real-time status monitoring, and error diagnostics. No external PC is required for basic operation; however, optional USB-C connectivity enables firmware updates and method file import/export in CSV or XML format. When interfaced with chromatography data systems (CDS) such as Thermo Chromeleon, Agilent OpenLab CDS, or Waters Empower, the sampler transmits full audit trail metadata—including vial ID, equilibration timestamp, temperature profile, injection volume, and hardware event log—satisfying FDA 21 CFR Part 11 requirements for electronic records and signatures. All method parameters are stored in non-volatile memory with checksum validation to ensure integrity after power cycling.

Applications

• Rapid field assessment of VOC contamination in groundwater, surface water, and leachate from landfills or industrial sites
• On-site verification of soil vapor intrusion potential using grab samples collected per ASTM D5404
• Quality control testing of raw materials and finished products in chemical manufacturing (e.g., residual solvents in APIs per ICH Q3C guidelines)
• Environmental forensics investigations requiring chain-of-custody preservation and minimal sample manipulation
• Educational laboratories conducting method development exercises in analytical chemistry and environmental science curricula

FAQ

Is the HS-E2 compatible with all gas chromatographs?
Yes—it provides universal analog/digital triggering interfaces (TTL, 24 VDC, and dry contact) and supports standard GC inlet configurations (split/splitless injectors with 0.53 mm or 0.32 mm ID liners). Adapter kits are available for Agilent, Shimadzu, Thermo Fisher, and PerkinElmer platforms.
Can the HS-E2 be used for quantitative analysis?
Yes—when calibrated with certified VOC standards (e.g., SUPELCO 31922 or AccuStandard V-2000 series) and operated under validated methods, it delivers linear response (r² ≥ 0.999) across 0.1–1000 µg/L aqueous ranges for target compounds including benzene, toluene, ethylbenzene, xylenes (BTEX), chloroform, and trichloroethylene.
Does the system require external gas supply?
No—carrier gas (helium, nitrogen, or hydrogen) is sourced directly from the host GC’s gas supply manifold. The HS-E2 does not consume auxiliary gases or require compressed air for actuation.
What maintenance is required?
Routine maintenance includes quarterly cleaning of the syringe plunger and needle seat with methanol, annual replacement of the septum piercing needle, and biannual verification of temperature sensor calibration using NIST-traceable reference thermometers.
