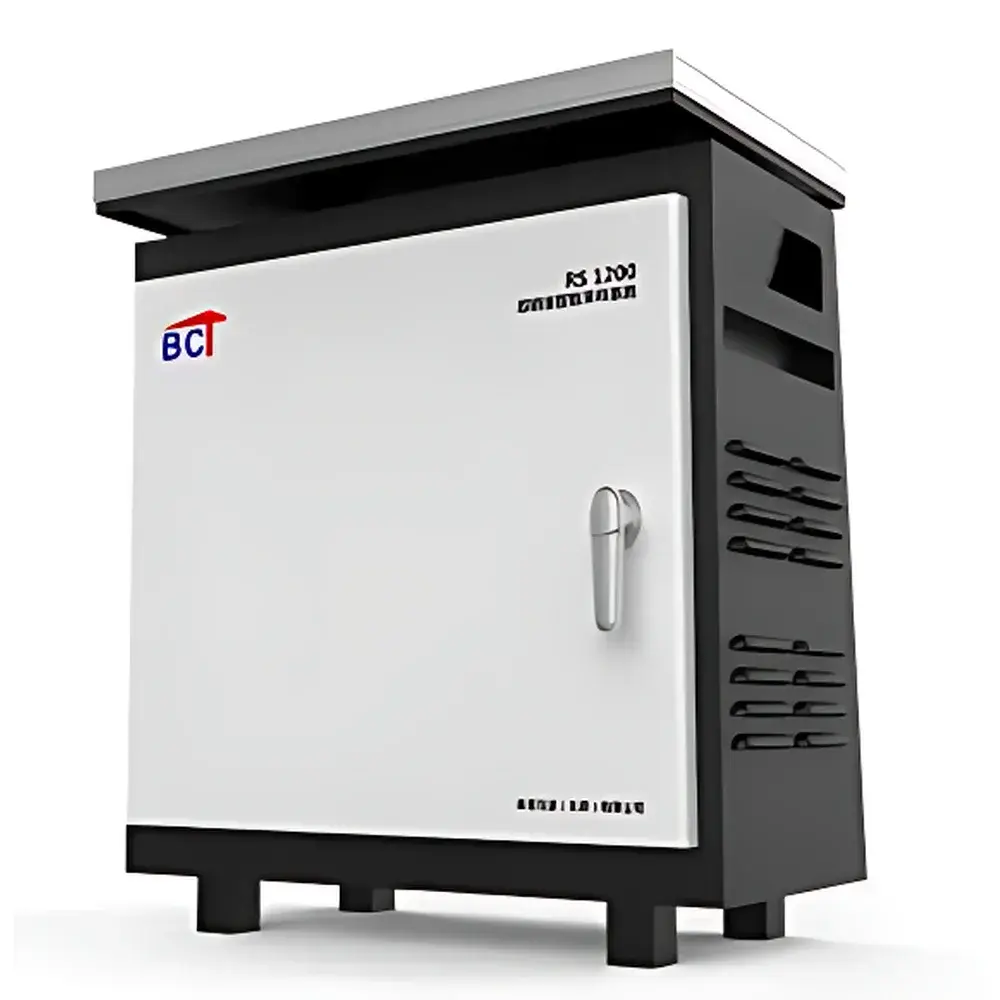

BCT RS1200 SUMMA Canister Intelligent Sampling System

Overview

The BCT RS1200 SUMMA Canister Intelligent Sampling System is an engineered solution for unattended, quantitative, and representative whole-air sampling in ambient air monitoring, fugitive emission assessment, and source apportionment studies. Based on the well-established SUMMA canister (electropolished stainless-steel, silonized interior) sampling methodology, the RS1200 eliminates analyte bias associated with sorbent tube techniques—ensuring unbiased capture of volatile organic compounds (VOCs), halocarbons, sulfur compounds, and other trace gases across their native volatility range. Unlike passive or single-point samplers, the RS1200 employs active, pressure-controlled dual-channel aspiration to fill canisters under precisely regulated flow conditions, preserving sample integrity from collection through transport and analysis. Its architecture supports compliance with U.S. EPA Method TO-14A, TO-15, and ISO 16017-1 for VOC measurement in ambient air, making it suitable for regulatory-grade monitoring networks and research-grade atmospheric chemistry investigations.

Key Features

• Dual-channel independent sampling control: Enables simultaneous or sequential filling of two SUMMA canisters with programmable flow profiles per channel.
• Intelligent vacuum-driven sampling: Integrated high-reliability diaphragm pump achieves stable vacuum generation (< 0 Pa gauge) with real-time feedback control to maintain setpoint flow rates within ±2% over 1-hour intervals.
• Multi-mode triggering logic: Supports time-scheduled sampling (e.g., hourly, diurnal cycles), external event-triggered sampling (via dry-contact or analog input from NMHC analyzers, PID sensors, or air quality stations), and remote activation via secure web interface or mobile application.
• Real-time internal pressure monitoring: High-accuracy absolute pressure transducer continuously logs canister headspace pressure; automatic alerting occurs if pressure deviates beyond user-defined thresholds—indicating potential leaks, valve faults, or incomplete evacuation.
• Redundant sampling capability: Optional parallel sampling mode activates concurrent aspiration into primary and backup canisters, supporting analytical replication or contingency data recovery without field re-deployment.
• Integrated GNSS module: Records UTC timestamp, latitude, longitude, and altitude at sample initiation and completion; geotagged metadata is embedded in each exported sampling log compliant with ISO/IEC 17025 data traceability requirements.
• Solar-ready power architecture: Designed for off-grid deployment with optional photovoltaic panel integration and deep-cycle battery management—enabling autonomous operation for up to 30 days under typical environmental conditions.

Sample Compatibility & Compliance

The RS1200 is validated for use with standard 6-L and 1-L electro-polished SUMMA canisters (SilcoNert® or Sulfinert®-treated). It maintains compatibility with EPA-certified canister cleaning protocols and meets mechanical interface specifications per ASTM D5466 and EPA SW-846 Method 0030. All firmware and hardware configurations adhere to IEC 61326-1 (EMC for laboratory equipment) and IEC 61000-6-2/6-3. Data acquisition and storage comply with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and support audit readiness for GLP and ISO/IEC 17025-accredited laboratories. Optional 21 CFR Part 11-compliant software modules provide electronic signatures, audit trails, and role-based access control.

Software & Data Management

The RS1200 operates with BCT AirTrack™ v3.2 firmware and desktop/cloud-based configuration software. The platform enables full parameter definition—including multi-step sampling schedules, trigger sensitivity thresholds, GPS logging intervals, and alarm escalation paths (email/SMS). All raw operational data (flow rate, pressure, temperature, pump duty cycle, GPS coordinates, timestamps) are stored locally on encrypted microSD and synchronized to secure cloud repositories using TLS 1.3. Export formats include CSV, XML (NIEM-compliant), and direct integration with LIMS via RESTful API. Audit logs record every configuration change, user login, and system event with cryptographic hashing for forensic verification.

Applications

• Ambient air quality monitoring networks (e.g., urban background, roadside, regional sites)
• Fugitive emission detection and quantification at industrial facilities (refineries, chemical plants, landfills)
• Toxic release inventory (TRI) and Risk Management Program (RMP) compliance sampling
• Indoor air quality surveys in schools, hospitals, and commercial buildings
• Emergency response and incident investigation (e.g., chemical spills, odor complaints, accidental releases)
• Method validation and interlaboratory comparison studies requiring matrix-matched whole-air standards

FAQ

What canister volumes are supported by the RS1200?
The system is calibrated and validated for standard 1-L and 6-L SUMMA canisters; custom calibration files may be generated for other certified canister sizes upon request.
Does the RS1200 require calibration gas or zero air for operation?
No—unlike analyzer-based systems, the RS1200 is a passive sampling device; its flow control and pressure monitoring subsystems are factory-calibrated and require only annual verification using NIST-traceable flow meters and pressure standards.
Can the RS1200 operate in extreme temperatures or high-humidity environments?
Yes—the enclosure meets IP54 ingress protection rating, and operational specifications cover –20 °C to +50 °C ambient temperature and up to 95% RH non-condensing; optional heated enclosure kits extend low-temperature performance to –40 °C.
How is data security ensured during remote transmission?
All wireless communication uses AES-256 encryption; cloud synchronization requires OAuth 2.0 authentication; local storage employs hardware-based Full Disk Encryption (FDE) compliant with FIPS 140-2 Level 1.
Is the RS1200 compatible with third-party analytical laboratories?
Yes—sample metadata (including GPS location, start/stop times, pressure logs, and trigger events) exports in standardized formats accepted by major VOC labs (e.g., Eurofins, ALS, SGS) and integrates natively with EPA’s CompTox Chemicals Dashboard ingestion pipeline.
