BCT TM 1400D UAV-Mounted Multi-Channel Canister Sampling System

Overview

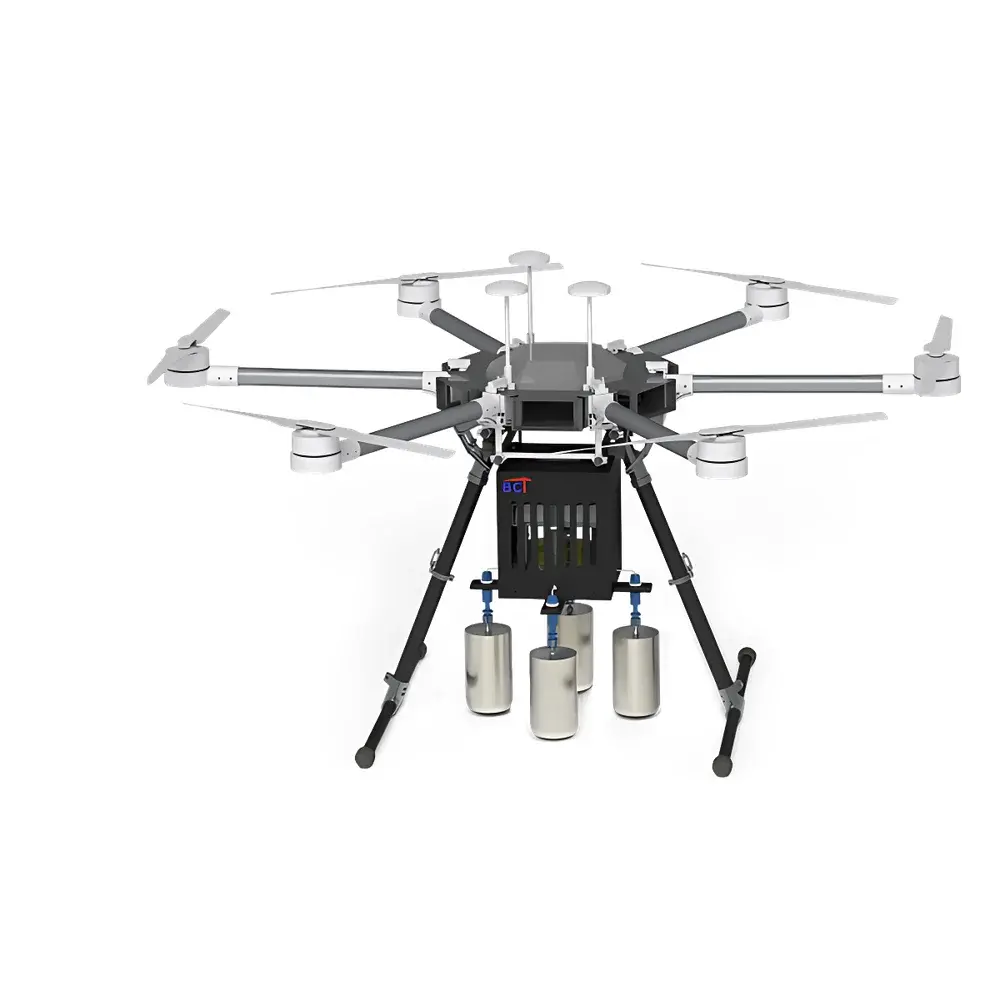

The BCT TM 1400D UAV-Mounted Multi-Channel Canister Sampling System is an engineered solution for stratified atmospheric gas sampling—specifically designed to integrate with unmanned aerial vehicles (UAVs) for vertical profiling of volatile organic compounds (VOCs), odorants, greenhouse gases, and other trace gaseous analytes. Unlike conventional ground-based or fixed-station samplers, the TM 1400D operates on the principle of controlled, pressure-regulated canister filling via precision mass flow control under constant temperature conditions. Its architecture implements a four-channel sequential or parallel sampling protocol, enabling simultaneous collection into multiple SUMMA®-type electropolished stainless-steel canisters—each pre-evacuated and passivated to minimize surface adsorption and memory effects. The system maintains thermal equilibrium during flight through integrated Peltier-based temperature stabilization (±0.5 °C), ensuring consistent vapor-phase equilibrium and preserving sample integrity across altitudes ranging from ground level to 1,200 m AGL.

Key Features

• UAV-integrated lightweight design (total system mass < 2.8 kg), compliant with Class II and III commercial drone payload constraints per EASA and FAA Part 107 operational guidelines
• Four independently controllable sampling channels with solenoid-valve actuation and real-time flow verification via calibrated thermal mass flow sensors
• Fused-silica-coated internal tubing and SUMMA canister interface ports to suppress reactive adsorption of polar VOCs (e.g., formaldehyde, acetaldehyde, H₂S) and reduce breakthrough risk
• Multi-mode operation: manual RF remote control, scheduled autonomous sampling (with onboard RTC and non-volatile event logging), and TTL-triggered synchronization with external meteorological or GPS modules
• Traceable sampling workflow: each canister fill cycle records timestamp, ambient temperature/pressure, cumulative flow volume, valve actuation sequence, and battery voltage—stored in encrypted binary logs compliant with ISO/IEC 17025 data integrity requirements

Sample Compatibility & Compliance

The TM 1400D is validated for use with standard 6-L and 1-L SUMMA canisters (SilcoNert® or Sulfinert®-treated), as well as EPA Method TO-14A/TO-15-compliant sampling protocols. It supports both grab and integrated time-weighted average (TWA) sampling strategies. All wetted materials—including valves, seals, and flow paths—meet US EPA Method TO-15 Annex C material compatibility criteria and are certified non-reactive toward C₂–C₁₂ hydrocarbons, halogenated VOCs, sulfur compounds, and oxygenated organics. The system conforms to ISO 16000-22 (indoor air—sampling of VOCs onto sorbent tubes and canisters) and supports audit-ready documentation for GLP and ISO/IEC 17025-accredited laboratories. Firmware includes configurable calibration certificate import and electronic signature support aligned with FDA 21 CFR Part 11 Annex 11 principles.

Software & Data Management

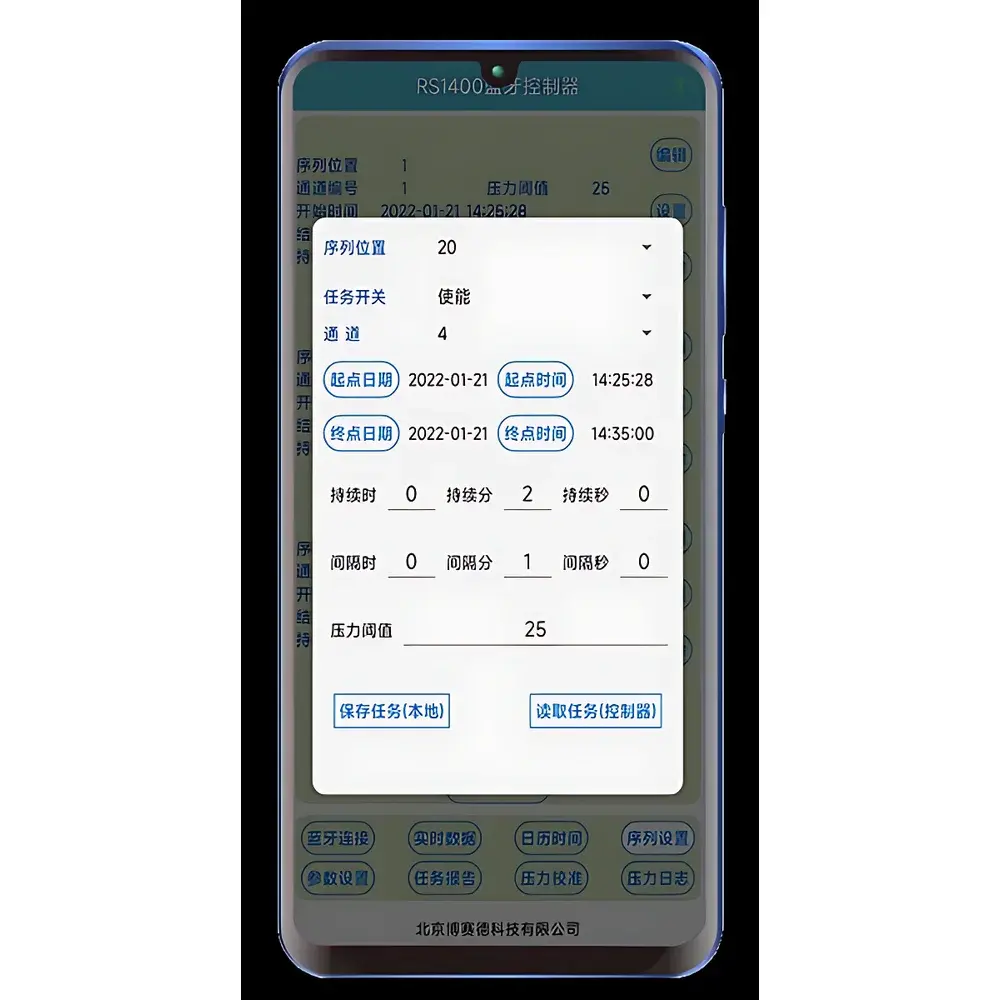

The companion BCT AirLog™ Control Suite (v3.2+) provides cross-platform configuration, mission planning, and post-flight log parsing. Field operators deploy sampling missions via georeferenced waypoints and altitude-triggered activation logic. Raw telemetry—including flow deviation alerts, low-battery warnings, and canister vacuum loss detection—is transmitted via LoRaWAN or Bluetooth 5.0 LE to the ground terminal. All acquisition metadata is embedded in .CSV and .JSON exports compatible with EPA Compendium Method TO-15 data reduction pipelines and third-party chromatographic software (e.g., Thermo TraceFinder, Agilent MassHunter). Audit trails retain immutable hash signatures for every sampling event, satisfying chain-of-custody reporting requirements under EN 13644-1 and ASTM D5466.

Applications

• Vertical VOC profiling above industrial fence lines, landfills, and wastewater treatment plants for emission source attribution
• Emergency response air monitoring during chemical spills, refinery leaks, or hazardous material incidents (NFPA 472-aligned deployment)
• Marine boundary layer studies—including shipborne UAV launches and offshore platform surveys—to characterize halocarbon fluxes and methane plumes
• Urban atmospheric chemistry campaigns requiring synchronized multi-altitude sampling for photochemical model validation (e.g., MEGAN, CAMx inputs)
• Calibration and validation of ground-based differential optical absorption spectroscopy (DOAS) and cavity ring-down spectroscopy (CRDS) systems

FAQ

What types of canisters are compatible with the TM 1400D?

The system interfaces with standard electropolished stainless-steel SUMMA canisters (1 L and 6 L), provided they meet EPA TO-14A/TO-15 passivation specifications and feature compatible Swagelok®-style inlet fittings.
Can the TM 1400D operate autonomously without real-time RF link?

Yes—the onboard scheduler supports fully autonomous missions with pre-programmed start times, duration, and channel sequencing; all parameters persist through power cycles and retain integrity during signal loss.
Is flow calibration traceable to NIST standards?

Each unit ships with a factory calibration certificate traceable to NIST SRM 2197a (gas flow calibrators); field recalibration is supported using certified primary-standard rotameters or bubble meters per ISO 4064-2.
How is sample integrity ensured during rapid altitude changes?

Integrated barometric compensation adjusts flow setpoints in real time to maintain volumetric equivalence across pressure gradients; temperature stabilization prevents condensation-induced fractionation in humid environments.
Does the system support integration with third-party meteorological sensors?

Yes—via RS-485 or I²C interfaces, the TM 1400D synchronizes with Vaisala WXT530, Campbell Scientific CS110, or Rotronic MP102 modules for concurrent T/P/RH recording aligned to each canister fill event.
