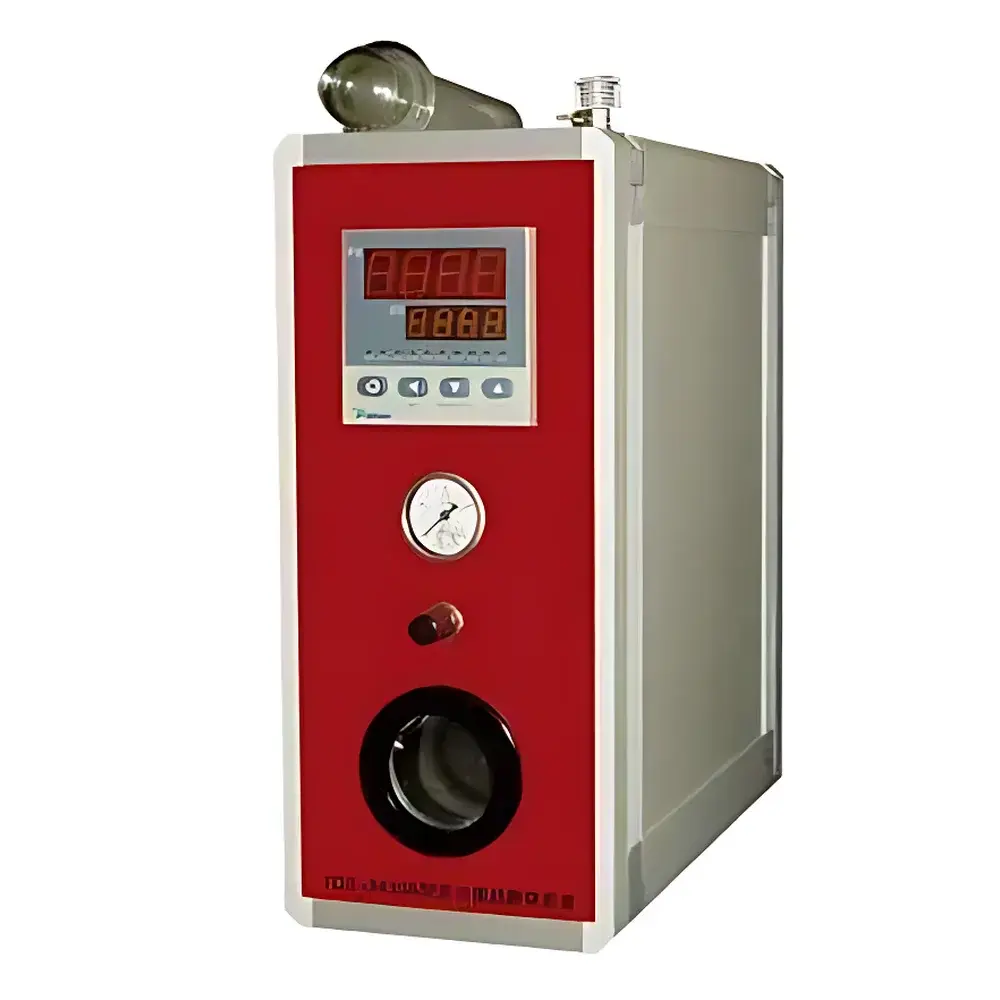

Beifen Sanpu TDS-III Thermal Desorber for Solvent Gasoline Analysis

Overview

The Beifen Sanpu TDS-III Thermal Desorber is a dedicated, single-stage sample pre-concentration instrument engineered for compliant thermal desorption–gas chromatography (TD-GC) analysis of volatile organic compounds (VOCs), with primary validation for solvent gasoline in occupational air monitoring per GBZ/T 300.62–2017. It operates on the principle of controlled thermal desorption: analytes adsorbed onto activated carbon tubes are rapidly heated under inert carrier gas flow (typically nitrogen), releasing target VOCs into a large-volume gas-tight syringe (up to 100 mL). This syringe serves as both collection and manual injection vessel for subsequent GC-FID analysis. The system is optimized for reproducible quantification of C₄–C₁₂ aliphatic and alicyclic hydrocarbons—key constituents of solvent gasoline—with demonstrated recovery exceeding 98% under standardized conditions (230 °C desorption, 50 mL/min N₂). Its architecture supports method traceability and regulatory alignment without requiring automated transfer lines or cryogenic focusing, making it suitable for laboratories prioritizing cost-effective, GLP-aligned manual TD workflows.

Key Features

• Integrated dual-zone temperature control: independent heating modules for desorption furnace (room temperature to 400 °C, ±0.5 °C stability) and 100 mL syringe oven (room temperature to 100 °C, ±0.5 °C stability)
• Optimized for activated carbon tube formats: accommodates standard 6 mm OD (¼″) tubes of variable length with zero-dead-volume connection design
• High-fidelity thermal desorption: validated >98% recovery for solvent gasoline at 230 °C, consistent with GBZ/T 300.62–2017 protocol requirements
• Manual syringe-based injection pathway: eliminates need for complex valving or cold trap hardware while maintaining quantitative integrity
• Robust mechanical construction: compact footprint (390 × 170 × 360 mm), 9 kg mass, and 500 W power consumption enable benchtop deployment in QC and occupational hygiene labs
• User-accessible parameter programming: 1 °C incremental setpoints for both zones, enabling method customization for other VOCs (e.g., benzene, TVOC components)

Sample Compatibility & Compliance

The TDS-III is expressly validated for activated carbon tubes loaded with 100 mg sorbent, per GBZ/T 300.62–2017 Section 4.2.1. It supports short-term (15 min at 100 mL/min) and long-term (2–8 h at 50 mL/min) sampling per GBZ 159. The instrument meets analytical prerequisites for ISO 16000-6 (indoor air VOC analysis) and ASTM D5466 (standard test method for VOCs in air by TD-GC), and its operational parameters align with data integrity expectations under GLP and GMP environments. While not inherently 21 CFR Part 11 compliant due to manual injection, audit trails can be maintained via laboratory notebook documentation and chromatographic data system (CDS) integration. All performance specifications—including desorption efficiency, precision (RSD ≈ 4%), and detection limits (LOD = 0.13 mg/m³ for solvent gasoline at 1.5 L sample volume)—are derived from inter-laboratory validation studies referenced in GBZ/T 210.4.

Software & Data Management

The TDS-III operates as a standalone hardware module with no embedded firmware or proprietary software. Temperature setpoints and dwell times are configured manually via front-panel digital controllers. Data acquisition and quantitation occur entirely within the connected gas chromatograph’s data system (e.g., Agilent OpenLab, Thermo Chromeleon, or Shimadzu GCsolution). This architecture ensures full compatibility with existing CDS platforms and simplifies compliance with audit requirements: all raw chromatograms, calibration curves (r ≥ 0.999), and sample reports are generated and archived externally. Laboratories implementing electronic lab notebooks (ELN) may directly link TDS-III run logs (date/time, tube ID, desorption temp, syringe volume) to corresponding GC injections, fulfilling traceability mandates for ISO/IEC 17025 accreditation.

Applications

• Occupational exposure assessment: quantitative determination of solvent gasoline, liquefied petroleum gas (LPG), raffinate, and turpentine in workplace air per GBZ/T 300.62–2017
• Indoor air quality (IAQ) testing: benzene and TVOC analysis per GB 50325–2006 (Chinese Code for Control of Indoor Environmental Pollution)
• Environmental health monitoring: screening of hydrocarbon vapors in refinery perimeters, storage facilities, and transport hubs
• Method development support: evaluation of alternative sorbents (e.g., Tenax TA, Carbopack B) and desorption protocols for mid-volatility compounds
• Educational use: hands-on training in thermal desorption fundamentals, GC sample introduction mechanics, and regulatory method execution

FAQ

What sample tube formats are compatible with the TDS-III?

Standard 6 mm outer diameter (¼″) activated carbon tubes of any length; no adapter required.

Does the TDS-III include cryogenic trapping?

No—it is a single-stage thermal desorber without cryofocusing; analytes are transferred directly to a 100 mL gas-tight syringe.

Can the TDS-III be used for benzene analysis per GB 50325–2006?

Yes; its integrated syringe heater enables precise thermal conditioning of the injection volume, supporting validated benzene methods.

What is the minimum detectable concentration for solvent gasoline?

0.13 mg/m³ when sampling 1.5 L of air, based on GC-FID detection and 98% desorption recovery.

Is routine maintenance required beyond tube handling?

Periodic verification of temperature calibration (using NIST-traceable thermocouples) and syringe seal integrity is recommended per ISO/IEC 17025 clause 6.4.
