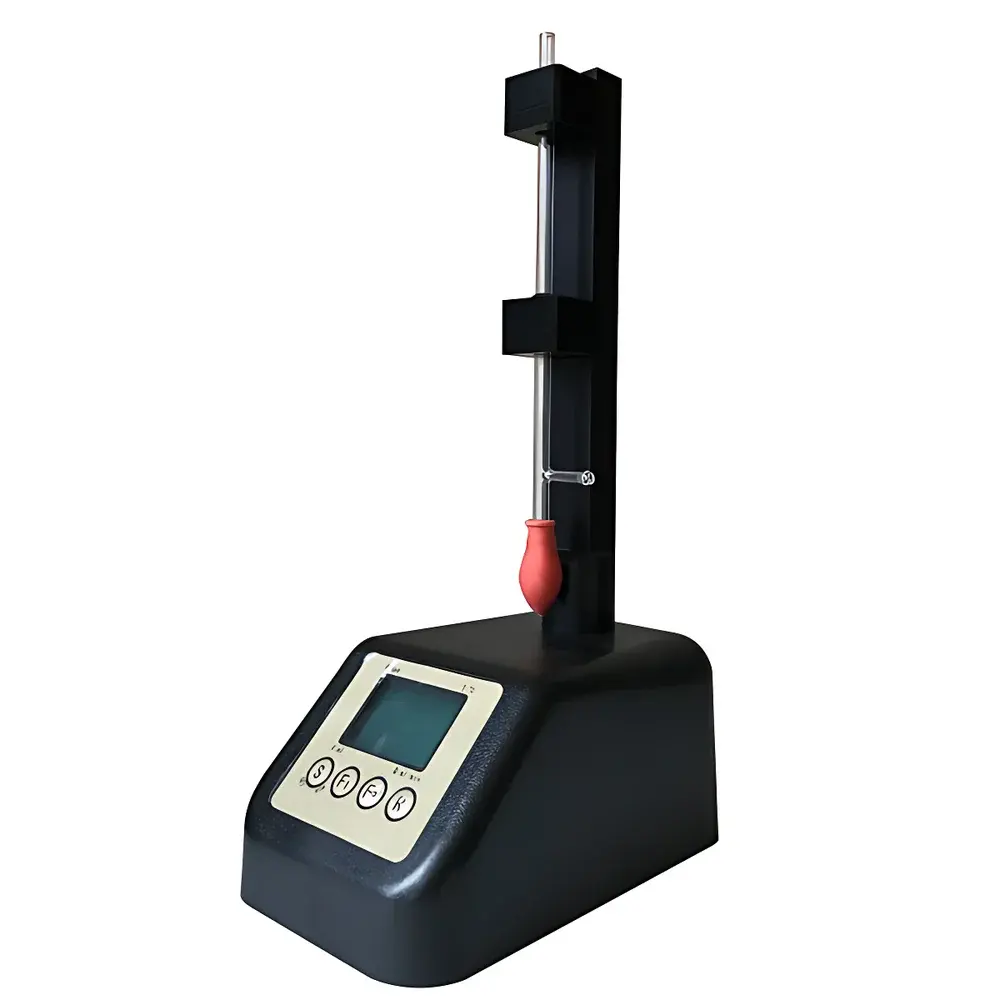

Beifen Sanpu ZM-101B Intelligent Electronic Soap Film Flowmeter

Overview

The Beifen Sanpu ZM-101B Intelligent Electronic Soap Film Flowmeter is a portable, microprocessor-controlled volumetric flow calibration instrument engineered for high-accuracy measurement and verification of low-to-moderate gas flow rates in laboratory, field, and regulatory environments. It operates on the fundamental principle of soap film displacement: a thin, stable soap film is formed across the calibrated bore of a vertical glass tube; as gas flows upward through the tube, the film rises at a velocity directly proportional to the volumetric flow rate. Two precision optical sensors detect the film’s transit time between fixed reference points. Combined with real-time temperature and pressure readings, the device calculates corrected volume flow (at standard conditions) and mass flow (when gas composition is specified), delivering traceable results compliant with national metrological standards.

Key Features

• Integrated optical sensing architecture with dual photodetectors for precise film transit timing — enabling resolution down to 0.01 s internally and display of 0.1 s;
• Onboard environmental compensation: simultaneous measurement of ambient temperature (±0.3 °C) and barometric pressure (±0.5 kPa) for automatic conversion to standardized flow values (e.g., SLPM at 25 °C, 101.325 kPa);
• Self-diagnostic firmware that monitors sensor signal integrity, light path attenuation, and battery status — alerts users to potential drift or misalignment during operation;
• Adjustable optical sensitivity via internal potentiometer calibration, allowing optimization for varying soap solution formulations or ambient lighting conditions;
• Energy-efficient power management: backlight auto-off after 10 s of inactivity; full system shutdown after 5 min; rechargeable Ni-MH battery supports >500 charge cycles with >24 h standby life;
• Compact monolithic design (90 × 150 × 280 mm, 0.6 kg) integrates soap film tube, optical module, microcontroller, and power system — eliminating external cabling or alignment procedures;
• Real-time display of raw and compensated parameters: elapsed time, measured volume, uncorrected flow, temperature-compensated flow, pressure-compensated flow, and dual-sensor status indicators.

Sample Compatibility & Compliance

The ZM-101B is validated for use with common laboratory-grade soap solutions (e.g., sodium lauryl sulfate in deionized water) and compatible with dry, non-corrosive, non-particulate gas streams including air, nitrogen, helium, oxygen, and synthetic air. It is not intended for use with condensing, reactive, or high-humidity gases without prior conditioning. The instrument conforms fully to JJG 586–2006 “Verification Regulation for Soap Film Flowmeters”, supporting mandatory verification intervals required by Chinese metrology authorities. Its measurement uncertainty budget aligns with ISO/IEC 17025:2017 requirements for calibration laboratories performing in-house verification of sampling pumps and analytical instrument gas delivery systems. While not certified to ASTM D6196 or ISO 10780, its performance characteristics meet the functional equivalency criteria cited in those standards for low-flow verification in ambient air monitoring applications.

Software & Data Management

The ZM-101B operates autonomously without PC connectivity; all data acquisition, correction, and display are handled onboard. No proprietary software or drivers are required. All measurement records — including timestamp, raw transit time, ambient T/P, calculated flow, and operator-defined notes (via optional alphanumeric keypad firmware upgrade) — are stored in non-volatile memory (up to 500 entries). Data export is supported via optional RS-232 or USB-to-serial adapter (not included), enabling direct import into LIMS or Excel for QA/QC reporting. Audit trails are maintained per GLP guidelines: each record includes firmware version, battery voltage at time of measurement, and sensor health flag. Though not 21 CFR Part 11-compliant out-of-the-box, the device supports manual documentation workflows compatible with FDA-regulated environmental monitoring programs when paired with controlled SOPs and electronic logbooks.

Applications

• Calibration and verification of personal and area atmospheric sampling pumps (e.g., OSHA ID-121, NIOSH 0500/0600 methods);
• Field validation of dust and aerosol sampler flow rates prior to and after sample collection campaigns;
• Verification of carrier gas and auxiliary gas flow settings on GC systems — particularly for ECD, FID, and PID detectors requiring stable sub-100 mL/min flows;
• Periodic checking of rotameter and critical orifice-based flow devices used in stack emission testing and indoor air quality surveys;
• Flow characterization of microfluidic components and MEMS-based gas sensors during R&D prototyping;
• Teaching laboratory use in analytical chemistry and environmental engineering courses for hands-on instruction in volumetric flow metrology principles.

FAQ

What gases can be measured with the ZM-101B?
The instrument is designed for clean, dry, non-reactive gases such as air, N₂, O₂, He, and Ar. Avoid use with corrosive, condensable, or particulate-laden streams unless pre-filtered and dried.
Does the ZM-101B require annual recalibration?
Per JJG 586–2006, verification should be performed before each day’s use or at least once per shift when used for compliance-critical measurements. Full recalibration by an accredited lab is recommended annually or after physical impact.
Can I correct for gas-specific compressibility or molecular weight?
Yes — the device allows manual entry of gas identity (via menu) to compute mass flow (g/min) from volumetric flow using ideal gas law assumptions and built-in molar mass tables.
Is the soap film tube replaceable in the field?
The borosilicate glass tube is permanently sealed within the housing and not user-replaceable; however, it is rated for >10,000 measurement cycles under normal handling conditions.
How does the ZM-101B handle temperature gradients during field use?
The integrated thermistor is positioned adjacent to the measurement zone and samples ambient air temperature continuously — minimizing thermal lag effects typical in portable flow calibrators.
