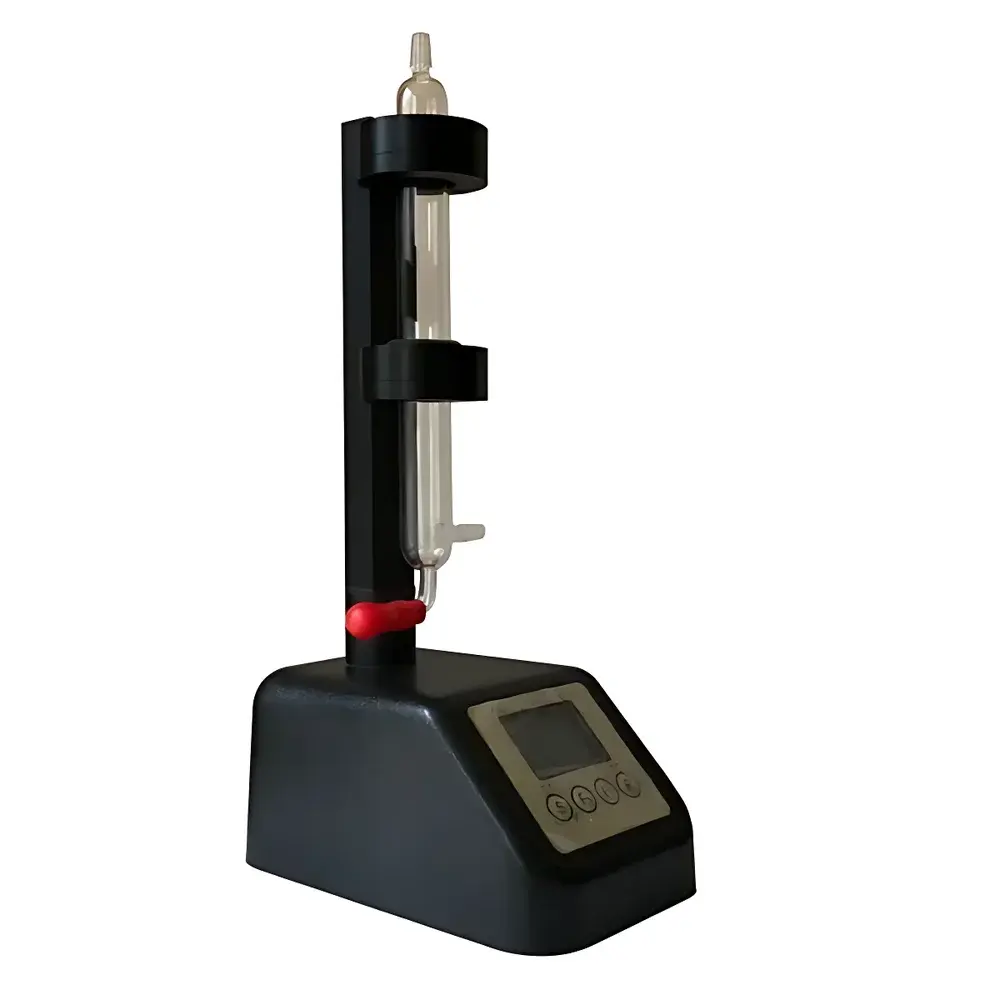

Beifen Sanpu ZM-102B Electronic Soap Film Flowmeter

Overview

The Beifen Sanpu ZM-102B Electronic Soap Film Flowmeter is a precision volumetric flow calibration instrument engineered for laboratory-grade verification and adjustment of low-to-moderate gas flow devices. It operates on the fundamental principle of soap film displacement timing—where a calibrated soap film is drawn across a vertically oriented, temperature-stabilized glass tube; the time required for the film to traverse a known volume segment is measured optically via dual infrared sensors. This method delivers traceable, gravimetric-volumetric flow determination without reliance on fluid dynamics assumptions or pressure-dependent coefficients. Designed specifically for metrological traceability in environmental monitoring, occupational hygiene, analytical instrumentation support (e.g., GC carrier gas calibration), and academic research, the ZM-102B meets the technical requirements defined in China’s national verification regulation JJG 586–2006. Its compact monolithic architecture integrates optical sensing, microprocessor-controlled timing logic, real-time environmental compensation, and embedded power management—making it suitable for both benchtop use and field-deployable calibration workflows.

Key Features

• Microprocessor-driven measurement engine with automatic calculation of volumetric flow (mL/min), mass flow (standardized to 25 °C, 101.325 kPa), elapsed time, ambient temperature, and absolute pressure
• Dual high-sensitivity infrared optical sensors with self-diagnostic capability—enabling real-time photometric output monitoring and user-adjustable sensitivity via internal potentiometer calibration
• Integrated environmental compensation: simultaneous temperature (±0.5 °C) and pressure (±0.5 kPa) sensing for NTP/STP conversion per ISO 6145-1 and ASTM D6156
• High-resolution timing system: internal clock resolution of 0.01 s, displayed to 0.1 s; supports repeat measurements with statistical reporting (mean, SD, CV%)
• Intelligent power architecture: rechargeable 4.8 V / 700 mAh lithium-ion battery with state-of-charge indicator, auto-sleep mode (backlight off after 60 s, full shutdown after 300 s), and 9 V DC bypass charging interface
• Compact ergonomic design: all-in-one housing (90 × 150 × 280 mm), total mass 1.3 kg, optimized for portability and stability on vibration-sensitive surfaces

Sample Compatibility & Compliance

The ZM-102B is validated for use with clean, non-corrosive, non-condensing gases—including air, nitrogen, helium, oxygen, and synthetic calibration mixtures—at ambient temperatures between 5–40 °C and atmospheric pressures from 80–106 kPa. It is not intended for liquid-phase flow measurement or for use with vapors that may degrade soap film integrity (e.g., alcohols, acetone, or high-humidity streams). The instrument conforms to JJG 586–2006, which specifies performance criteria for primary standard soap film flowmeters used in verification laboratories. While not certified to ISO/IEC 17025 or ANSI/NCSL Z540, its documented accuracy (±1%), repeatability (<0.5%), and traceable calibration methodology support its deployment in GLP-aligned environments where documented uncertainty budgets are maintained internally. Users are advised to perform routine verification using certified reference flow standards prior to critical calibration tasks.

Software & Data Management

The ZM-102B operates autonomously without PC dependency; all data acquisition, computation, and display occur onboard. Measurement results—including raw transit time, corrected volume, calculated flow rate, temperature, pressure, and sensor status—are retained in volatile memory for immediate review. No proprietary software, USB interface, or cloud connectivity is provided; data export requires manual transcription. However, the device supports audit-ready operation: each measurement cycle logs timestamped parameters in sequence, enabling reconstruction of calibration events for internal QA documentation. For regulated environments requiring electronic record integrity (e.g., FDA 21 CFR Part 11), users must implement supplementary procedural controls—such as dual-operator verification, handwritten logbook cross-referencing, and periodic independent validation against NIST-traceable transfer standards.

Applications

• Calibration and verification of personal and area atmospheric sampling pumps (e.g., OSHA ID-121, NIOSH 0500/0600 methods)
• Field and lab verification of dust and aerosol sampler flow rates per ISO 7708 and EN 481
• Carrier gas and auxiliary gas flow validation for gas chromatography systems (GC, GC-MS), ensuring retention time stability and detector response linearity
• Periodic verification of rotameters, critical orifice meters, and laminar flow elements used in emission testing and process control
• Flow characterization of low-flow gas delivery modules in semiconductor tooling, fuel cell test benches, and controlled-environment chambers
• Teaching applications in undergraduate fluid mechanics and analytical chemistry labs—demonstrating first-principles flow metrology without complex fluid modeling

FAQ

What is the recommended recalibration interval for the ZM-102B?
Beifen Sanpu recommends annual verification against a certified reference standard; more frequent checks (e.g., daily pre-use verification) are advised when used in regulatory compliance workflows.
Can the ZM-102B measure humidified or CO₂-rich gas streams?
Yes—provided the soap solution remains stable and film formation is consistent. However, high humidity (>80% RH) or acidic gases may reduce film lifetime; users should validate film continuity visually before each measurement series.
Does the instrument support custom temperature/pressure reference conditions?
No—the built-in compensation uses fixed NTP (25 °C, 101.325 kPa) as the default standard condition. Manual recalculation to alternate bases (e.g., STP, SATP) must be performed externally using recorded T/P values.
Is the soap film tube replaceable in the field?
Yes—the borosilicate glass tube is a user-serviceable component; replacement kits including calibrated tube, soap solution, and alignment jig are available directly from Beifen Sanpu.
How does the ZM-102B handle transient or pulsating flows?
It is designed exclusively for steady-state flow measurement. Pulsations exceeding ±5% of mean flow will compromise film stability and invalidate timing accuracy; upstream dampening or averaging valves are required for such sources.
