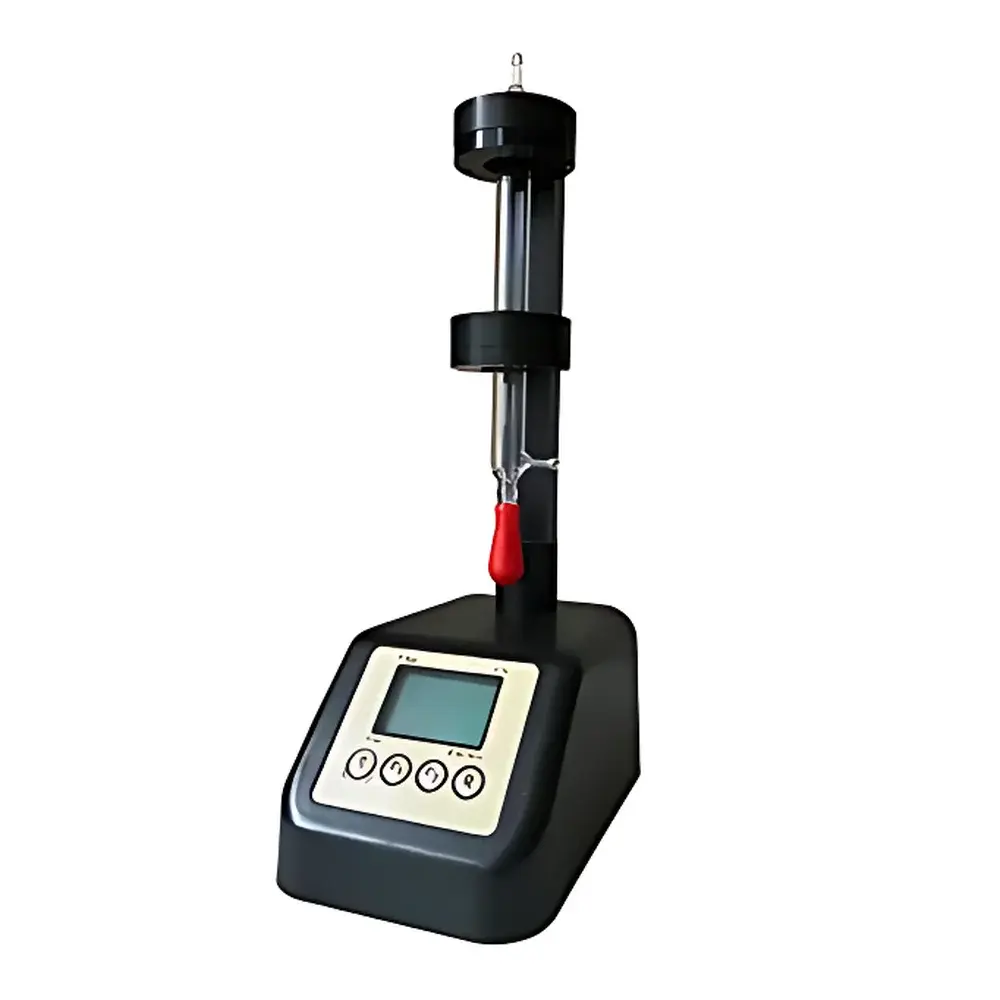

Beifen Sanpu ZM-102B Electronic Soap Film Flowmeter

Overview

The Beifen Sanpu ZM-102B Electronic Soap Film Flowmeter is a portable, microprocessor-controlled volumetric flow calibration instrument engineered for high-accuracy measurement and verification of low-to-moderate gas flow rates in laboratory, field, and industrial settings. It operates on the fundamental principle of soap film displacement: a precisely formed soap bubble traverses a calibrated glass tube between two optical sensors, and the elapsed time between sensor actuations—combined with the known internal volume of the measured segment—is used to compute volumetric flow rate (mL/min) under actual temperature and pressure conditions. The device integrates real-time temperature and pressure compensation algorithms compliant with JJG 586–2006, enabling traceable, corrected flow values referenced to standard conditions (e.g., 25 °C, 101.325 kPa). Unlike thermal mass or differential pressure flowmeters, the ZM-102B delivers inherently stable, zero-drift measurements independent of gas composition—making it ideal for calibrating critical sampling devices where repeatability and metrological integrity are paramount.

Key Features

• Microcontroller-based operation with automatic data acquisition, calculation, and display of volumetric flow (mL/min), mass flow (standardized), elapsed time (0.01 s resolution), ambient temperature (±0.5 °C), and barometric pressure (±0.5 kPa).
• Dual infrared optical sensors with adjustable sensitivity via internal potentiometer; built-in self-diagnostic function verifies sensor alignment and signal integrity prior to measurement.
• Integrated rechargeable 4.8 V / 700 mAh Ni-MH battery supporting >24 h standby and ≥500 charge cycles; external 9 V DC input enables simultaneous operation and float charging.
• Energy-efficient power management: backlight auto-dims after 60 seconds of inactivity; full shutdown initiated after 300 seconds without user input.
• Compact monolithic design (90 × 150 × 280 mm, 1.3 kg) housing the soap film tube, optical path, electronics, and battery in a single rugged enclosure—optimized for field portability and benchtop stability.
• Calibrated volumetric segment certified per JJG 586–2006; factory-assigned volume constant permanently stored in non-volatile memory—user modification prohibited to preserve metrological traceability.

Sample Compatibility & Compliance

The ZM-102B is compatible with all non-corrosive, non-condensing gases—including air, nitrogen, oxygen, helium, and synthetic calibration mixtures—at flow rates from 1 to 1000 mL/min. It is not intended for use with vapors, aerosols, or reactive gases (e.g., Cl₂, NH₃, H₂S) that may degrade the soap film or attack the borosilicate glass tube. The instrument meets the technical requirements specified in JJG 586–2006 for primary calibration of low-flow gas meters and is routinely employed in laboratories operating under GLP (Good Laboratory Practice) and ISO/IEC 17025 frameworks. While not FDA 21 CFR Part 11–certified out-of-the-box, its audit-ready measurement logs—including timestamps, raw sensor triggers, environmental parameters, and operator-initiated calibration flags—support integration into validated workflows when paired with controlled documentation procedures.

Software & Data Management

The ZM-102B performs all calculations internally using embedded firmware; no external PC software is required for basic operation. All measurement records—including date/time stamp, uncorrected transit time, measured temperature/pressure, calculated volumetric and standardized flow, and pass/fail status—are retained in volatile memory until overwritten. Data export is manual: users record results directly from the LCD display into lab notebooks or LIMS-compatible spreadsheets. For regulatory environments requiring electronic records, the device supports manual transcription into validated systems with full operator attribution and review trails. Firmware does not store historical datasets beyond the current session; therefore, routine manual logging is essential for compliance with ISO 17025 clause 7.5.2 (control of recorded data) and EPA Method TO-15/TO-17 calibration documentation requirements.

Applications

• Calibration and verification of personal and area atmospheric sampling pumps (e.g., SKC, Gilian, Sensidyne models) per NIOSH Manual of Analytical Methods (NMAM) Chapter 2.
• Field validation of dust and aerosol samplers (e.g., IOM, Button, PM₁₀/PM₂.₅ cyclones) prior to and during occupational exposure monitoring campaigns.
• Verification of carrier and auxiliary gas flows in GC systems—including split/splitless injectors, detector make-up gas, and purge-and-trap interfaces—ensuring method reproducibility per ASTM D3612 and USP .
• Primary calibration of rotameters, critical orifice meters, and laminar flow elements used in environmental emission testing (e.g., EPA Method 5, 17, 25).
• Flow characterization of small-bore gas delivery lines, permeation tubes, and diffusion sources in analytical standards preparation.
• Teaching and demonstration of volumetric flow principles in university chemistry, environmental science, and instrumentation labs—aligned with ABET-accredited curriculum outcomes.

FAQ

What gases can be measured with the ZM-102B?
The instrument is validated for dry, non-reactive, non-condensing gases including air, N₂, O₂, He, Ar, and CO₂ at ambient temperatures. Avoid use with corrosive, solvent-laden, or high-humidity streams.
Does the ZM-102B require annual recalibration?
Yes. Per JJG 586–2006, periodic verification against a national standard or accredited reference flowmeter is mandatory at least once per year—or after any physical impact to the glass tube—to maintain traceability.
How is temperature and pressure compensation applied?
The device measures ambient T and P in real time, then applies the ideal gas law to convert observed volumetric flow to standardized conditions (typically 25 °C, 101.325 kPa); compensation coefficients are fixed per unit calibration certificate.
Can the internal volume constant be modified by the user?
No. The calibrated segment volume is factory-determined and write-protected in firmware. Unauthorized adjustment invalidates metrological traceability and voids compliance with JJG 586–2006.
Is the ZM-102B suitable for cleanroom or pharmaceutical applications?
It may be deployed in such environments provided proper cleaning (isopropanol rinse, lint-free wipe) and documented handling procedures are followed; however, it lacks IP-rated sealing or sterile interface options required for Grade A/B cleanrooms.
