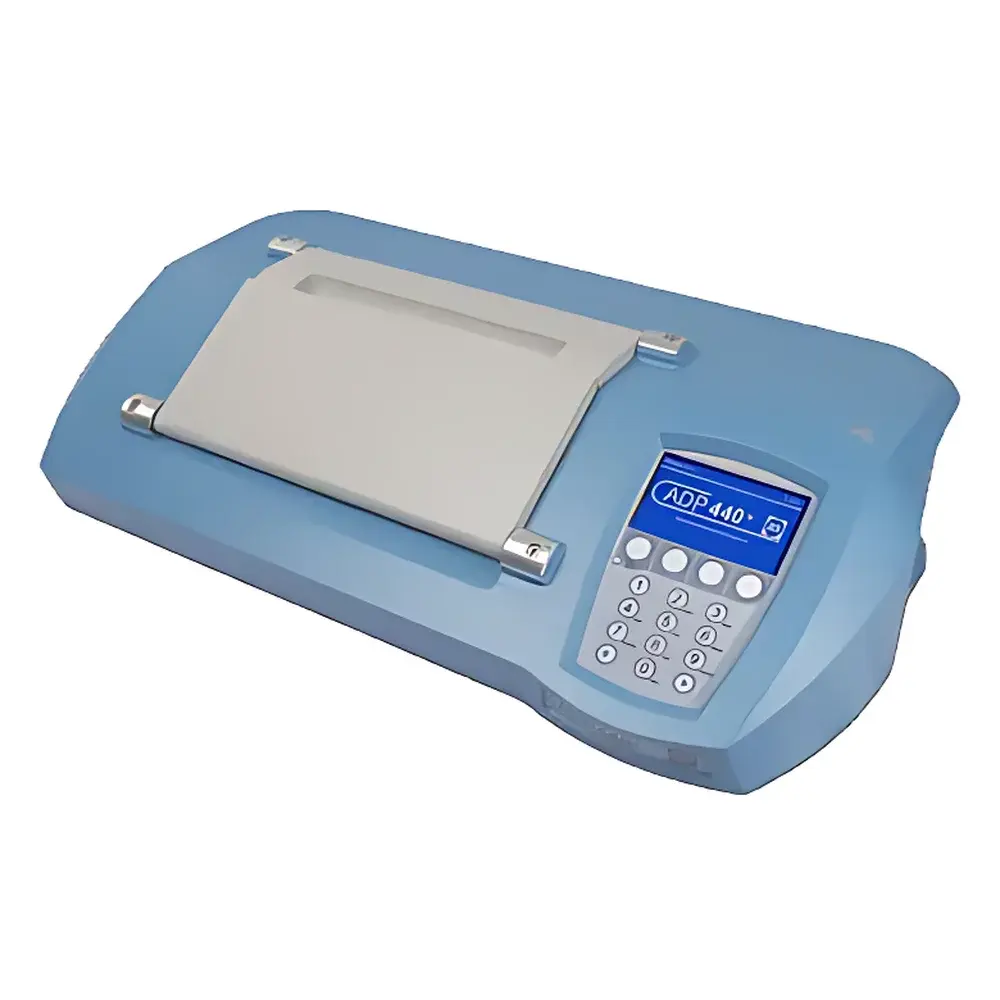

Bellingham + Stanley ADP 440+ Desktop Automatic Polarimeter and Refractometer

Overview

The Bellingham + Stanley ADP 440+ is a dual-function benchtop analytical instrument engineered for high-precision polarimetric and refractometric measurements in regulated laboratory environments. Operating on the fundamental principle of optical rotation—where plane-polarized light undergoes angular deviation upon passage through optically active chiral substances—the ADP 440+ delivers traceable, reproducible results across pharmaceutical, food & beverage, and fine chemical applications. Its integrated refractometry module enables concurrent determination of refractive index (n_D) under identical thermal conditions, supporting correlative analysis of concentration, purity, and molecular asymmetry. The system employs a thermally stabilized Peltier-controlled sample compartment (±0.1 °C regulation) to eliminate thermal drift—a critical requirement for pharmacopoeial compliance and long-term method validation. Unlike legacy sodium-vapor lamp-based systems, the ADP 440+ utilizes a solid-state 589 nm LED light source certified to maintain spectral stability and intensity over >100,000 operating hours, eliminating warm-up time and lamp replacement cycles.

Key Features

• Peltier-assisted temperature regulation (range: 10–40 °C, resolution: 0.1 °C) ensures compliance with USP and EP 2.2.7 thermal conditioning requirements
• Automatic calibration verification using NIST-traceable quartz control plates, logged with timestamp and operator ID
• Simultaneous polarimetric and refractometric measurement capability within a single instrument footprint
• Chemical-resistant IP65 enclosure rated for exposure to ethanol, acetone, citric acid, and common process solvents
• Real-time digital display showing optical rotation (°), specific rotation ([α]), refractive index (n_D), temperature (°C), and absorbance (OD)
• Configurable output scales: standard angular scale (°), International Sugar Scale (°Z), and up to three user-defined scales for proprietary formulations
• Full 21 CFR Part 11 functionality: role-based access control, electronic signatures, immutable audit trail, and secure data export

Sample Compatibility & Compliance

The ADP 440+ accommodates standard 100 mm and 200 mm pathlength cells—including jacketed, flow-through, and disposable variants—for aqueous, alcoholic, and viscous media. It supports direct analysis of syrups, essential oils, APIs, fermentation broths, and dairy concentrates without dilution or filtration in most cases. Regulatory alignment extends beyond pharmacopoeias: the instrument’s firmware implements ALCOA+ data integrity principles (Attributable, Legible, Contemporaneous, Original, Accurate) and supports full GxP audit readiness. All measurement records include embedded metadata: date/time stamp, operator ID, cell serial number, calibration status, ambient humidity/temperature, and instrument firmware version—ensuring full traceability per ISO/IEC 17025 and MHRA expectations.

Software & Data Management

Instrument control and data handling are managed via the optional PolaSoft™ v5.2 software suite (Windows 10/11 compatible), which provides method templates for USP, EP, and JP monographs; automated report generation (PDF/CSV/XML); and LIMS integration via ASTM E1384-compliant drivers. Raw data files are stored in encrypted binary format with SHA-256 checksums. Audit trail entries record every parameter change, calibration event, and result modification—including before/after values and justification fields. Data backups comply with 21 CFR Part 11 §11.10(e) retention policies and may be archived to network drives or validated cloud storage endpoints.

Applications

• Pharmaceutical QC: Identity testing and assay of chiral APIs (e.g., levodopa, ibuprofen, chloramphenicol), excipient purity assessment, and stability-indicating methods
• Sugar & Sweetener Production: Brix and % sucrose quantification in cane/beet juice, molasses, HFCS, and confectionery syrups per ICUMSA methods
• Flavor & Fragrance: Optical purity verification of limonene, menthol, and citral isomers during synthesis and blending
• Fermentation Monitoring: Real-time tracking of D-glucose/L-fructose ratios in yeast and bacterial cultures
• Academic Research: Teaching optical activity fundamentals, stereochemical analysis in organic chemistry labs, and method development for novel chiral compounds

FAQ

Does the ADP 440+ require annual recalibration by a certified service provider?
No—routine recalibration is performed automatically using the onboard quartz reference plate. However, annual performance verification against NIST-traceable standards is recommended for ISO/IEC 17025 accreditation.
Can the instrument measure samples with suspended particulates?
Yes, provided the suspension is homogeneous and non-settling during measurement; optional vibration-stabilized sample holders are available for turbid media.
Is refractive index measurement traceable to CIPM standards?
Yes—refractometry module is calibrated against certified sucrose solutions referenced to CIPM-2007 water density tables and NIST SRM 84d.
What validation documentation is supplied with the instrument?
Factory-issued IQ/OQ protocols, 21 CFR Part 11 configuration specification, and a Certificate of Conformance including metrological traceability statement.
Can custom calculation formulas be programmed into the instrument firmware?
Yes—up to five user-defined equations may be loaded via PolaSoft™, supporting dynamic conversion between [α], % w/w, and molar concentration based on molecular weight input.
