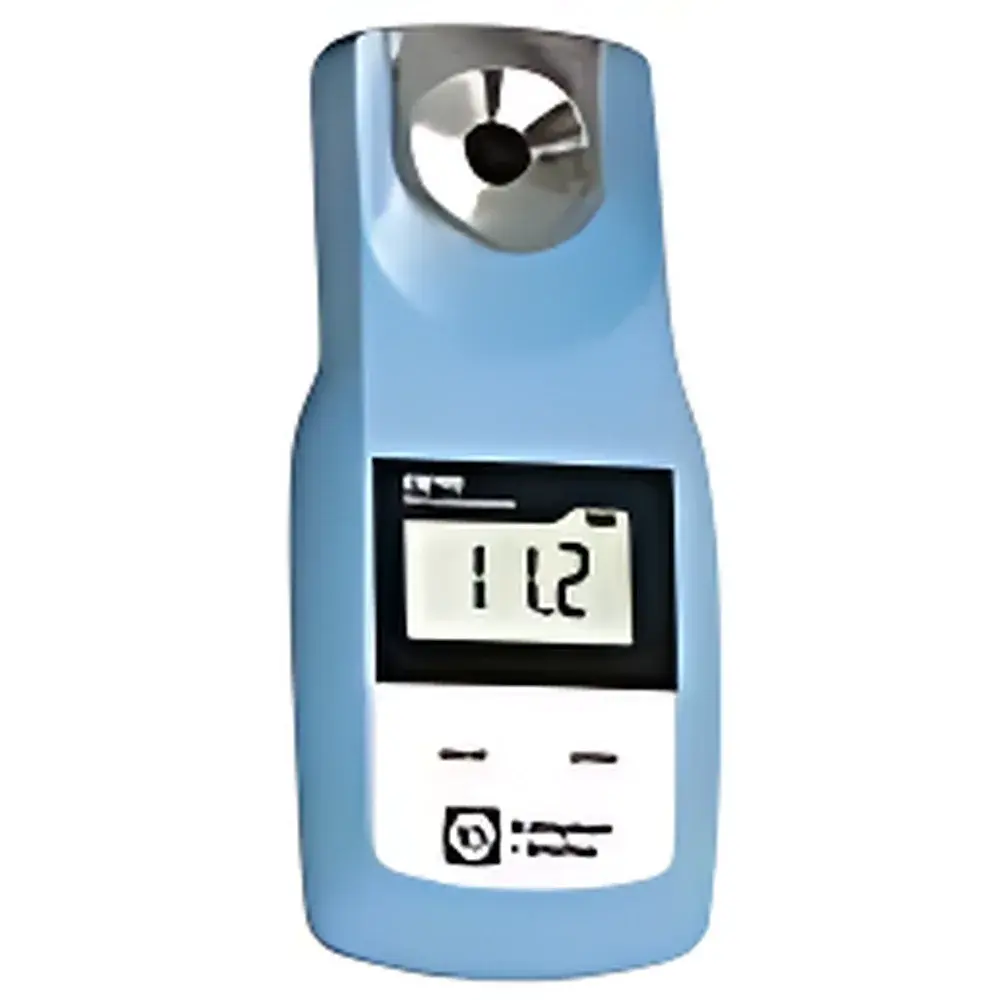

Bellingham + Stanley OPTi RI 1.42 Digital Handheld Refractometer

Overview

The Bellingham + Stanley OPTi RI 1.42 Digital Handheld Refractometer is a precision optical instrument engineered for rapid, field-deployable measurement of refractive index (RI) in liquid and semi-liquid samples. Based on the principle of total internal reflection at the prism-sample interface, the device determines RI by detecting the critical angle shift induced by sample density and composition. Its optical path is optimized for high signal-to-noise ratio and minimal thermal drift, ensuring stable readings across ambient temperature fluctuations. Designed and manufactured in the United Kingdom, the OPTi RI 1.42 complies with ISO 21748 (Guidance for the use of repeatability, reproducibility and trueness estimates in measurement uncertainty evaluation) and aligns with metrological best practices for portable optical measurement tools. It is not intended for absolute primary standardization but delivers traceable, repeatable results suitable for routine quality control, process monitoring, and incoming material verification.

Key Features

• Ergonomic, one-handed operation with balanced weight distribution and non-slip textured grip — optimized for extended use in production environments or outdoor conditions.
• Automatic Temperature Compensation (ATC) integrated via high-stability thermistor embedded adjacent to the sapphire prism surface, compensating across 10–40 °C without external calibration adjustments.
• Shallow-depth prism chamber minimizes sample volume requirement (≤0.1 mL) and enables rapid cleaning between measurements using lint-free wipes or ethanol rinse — critical for cross-contamination-sensitive applications in pharmaceutical or food-grade settings.
• IP65-rated enclosure provides full protection against dust ingress and low-pressure water jets, enabling reliable operation in humid processing areas, cold rooms, fermentation bays, or field-based agricultural testing.
• Digital LCD display with backlight ensures legibility under variable lighting conditions; resolution of 0.0001 RI supports detection of subtle compositional changes (e.g., sugar concentration gradients in syrup batches or solvent purity shifts in API synthesis).
• Factory-calibrated using NIST-traceable reference liquids; user-performed zero-point calibration with deionized water conforms to ASTM D1218 and ISO 2859-1 sampling protocols.

Sample Compatibility & Compliance

The OPTi RI 1.42 accommodates aqueous solutions, glycerol-water mixtures, organic solvents (e.g., ethanol, isopropanol), syrups, fruit juices, brines, and emulsions with viscosity ≤500 mPa·s. Samples must be optically clear or mildly turbid (NTU < 30); highly suspended or opaque media require centrifugation or filtration prior to analysis. The instrument meets requirements for GMP-aligned environments when used within documented SOPs: audit trails are maintained via optional PC connectivity (RS-232), supporting FDA 21 CFR Part 11 compliance when paired with validated data acquisition software. It is routinely deployed in facilities operating under ISO 9001, ISO 22000, and ICH Q7 frameworks.

Software & Data Management

While standalone operation requires no software, the OPTi RI 1.42 features an RS-232 serial interface compatible with Bellingham + Stanley’s optional DataLink software (v4.2+). This application enables real-time data logging, statistical process control charting (X-bar/R), export to CSV/Excel, and generation of GLP-compliant reports including operator ID, timestamp, ambient temperature, and calibration history. All stored datasets retain embedded metadata required for internal audits or regulatory inspections. Firmware updates are delivered via secure USB-to-serial adapter and validated per IEC 62304 Class B software lifecycle requirements.

Applications

• Food & Beverage: Brix estimation in fruit concentrates, honey adulteration screening, salt content verification in pickling brines, and alcohol-by-volume (ABV) approximation in fermented beverages.
• Pharmaceuticals: Excipient concentration checks (e.g., propylene glycol in oral solutions), solvent recovery validation in lyophilization cycles, and osmolality proxy assessment for parenteral formulations.
• Chemicals & Coatings: Glycol/water ratio monitoring in heat-transfer fluids, resin solids content tracking during polymer synthesis, and surfactant concentration control in industrial cleaners.
• Agriculture & Research: Plant sap solute potential estimation, fertilizer solution verification in hydroponics, and rapid field screening of essential oil dilution integrity.

FAQ

Is the OPTi RI 1.42 suitable for measuring highly viscous or particulate-laden samples?
No — samples must be optically homogeneous and free of suspended solids or air bubbles. Viscosity should not exceed 500 mPa·s; higher-viscosity media require pre-dilution or alternative instrumentation such as Abbe-type benchtop refractometers.
Does the unit support multi-point calibration?
It supports single-point zero calibration using deionized water only. Multi-point calibration is not implemented in firmware; users requiring expanded range verification must rely on certified reference standards traceable to national metrology institutes.
Can the device be validated for regulated QC laboratories?
Yes — when operated within a documented calibration schedule, environmental control log, and electronic record retention system, it satisfies IQ/OQ/PQ elements for Category C instruments under EU Annex 11 and USP .
What maintenance is required beyond routine cleaning?
Annual verification against certified RI standards (e.g., Cargille Labs series) is recommended; prism surface inspection for micro-scratches using 10× magnification should accompany each quarterly preventive maintenance review.
