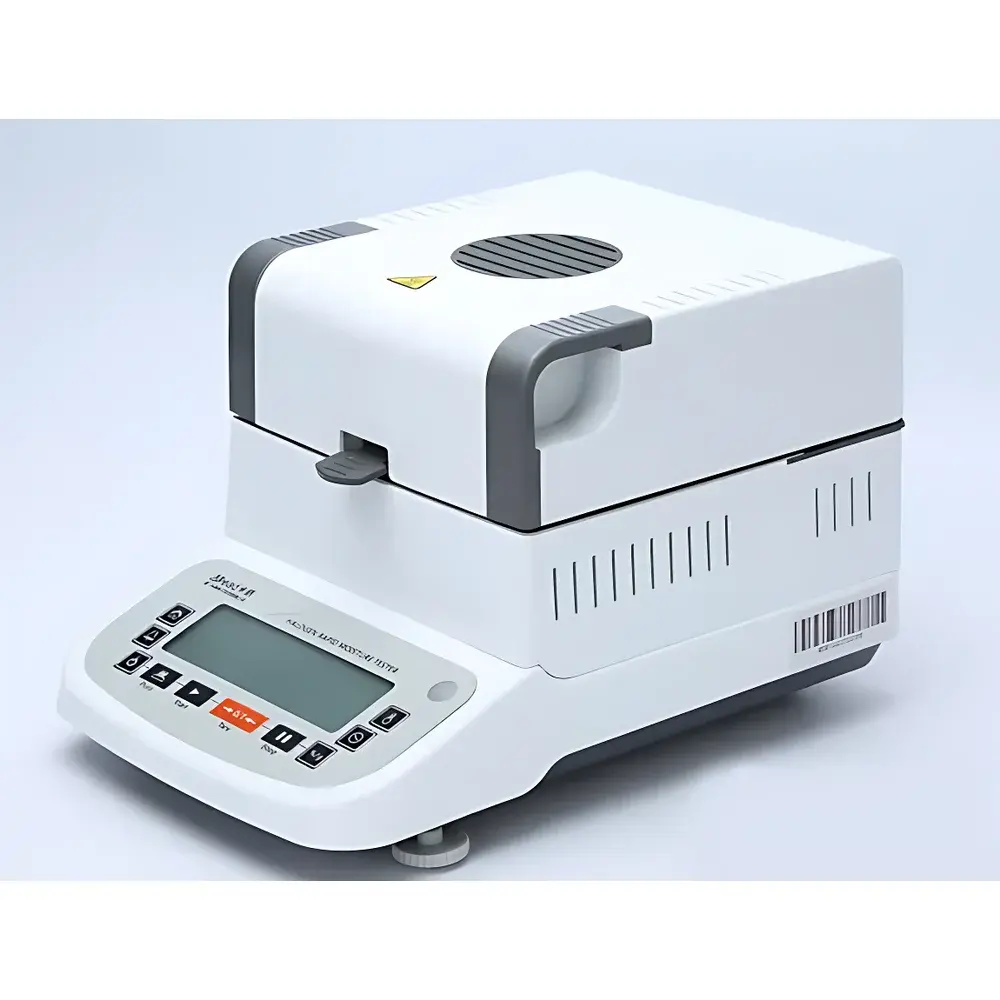

BenAng MA-8 High-Precision Halogen Moisture Analyzer

Overview

The BenAng MA-8 High-Precision Halogen Moisture Analyzer is a laboratory-grade thermal gravimetric instrument engineered for rapid, reproducible quantification of free moisture content in solid and semi-solid samples via halogen-assisted infrared drying coupled with high-resolution electromagnetic force compensation weighing. Unlike conventional oven-drying methods requiring hours, the MA-8 leverages optimized thermal radiation physics—specifically, broadband halogen emission (peak ~1.2 µm) combined with SRA (Secondary Radiation Assistance) reflector geometry—to achieve uniform surface-to-core heat transfer, minimizing thermal degradation while accelerating evaporation kinetics. Its SHS-series electromagnetic force sensor delivers 0.1 mg static resolution and sub-microgram dynamic stability, enabling precise real-time mass tracking during dehydration. The system operates on the fundamental principle of loss-on-drying (LOD), calculating moisture % as (m_initial − m_final) / m_initial × 100, where m_final is determined either by endpoint detection (auto-termination based on mass change threshold) or user-defined time/temperature protocols.

Key Features

• Halogen heating module with integrated SRA radiation enhancer ensures rapid, homogeneous thermal distribution across the 102 mm diameter sample pan—reducing average analysis time by up to 60% versus conventional IR systems.
• SHS electromagnetic force compensation sensor provides 0.1 mg readability and drift-compensated zero-point recalibration between consecutive measurements, maintaining metrological integrity under ambient lab fluctuations.
• Patented lamp protection window isolates the halogen emitter from sample spatter and volatile condensates, extending lamp service life and eliminating optical contamination-induced calibration drift.
• Ergonomic wing-style lid handle and heat-resistant pan grip minimize operator exposure during hot-sample handling—designed in accordance with ISO 13857 safety clearance guidelines for laboratory equipment.
• Integrated humidity control chamber mitigates ambient moisture reabsorption during cooling phases, critical for hygroscopic materials such as pharmaceutical excipients or dried food matrices.
• Hot-swap halogen lamp design allows field replacement without system shutdown or recalibration—supporting continuous operation in high-throughput QC environments.

Sample Compatibility & Compliance

The MA-8 accommodates diverse physical forms—including granules, powders, flakes, pastes, and thin films—with no requirement for pre-grinding or homogenization when sample mass ≥3 g. It complies with internationally recognized standard methods including ASTM D4017 (moisture in plastics), ISO 1183-2 (density and moisture of plastics), and USP (Loss on Drying). All measurement events are timestamped and logged with full audit trail metadata (operator ID, method parameters, raw mass vs. time series, final result, environmental conditions). Data export supports CSV and TXT formats via RS-232 interface, facilitating integration into LIMS platforms compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures.

Software & Data Management

The MA-8’s embedded firmware enables dual-mode operation: manual (user-initiated start/stop), timed (fixed-duration drying), or automatic (dynamic endpoint detection based on configurable mass-change thresholds: e.g., ≤0.1 mg/min over 60 s). Real-time graphical display shows simultaneous plots of temperature profile, cumulative mass loss, and calculated moisture % against elapsed time. Internal memory stores ≥1,000 test records with full traceability. Optional PC software (sold separately) provides advanced statistical analysis (RSD, trend charts, method validation reports), batch report generation, and GLP-compliant electronic signature workflows. All data fields—including calibration logs, maintenance history, and user access logs—are write-protected and tamper-evident.

Applications

This analyzer is routinely deployed in quality control laboratories across regulated and non-regulated sectors: moisture verification of polymer pellets prior to extrusion (ASTM D6980), residual solvent quantification in lyophilized pharmaceuticals (ICH Q5C), water activity screening in cereal-based snacks (AOAC 950.46), moisture profiling of tea leaves during roasting (ISO 15172), and incoming raw material inspection for feed-grade soybean meal (AACC 44-15A). Its 0.001% moisture resolution and ±0.0002% repeatability make it suitable for method transfer studies supporting regulatory submissions under EMA and PMDA guidelines.

FAQ

What standards does the MA-8 comply with for pharmaceutical moisture testing?
The MA-8 supports USP and ICH Q5C methodologies; its data structure and audit trail meet ALCOA+ principles required for GMP documentation.
Can the MA-8 measure bound water or only free moisture?
It quantifies total volatiles lost below 200 °C—primarily free water and low-boiling solvents. Bound water (e.g., hydrate water) requires higher-temperature TGA coupling.
Is calibration traceable to national standards?
Yes—internal calibration uses NIST-traceable weights (Class E2); optional external verification kits include certified reference materials per ISO/IEC 17025.
Does the system support multi-point temperature validation?
Built-in PT100 sensor accuracy is ±1 °C; optional external probe ports allow concurrent validation using calibrated thermocouples per ASTM E2251.
How is data integrity ensured during power interruption?
Non-volatile flash memory retains all active and completed test data; unsaved sessions auto-resume upon reboot with timestamp continuity.
