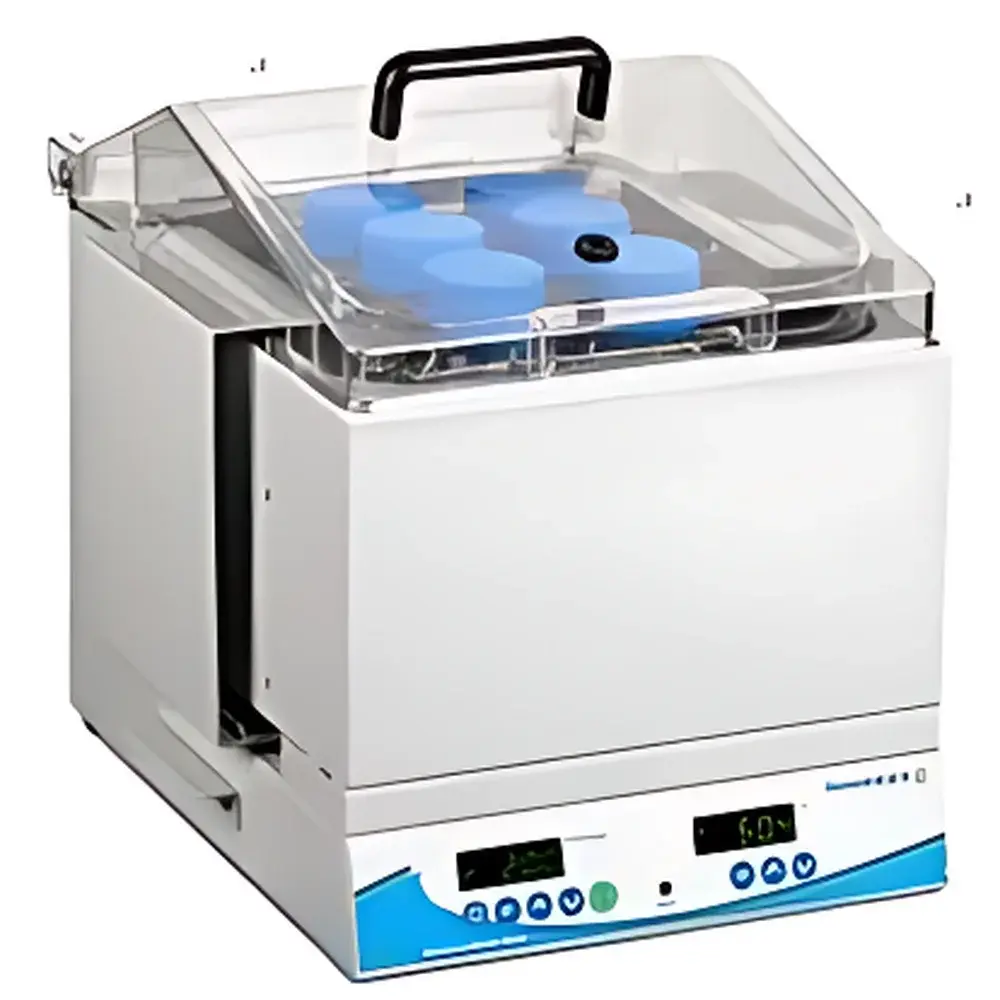

Benchmark SB-12L Oscillating Water Bath

Overview

The Benchmark SB-12L Oscillating Water Bath is an engineered solution for precise temperature-controlled sample agitation in life science, clinical diagnostics, and pharmaceutical laboratories. Unlike static water baths, this unit employs a controlled oscillatory motion—based on a balanced eccentric drive mechanism—to induce gentle yet consistent horizontal displacement of the bath platform. This motion enhances convective heat transfer and ensures uniform thermal exposure across heterogeneous sample configurations, particularly critical for applications requiring simultaneous incubation and mixing, such as enzyme reactivation, antigen-antibody binding, cell suspension maintenance, and solubility studies. Designed and assembled in the United States, the SB-12L features a seamless, electropolished 304 stainless steel chamber resistant to corrosion from aqueous buffers, saline solutions, and mild detergents. Its maximum operating temperature of 80°C supports accelerated stability testing protocols compliant with ICH Q1A(R3) guidelines, while its low thermal mass enables rapid equilibration and tight setpoint adherence.

Key Features

• Seamless 12 L stainless steel chamber with integrated drain valve for easy cleaning and maintenance
• Spring-loaded platform accommodating standard 15 mL and 50 mL conical tubes, as well as Erlenmeyer flasks and metal bottles up to 1 L capacity
• Hinged, insulated lid with condensate management channels that direct moisture away from samples—preventing cross-contamination and maintaining sterility integrity
• Digital microprocessor controller with independent real-time monitoring of temperature, oscillation speed, and elapsed time
• Precise temperature control: ±0.3°C accuracy and ±0.2°C uniformity at 37°C—validated per ASTM E1112 for laboratory water baths
• Adjustable oscillation range: 30–200 rpm in 1 rpm increments, with fixed 25 mm stroke optimized for reproducible mixing without foaming or splashing
• Programmable timer supporting durations from 1 minute to 48 hours—or indefinite continuous operation for long-term assays
• Universal power compatibility: factory-configurable for either 115 V / 60 Hz or 230 V / 50 Hz operation; 300 W nominal power draw ensures energy-efficient performance

Sample Compatibility & Compliance

The SB-12L accommodates a broad range of vessel geometries—including microcentrifuge tubes, culture tubes, glass vials, polypropylene flasks, and stainless-steel containers—without requiring custom adapters in most routine workflows. Optional tube racks (sold separately) are available for 0.2–2.0 mL PCR strips and microtiter plates, enabling high-throughput thermal cycling support in non-instrumented settings. The unit complies with UL 61010-1 and IEC 61010-1 safety standards for laboratory equipment. Its temperature stability profile meets requirements for GLP-compliant sample preparation under 21 CFR Part 58, and its traceable calibration capability supports audit readiness for ISO/IEC 17025-accredited labs. No internal fans or air circulation systems eliminate aerosol dispersion risks, making it suitable for BSL-2 environments where containment integrity is essential.

Software & Data Management

While the SB-12L operates via an intuitive front-panel interface with LED display and tactile keypad, it does not feature onboard data logging or USB/Ethernet connectivity. However, its analog output (0–5 V DC) for temperature and digital TTL pulse output for rotation status enable integration with external data acquisition systems (e.g., LabVIEW, MATLAB, or SCADA platforms) for automated process recording. Users performing regulated work may implement manual logbooks or electronic lab notebooks (ELNs) aligned with ALCOA+ principles—particularly when paired with NIST-traceable thermometers for periodic verification. The absence of embedded firmware eliminates cybersecurity vulnerabilities associated with networked instruments, aligning with FDA guidance on legacy device risk management (2022 Cybersecurity Guidance for Medical Devices).

Applications

• Hybridization and washing steps in Southern/Northern blotting workflows
• Cell dissociation and tissue digestion using collagenase or trypsin at controlled temperatures
• Antibody labeling and conjugation reactions requiring constant agitation and thermal stability
• DNA/RNA extraction protocols involving phenol-chloroform phase separation
• Stability assessment of biologics, vaccines, and excipient formulations per ICH Q5C
• Pre-incubation of agarose gels prior to electrophoresis to minimize crystallization artifacts
• Temperature-dependent solubility profiling of small-molecule APIs in early-stage formulation development

FAQ

Is the SB-12L compatible with CO₂-sensitive samples?

No—this is a non-humidified, open-bath system; it does not regulate atmospheric composition. For CO₂-dependent cultures, consider a dedicated CO₂ incubator or sealed chamber accessory.
Can the oscillation motion be disabled to use it as a static water bath?

Yes—the control panel includes a dedicated “Oscillation OFF” mode, allowing full utilization as a precision static bath while retaining all thermal performance specifications.
What is the recommended calibration frequency for GLP compliance?

Benchmark recommends quarterly verification using a calibrated NIST-traceable thermometer and mechanical tachometer, documented per SOP-QC-027.
Are replacement lids or custom platforms available?

Yes—Benchmark offers OEM-specified spare parts including insulated replacement lids and application-specific platforms (e.g., for 96-well plate support), subject to minimum order quantities.
Does the unit include a certificate of conformance or factory calibration report?

Each SB-12L ships with a Certificate of Conformance (CoC) verifying compliance with design specifications; optional IQ/OQ documentation packages are available upon request.
