BEQ BTF-1100C-IIIA Large-Diameter Vacuum & Atmosphere Tube Furnace

Overview

The BEQ BTF-1100C-IIIA is a high-performance large-diameter vacuum and controlled-atmosphere tube furnace engineered for advanced materials synthesis, thermal processing, and scalable laboratory-to-pilot transition experiments. Operating on resistive heating principles with Kanthal A1 or similar high-stability resistance wire elements, the furnace achieves precise, uniform thermal profiles across an extended isothermal zone—critical for reproducible solid-state reactions, ceramic sintering, and 2D material growth. Its core architecture centers on a Φ280 mm quartz tube capable of accommodating oversized or multiple samples simultaneously, enabling statistically robust batch processing and eliminating the need for repeated small-scale runs. Unlike standard tube furnaces limited by thermal gradient constraints, the BTF-1100C-IIIA integrates water-cooled hinged flanges at both ends to mitigate radial heat loss from the large-diameter envelope—thereby preserving seal integrity, extending gasket service life, and ensuring long-term vacuum stability (>10⁻³ mbar achievable with compatible turbomolecular or diffusion pumps). The system supports inert, reducing, oxidizing, and vacuum environments via integrated gas inlet/outlet manifolds and optional mass flow controllers, making it suitable for applications governed by ASTM E1113 (thermal analysis terminology), ISO 8573-1 (compressed air purity), and general GLP-compliant thermal treatment protocols.

Key Features

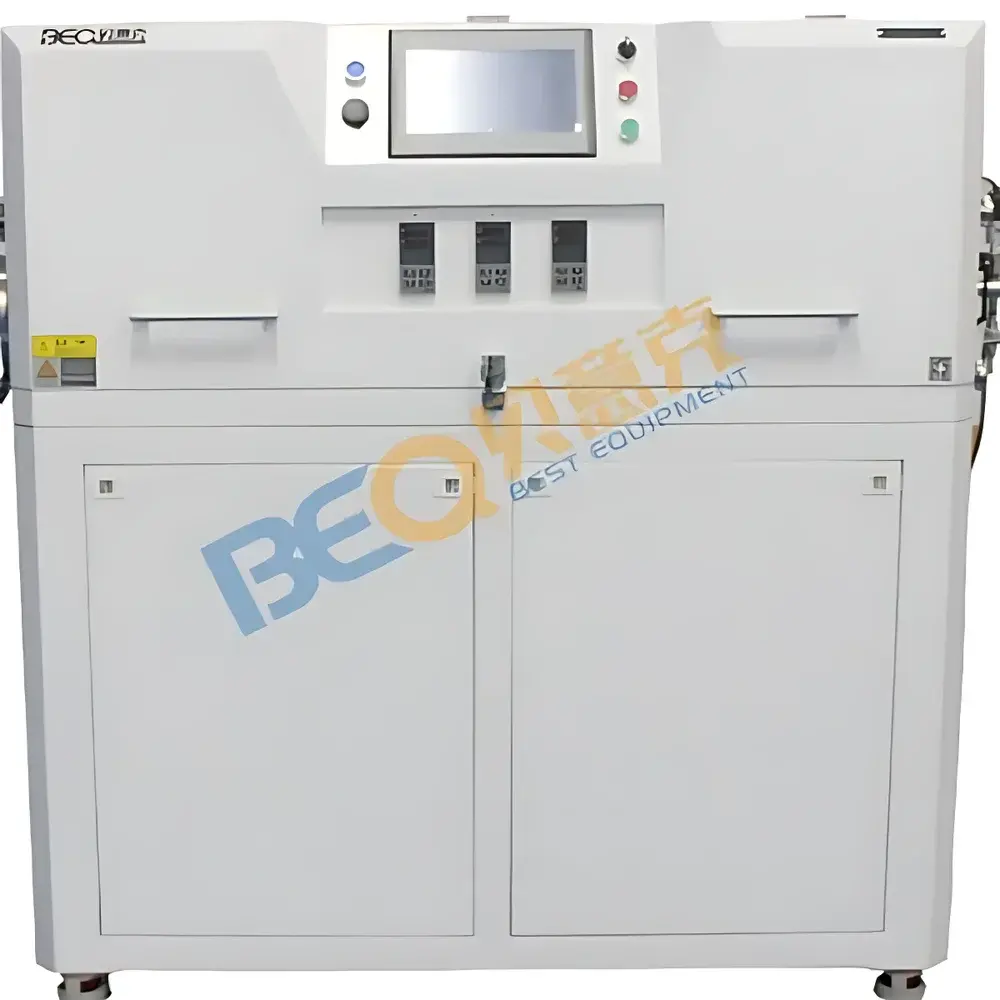

• Φ280 mm inner diameter fused quartz tube with >300 mm usable isothermal zone (±1°C uniformity) at 1100°C

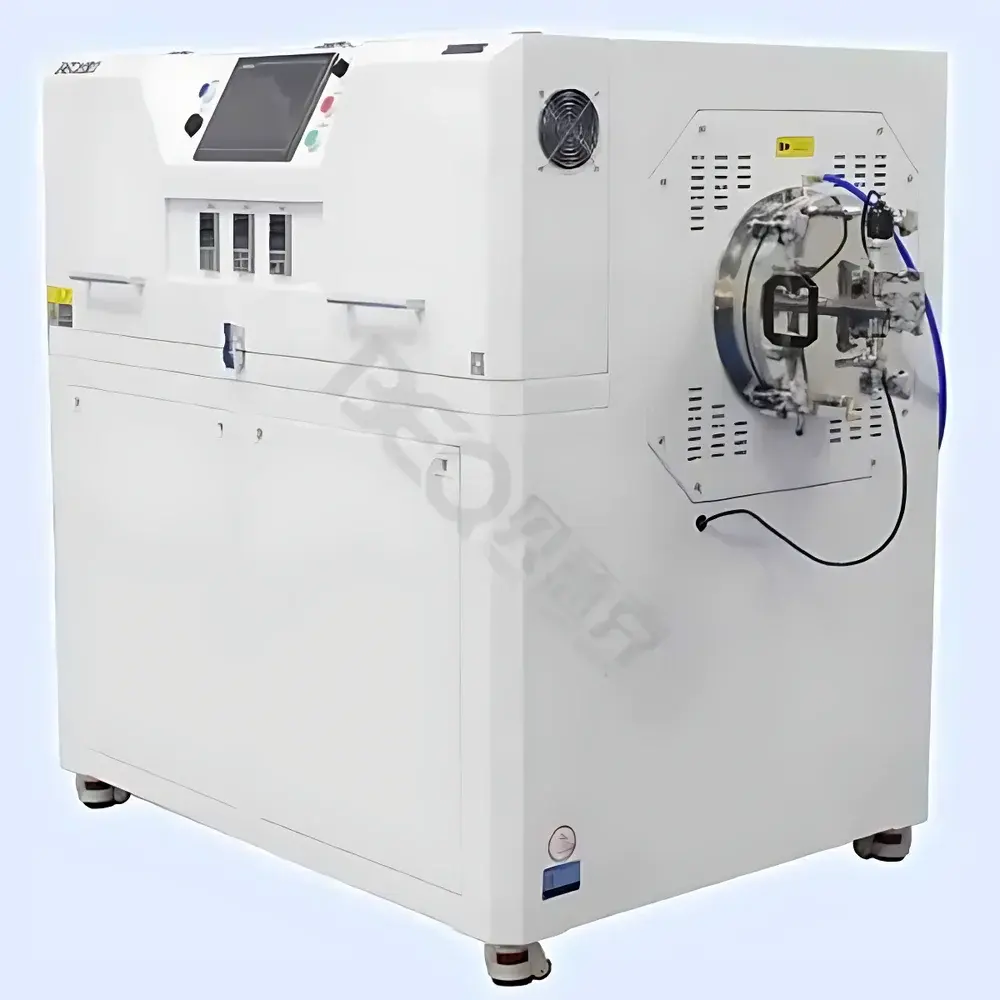

• Water-cooled hinged flange design minimizes thermal stress on O-rings and enables rapid, tool-free sample loading/unloading
• Integrated KF25 and KF16 auxiliary vacuum ports on exhaust side for seamless connection to scroll, turbo, or cryo pumps
• 30-stage programmable temperature controller with fuzzy PID algorithm, auto-tuning capability, and real-time deviation compensation
• Dual-safety architecture: independent over-temperature cutoff (hardware-based) and thermocouple break detection with audible/visual alarm
• Touchscreen HMI with data logging (USB export), password-protected parameter editing, and configurable ramp/soak profiles

Sample Compatibility & Compliance

The furnace accommodates diverse sample geometries—including stacked crucibles, multi-wafer substrates, and large-area CVD substrates—without compromising thermal homogeneity. Its wide-bore configuration supports in situ insertion of auxiliary components such as quartz boats, graphite susceptors, or coaxial inner tubes (e.g., for single-layer graphene synthesis via thermal CVD on Cu/Ni foils). All wetted parts comply with USP Class VI biocompatibility standards for quartz and stainless-steel 304/316L flange bodies. Vacuum performance meets ISO 2859-1 sampling requirements for leak integrity verification, and the control system supports audit trails aligned with FDA 21 CFR Part 11 when paired with optional Ethernet-enabled data acquisition modules.

Software & Data Management

The embedded controller records time-temperature-pressure (if external transducer connected) datasets at user-defined intervals (1–60 s resolution) and stores up to 100 complete thermal cycles locally. Exported CSV files are compatible with MATLAB, OriginLab, and JMP for statistical process analysis. Optional PC software (BEQ FurnaceLink™) provides remote monitoring, alarm notification via email/SMS, and calibration certificate generation traceable to NIST-standard reference thermocouples (Type S, Class 1). Firmware updates maintain alignment with evolving IEC 61508 functional safety guidelines for industrial thermal equipment.

Applications

• Large-area 2D material synthesis (graphene, h-BN, TMDs) using roll-to-roll compatible substrates
• Thermal annealing of battery electrode slurries and solid electrolyte composites
• Pilot-scale sintering of structural ceramics (Al₂O₃, SiC, ZrO₂) under argon or nitrogen
• Controlled oxidation/reduction of metal-organic frameworks (MOFs) and perovskite precursors
• Pre-sintering and debinding of MIM (metal injection molding) green parts
• High-temperature aging studies per MIL-STD-883 Method 1008 for electronic packaging materials

FAQ

What vacuum level can be achieved with the standard configuration?
With a compatible two-stage rotary vane pump, base pressure reaches ≤5×10⁻² mbar; adding a KF25-connected turbomolecular pump enables ≤1×10⁻⁵ mbar operation.
Is the quartz tube replaceable, and what is its maximum thermal shock rating?
Yes—the Φ280×1000 mm high-purity quartz tube (OH content <10 ppm) is field-replaceable and rated for ΔT ≤120°C/min during quenching per ASTM C770.
Can the furnace be integrated into an automated glovebox environment?
Yes—electrical feedthroughs and gas lines support ISO-KF and CF flange adapters for direct integration with nitrogen- or argon-purged inert atmosphere enclosures.
Does the controller support third-party SCADA communication protocols?
Modbus RTU over RS-485 is natively supported; optional Ethernet/IP and OPC UA gateways are available for MES-level connectivity.
What maintenance intervals are recommended for the heating elements and insulation?
Resistance wire elements require visual inspection every 200 operational hours; ceramic fiber insulation should be checked for compaction or cracking after 500 h at ≥1000°C.
