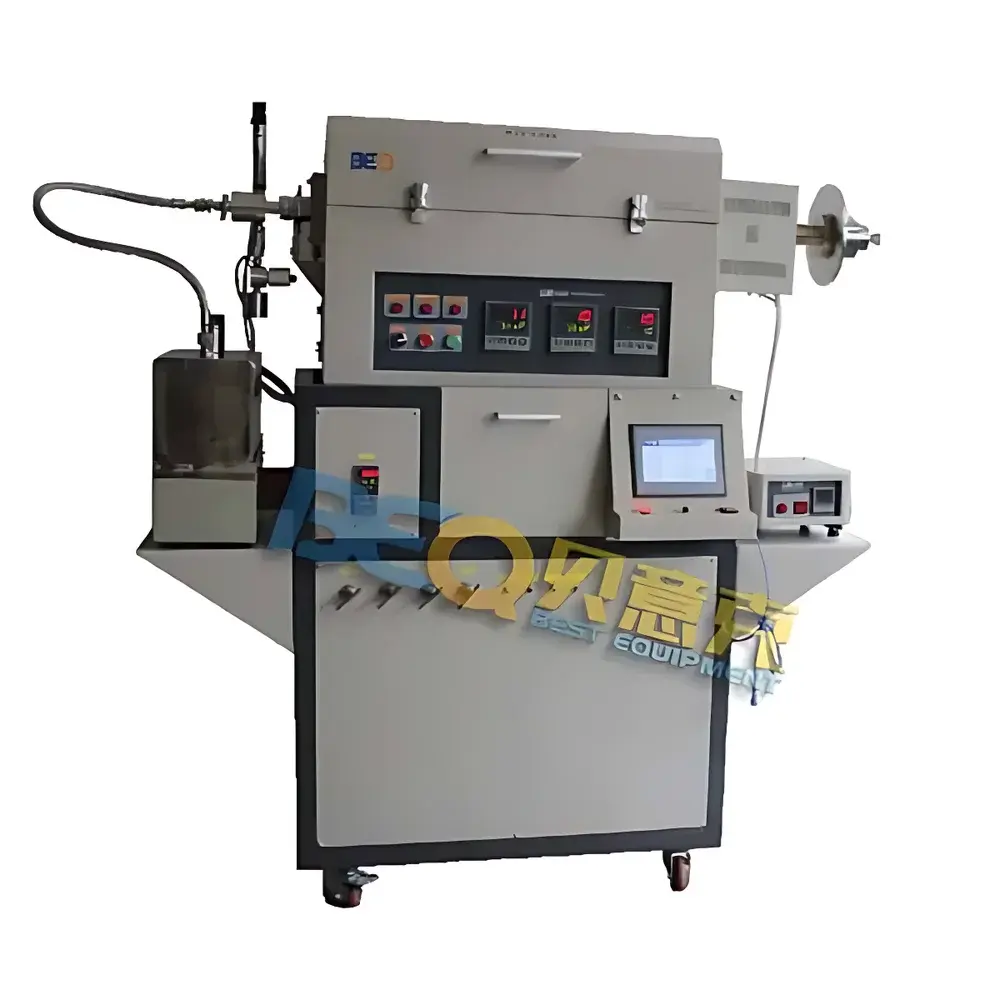

BEQ BTF-1200C-BHP High-Temperature & High-Pressure Tube Furnace
| Brand | BEQ |
|---|---|
| Origin | Anhui, China |
| Model | BTF-1200C-BHP |
| Instrument Type | Tube Furnace |
| Max Operating Temperature | 1100°C (with alloy steel pressure tube) |
| Temperature Control Accuracy | ±1°C |
| Heating Method | Imported Kanthal® resistance wire |
| Control System | Fuzzy PID algorithm with auto-tuning and 30-segment programmable logic |
Overview
The BEQ BTF-1200C-BHP is a precision-engineered high-temperature and high-pressure tube furnace designed for controlled thermochemical synthesis, catalytic reaction studies, and materials processing under combined thermal and pressurized gaseous environments. Unlike conventional muffle furnaces, this system integrates a robust pressure-rated quartz or alloy steel tube (rated up to 10 MPa), a multi-gas delivery architecture, and real-time pressure regulation—enabling reproducible experimentation at elevated temperatures (up to 1100°C) and sustained system pressures. Its core operational principle relies on resistive heating of the reaction zone via high-stability Kanthal® A1 resistance wire, coupled with closed-loop thermal management using fuzzy PID control and self-tuning algorithms. The furnace chamber is thermally insulated with high-purity alumina fiber insulation to minimize axial heat loss and ensure uniform radial temperature distribution across the heated zone—critical for kinetic studies requiring spatially consistent thermal profiles.
Key Features
- Integrated high-pressure gas handling system supporting up to three independent inlet gases (e.g., H₂, N₂, Xe) with mass flow controllers (MFCs) calibrated per ISO 6578 for volumetric accuracy under variable backpressure.
- Dual-stage gas mixing architecture: a four-way static mixer for precise pre-blending, followed by a large-volume two-way humidification mixer containing deionized water heated by a 1500 W thermostatic platform—enabling controlled steam generation and introduction into the main gas stream.
- Pressure-regulated outlet manifold featuring a 10 MPa reverse differential pressure check valve (G1/4 thread), pressure transducer with 0.25% FS accuracy, and high-integrity solenoid relief valve—all mounted on a modular flange assembly compliant with ASME B16.5 Class 150 standards.
- 30-segment programmable temperature profile capability with ramp rate resolution of 0.1°C/min and soak stability maintained within ±1°C over 24-hour continuous operation.
- Thermal safety architecture including dual independent over-temperature cutoffs (mechanical and electronic), door interlock, and real-time fault logging compatible with GLP audit trails.
Sample Compatibility & Compliance
The BTF-1200C-BHP accommodates cylindrical samples up to Ø25 mm × 300 mm in length within its pressure-rated tube. It supports inert, reducing, oxidizing, and mildly corrosive atmospheres—including steam-containing mixtures—when operated with appropriate tube material selection (quartz for ≤900°C; alloy steel for ≤1100°C). The system complies with IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and its control firmware adheres to IEC 62443-3-3 security requirements for industrial automation devices. Pressure components conform to PED 2014/68/EU Annex I essential safety requirements when used within rated limits. Documentation includes full traceable calibration certificates for temperature sensors (Pt100 Class A) and pressure transducers (NIST-traceable).
Software & Data Management
The furnace is operated via a dedicated touchscreen HMI running embedded Linux, supporting local data logging at 1 Hz resolution for temperature, pressure, gas flow rates, and program stage status. Export formats include CSV and XML, with optional OPC UA server integration for enterprise-level SCADA connectivity. All control parameters, setpoints, and alarm events are timestamped and stored with user authentication (role-based access control), satisfying FDA 21 CFR Part 11 requirements for electronic records and signatures when configured with audit trail enablement. Historical profiles can be imported/exported via USB 2.0 or Ethernet, and remote monitoring is supported through secure TLS 1.2–encrypted web interface.
Applications
- Catalyst activation and regeneration under H₂/N₂/H₂O atmospheres at 600–900°C and 2–6 MPa.
- Hydrothermal synthesis of metal oxides, perovskites, and MOFs using controlled steam partial pressure.
- High-pressure oxidation kinetics of refractory alloys and ceramics.
- Thermogravimetric analysis (TGA) coupling—compatible with commercial TGA units via standardized flange interfaces (KF40 or CF35).
- Fundamental studies of gas–solid reaction mechanisms, including water–gas shift equilibria and methane reforming pathways.
FAQ
What is the maximum allowable operating pressure for the BTF-1200C-BHP?
The system is rated for continuous operation up to 10 MPa when equipped with the optional alloy steel pressure tube and properly torqued flange seals. Pressure rating is validated per EN 13445-3 burst testing protocols.
Can the furnace be integrated with an external mass spectrometer or FTIR gas analyzer?
Yes—the outlet gas line features a standard Swagelok® SS-4-MF-6 male-female fitting (¼″ NPT), enabling direct connection to sampling lines with minimal dead volume. Optional heated transfer lines (up to 200°C) are available to prevent condensation.
Is the temperature controller compliant with GLP/GMP documentation requirements?
Yes—the built-in logging system generates time-stamped, tamper-evident event records including calibration history, parameter changes, and alarm triggers, fully aligned with Annex 11 and ALCOA+ data integrity principles.
Does the system support hydrogen service beyond 5% concentration?
It does, provided all wetted components—including MFCs, valves, and tubing—are certified for H₂ service (e.g., ASTM G128-compliant materials) and leak-tested per ISO 15848-1 Class A tightness standards prior to operation.
