BEQ BTF-1200C-DSL High-Temperature & High-Pressure Horizontal Tube Furnace

Overview

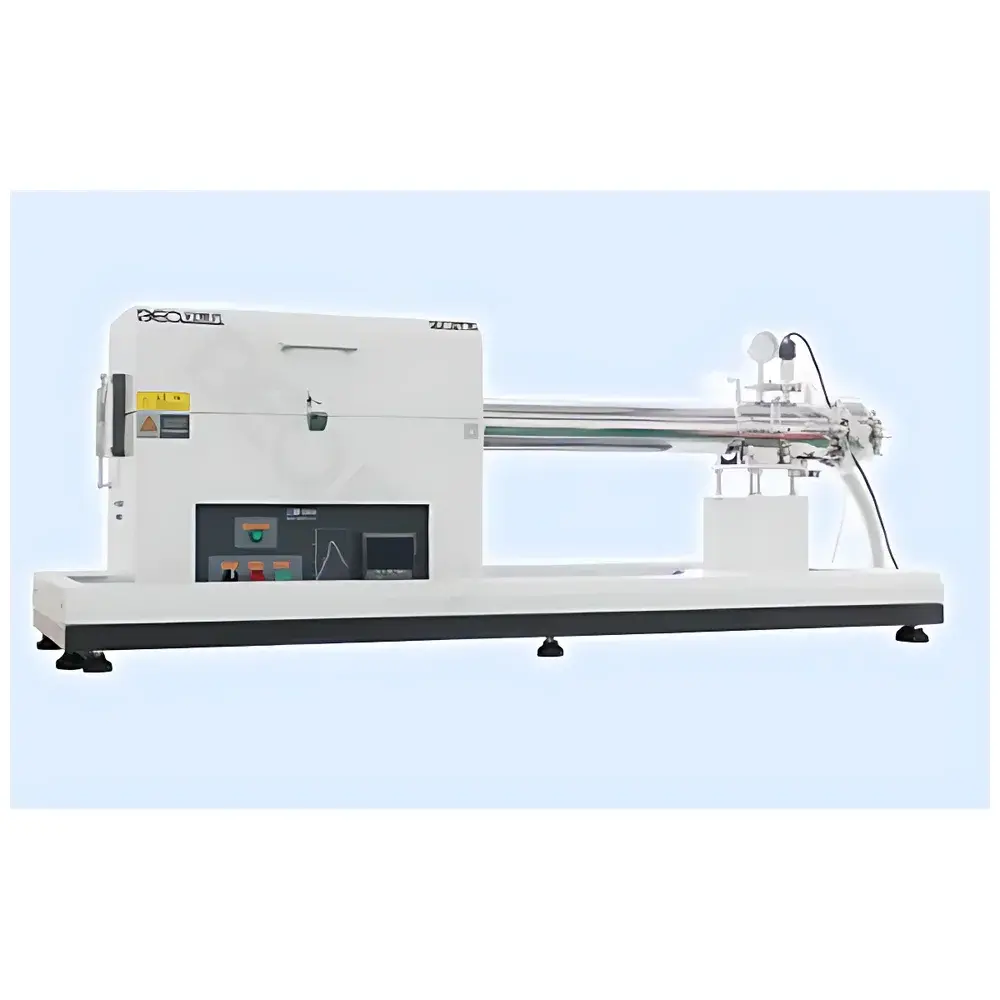

The BEQ BTF-1200C-DSL is a horizontally oriented, high-temperature and high-pressure tube furnace engineered for controlled thermal processing under inert, reducing, or reactive atmospheres at elevated pressures. It operates on resistive heating principles using high-purity Kanthal® A1 resistance wire wound within a double-layer insulated ceramic fiber chamber, enabling stable thermal gradients and uniform axial temperature distribution along the hot zone (typically 300 mm in length). Unlike conventional muffle furnaces, this system integrates pressure containment capability—achieved via a precision-machined alloy steel tube rated to 4 MPa—making it suitable for solid-state synthesis, catalytic reaction studies, sintering under gas overpressure, and thermogravimetric investigations requiring simultaneous temperature–pressure control. Its horizontal orientation with single-end sliding rail facilitates rapid sample insertion/removal and supports in situ quenching protocols. The furnace is not rated for continuous operation at 1200°C; its maximum certified operating temperature is 1100°C when used with the standard alloy steel pressure tube—consistent with ASME BPVC Section VIII Division 1 design margins for cyclic thermal–mechanical loading.

Key Features

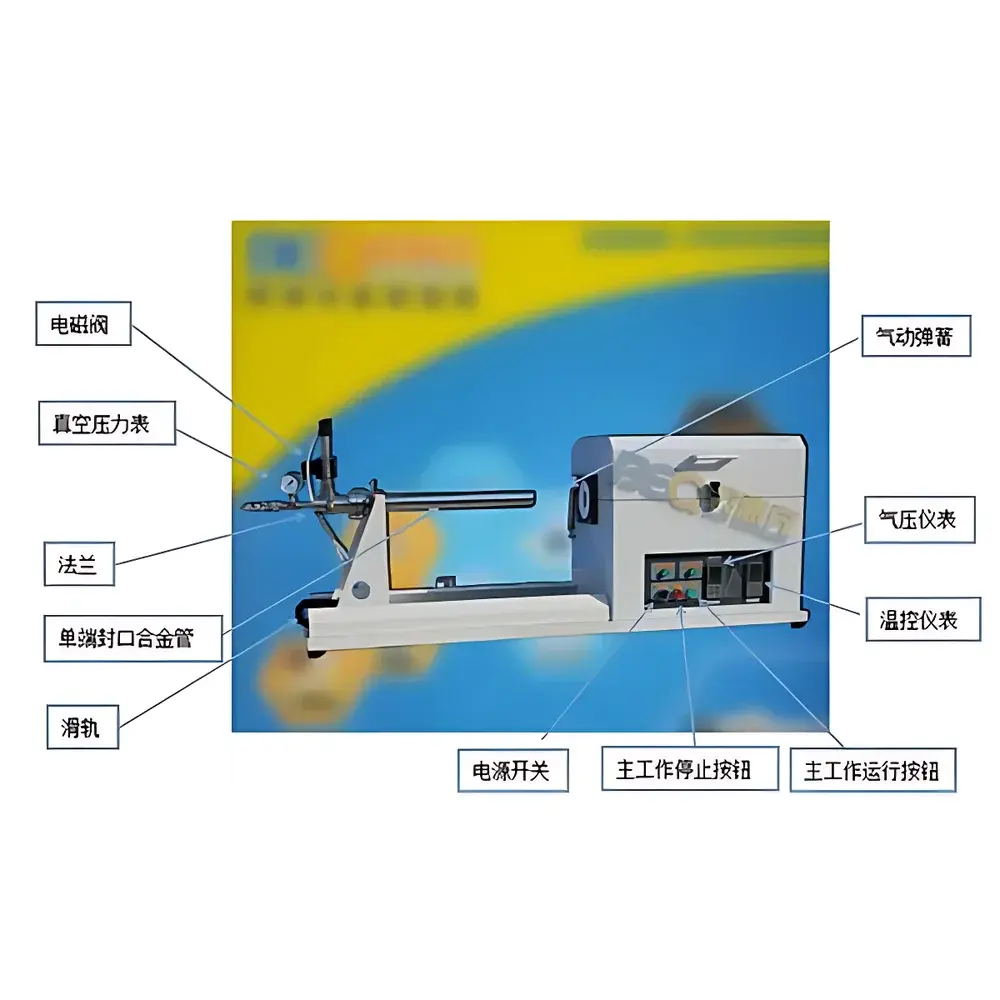

• Horizontal configuration with single-end telescoping rail enables full-length tube extraction without disassembly, minimizing thermal shock and enabling rapid cooldown via forced-air or water-cooled end caps (optional)
• Alloy steel pressure tube (ASTM A335 P11 equivalent) certified to 4 MPa at 1100°C, with integrated Swagelok®-style flanged end fittings and helium-leak-tested sealing interfaces
• Independent dual-channel monitoring: digital pressure transducer (0–6 MPa range, ±0.25% FS accuracy) and Class A Pt100 RTD (IEC 60751) embedded in the tube wall near the center of the hot zone
• Pneumatically assisted hinge mechanism with adjustable gas spring provides smooth, counterbalanced lid actuation across 0–90° opening angles—eliminating manual lifting force and enhancing operator safety during high-temperature access
• Fuzzy logic PID controller with auto-tuning functionality ensures minimal overshoot (<±0.5°C) and stable setpoint maintenance under dynamic load conditions (e.g., sample mass changes, gas flow modulation)
• 30-segment programmable temperature profile supports complex thermal schedules including ramp-hold-cool cycles, stepwise annealing, and multi-stage oxidation/reduction protocols

Sample Compatibility & Compliance

The BTF-1200C-DSL accommodates cylindrical samples up to Ø60 mm × 300 mm (standard tube ID: 60 mm), compatible with quartz, alumina, silicon carbide, and metallic crucibles. Gas compatibility includes N₂, Ar, H₂, CO, NH₃, and diluted O₂ mixtures—subject to material compatibility verification per ASTM G126 and ISO 15156-3. The system complies with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) for laboratory electromagnetic environments. While not inherently 21 CFR Part 11 compliant, audit-ready data logging (via optional RS485/Modbus RTU interface) supports GLP/GMP-aligned workflows when paired with validated third-party SCADA software featuring electronic signatures and change-control logs.

Software & Data Management

Local operation is managed through a 4.3-inch TFT touchscreen HMI with real-time graphing of temperature and pressure traces. Optional Ethernet-enabled data acquisition modules support CSV export at user-defined intervals (1–60 s) and integration into LabVIEW™, MATLAB®, or Python-based analysis pipelines via TCP/IP socket communication. All control parameters—including segment times, ramp rates, soak durations, and safety interlock thresholds—are stored in non-volatile memory with timestamped version history. Firmware updates are performed via USB drive with SHA-256 signature verification to ensure integrity.

Applications

• Solid-state synthesis of functional ceramics (e.g., Li-ion cathode precursors, ferroelectrics) under controlled pO₂ and total pressure
• Catalyst activation and regeneration studies involving sulfidation, carburization, or nitridation under pressurized reactive gases
• Thermal stability assessment of battery electrode materials using in situ XRD-compatible sample holders (tube-compatible geometry)
• High-pressure annealing of thin-film multilayers to suppress interdiffusion and control phase segregation kinetics
• Process development for powder metallurgy routes requiring HIP-like conditions without full-isostatic equipment

FAQ

What is the maximum safe operating pressure at 1100°C?
The furnace is rated for continuous operation at 4 MPa up to 1100°C when using the supplied alloy steel pressure tube. Operation above this limit requires custom tube certification and third-party pressure vessel inspection.
Can the system be integrated with mass flow controllers and gas mixing manifolds?
Yes—the furnace features standardized 1/4″ VCR ports on both ends and supports analog (0–10 VDC) or digital (RS485 Modbus) input/output for synchronized gas flow regulation and safety interlocking.
Is vacuum capability included?
The base configuration includes pressure-rated end flanges compatible with turbomolecular pump systems; however, vacuum pumping hardware and leak detection instrumentation are optional accessories.
Does the controller support remote monitoring via Ethernet or Wi-Fi?
Ethernet connectivity is available as an add-on module (part number: BTF-ETH-01); Wi-Fi is not supported due to electromagnetic interference constraints in high-power thermal environments.
What calibration documentation is provided?
Each unit ships with factory calibration certificates for the temperature controller (traceable to NIST via accredited lab) and pressure transducer (UKAS-accredited calibration report), valid for 12 months from date of shipment.
