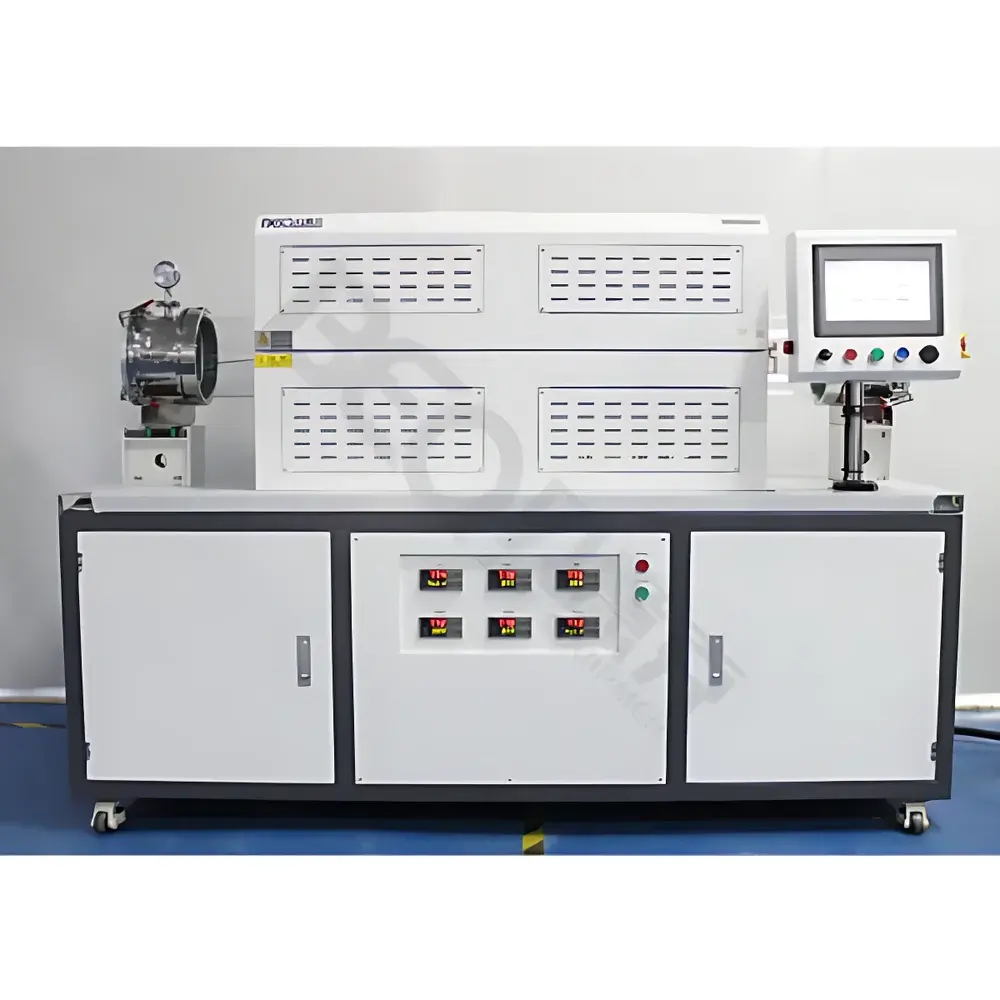

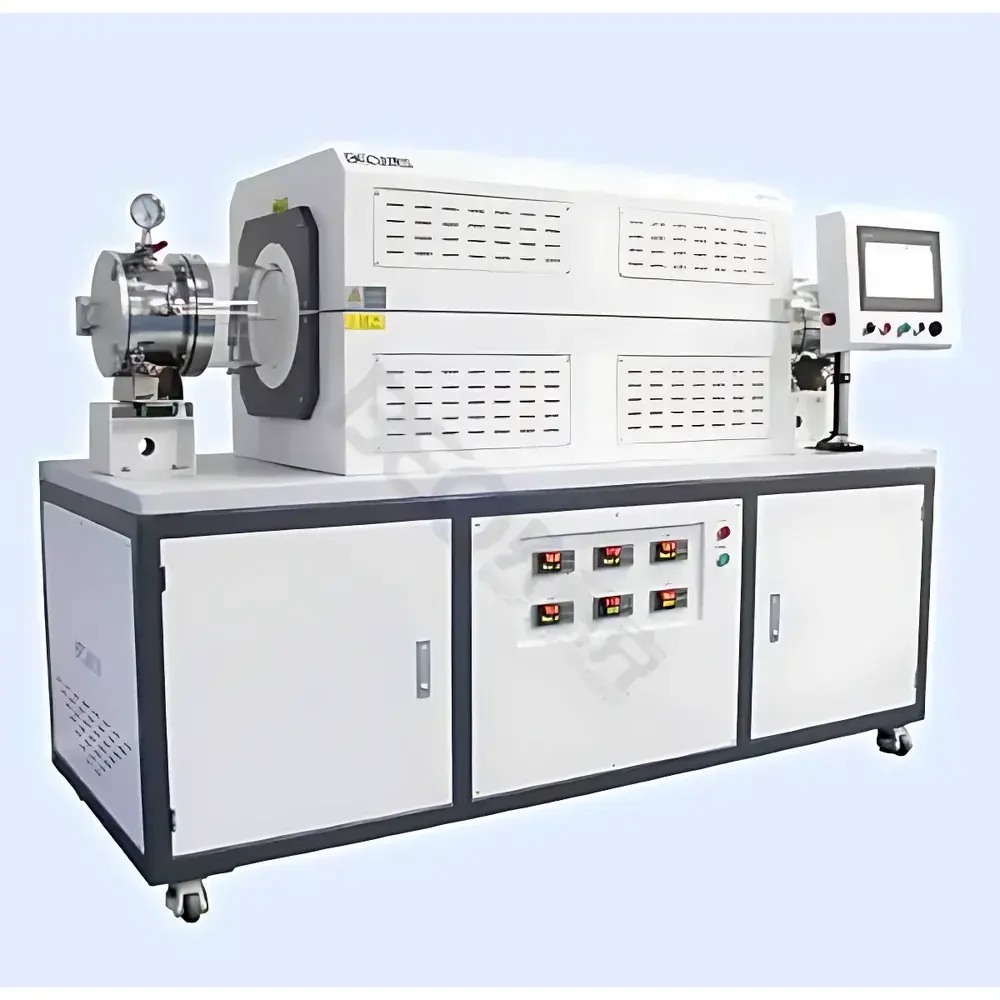

BEQ BTF-1200C-III-210 Intelligent Triple-Zone Tube Furnace
| Brand | BEQ |
|---|---|
| Origin | Anhui, China |
| Model | BTF-1200C-III-210 |
| Maximum Temperature | 1200 °C |
| Temperature Control Accuracy | ±1 °C |
| Total Power Rating | 15 kW (6-point temperature control) |
| Heating Rate to Max Temp | ≤10 °C/min |
| Heating Method | Resistive Wire Heating |
| Control System | 10-inch capacitive touch LCD panel with fuzzy PID algorithm, auto-tuning capability, 30-segment programmable ramp-soak profile, over-temperature and thermocouple break alarms |
| Tube Inner Diameter | Φ210 mm |
| Zone Configuration | Three independently controlled horizontal zones (300 mm + 300 mm + 300 mm) |
Overview
The BEQ BTF-1200C-III-210 is an industrial-grade triple-zone tube furnace engineered for precise thermal processing of materials under controlled inert, reducing, or vacuum atmospheres. Designed around a robust horizontal quartz or high-purity alumina tube configuration (ID: 210 mm), it integrates three independent heating zones—each 300 mm in length—enabling axial thermal gradient establishment, multi-step annealing, zone melting, and controlled cooling profiles across the sample length. The furnace operates on resistive wire heating elements embedded in high-density ceramic fiber insulation, delivering stable heat distribution and minimizing thermal lag. Its maximum operating temperature of 1200 °C is rated for continuous use up to 1100 °C, ensuring long-term reliability and reduced element degradation. The system conforms to standard laboratory safety architecture, including dual-stage over-temperature cutoff, real-time thermocouple integrity monitoring, and fail-safe power interruption upon sensor fault detection.
Key Features
- Triple-zone independent temperature control with six-point thermocouple feedback (two per zone) for enhanced axial uniformity and gradient reproducibility
- 10-inch high-resolution capacitive touch LCD interface supporting intuitive navigation, real-time curve visualization, and USB-based profile import/export
- Fuzzy logic PID control with auto-tuning function—reducing overshoot and stabilizing setpoints within ±1 °C under dynamic load conditions
- 30-segment programmable temperature ramp-soak sequences, including hold time, rate limit, and event-triggered output activation (e.g., gas flow modulation)
- Motorized front-end tube support carriage with adjustable stop positions—enabling hands-free, angle-selective tube access without manual lifting or exposure to radiant heat
- Reinforced dual-layer insulation design (ceramic fiber + reflective aluminum foil) achieving surface temperature <45 °C at 1200 °C operation, meeting IEC 61000-3-2 harmonic emission limits
Sample Compatibility & Compliance
The BTF-1200C-III-210 accommodates cylindrical samples up to 200 mm in outer diameter and 600 mm in total length, compatible with standard fused silica, alumina, or silicon carbide tubes (OD ≤220 mm). It supports common process atmospheres—including N₂, Ar, H₂/N₂ mixtures, and vacuum down to 10⁻³ mbar when paired with optional mechanical pump systems. All electrical and thermal subsystems comply with CE marking requirements (EN 61000-6-2/6-4, EN 60519-2), and the control firmware implements audit-trail-ready logging per GLP principles. Optional RS485 Modbus RTU or Ethernet TCP/IP interfaces enable integration into centralized lab automation platforms compliant with ISA-88 and ASTM E2500-17 guidelines.
Software & Data Management
The embedded control firmware records timestamped temperature data from all six thermocouples at user-configurable intervals (1–60 s), storing up to 30 days of continuous operation history locally. Data export is supported via USB flash drive in CSV format, preserving column headers, units, and metadata (profile ID, operator tag, ambient conditions). No proprietary software installation is required; exported files are natively readable in MATLAB, Python (pandas), Excel, and LIMS environments. For regulated environments, optional firmware upgrade provides 21 CFR Part 11-compliant electronic signatures, role-based access control, and immutable audit logs—validated against NIST SP 800-53 Rev. 5 controls for data integrity and traceability.
Applications
- Sintering and densification of advanced ceramics (e.g., ZrO₂, Si₃N₄) under controlled oxygen partial pressure
- Graphitization and thermal reduction of carbon precursors in inert atmosphere
- Thin-film annealing and dopant diffusion studies in semiconductor R&D
- Catalyst activation and regeneration protocols requiring precise multi-zone thermal staging
- Thermal gravimetric analysis (TGA) coupling via integrated mass flow controllers and exhaust gas sampling ports
- Materials synthesis workflows compliant with ISO 17025-accredited calibration practices
FAQ
What tube materials are recommended for operation at 1200 °C?
Fused silica tubes are suitable up to 1100 °C; for sustained 1200 °C operation, high-purity alumina (99.7% Al₂O₃) or recrystallized silicon carbide (R-SiC) tubes are recommended.
Can the furnace be operated under vacuum without additional accessories?
No—vacuum operation requires external vacuum pumps, sealing flanges, and pressure gauges; these are available as configurable options but not included in base configuration.
Is remote monitoring supported out of the box?
Yes—the built-in Ethernet port enables HTTP-based status polling and real-time parameter readout via standard web browsers; full remote control requires optional secure VPN configuration.
How often does the system require recalibration?
Annual verification against NIST-traceable reference thermocouples is recommended; the auto-tuning function compensates for minor drift between calibrations.
Does the motorized tube handling system support integration with robotic sample loaders?
Yes—digital I/O terminals (24 V DC, opto-isolated) are provided for synchronization with third-party automation hardware per SEMI E10 standards.
