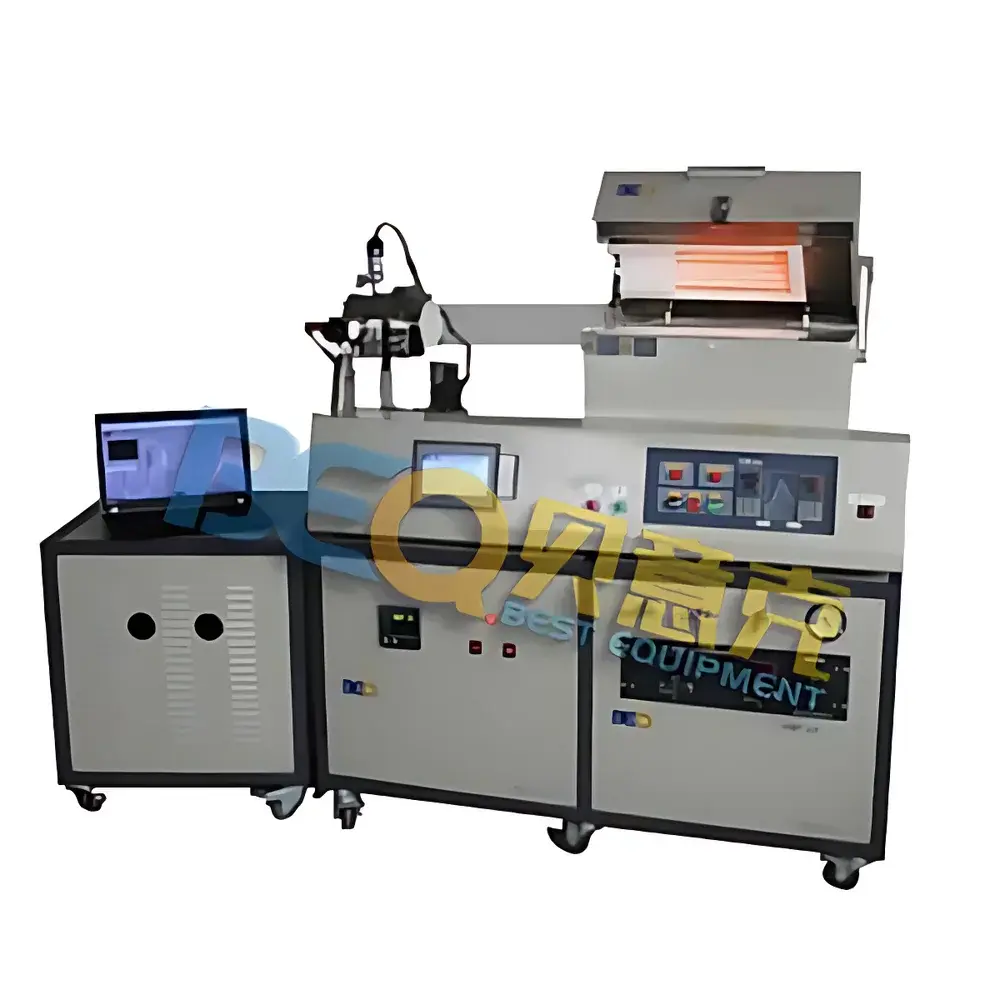

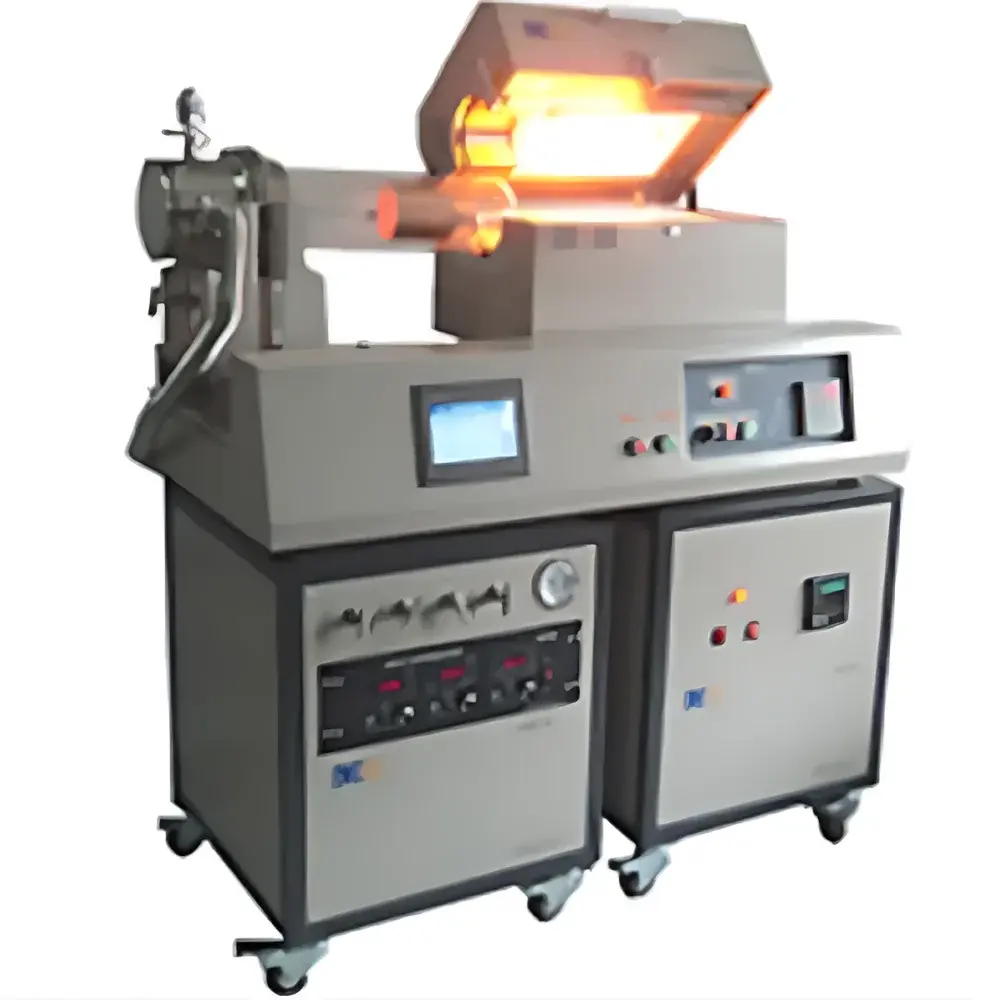

BEQ BTF-1200C-RTP-180 Automatic Rapid Thermal Processing Tube Furnace

Overview

The BEQ BTF-1200C-RTP-180 is an industrial-grade automatic rapid thermal processing (RTP) tube furnace engineered for precision high-temperature transient thermal treatments in semiconductor research, thin-film fabrication, and advanced materials synthesis. Unlike conventional box-type muffle furnaces, this system implements resistive heating with ultra-fast thermal response—achieving ramp rates up to 30 °C/s—enabling true rapid thermal annealing (RTA), flash thermal processing, and time-resolved phase transformation studies. Its core architecture features a split-body mechanical design with motorized or manual furnace-tube separation, facilitating safe, repeatable sample loading/unloading without thermal shock to the chamber. The reaction zone employs a high-purity alumina fiber insulation matrix, vacuum-formed and surface-coated with a proprietary high-emissivity/low-absorption reflective layer to minimize radiative losses and enhance thermal stability above 1000 °C. Temperature is monitored in real time using dual K-type thermocouples—one embedded in the heating zone wall and one positioned near the sample holder—feeding data into a full-closed-loop fuzzy PID controller that dynamically compensates for thermal lag and load-dependent drift.

Key Features

• Automated split-body mechanism enabling programmable furnace-tube separation for rapid sample access and process reproducibility
• Ultra-high ramp rate capability: 30 °C/s from ambient to 1200 °C, with user-definable hold profiles and multi-segment ramp-hold-cool sequences
• High-precision temperature control: ±1 °C setpoint accuracy, ±0.2 °C measurement resolution, and ±2 °C axial/radial uniformity across the 580 mm hot zone
• Dual-tube configuration (inner quartz/graphite tube + outer protective sleeve) optimized for graphene CVD growth, metal silicide formation, and chalcogenide thin-film processing (e.g., CuInGaSe₂ selenization)
• Integrated gas delivery subsystem with mass flow controllers (MFCs), KF25 vacuum flanges, and pressure-regulated inert/active gas inlets (N₂, Ar, H₂, NH₃, O₂, Se vapor)
• 7-inch industrial-grade LCD touchscreen interface with local recipe storage, real-time curve plotting, and USB data export; compatible with optional PC-based SCADA integration via RS485/Ethernet
• Compliance-ready architecture supporting audit trails, electronic signatures, and parameter lockout—facilitating alignment with GLP, ISO/IEC 17025, and internal QA/QC protocols

Sample Compatibility & Compliance

The BTF-1200C-RTP-180 accommodates wafers up to 6 inches (150 mm) in diameter, substrates ranging from Si, SiC, and GaN to flexible metal foils and ceramic tapes. Its Φ180 mm × 580 mm cylindrical cavity supports both horizontal and vertical orientation configurations. The furnace meets CE safety directives (2014/35/EU Low Voltage Directive and 2014/30/EU EMC Directive) and conforms to IEC 61000-6-2/6-3 immunity/emission standards. For regulated environments, optional firmware upgrades enable 21 CFR Part 11-compliant electronic recordkeeping—including timestamped event logs, user-level access control, and immutable parameter change history—supporting FDA-submitted validation packages and GMP-aligned process documentation.

Software & Data Management

The embedded control firmware provides deterministic real-time scheduling of temperature, vacuum, and gas flow profiles with sub-second synchronization. All process variables—including thermocouple readings, MFC outputs, vacuum gauge values, and actuator status—are logged at configurable intervals (100 ms to 10 s) and stored in CSV format on internal flash memory or external USB drives. Remote monitoring and control are supported via Modbus TCP or OPC UA over Ethernet, enabling integration into centralized lab automation systems (e.g., LabVIEW, DeltaV, or custom Python-based orchestration). Data integrity is ensured through cyclic redundancy checksums and write-protected archival modes.

Applications

• Rapid thermal annealing (RTA) of ion-implanted silicon wafers for dopant activation and defect passivation
• Ohmic contact formation and alloying of Ti/Al/Ni-based metallizations on compound semiconductors
• Growth of large-area monolayer graphene via low-pressure CVD on copper foil
• Thermal oxidation and nitridation of Si and SiGe layers under controlled O₂/NH₃ partial pressures
• Selenization and sulfurization steps in thin-film photovoltaic fabrication (CIGS, CZTS)
• Crystallization of amorphous metal oxides (e.g., IGZO, Ta₂O₅) for TFT backplanes
• Pre-sintering and binder burnout of ceramic green bodies prior to HIP or SPS consolidation

FAQ

What is the maximum recommended operating temperature for continuous use?
The furnace is rated for continuous operation at 1100 °C; 1200 °C is specified as the short-term peak limit (≤30 minutes per cycle) to preserve heating element longevity and insulation integrity.
Can the system be integrated with existing vacuum pumps and gas cabinets?
Yes—the KF25 vacuum ports and Φ6 mm gas inlets comply with standard vacuum and pneumatic interface specifications; third-party turbomolecular pumps, dry scroll pumps, and MFCs can be connected using industry-standard adapters.
Is remote diagnostics and firmware update supported?
Firmware updates are performed via USB or Ethernet; remote diagnostic access requires optional secure VPN tunneling and is restricted to authorized service personnel under NDA.
Does the furnace support inert-atmosphere processing below 10⁻³ mbar?
When paired with a suitable high-vacuum pump (e.g., turbomolecular pump with backing stage), the chamber achieves base pressures ≤5×10⁻⁴ mbar, suitable for oxide-free metal film deposition and ultra-clean annealing.
What safety interlocks are implemented?
Hardware-enforced interlocks include door-open thermal cutoff, overtemperature shutdown (dual independent sensors), coolant flow verification (if forced-air cooling is active), and emergency power-off via front-panel mushroom button compliant with EN 60204-1.
