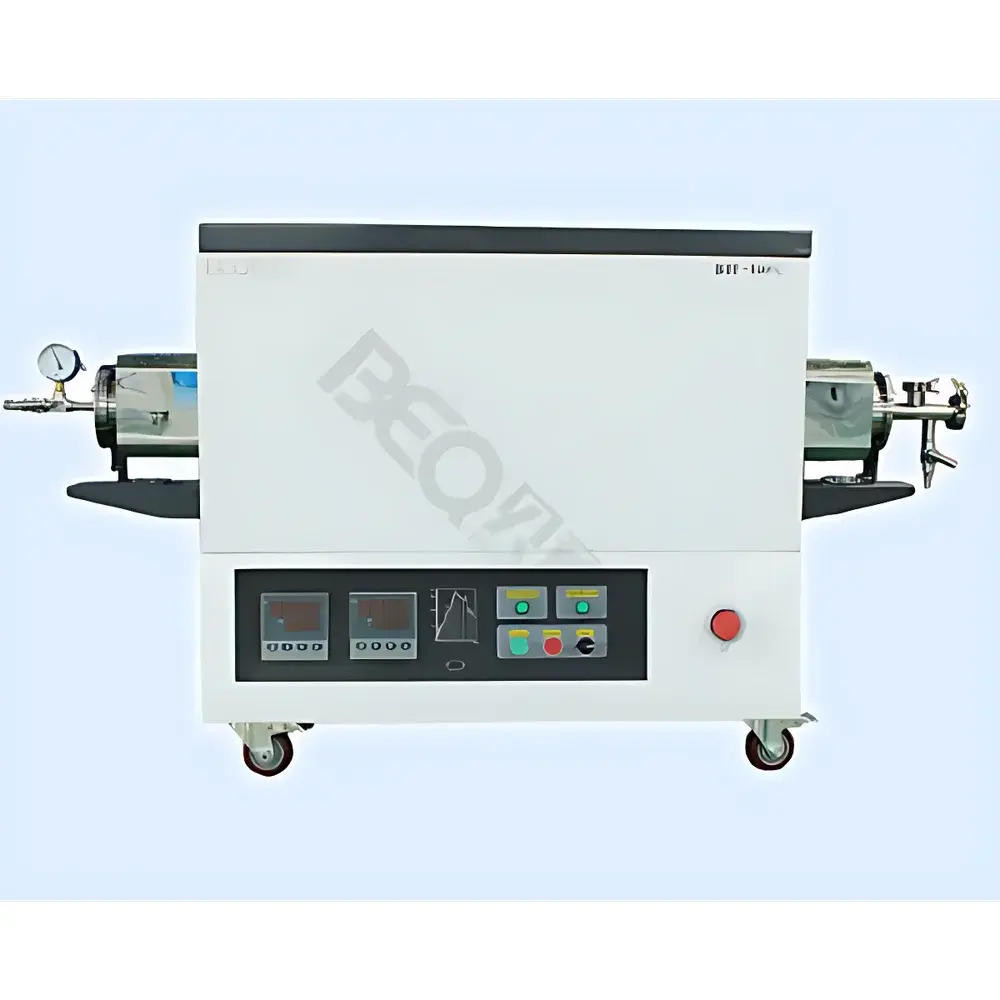

BEQ BTF-1400C-II Dual-Zone High-Temperature Tube Furnace
| Brand | BEQ |
|---|---|
| Origin | Anhui, China |
| Model | BTF-1400C-II |
| Maximum Temperature | 1400 °C |
| Temperature Uniformity | ±1 °C |
| Total Power Rating | 10 kW |
| Heating Rate | ≤10 °C/min up to 1200 °C |
| Heating Element | Silicon Carbide (SiC) Rods |
| Control System | Fuzzy PID with Auto-Tuning, 30-Stage Programmable Controller, Over-Temperature & Thermocouple Break Protection |
| Tube Dimensions | Φ60 mm × 1200 mm or Φ80 mm × 1200 mm |
| Furnace Chamber Material | High-Purity Alumina (Al₂O₃) with US-Imported High-Temperature Alumina Coating |
| Cooling | Dual-Layer Shell with Forced-Air Cooling System |
| Structural Support | Integrated Flange Mounting Bracket for Load Distribution |
Overview
The BEQ BTF-1400C-II is a dual-zone high-temperature tube furnace engineered for precise thermal processing in materials science, catalysis research, and advanced ceramic synthesis. It operates on the principle of resistive heating via silicon carbide (SiC) rod elements, delivering stable, repeatable temperature profiles across two independently controlled longitudinal zones—enabling axial thermal gradients essential for crystal growth, annealing, and controlled atmosphere reactions. With a maximum operating temperature of 1400 °C and a certified temperature uniformity of ±1 °C within its extended isothermal zone, the furnace meets the stringent thermal stability requirements of ASTM E220, ISO 9001-compliant lab workflows, and GLP-regulated thermal treatment protocols. Its robust dual-shell construction incorporates an integrated forced-air cooling system to maintain external surface temperatures below 60 °C during continuous operation—ensuring operator safety and minimizing ambient heat load in shared laboratory environments.
Key Features
- Dual independent heating zones with separate thermocouple feedback loops and programmable setpoints, supporting gradient thermal profiles (e.g., hot-zone annealing with cooler end sealing)
- High-density SiC heating element array arranged circumferentially and axially to maximize radial and longitudinal temperature uniformity
- High-purity α-alumina (99.7% Al₂O₃) tube furnace chamber lined with a proprietary US-sourced high-emissivity alumina coating—enhancing radiant heat transfer efficiency and extending refractory service life beyond 2000 operational hours at 1350 °C
- Fuzzy logic PID controller with auto-tuning capability, enabling rapid stabilization (<30 s) after setpoint changes and reducing overshoot to <0.5 °C under dynamic load conditions
- 30-stage programmable temperature ramp/soak profile memory with non-volatile storage; supports complex multi-step sequences including cooling rate control down to 0.1 °C/min
- Comprehensive safety architecture: real-time thermocouple continuity monitoring, over-temperature cutoff (adjustable threshold), and audible/visual fault indication per IEC 61000-6-2 EMC standards
Sample Compatibility & Compliance
The BTF-1400C-II accommodates standard quartz, alumina, or silicon carbide sample boats and crucibles within its Φ60 mm or Φ80 mm internal diameter quartz or high-purity alumina tubes (1200 mm length). It is compatible with inert (Ar, N₂), reducing (H₂/N₂ mixtures), and oxidizing (air, O₂) atmospheres when used with optional gas inlet/outlet flanges and mass flow controllers. The furnace conforms to CE marking requirements (2014/30/EU EMC Directive and 2014/35/EU LVD Directive), and its control firmware supports audit-trail logging for FDA 21 CFR Part 11–aligned validation when paired with compliant data acquisition software. All structural components meet RoHS 2011/65/EU material restrictions.
Software & Data Management
The embedded controller provides RS485 Modbus RTU communication interface for integration into centralized lab automation systems (e.g., LabVIEW, DeltaV, or custom SCADA platforms). Optional USB-to-RS485 adapters enable direct connection to Windows-based PCs running BEQ’s free FurnaceControl Suite—offering real-time graphing, profile export (CSV), alarm history review, and electronic signature–enabled calibration log archiving. Data timestamps are synchronized to UTC via NTP-compatible network time servers when connected to institutional LAN infrastructure—supporting traceability requirements under ISO/IEC 17025 accreditation.
Applications
- Solid-state synthesis of oxide superconductors (e.g., YBCO phase formation at 900–1000 °C under flowing O₂)
- Controlled oxidation of transition metal foils for nanowire templating
- Thermal annealing of CVD-grown 2D materials (MoS₂, h-BN) under sulfur or selenium vapor
- Pre-sintering and debinding of MIM (metal injection molding) green parts prior to HIP processing
- Calibration verification of Type S and Type R thermocouples per ASTM E230 standards
- Long-duration aging studies of battery cathode materials (NMC, LFP) under air or argon
FAQ
What tube materials are recommended for use at 1400 °C?
High-purity fused quartz tubes are limited to ~1100 °C; for full-range operation, alumina or silicon carbide tubes rated for continuous service at 1400 °C must be selected.
Can the two zones be operated at significantly different temperatures simultaneously?
Yes—the furnace supports differential zone setpoints up to ±200 °C apart, provided total power draw remains within the 10 kW limit and cooling capacity is maintained.
Is the controller compatible with third-party data logging systems?
Yes—Modbus RTU protocol implementation allows seamless integration with commercial DAQ systems, including Keysight, National Instruments, and Yokogawa platforms.
What maintenance is required for the SiC heating elements?
No periodic replacement is needed under normal use; however, visual inspection for surface pitting or resistance drift (>10% increase) every 500 operational hours is recommended.
Does the furnace include vacuum compatibility out of the box?
Standard configuration includes atmospheric and gas-purged operation; vacuum-rated versions with metal-sealed flanges and reinforced tube supports are available as OEM options (BTF-1400C-II-VAC).
