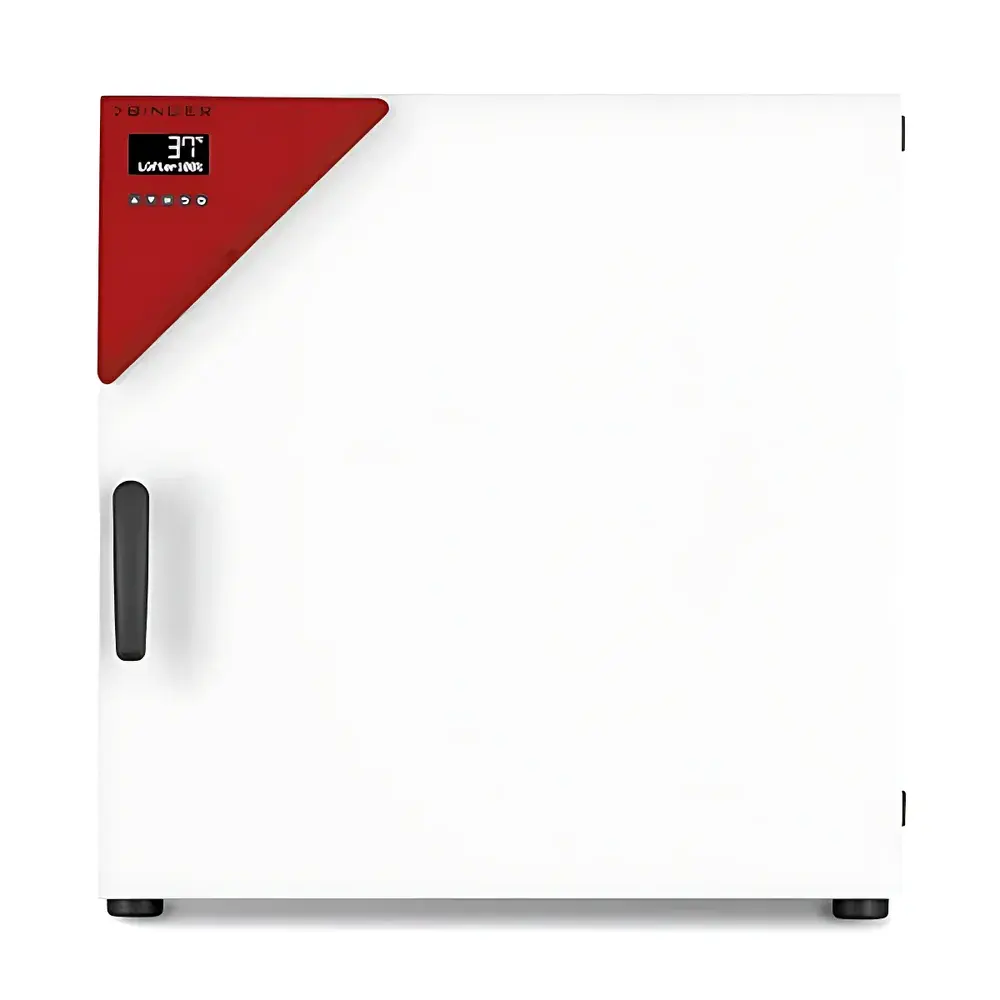

BINDER BF Series Avantgarde.Line Forced-Convection CO₂-Free Incubator

Overview

The BINDER BF Series Avantgarde.Line incubators are precision-engineered forced-convection incubation systems designed for demanding life science applications where thermal uniformity, stability, and process integrity are critical. Unlike natural convection units, the BF series employs a dynamically balanced air circulation system with tangential fan geometry and APT.line™ preheating chamber technology—ensuring rapid, homogeneous heat distribution throughout the entire working chamber, even under full load conditions. This architecture eliminates cold spots and minimizes thermal gradients, delivering ±0.1 K fluctuation and ≤±0.3 K uniformity at 37 °C across all models. The temperature range spans from ambient +8 °C up to 100 °C (ambient +10 °C to 100 °C for BF720), enabling both standard cell culture maintenance and validated dry-heat decontamination cycles compliant with ISO 14644-1 cleanroom-grade protocols. As CO₂-free incubators, the BF series is optimized for non-CO₂-dependent applications—including microbial growth, enzyme assays, seed germination, stability testing per ICH Q1, and long-term storage of reagents or hybridoma cultures.

Key Features

• APT.line™ preheating chamber technology ensures consistent airflow temperature prior to entering the main chamber, minimizing thermal overshoot and enhancing reproducibility
• Electromechanically controlled exhaust valve allows fine-tuned regulation of internal humidity and gas exchange without compromising temperature stability
• ESG (toughened safety glass) inner door provides unobstructed visual monitoring while maintaining thermal integrity and operator safety
• DIN 12880 Class 3.1 independent overtemperature safety device with optical alarm—fully redundant to the primary control system
• Ergonomically shaped handles and smooth-sliding shelves facilitate safe handling of heavy loads (up to 40 kg per shelf)
• LCD controller with intuitive menu navigation, real-time parameter display, and password-protected configuration access
• USB interface supports time-stamped data logging of temperature profiles for audit-ready documentation (compatible with GLP/GMP workflows)

Sample Compatibility & Compliance

The BF series accommodates diverse sample formats—from standard Petri dishes and multiwell plates to stacked flasks and large-volume bioreactor vessels—thanks to scalable internal volumes (59–734 L) and flexible shelving configurations (2 standard / up to 16 optional shelves). All stainless-steel interior surfaces meet ISO 13485 requirements for medical device manufacturing environments. The 100 °C dry-heat decontamination cycle satisfies EN 554 and ISO 11134 validation standards for sterility assurance in non-sterile compounding and QC labs. Device firmware complies with IEC 61000-6-3 (EMC) and IEC 61010-1 (safety), and the controller architecture supports 21 CFR Part 11–compliant electronic records when integrated with validated third-party data management software.

Software & Data Management

While the onboard controller operates independently, its embedded USB port enables direct export of CSV-formatted temperature logs—including timestamps, setpoints, actual values, and alarm events—to external PCs for traceability. Logged data can be imported into LIMS platforms or statistical process control (SPC) tools for trend analysis and CAPA documentation. Optional BINDER CLEANSERV® software (sold separately) extends functionality with remote monitoring, multi-device dashboard views, automated report generation, and electronic signature support aligned with FDA 21 CFR Part 11 Annex 11 expectations. Audit trails record all user actions—including parameter changes, door openings, and calibration events—with immutable timestamps and operator IDs.

Applications

• Mammalian and insect cell culture maintenance (non-CO₂ dependent lines)
• Bacterial and fungal cultivation under standardized aerobic conditions
• Enzyme kinetics and protein stability studies requiring precise thermal ramping
• ICH Q1A(R2) long-term and accelerated stability testing of pharmaceutical intermediates
• Seed viability and germination assays in agricultural research
• Hybridoma expansion and monoclonal antibody production workflows
• Environmental simulation for material aging and polymer degradation studies

FAQ

Is the BF series suitable for CO₂-dependent cell culture?
No. The BF Avantgarde.Line incubators are CO₂-free systems designed for applications where ambient atmospheric CO₂ levels are sufficient. For CO₂-regulated environments, consider BINDER’s CB series CO₂ incubators.
Can the BF720 accommodate stacked roller bottles?
Yes—the BF720 offers 1300 mm internal height and 560 mm depth, supporting vertically oriented roller bottle racks with optional reinforced shelving kits.
Does the USB data logging meet GLP requirements?
The raw log files are timestamped and tamper-evident; however, full GLP compliance requires integration with validated software that enforces user authentication, electronic signatures, and audit trail retention per OECD Principles of GLP.
What is the warranty coverage for BF series incubators?
BINDER provides a standard 24-month manufacturer warranty covering parts and labor, extendable to 36 months with registration and annual preventive maintenance contracts.
Are replacement shelves and accessories available globally?
Yes—BINDER maintains an authorized global spare parts network with certified distributors stocking ESG inner doors, chrome-plated shelves, castor kits, and APT.line™ service modules.
