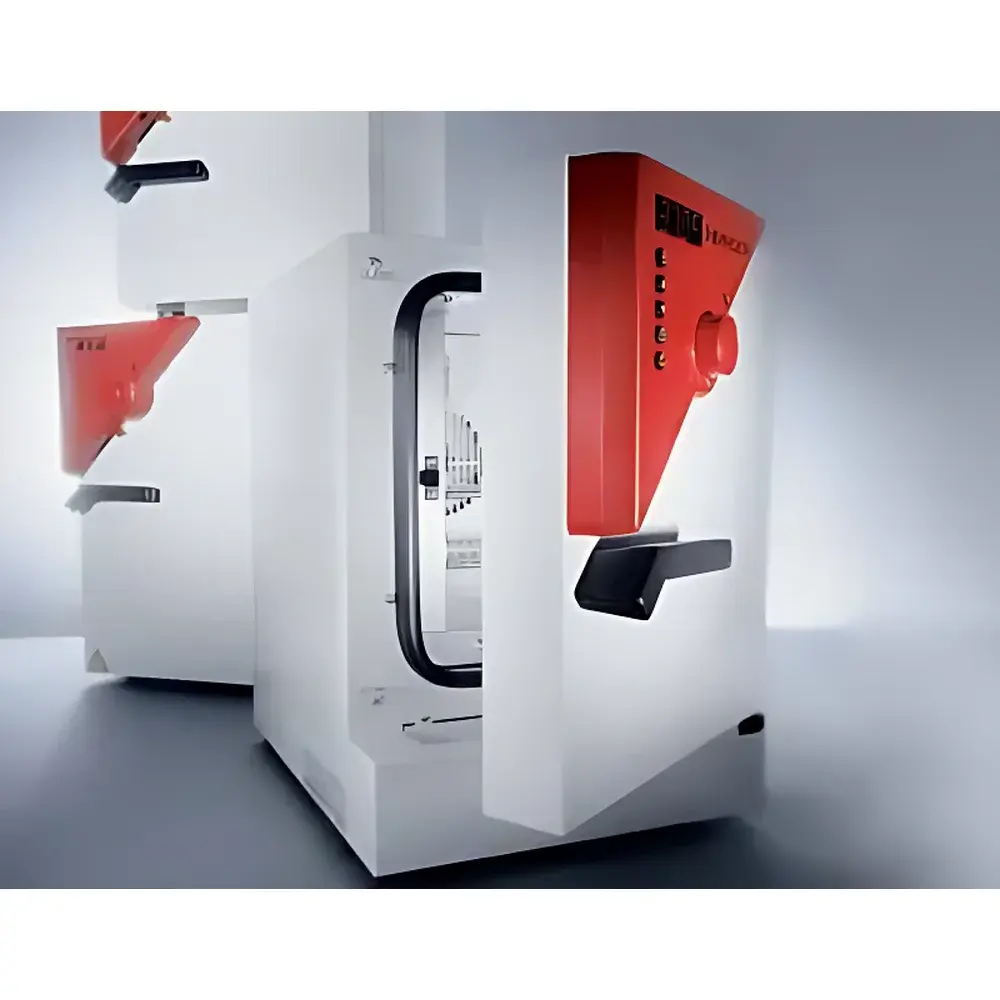

BINDER ED53 Natural Convection Drying Oven
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | ED53 |
| Temperature Range | Ambient + 5 °C to 300 °C |
| Temperature Uniformity | ±2.0 °C @ 70 °C, ±2.5 °C @ 150 °C, ±4.5 °C @ 300 °C |
| Temperature Fluctuation | ±0.3 °C |
| Chamber Volume | 53 L |
| Internal Dimensions (W×H×D) | 400 × 400 × 330 mm |
| External Dimensions (W×H×D) | 634 × 617 × 575 mm |
| Chamber Material | Stainless Steel (AISI 304) |
| Heating Method | Electric Resistance Heating |
| Air Exchange Rate | 8 h⁻¹ @ 70 °C, 19 h⁻¹ @ 150 °C, 20 h⁻¹ @ 300 °C |
| Recovery Time (30-sec door opening) | 2 min @ 70 °C, 9 min @ 150 °C, 11 min @ 300 °C |
| Heating Time to 70/150/250 °C | 14 / 23 / 61 min |
| Power Supply | 230 V, 50/60 Hz, 1.2 kW |
| Net Weight | 42 kg |
| Standard Shelves | 2 (max. 5), Load Capacity: 15 kg/shelf, 40 kg total |
| Safety | Dual independent temperature safety device (TWB), APT.Line® preheating chamber technology |
Overview
The BINDER ED53 Natural Convection Drying Oven is a precision-engineered laboratory oven designed for applications requiring stable, uniform thermal environments without forced air circulation. Unlike fan-assisted (forced convection) ovens, the ED53 relies on natural convection—heat transfer driven solely by buoyancy-induced airflow—to minimize mechanical disturbance of sensitive samples such as powders, granules, or coated substrates during drying, conditioning, or stabilization protocols. Its robust stainless steel (AISI 304) interior chamber—53 L in volume and precisely dimensioned at 400 × 400 × 330 mm—ensures corrosion resistance and long-term dimensional stability under repeated thermal cycling. Engineered in Tuttlingen, Germany, and compliant with IEC 61010-1 for laboratory equipment safety, the ED53 operates across a broad temperature range from ambient +5 °C up to 300 °C, making it suitable for low-temperature desiccation, polymer annealing, and high-temperature gravimetric residue determination per ASTM E121, ISO 787-13, and USP .
Key Features
- APT.Line® preheating chamber technology: A thermally isolated outer jacket surrounding the main chamber ensures rapid heat-up and exceptional temperature homogeneity—even under full load—by minimizing thermal gradients and wall condensation effects.
- Microprocessor-based controller with LED display: Enables precise setpoint programming (0.1 °C resolution), real-time monitoring, and electronic timer operation (0–99 h 59 min or continuous mode).
- Dual independent temperature safety system (TWB): Complies with DIN 12880 and EN 61010-1; includes primary PID control and secondary mechanical overtemperature cutoff (adjustable up to 350 °C) for fail-safe operation.
- Adjustable heating power and optimized natural convection design: Ensures reproducible thermal profiles without turbulent airflow—critical for moisture-sensitive materials, pharmaceutical excipients, or thin-film substrates where forced air may cause displacement or oxidation.
- RS422 interface standard: Supports integration with APT-COM™ software (optional) for remote parameter logging, event-triggered data export, and audit-ready traceability aligned with FDA 21 CFR Part 11 requirements when paired with validated software configurations.
- Structural integrity: Reinforced double-walled construction, chromed shelf supports (2 standard, up to 5 optional), and 15 kg per shelf / 40 kg total load capacity accommodate diverse sample configurations while maintaining thermal inertia.
Sample Compatibility & Compliance
The ED53 is routinely deployed in GLP- and GMP-regulated environments for residual solvent removal (per ICH Q5C), moisture content analysis (ASTM D2298, ISO 15512), and thermal stability testing of APIs and intermediates. Its natural convection architecture eliminates particle resuspension, preserving sample integrity during extended dwell cycles. Chamber geometry and material selection meet ISO 14644-1 Class 8 cleanroom compatibility standards when operated in controlled environments. All electrical components conform to CE marking directives (EMC 2014/30/EU, LVD 2014/35/EU), and thermal performance validation follows EURACHEM/CITAC guidelines for uncertainty estimation in temperature-controlled equipment.
Software & Data Management
The integrated RS422 port enables bidirectional communication with BINDER’s APT-COM™ software suite—a platform validated for regulated laboratories. Users can configure automated ramp/soak profiles, log temperature deviations in real time, generate PDF reports with digital signatures, and maintain full audit trails including user ID, timestamp, parameter changes, and alarm events. When deployed with a qualified computer system and electronic signature protocol, the configuration satisfies ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) for data integrity under FDA and EMA expectations.
Applications
- Gravimetric moisture analysis (e.g., AOAC 950.46, ISO 665)
- Pre-drying of filter papers, crucibles, and volumetric glassware prior to weighing
- Thermal conditioning of reference standards and calibration artifacts
- Stabilization of hygroscopic compounds before spectroscopic or chromatographic analysis
- Low-disturbance curing of coatings, adhesives, and ceramic precursors
- Residue-on-ignition (ROI) procedures per USP and EP 2.2.34
FAQ
Does the ED53 support forced convection?
No—the ED53 is specifically engineered for natural convection only. For forced-air applications, consider the BINDER FD series or UN series ovens.
Is the temperature uniformity specification validated per ISO 17025?
Yes; BINDER provides factory calibration certificates traceable to PTB (Physikalisch-Technische Bundesanstalt) and supports on-site validation using calibrated thermocouples per ISO/IEC 17025-accredited service providers.
Can the ED53 be used for sterilization?
No—it lacks steam generation, pressure control, and biological indicator validation pathways required for sterilization. It is intended for drying, baking, and thermal conditioning only.
What is the maximum allowable ambient temperature for safe operation?
The unit must be installed in an environment with ambient temperatures between 15 °C and 32 °C and relative humidity ≤ 80 % RH (non-condensing), as specified in the operating manual.
Are replacement shelves and accessories available through BINDER’s global distribution network?
Yes—standard accessories including additional stainless steel shelves (part no. 110-001), shelf supports (110-002), and silicone gaskets (110-003) are stocked and shipped worldwide with documented lot traceability.
