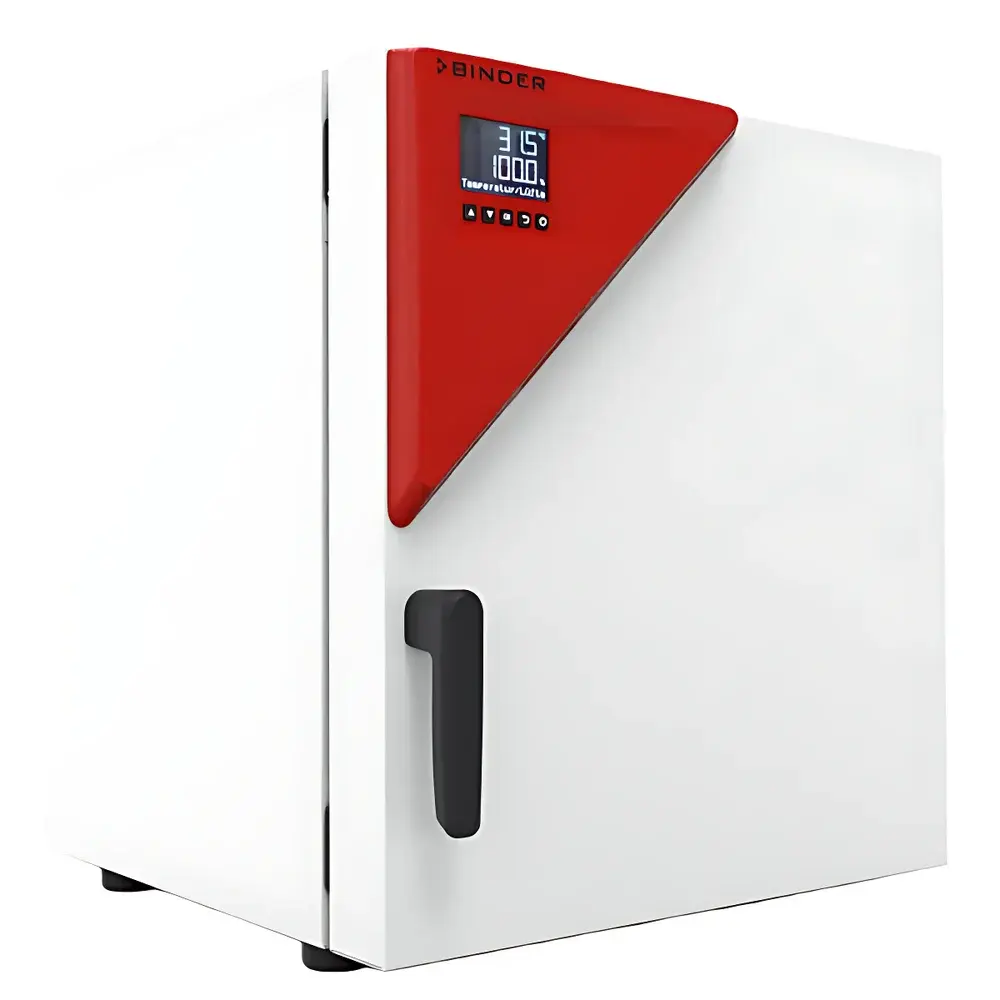

BINDER FP 56 Forced-Convection Precision Drying Oven with Programmable Controller and APT.line™ Technology

Overview

The BINDER FP 56 is a precision forced-convection drying oven engineered for reproducible thermal processing in regulated laboratory and quality control environments. Its core performance derives from the patented APT.line™ preheating chamber technology—a thermally insulated jacket surrounding the inner chamber that ensures uniform heat distribution and eliminates cold zones near door seals or corners. This architecture delivers high spatial temperature uniformity (±1.4 K at 150 °C) and exceptional temporal stability (±0.4 K fluctuation), critical for applications requiring strict adherence to ISO 17025, ASTM D1654, or ICH Q5C thermal stability protocols. The FP 56 operates across a wide usable range—from ambient +10 °C up to 300 °C—making it suitable for moisture removal, polymer curing, gravimetric analysis, residual solvent evaporation, and accelerated aging studies. Its compact 60 L stainless steel (AISI 304) chamber supports consistent airflow dynamics, while the adjustable fan speed allows optimization of convective heat transfer for delicate or dense sample loads.

Key Features

• APT.line™ preheating chamber technology for superior temperature homogeneity and reduced thermal lag
• Programmable microprocessor controller with intuitive large-format display and real-time/time-segment scheduling
• Dual independent temperature safety systems compliant with DIN 12880 Class 2 (mechanical backup) and Class 3.1 (electronic monitoring)
• Ethernet interface (RJ45) supporting remote monitoring, configuration, and event logging via BINDER’s optional software suite
• Built-in data logger storing timestamped temperature readings in open-format CSV files—exportable via USB port
• Configurable visual and audible alarms for deviation, door-open duration, or safety limit breaches
• Ergonomic door handle design with optimized sealing force and low-effort opening mechanism
• Stackable unit configuration enabling vertical space optimization in constrained lab environments
• Chromium-plated adjustable shelving system (2 included, up to 5 supported), each rated for 15 kg maximum load
• Electromechanical exhaust valve for controlled atmosphere exchange during volatile processing

Sample Compatibility & Compliance

The FP 56 accommodates a broad spectrum of sample types—including powders, granules, coated substrates, polymer films, pharmaceutical tablets, and ceramic precursors—without cross-contamination risk, thanks to its seamless AISI 304 stainless steel interior and absence of painted surfaces. Its air exchange rate of 80 h⁻¹ at 100 °C ensures efficient removal of moisture and low-boiling volatiles, while maintaining thermal integrity during dynamic heating cycles. The device complies with essential regulatory frameworks for GxP environments: it supports audit-trail-capable operation when integrated with validated BINDER software (per FDA 21 CFR Part 11 requirements), meets GLP documentation standards for temperature validation reports, and conforms to electromagnetic compatibility directives (DIN EN 61000-6-3/-4). UL/cUL listing (model FP056UL-120V) certifies compliance with North American electrical safety standards.

Software & Data Management

The FP 56 integrates natively with BINDER’s optional CUBE software platform, enabling centralized management of multiple ovens, automated report generation (PDF/CSV), and long-term trend analysis of thermal profiles. All internal measurements—including chamber temperature, setpoint, fan status, and alarm events—are time-stamped and logged continuously. Data export occurs via USB in plain-text CSV format, ensuring full interoperability with LIMS, ELN, or statistical process control (SPC) tools such as JMP or Minitab. For networked deployment, the Ethernet interface supports Modbus TCP and HTTP-based RESTful endpoints, allowing integration into enterprise SCADA or MES systems. Audit trails include user ID, timestamp, parameter change, and reason-for-change fields—fully traceable for FDA or EMA inspections.

Applications

• Moisture content determination per ISO 5519 and AOAC 952.12 methods
• Thermal desorption of catalysts and adsorbents prior to BET surface area analysis
• Curing of epoxy resins and silicone elastomers under defined ramp-hold-cool profiles
• Stability testing of active pharmaceutical ingredients (APIs) per ICH Q1A(R2)
• Drying of filter papers, crucibles, and volumetric glassware in analytical chemistry workflows
• Pre-conditioning of composite materials before mechanical testing (ASTM D5229)
• Residual solvent removal from lyophilized biologics intermediates
• Accelerated oxidation studies on lubricants and polymers (ASTM D943, ISO 11346)

FAQ

What safety certifications does the FP 56 hold?

The FP 56 carries CE marking for EU markets and UL/cUL recognition for North America (FP056UL variant); it complies with DIN 12880 Class 2 and Class 3.1 safety requirements.
Can the FP 56 be validated for GMP use?

Yes—its stable thermal performance, electronic audit trail capability (via CUBE software), and support for IQ/OQ/PQ documentation make it suitable for GMP-compliant drying processes.
Is the internal volume truly 60 L despite the external dimensions listed as 400×400×342 mm?

Yes—the 400×400×342 mm specification refers to internal chamber dimensions; total internal volume is precisely 60 L (0.06 m³), verified per DIN 12880 Annex B.
Does the oven support ramp-soak programming?

Yes—the controller enables multi-step programs with up to 10 segments, including ramp rates (°C/min), soak durations, and automatic shutdown or standby transitions.
How is data integrity ensured during power interruption?

The built-in non-volatile memory retains all program settings and logged data across power cycles; no configuration loss occurs without manual reset.
