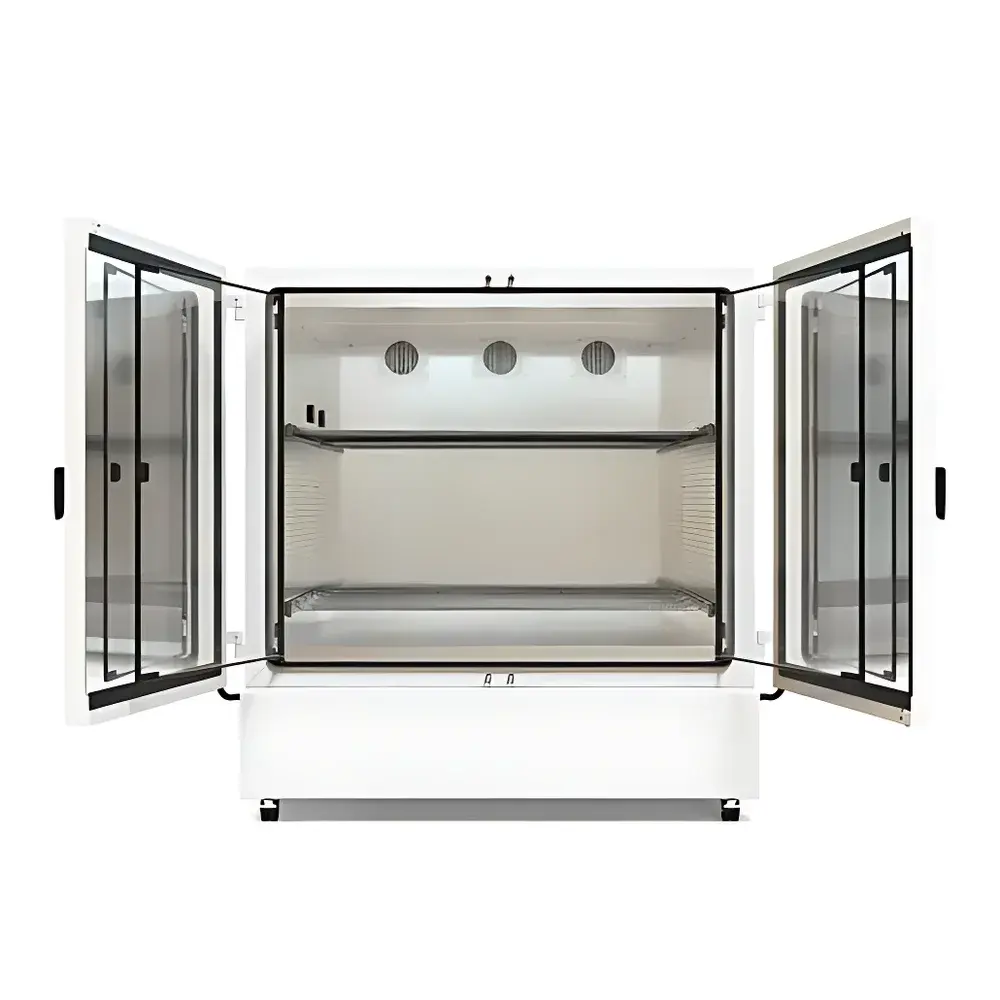

BINDER KB PRO 1600 Low Temperature Incubator

Overview

The BINDER KB PRO 1600 is a high-precision, large-capacity low-temperature incubator engineered for demanding life science applications requiring stable thermal environments across an exceptionally wide operating range (−20 °C to +100 °C). Unlike conventional incubators limited to ambient or mild sub-zero conditions, the KB PRO 1600 integrates dual-mode thermal regulation—compressor-driven active cooling and water-jacketed uniform heating—enabling seamless transitions between cryogenic preservation, mesophilic cell culture, and accelerated stability testing. Its APT.line™ preheating chamber technology ensures rapid, homogeneous temperature equilibration while minimizing thermal gradients during ramp-up and hold phases. The unit complies with DIN 12880 Class 3.3 safety requirements for temperature-critical laboratory equipment and is constructed with a corrosion-resistant stainless steel interior, HIT-insulated double-wall housing, and optically coated safety glass inner door—designed for long-term reliability under continuous operation in GLP- and GMP-aligned environments.

Key Features

• APT.line™ preheating chamber technology for superior temperature homogeneity and reduced overshoot during setpoint changes
• Variable-speed EC fan system with adjustable airflow control to optimize heat distribution and minimize sample disturbance
• Water-jacketed heating system providing stable, vibration-free thermal energy delivery and enhanced thermal inertia
• Energy-efficient inverter-controlled compressor refrigeration using eco-friendly R-290 refrigerant (GWP = 3)
• Red triangular status indicator with LED signal lights—compliant with ISO 9241-305 ergonomic interface standards
• Full-touch capacitive controller with real-time multi-segment programming, intuitive icon-based navigation, and tilt-adjustable mounting (470+ models)
• Stainless steel interior chamber with electropolished finish; inner door featuring metal oxide-coated safety glass for UV transparency and condensation resistance
• Two telescopic stainless steel shelves with full-extension rails; large-diameter access port (Ø80 mm) fitted with silicone plug for external probe integration
• Dual castor base with heavy-duty dual-axis swivel wheels and locking front castors for safe repositioning of the 1610 L floor-standing unit

Sample Compatibility & Compliance

The KB PRO 1600 accommodates diverse biological and pharmaceutical sample formats—including stacked multi-layer cell culture vessels, stability test trays (ICH Q1A–Q5C), plant growth containers, and environmental simulation chambers—without compromising thermal fidelity. Its stainless steel chamber and non-porous surfaces support routine cleaning with ethanol, hydrogen peroxide vapor (HPV), or validated disinfectants per ISO 14644-1 Class 5 cleanroom protocols. The system meets DIN EN 61000-6-2/6-4 (EMC immunity/emission), IEC 61010-1 (safety), and is fully compatible with FDA 21 CFR Part 11-compliant data integrity workflows when used with optional APT-COM™ Professional software. Independent temperature safety device (Class 3.3 per DIN 12880) provides redundant optical-acoustic alarm activation upon deviation exceeding user-defined thresholds.

Software & Data Management

Internal data logging records temperature, setpoint, alarm status, and system diagnostics at user-selectable intervals (1 s to 60 min) onto non-volatile memory. Measurement values are exportable via USB in open CSV format for traceability and audit readiness. Standard Ethernet and USB interfaces enable remote monitoring and configuration through BINDER’s APT-COM™ Basic software—a Windows-based platform supporting automated report generation, trend visualization, and event-triggered notifications. Optional APT-COM™ Professional adds electronic signature capability, audit trail encryption, and role-based access control aligned with ALCOA+ principles. All firmware updates are digitally signed and delivered via secure HTTPS channel.

Applications

• Long-term low-temperature storage of sensitive biologics (e.g., viral vectors, primary cells) at −20 °C with minimal thermal cycling stress
• ICH Q1B photostability testing when equipped with optional LED light module (IEC 60068-2-5 compliant irradiance profiles)
• Controlled-environment plant phenotyping and seed germination studies using programmable day/night cycles and spectral LED arrays
• Accelerated aging studies for medical devices and packaging materials per ASTM F1980 and ISO 11137
• Microbial growth inhibition assays requiring precise sub-zero incubation followed by controlled rewarming
• Material compatibility testing of adhesives, polymers, and elastomers under thermal cycling conditions

FAQ

What is the maximum permissible load volume without compromising temperature uniformity?
The KB PRO 1600 maintains ±0.2 °C uniformity at 37 °C with up to 80% chamber loading (1288 L net usable volume); full-load validation reports are available upon request.
Can the unit operate continuously at −20 °C in ambient rooms above 30 °C?
Yes—its high-efficiency inverter compressor and HIT insulation architecture ensure stable sub-zero operation even at 35 °C ambient, provided minimum clearance (10 cm rear/side, 30 cm top) is maintained.
Is the water jacket system self-filling or manually filled?
The water jacket requires initial manual filling with deionized water; an integrated level sensor triggers visual/audible alerts if refill is needed.
Does the USB data logger retain records during power failure?
Yes—internal flash memory retains all logged data indefinitely without battery backup; timestamps remain synchronized via internal RTC.
Are calibration certificates available with NIST-traceable references?
Factory calibration certificates (DIN EN ISO/IEC 17025 accredited) are optionally available; on-site IQ/OQ/PQ validation packages can be commissioned through BINDER’s global service network.
