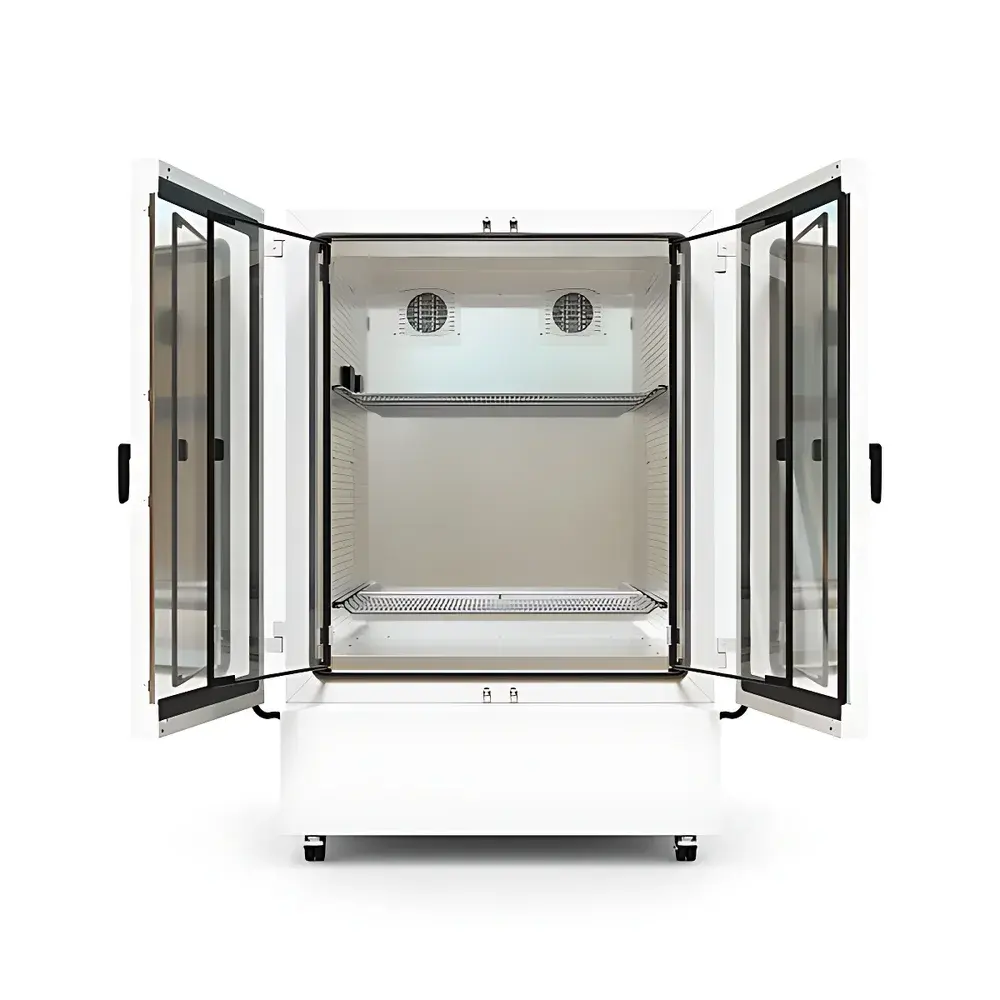

BINDER KBF 720 Temperature and Humidity Controlled Chamber

Overview

The BINDER KBF 720 is a precision-engineered upright temperature and humidity controlled chamber designed specifically for long-term stability testing in compliance with ICH Q1, Q5, and Q6 guidelines. It operates on the principle of active climate control via dual independent regulation loops—separate PID-controlled refrigeration and steam humidification systems—ensuring high reproducibility of environmental conditions across extended test durations (up to 36 months). The chamber’s core architecture integrates BINDER’s proprietary APT.line™ preheating technology, which maintains uniform thermal distribution throughout the entire working volume—even under full load—by heating the inner chamber walls prior to air circulation. This eliminates cold spots and minimizes thermal gradients, a critical requirement for pharmaceutical stability studies where spatial variability directly impacts degradation kinetics and shelf-life predictions.

Key Features

• Stainless steel interior chamber (AISI 304) with seamless welded corners and rounded edges for GMP-compliant cleaning and corrosion resistance
• HIT (High Insulation Technology) double-wall housing with vacuum-insulated panels, reducing heat transfer and improving energy efficiency by up to 40% versus previous-generation models
• Variable-speed EC fans with adjustable airflow profiles to optimize humidity homogeneity and minimize sample disturbance
• Capacitive humidity sensor with fast response time (<3 s) and integrated drift compensation algorithm for long-term RH stability
• Steam-based humidification system with deionized water feed and automatic condensate drainage—compatible with centralized water supply or integrated reservoir operation
• Red triangular status indicator light (IEC 60417-5009 compliant) and ergonomically angled touchscreen controller (tilt-adjustable on KBF 470/720) for intuitive operation and real-time monitoring
• Dual-stage safety system: independent Class 3.3 temperature safety device (DIN 12880) with optical/audible alarm and self-diagnostic firmware verification
• Two extendable stainless steel shelves with silent glide rails; large-diameter cable access port (Ø80 mm) with silicone sealing plug

Sample Compatibility & Compliance

The KBF 720 accommodates standard ICH-compliant packaging configurations—including blister packs, HDPE bottles, glass vials, and aluminum foil pouches—without compromising climatic uniformity. Its internal geometry (1011 × 1250 × 575 mm) allows for flexible rack mounting and supports ISO 17025-accredited calibration protocols using traceable NIST-certified probes. The chamber meets key regulatory requirements for data integrity and audit readiness: it records timestamped temperature/humidity values at user-defined intervals (1–60 min), stores >10,000 hours of raw data internally, and exports measurement logs in open CSV format via USB or Ethernet. Optional APT-COM™ software enables remote monitoring, electronic signature support (21 CFR Part 11 ready when paired with validated IT infrastructure), and automated report generation aligned with FDA, EMA, and PMDA submission standards.

Software & Data Management

The integrated touchscreen controller features real-time graphical display of setpoints, actual values, and deviation trends. It supports up to 99 programmable segments per cycle, including ramp/soak profiles and conditional triggers (e.g., humidity hold upon reaching target temperature). All parameter changes are logged with operator ID, timestamp, and reason-for-change fields. Data export is compatible with LIMS integration via Modbus TCP or HTTP API. APT-COM™ Basic provides local PC-based visualization, alarm configuration, and backup archiving; optional APT-COM™ Professional adds multi-chamber synchronization, role-based access control, and GLP/GMP audit trail functionality.

Applications

• ICH Q1A(R3) long-term (25 °C / 60 % RH) and accelerated (40 °C / 75 % RH) stability testing of APIs and finished dosage forms
• Forced degradation studies under stress conditions (e.g., 60 °C / 10 % RH for desiccation, 40 °C / 80 % RH for hydrolysis)
• Reference material storage under certified environmental conditions (ISO/IEC 17025 accredited labs)
• Biological sample conditioning prior to analytical testing (e.g., dissolution, HPLC, particle size analysis)
• Material compatibility testing of primary and secondary packaging components
• Optional LED lighting modules enable photostability testing per ICH Q5C and plant growth studies under controlled spectral output

FAQ

What ICH guidelines does the KBF 720 comply with for stability testing?

It is engineered to meet the environmental control, uniformity, and documentation requirements specified in ICH Q1A(R3), Q1B, Q5C, and Q6A.
Is the KBF 720 suitable for GMP-regulated environments?

Yes—the stainless steel interior, validated calibration interface, electronic audit trail (via APT-COM™ Pro), and Class 3.3 safety device support qualification (IQ/OQ/PQ) and routine compliance with EU GMP Annex 15 and FDA guidance.
Can humidity be maintained below 10 % RH or above 80 % RH?

No—the certified operating range is strictly 10–80 % RH; operation outside this band compromises sensor accuracy, condensation control, and long-term system reliability.
Does the chamber support remote monitoring and alarm notification?

Yes—via Ethernet connection and APT-COM™ software, users can configure email/SMS alerts for deviations, door openings, or power failures when integrated with enterprise IT infrastructure.
What is the expected service life of the R-600a refrigeration system?

Under normal laboratory use (8 h/day, 5 days/week), the hermetically sealed compressor and eco-friendly R-600a circuit demonstrate >15 years of maintenance-free operation, validated per DIN EN 60068-3-5.
