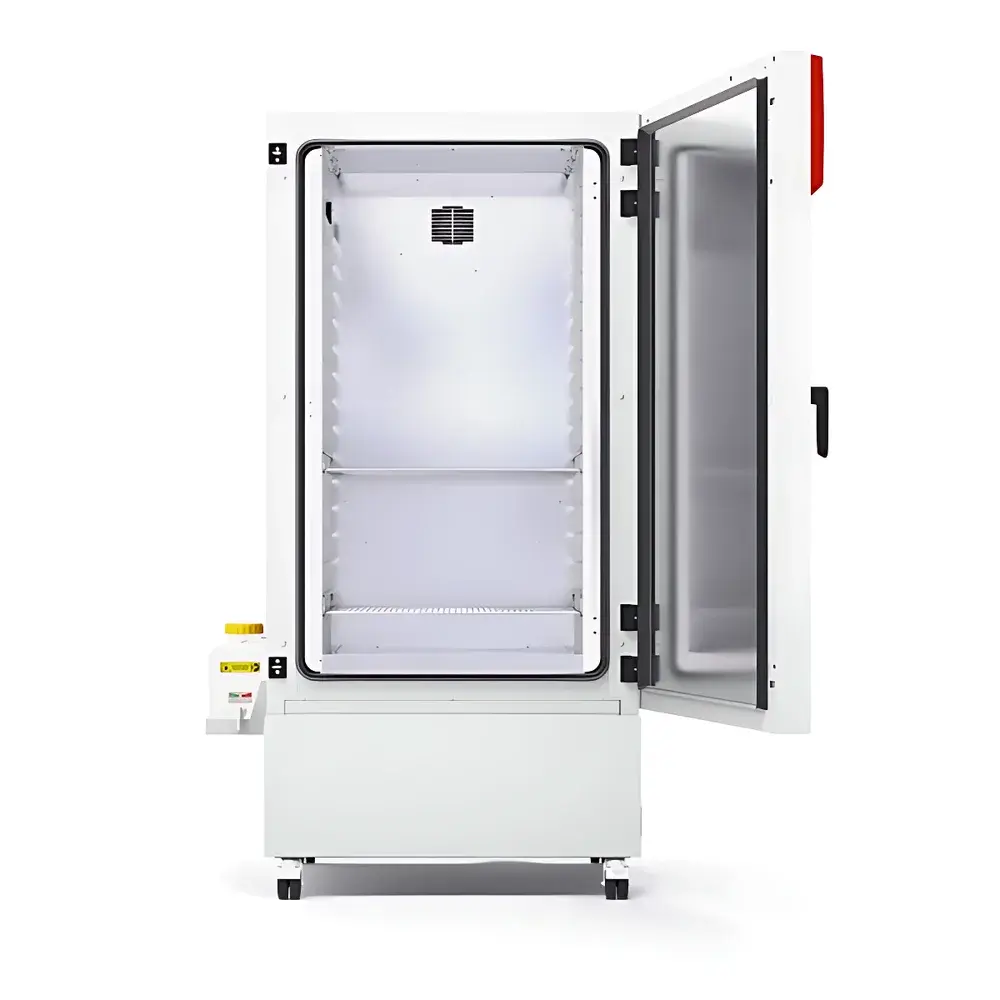

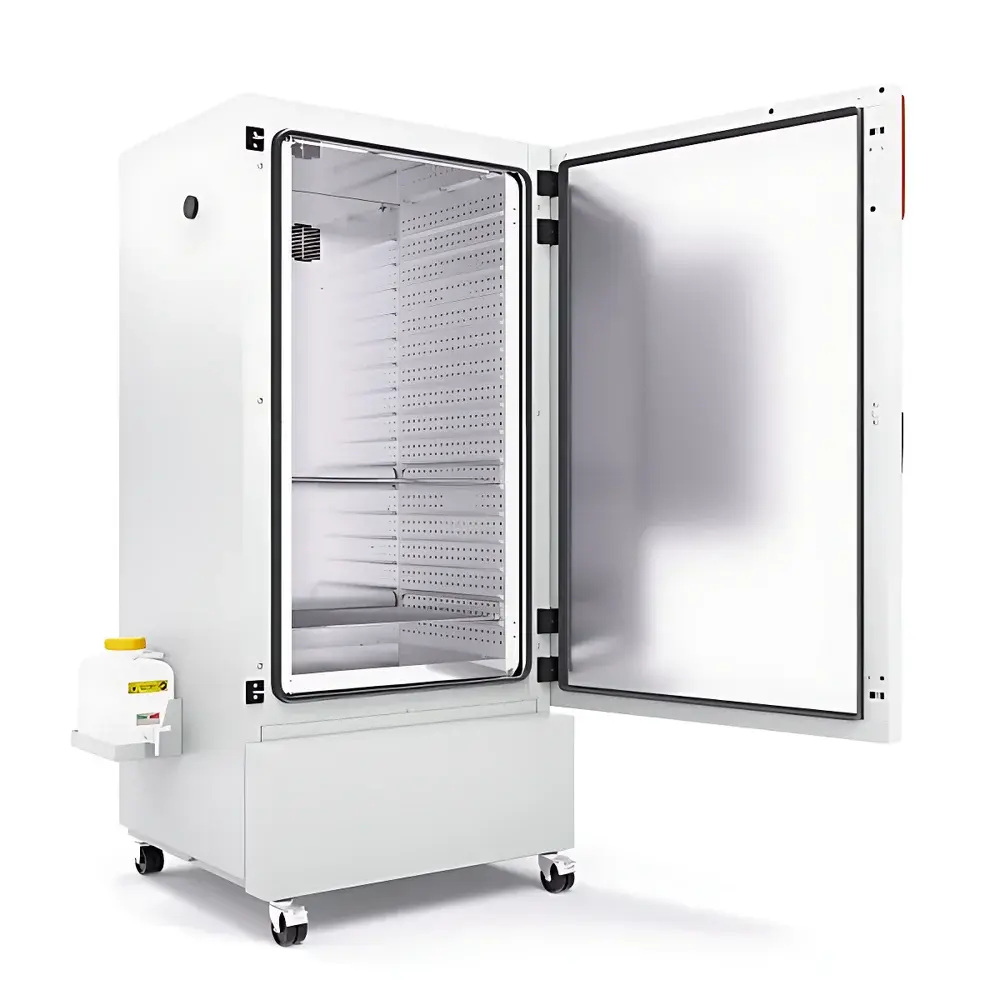

BINDER KBF-S ECO 400 Temperature and Humidity Controlled Chamber (Peltier-Cooled)

Overview

The BINDER KBF-S ECO 400 is a precision-engineered temperature and humidity controlled chamber designed for long-term stability testing, accelerated aging studies, and environmental stress screening in pharmaceutical, electronics, and materials science laboratories. Unlike conventional compressor-based systems, this model employs solid-state Peltier thermoelectric cooling technology—enabling precise, bidirectional thermal control without refrigerants or mechanical compressors. Its patented heat dissipation architecture minimizes ambient thermal load and eliminates condensation-related risks in high-humidity operation. The chamber complies with ICH Q1A(R3) guidelines for stability testing of active pharmaceutical ingredients (APIs) and finished dosage forms, supporting storage conditions such as 25 °C / 60 % RH and 30 °C / 65 % RH with metrological traceability. Its robust stainless-steel interior, double-glazed insulated door, and microprocessor-controlled PID regulation ensure reproducible environmental profiles across extended test durations.

Key Features

• Peltier-based cooling and heating system delivering silent operation (<35 dB(A)) and zero refrigerant emissions
• Patented passive heat rejection design reduces external heat load by up to 40 % compared to standard compressor chambers
• High-stability climate control: ±0.1 K temperature uniformity and ±0.1 % RH humidity uniformity at reference condition (25 °C / 60 % RH)
• Stainless-steel interior (AISI 304), seamless welded corners, and corrosion-resistant chamber walls for GMP-compliant cleaning and validation
• Integrated safety architecture including overtemperature protection, humidity sensor failure detection, door-open alarm, and independent mechanical thermostat backup
• Energy-optimized operation: typical power consumption <1.2 kW during steady-state 25 °C / 60 % RH operation

Sample Compatibility & Compliance

The KBF-S ECO 400 accommodates diverse sample configurations—including stacked trays, open petri dishes, sealed vials, PCB assemblies, and semiconductor wafers—without compromising environmental homogeneity. Its large interior volume (400 L net) and vertical airflow design support uniform exposure across multi-tier shelving. The chamber meets essential regulatory requirements for quality-controlled environments: it is compatible with IQ/OQ/PQ validation protocols, supports 21 CFR Part 11-compliant electronic records when paired with BINDER’s optional C-Control software, and facilitates GLP/GMP audit readiness through full event logging and calibration traceability. All sensors are factory-calibrated against NIST-traceable standards, and humidity control adheres to ISO 17025-accredited calibration practices.

Software & Data Management

Equipped with BINDER’s intuitive C-Control touch interface (7″ color display), the KBF-S ECO 400 enables real-time monitoring of temperature, relative humidity, runtime, and alarm status. Optional Ethernet/WLAN connectivity allows remote access via BINDER’s web-based LabExchange platform, enabling centralized fleet management across multiple instruments. Data export is supported in CSV and PDF formats, with configurable logging intervals (1 s to 24 h). For regulated environments, the optional DataLogger Pro package provides ALCOA+ compliant data integrity: audit trails, user access levels, electronic signatures, and immutable storage—fully aligned with FDA guidance on electronic records and signatures.

Applications

• ICH Q1A(R3)-compliant stability studies for pharmaceuticals and biologics under long-term and accelerated conditions
• Environmental stress testing of printed circuit boards (PCBs), IC packages, and optoelectronic components per JEDEC JESD22-A110 and MIL-STD-810H
• Material aging evaluation of polymers, adhesives, and packaging films under controlled thermo-hygrometric cycles
• Seed germination and plant tissue culture pre-conditioning requiring low-noise, vibration-free environments
• Reference storage of hygroscopic reference standards and certified reference materials (CRMs) per ISO Guide 34 requirements

FAQ

Does the KBF-S ECO 400 require external water supply for humidification?

No—it uses an integrated ultrasonic humidifier with internal reservoir (capacity: 4.5 L), eliminating dependency on continuous tap water connection.
Can the chamber operate continuously at 70 °C and 80 % RH simultaneously?

Yes—the Peltier system is rated for full-range concurrent operation; however, maximum humidity at elevated temperatures is limited by saturation constraints (e.g., 80 % RH is achievable up to 40 °C; above that, max RH decreases per psychrometric principles).
Is validation documentation included with the instrument?

A comprehensive Factory Acceptance Test (FAT) report is supplied, including as-delivered calibration certificates for temperature and humidity sensors, uniformity mapping data, and electrical safety test results.
What is the recommended recalibration interval?

BINDER recommends annual recalibration of both temperature and humidity sensors in accordance with ISO/IEC 17025 and internal quality management system requirements.
Can third-party software interface with the chamber’s control system?

Yes—via Modbus TCP or OPC UA protocols (optional firmware module), enabling integration into LIMS, MES, or SCADA platforms for automated workflow orchestration.
