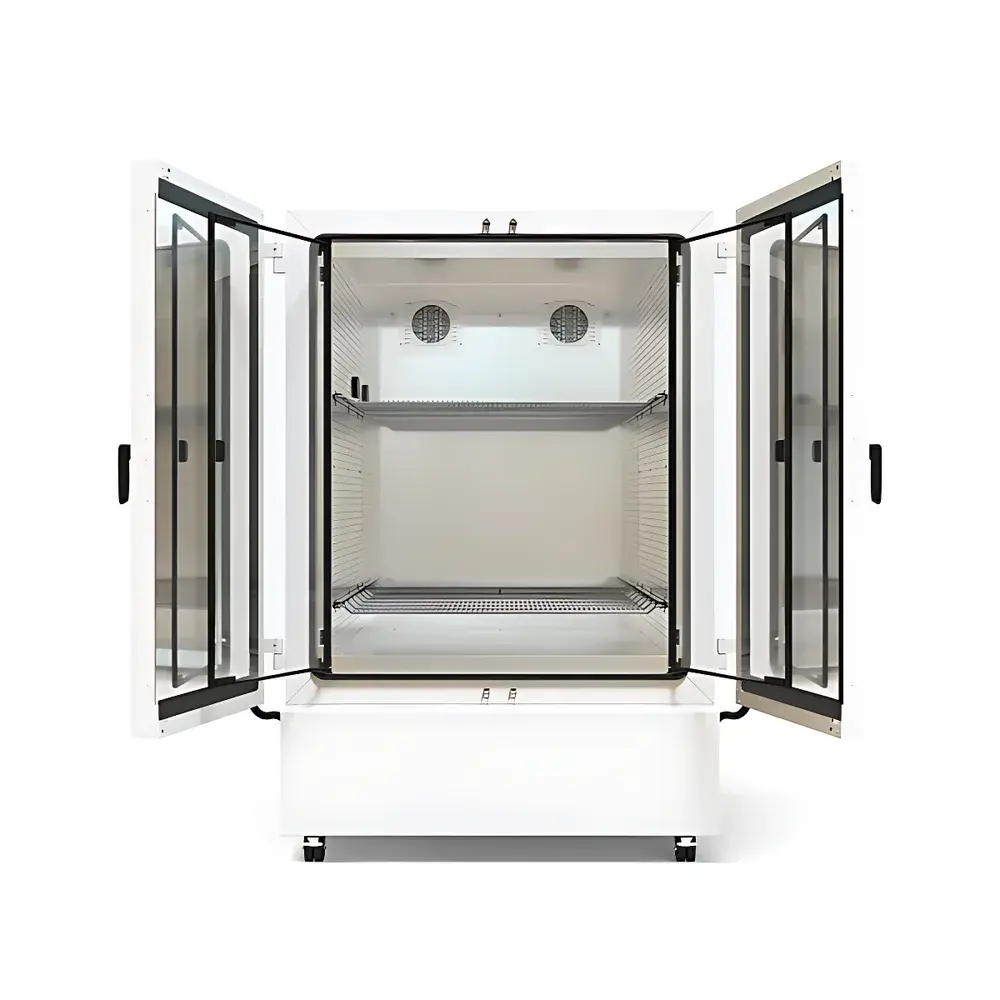

BINDER KBF PRO 1060 Temperature and Humidity Controlled Chamber

Overview

The BINDER KBF PRO 1060 is a high-precision, programmable temperature and humidity controlled chamber engineered for demanding applications in pharmaceutical stability testing, material aging studies, microbiological incubation, and long-term environmental simulation. It operates on a dual-climate control principle—integrating independent refrigeration, heating, and humidification/dehumidification subsystems—to maintain stable, repeatable climatic conditions across its large-volume interior. Designed and manufactured in Tuttlingen, Germany, the chamber complies with stringent European engineering standards and is widely deployed in GLP-compliant laboratories, ISO 17025-accredited test facilities, and regulated environments requiring adherence to ICH Q1–Q5 guidelines for stability storage.

Key Features

• Stainless steel interior chamber (AISI 304) with seamless welded corners—resistant to corrosion, easy to clean, and suitable for repeated sterilization cycles.
• Advanced inverter-driven refrigeration system enabling precise cooling capacity modulation, reducing energy consumption by up to 30% compared to conventional fixed-speed compressors.
• High-efficiency steam humidification system with integrated condensate drainage and anti-scaling design, ensuring stable RH performance even during extended low-humidity or high-humidity protocols.
• Intuitive 7-inch capacitive touchscreen controller with graphical programming interface, supporting up to 99 programs with 24 segments each—including ramp/hold profiles, event-triggered actions, and user-defined alarm thresholds.
• Ergonomic signal triangle with status-indicating LEDs (green = operational, yellow = warning, red = fault), providing immediate visual feedback without requiring screen interaction.
• Full-extension telescopic shelves with load-rated support (up to 25 kg per shelf), facilitating safe handling of stacked sample containers and minimizing thermal disturbance during access.

Sample Compatibility & Compliance

The KBF PRO 1060 accommodates diverse sample formats including glass vials, plastic trays, petri dishes, sealed stability chambers, and standard ISO/IEC 17025-compliant reference materials. Its validated uniformity profile (±0.1 K temperature, ±1 % RH) meets critical requirements for ICH Q5C biopharmaceutical stability studies and ASTM E145–22 Class I chamber specifications. The unit is CE-marked and conforms to EN 61000-6-2 (EMC immunity) and EN 61000-6-4 (EMC emission) standards. Optional IQ/OQ documentation packages support FDA 21 CFR Part 11 compliance, including electronic audit trails, user access levels, and calibration certificate traceability to national standards (e.g., PTB, NIST).

Software & Data Management

Equipped with BINDER’s proprietary C-Control software (v3.2+), the chamber supports real-time remote monitoring via Ethernet or optional Wi-Fi module. Data logging occurs at user-configurable intervals (1 s to 60 min), storing time-stamped temperature, humidity, door-open events, and alarm logs internally (≥30 days at 1-min resolution). Export formats include CSV and PDF reports compliant with 21 CFR Part 11 Annex 11 requirements. Integration with LIMS systems is achievable through Modbus TCP or OPC UA protocols. All configuration changes are recorded with operator ID, timestamp, and pre-/post-value logging—enabling full traceability for internal audits and regulatory inspections.

Applications

• ICH-compliant long-term and accelerated stability testing of APIs and finished drug products.
• Environmental stress screening of polymers, composites, and electronic components under combined thermal-hygrometric loads.
• Microbiological culture maintenance and fungal growth inhibition studies requiring tightly controlled RH gradients.
• Calibration and verification of hygrometers, thermistors, and data loggers in metrology labs.
• Material conditioning prior to mechanical or rheological testing per ISO 291 and ASTM D618 standards.

FAQ

What is the maximum allowable ambient temperature for continuous operation?
The KBF PRO 1060 is rated for continuous operation at ambient temperatures up to +32 °C with ≤75 % RH.
Can the chamber be validated for GMP environments?
Yes—BINDER provides factory-issued IQ/OQ protocols and supports user-executed PQ with documented procedures aligned with EU GMP Annex 15 and WHO TRS 961.
Is remote firmware update supported?
Firmware updates require local USB connection and administrative authentication; over-the-air updates are not implemented for security and validation integrity reasons.
How is dehumidification achieved below 30 % RH?
Dehumidification is performed via active cooling coil condensation, supplemented by dry air purging when required—no desiccant cartridges or external nitrogen supply needed.
What safety certifications does the unit hold?
It carries UL/cULus recognition (UL 61010-1), CE marking, and meets IEC 60529 IP20 enclosure protection requirements.
