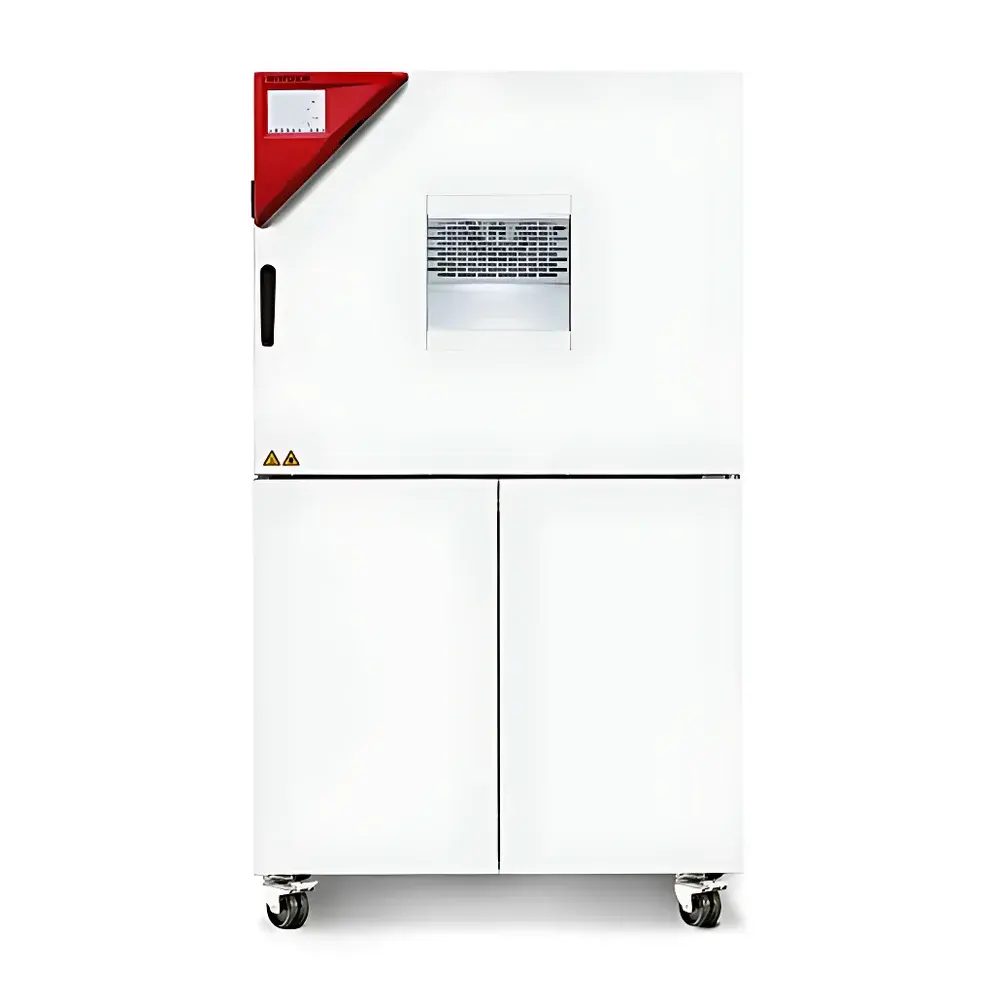

BINDER MK Series Climate Chambers for Temperature Cycling Tests

Overview

The BINDER MK Series Climate Chambers are precision-engineered environmental test systems designed for rigorous temperature cycling, thermal shock simulation, and long-term stability testing across industrial quality assurance, automotive component validation, aerospace materials qualification, and pharmaceutical stability studies. Operating within a wide temperature range of –40 °C to +180 °C, the MK Series leverages BINDER’s proprietary APT.line™ preheating chamber technology to eliminate thermal gradients and ensure exceptional spatial uniformity—critical for reproducible test outcomes under dynamic thermal profiles. Unlike conventional chambers relying solely on direct air circulation, the APT.line™ architecture isolates and preconditions supply air prior to entering the test compartment, minimizing cold spots, condensation risks, and transient overshoot during ramp transitions. This architecture is validated per IEC 60068-3-5 for heating/cooling rate accuracy and conforms to core requirements of IEC 60068-2-1 (cold) and IEC 60068-2-2 (dry heat), supporting method development aligned with ISO 17025-accredited laboratory practices.

Key Features

• APT.line™ preheating chamber technology enabling uniform temperature distribution (±0.1 K to ±2.0 K, dependent on setpoint and load)
• Stainless steel interior chamber and removable stainless steel shelf system rated for loads up to 200 kg (model-dependent)
• Heated, double-glazed observation window with LED interior lighting—prevents fogging and enables real-time visual monitoring without thermal disturbance
• Independent Class 2 temperature safety device per DIN 12880, featuring optical alarm and fail-safe cut-off
• Intuitive 7-inch color touchscreen controller with real-time programming, ramp/soak profiling, and interval-based scheduling
• Integrated continuous data logger with timestamped records exportable via USB in open CSV format
• Ethernet interface supporting remote monitoring, alarm forwarding, and integration into centralized lab infrastructure
• Energy-optimized design using low-GWP refrigerant R-452A and high-efficiency compressors compliant with EU F-Gas Regulation (EU) No 517/2014
• Four castor wheels (two with brakes) for stable repositioning in controlled environments

Sample Compatibility & Compliance

The MK Series accommodates diverse sample geometries and material classes—from small electronic assemblies and polymer specimens to full-size automotive ECUs and pharmaceutical primary packaging. Standard 50 mm access ports with silicone grommets allow for sensor feedthroughs or external cabling without compromising chamber integrity. All models meet essential electromagnetic compatibility (EMC) requirements per EN 61326-1 and safety standards per EN 61010-1. When deployed in regulated environments, the system supports audit-ready operation: time-stamped event logs, user-accessible calibration history, and configurable alarm thresholds align with GLP and GMP documentation expectations. While not inherently 21 CFR Part 11 compliant out-of-the-box, APT-COM™ Basic provides foundational traceability; full electronic signature and audit trail functionality are available through optional APT-COM™ Professional licensing.

Software & Data Management

BINDER’s APT-COM™ Basic software delivers bidirectional communication between the chamber and host PC via Ethernet or USB. Users can upload/download temperature programs, retrieve logged measurement data (temperature, runtime, alarms), and generate standardized reports for internal review or regulatory submission. All exported data files adhere to open, non-proprietary formats (CSV, TXT), ensuring interoperability with LIMS, ELN, and statistical analysis platforms such as JMP or Minitab. The embedded real-time clock maintains accurate timestamps across power cycles, and the controller stores up to 100 programmable profiles with individual naming and version tracking. Firmware updates are distributed via BINDER’s secure customer portal and applied locally without third-party tools.

Applications

• Accelerated aging of polymers, adhesives, and composites per ASTM D3045 and ISO 11357
• Thermal cycling validation of printed circuit boards (PCBs) and automotive ECUs per AEC-Q200
• Stability testing of drug substances and products per ICH Q1A(R2) and USP
• Preconditioning of lithium-ion battery cells prior to electrochemical characterization
• Calibration verification of temperature-sensitive sensors and metrology equipment
• Environmental stress screening (ESS) of aerospace components per MIL-STD-810H Method 501.7/502.7

FAQ

What is the maximum permissible load for the MK 1020 model?

The MK 1020 supports a maximum total load of 200 kg, with each adjustable stainless steel shelf rated for up to 40 kg.
Does the MK Series support humidity control?

No—humidity control is not integrated. The MK Series is a dedicated temperature-cycling chamber. For combined temperature/humidity testing, refer to BINDER’s MKF or MKT series.
Is calibration documentation included with delivery?

Yes—each unit ships with a factory calibration certificate traceable to national standards (DAkkS-accredited labs where applicable), covering temperature uniformity and stability at key setpoints (–40 °C, 23 °C, +180 °C).
Can the chamber operate unattended for extended periods?

Yes—the system includes optical and acoustic fault diagnostics, automatic restart after power interruption (with configurable behavior), and email/SNMP alarm notification when connected to an enterprise network.
What maintenance intervals are recommended?

BINDER recommends annual preventive maintenance including refrigerant pressure verification, condensate drain inspection, door seal integrity check, and APT.line™ duct cleaning—procedures detailed in the Operation Manual (EN/DE/FR/ES).
