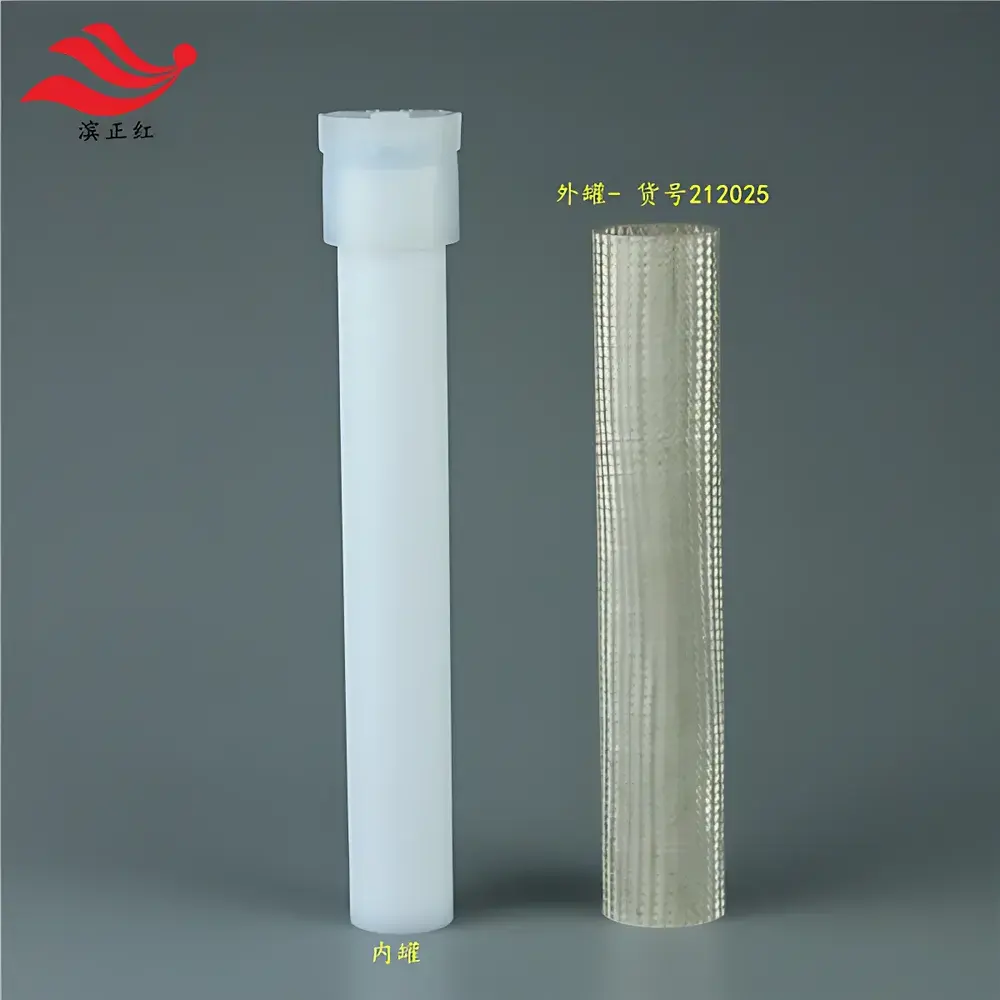

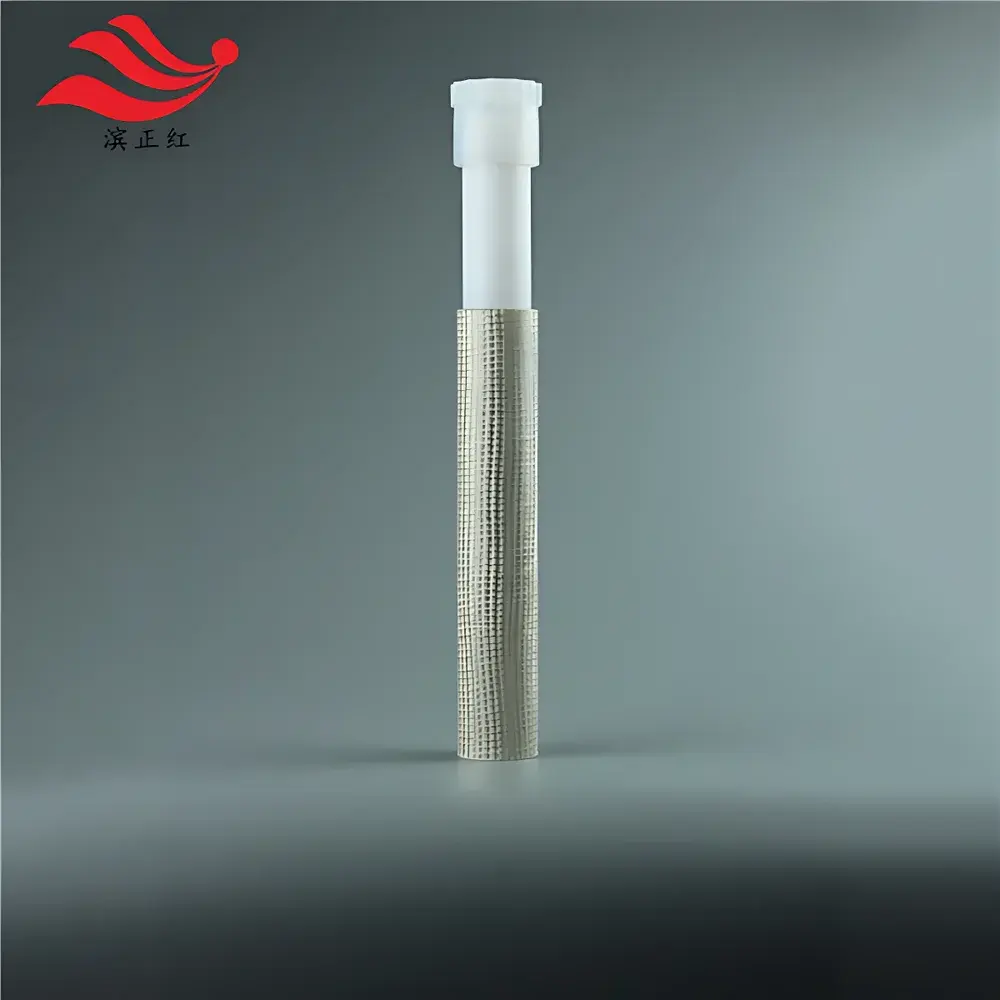

Binzhenghong TFM-55ml Replacement Inner Vessel for CEM MARS Xpress 40-Position Microwave Digestion System

Overview

The Binzhenghong TFM-55mL Replacement Inner Vessel is a precision-engineered consumable component designed exclusively for compatibility with the CEM MARS Xpress 40-position microwave digestion system and its legacy platforms—including MARS 5, MARS 6, OMNI, EasyPrep, and MARS 240/50 series instruments. Constructed from high-purity TFM (tetrafluoroethylene-perfluoroalkoxy alkane), this inner vessel delivers exceptional chemical inertness, thermal stability, and low extractables—critical attributes for trace-level elemental analysis via ICP-MS, ICP-OES, or AAS. Unlike standard PTFE or PFA, TFM exhibits superior resistance to stress cracking under repeated thermal cycling and aggressive acid matrices (e.g., HNO₃/HF/HCl mixtures at elevated temperatures and pressures). Its seamless, molded geometry minimizes surface area-to-volume ratio, reducing analyte adsorption and enhancing recovery reproducibility across multi-batch digestions.

Key Features

• Material integrity: TFM polymer certified to ASTM D4895–22 for fluoropolymer performance in high-pressure chemical environments
• Thermal resilience: Rated for continuous operation from –200 °C to +260 °C; validated for sustained exposure at 300 °C for ≤15 minutes during ramp-and-hold digestion protocols
• Dimensional fidelity: Manufactured to ISO 9001-controlled tolerances (±0.15 mm diameter, ±0.2 mm height) ensuring repeatable sealing interface with original CEM quartz outer vessels and pressure caps
• Low background contamination: Pre-cleaned using ultra-pure nitric acid leaching and class-100 cleanroom packaging; typical blank levels ≤0.5 pg/g for As, Cd, Cr, Pb, and Hg
• System integration: Direct drop-in replacement—no recalibration or software modification required; maintains full compliance with instrument safety interlocks and pressure monitoring algorithms

Sample Compatibility & Compliance

These inner vessels support digestion of diverse solid and semi-solid matrices including biological tissues, soil/sediment, polymer composites, pharmaceutical excipients, catalyst residues, and wastewater sludge. They are routinely deployed in laboratories adhering to EPA Method 3052, ISO 11466, ASTM D5511, and USP heavy metals testing protocols. The TFM material complies with FDA 21 CFR §177.1550 for indirect food contact and meets RoHS Directive 2011/65/EU restrictions on hazardous substances. Each batch undergoes certificate-of-analysis validation for residual metal content and hydrolytic stability per ICH Q5C guidelines.

Software & Data Management

While the inner vessel itself is a passive consumable, its use preserves full traceability within CEM’s iWave™ and MARS Touch™ software ecosystems. Instrument logs retain vessel-specific cycle parameters—including ramp rate, hold time, maximum temperature, and real-time pressure curves—enabling GLP-compliant audit trails. When paired with CEM’s optional RFID-enabled rotor systems, vessel lifecycle tracking (installation date, usage count, thermal history) can be integrated into LIMS via ASTM E1578-compliant data export formats (.csv, .xlsx, or XML).

Applications

• Environmental testing: Total recoverable metals in EPA SW-846 Method 3052 digests for regulatory reporting
• Pharmaceutical QA/QC: Residual catalyst quantification (e.g., Pd, Pt, Rh) in active pharmaceutical ingredients per ICH Q2(R2)
• Geochemical analysis: Rare earth element (REE) dissolution from silicate minerals using HF-containing reagents
• Food safety: As, Cd, and Pb determination in infant formula and dietary supplements under EU Commission Regulation (EU) No 1881/2006
• Materials science: Leachable metal profiling from battery cathode materials (NMC, LFP) prior to electrochemical characterization

FAQ

Are these TFM inner vessels compatible with CEM’s SmartView™ pressure sensors and Auto-Tune™ frequency modulation?
Yes—dimensional and dielectric properties match OEM specifications, enabling uninterrupted function of all closed-vessel feedback control systems.
What is the recommended maximum number of digestion cycles per vessel?
Under standard HNO₃/H₂O₂ conditions at ≤220 °C, longevity exceeds 120 cycles; for HF-containing methods, limit to ≤60 cycles and inspect for microcracking under 10× magnification before reuse.
Do you supply matching quartz outer vessels or carbon fiber rotors?

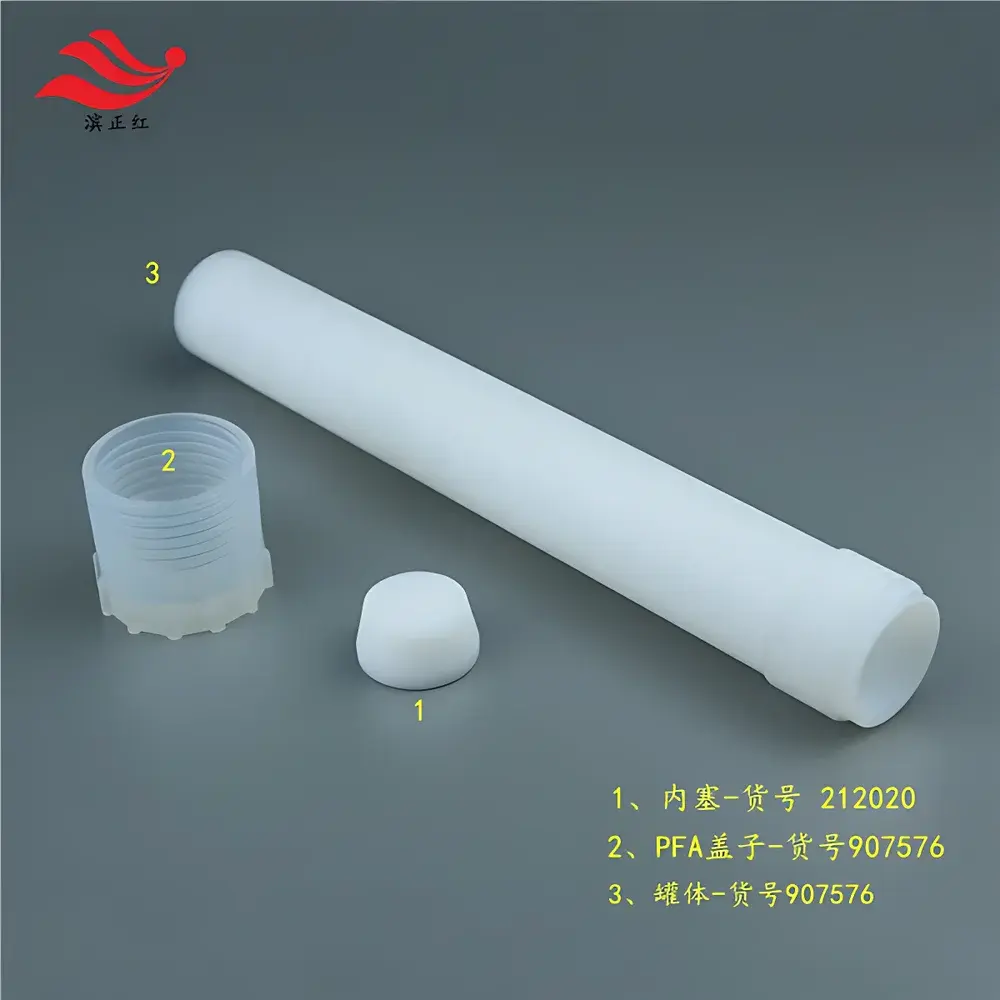

No—we supply only TFM inner vessels and associated sealing components (PTFE-coated silicone septa, Torlon® compression rings); outer vessels remain CEM OEM-only due to proprietary thermal shielding design.
Is there a documented cleaning protocol between uses?
Rinse sequentially with deionized water, 5% v/v HNO₃, and acetone; air-dry in laminar-flow hood; avoid ultrasonic cleaning to prevent subsurface fatigue initiation.
Can these vessels be used in non-CEM microwave platforms such as Milestone UltraWAVE or Anton Paar Multiwave PRO?
No—mechanical interface dimensions, thread pitch, and pressure cap engagement geometry are platform-specific and not cross-compatible.
