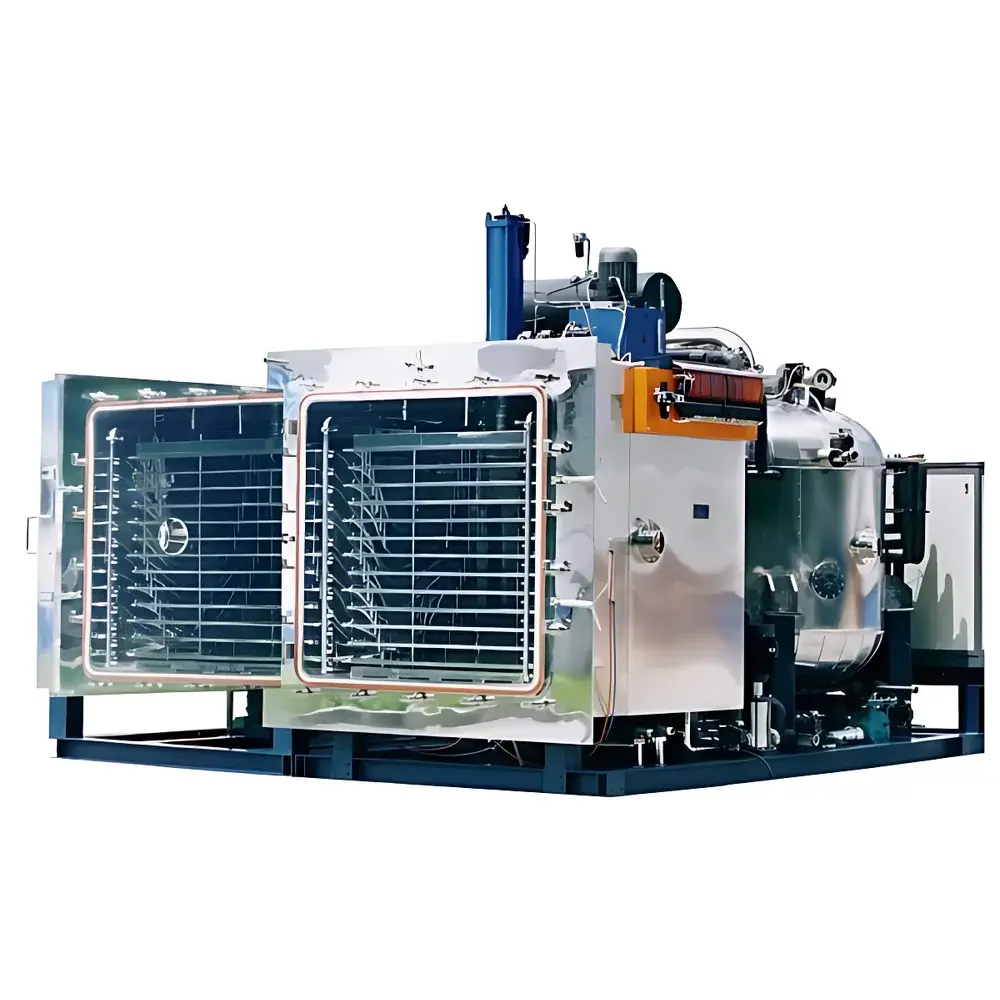

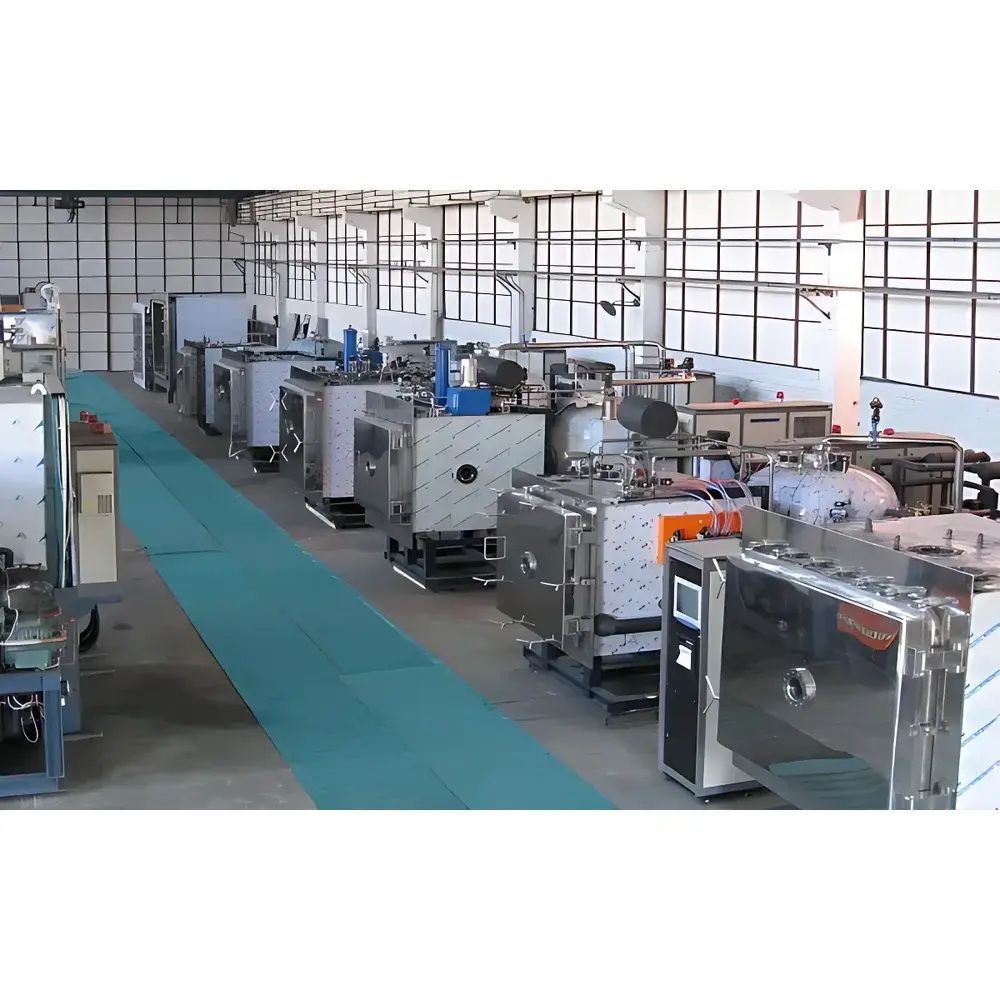

BIOCOOL LYO-30 Production-Scale Freeze Dryer

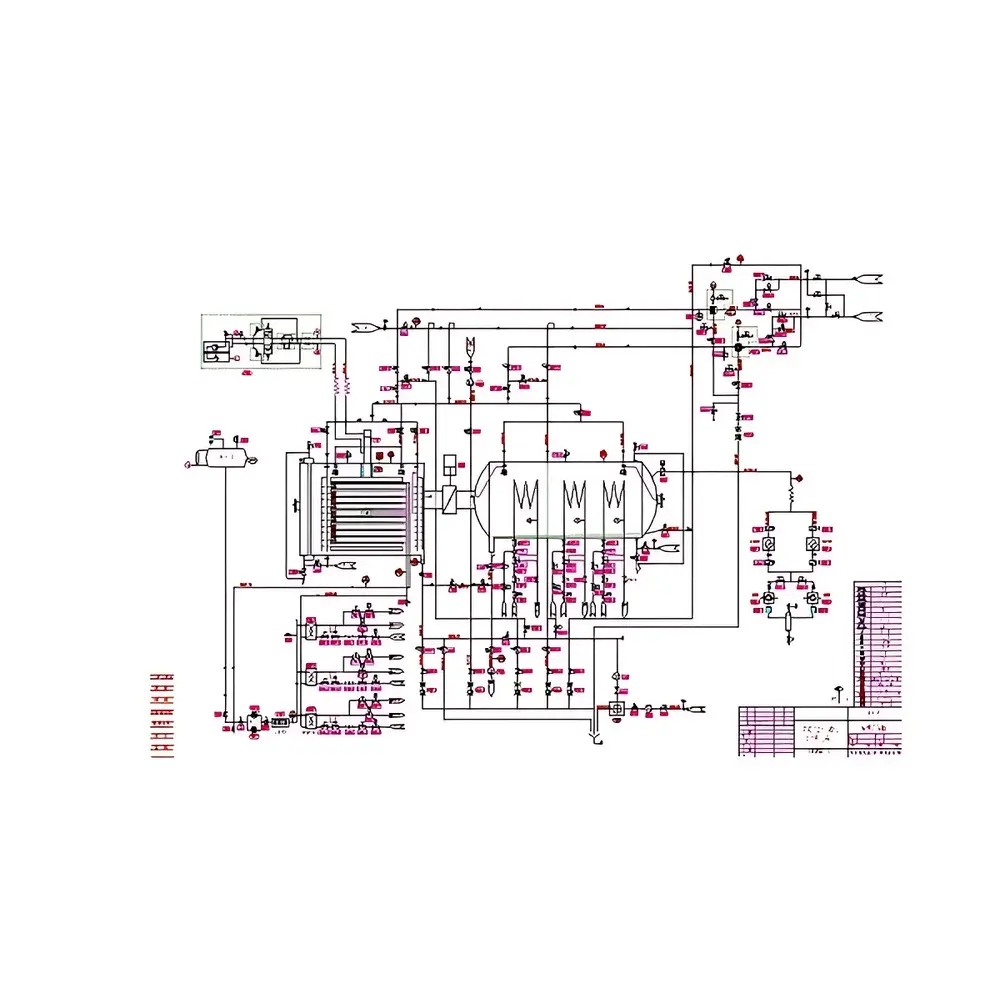

Overview

The BIOCOOL LYO-30 is a fully GMP-compliant, production-scale vacuum freeze dryer engineered for pharmaceutical, biotechnology, and high-value industrial applications requiring reproducible, scalable, and regulatory-ready lyophilization processes. It operates on the fundamental principle of sublimation—removing water from frozen product under deep vacuum while maintaining structural integrity and biological activity. The system integrates a robust stainless-steel chamber rated for full bidirectional pressure (0.5 Pa to 0.15 MPa), precision-controlled shelf temperature modulation (−55 °C to +80 °C), and a high-efficiency cold trap capable of condensing up to 600 kg of water vapor within 24 hours at <−75 °C. Designed to meet stringent international design codes—including ASME BPVC Section VIII Div. 1, PED 2014/68/EU, and GB150-2011—the LYO-30 supports end-to-end process validation, from cycle development through commercial manufacturing.

Key Features

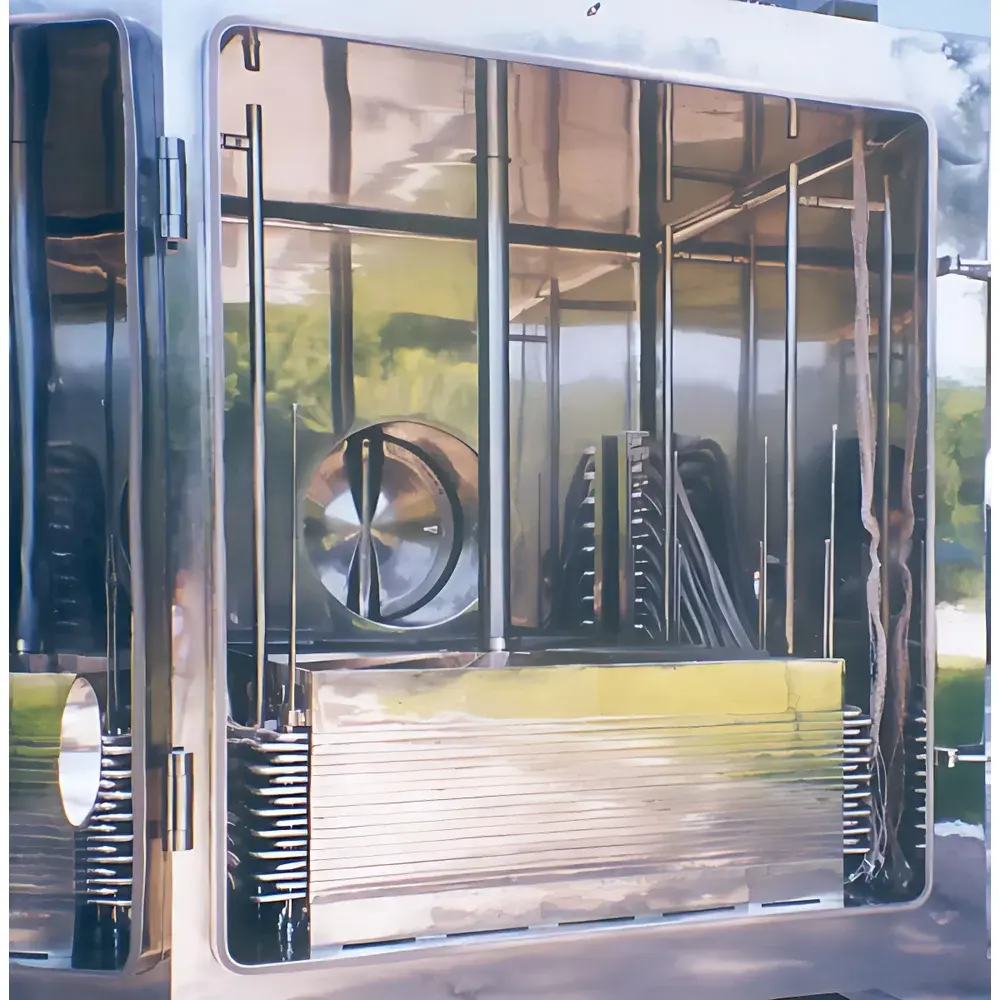

• Hermetically sealed chamber with mirror-polished interior surfaces and large-radius internal corners, optimized for CIP/SIP compliance and complete residue-free drainage.
• Shelves fabricated using orbital TIG welding with full internal weld inspection (X-ray certified); guaranteed leak-free performance with 3-year structural warranty.
• Advanced vacuum regulation system enabling dynamic pressure control during primary and secondary drying—preventing melt-back, collapse, or vial deformation in sensitive formulations.
• Triple-mode pulse backfill system (slow/medium/fast) for controlled inert gas reintroduction, minimizing particle displacement and active ingredient loss in lyophilized powders and aggregates.
• FDA 21 CFR Part 11–compliant process control architecture featuring electronic signatures, immutable audit trails, role-based access, and encrypted data storage.
• Integrated freeze-drying endpoint detection algorithm that automatically initiates endpoint testing during desorption drying, verifying residual moisture content against pre-set acceptance criteria.
• Real-time monitoring at 50 ms sampling frequency for shelf temperature, product thermocouple signals, chamber pressure, and condenser load—with full curve logging and export capability.
• Industrial-grade 15-inch HMI touchscreen interface with intuitive navigation; no manual required for routine operation or recipe recall.
• Optional co-located or remote PC-based supervision system supporting real-time diagnostics, alarm history, and live parameter streaming up to 1.5 km via standard Ethernet infrastructure.

Sample Compatibility & Compliance

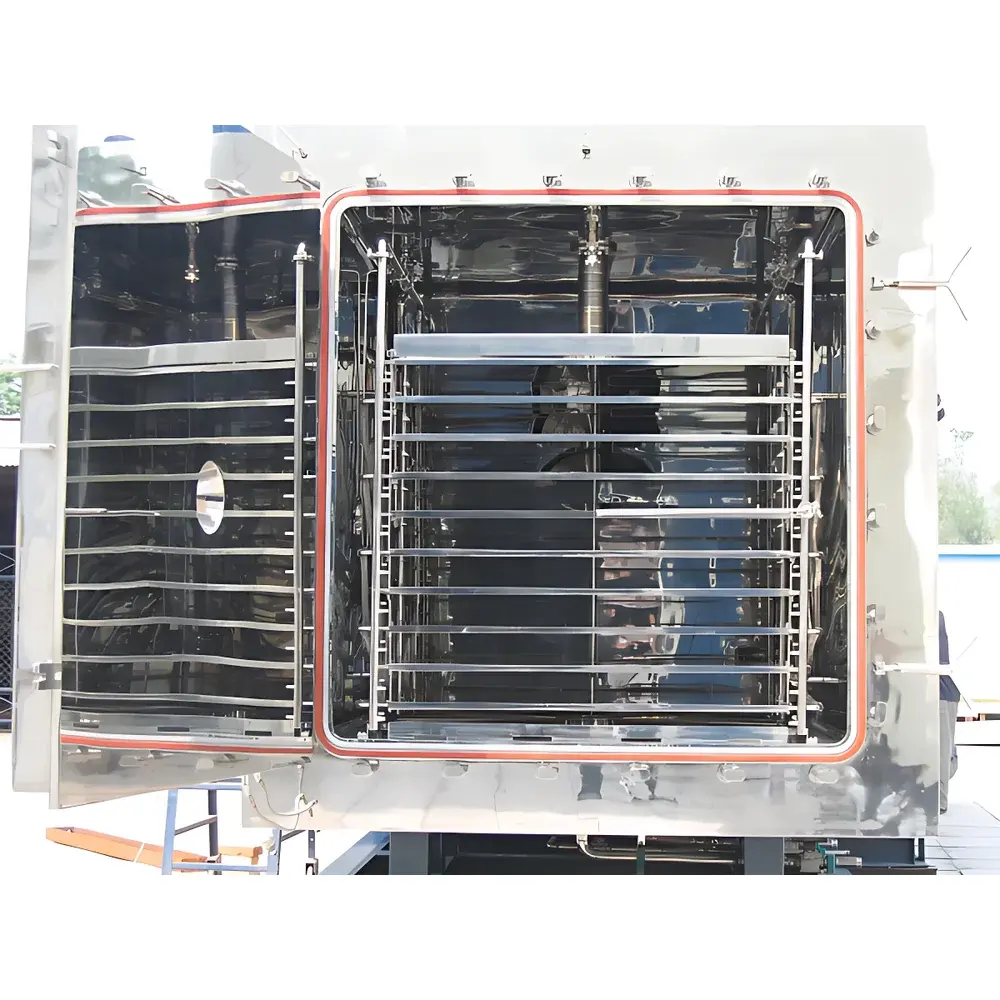

The LYO-30 accommodates diverse product formats including vials (up to ∅22 mm, 60,900 units per batch), trays, serum bottles, and custom containers. Its chamber geometry (1490 mm × 1490 mm × ~2200 mm effective height) supports uniform heat transfer across all load configurations. All wetted surfaces are electropolished AISI 316L stainless steel meeting USP Class VI and ISO 10993 biocompatibility requirements. CIP and SIP subsystems are fully qualified per ISPE Guide to Cleaning Validation and PDA Technical Report No. 1, incorporating helium mass spectrometry leak testing, Fo-value recording (0–100), and triple overpressure protection. The vessel undergoes 100% radiographic inspection during fabrication and is certified for repeated sterilization cycles at up to 150 °C.

Software & Data Management

The embedded control software provides full lifecycle data management: recipe creation, execution, deviation logging, and post-run analysis. Each batch generates a timestamped, digitally signed electronic batch record (EBR) compliant with Annex 11 and ALCOA+ principles. Raw process data—including shelf temperature profiles, chamber pressure transients, condenser load curves, and endpoint test results—are stored in CSV and PDF formats with SHA-256 hash verification. Calibration logs for temperature sensors (PT100 Class A) and capacitance manometers (±0.25% FS) are maintained separately with traceability to NIST-traceable standards. Optional add-ons include automated co-located data backup, cloud-synced archival, and integration with MES/LIMS platforms via OPC UA or Modbus TCP.

Applications

The LYO-30 serves as a bridge between pilot-scale development and commercial manufacturing for sterile injectables, monoclonal antibodies, vaccines, diagnostic reagents, and cell/gene therapy products. Its validated design enables direct scale-up from LYO-5 or LYO-10 platforms using geometric similarity and heat/mass transfer modeling. Common use cases include terminal sterilization–sensitive biologics where thermal degradation must be avoided; combination products containing labile excipients; and high-potency compounds requiring containment-compatible loading/unloading interfaces. In non-pharma sectors, it supports food preservation (e.g., probiotics, enzymes), specialty chemicals, and advanced material synthesis (e.g., aerogels, porous ceramics).

FAQ

What regulatory standards does the LYO-30 comply with?
The system conforms to ASME BPVC Section VIII Div. 1, PED 2014/68/EU, GB150-2011, ISO 13485, and Annex 1 of EU GMP. Its software meets FDA 21 CFR Part 11 and EU Annex 11 requirements.
Is SIP and CIP qualification support included?
Yes—full IQ/OQ documentation packages, protocol templates, and on-site qualification assistance are provided as part of the standard service offering.
Can the system be integrated into an existing automation infrastructure?
It supports OPC UA, Modbus TCP, and Ethernet/IP protocols for seamless integration with DCS, SCADA, or MES platforms.
What optional modules are available for enhanced functionality?
Available options include eutectic point measurement module, dry vacuum pump upgrade, cascade refrigeration system, organic solvent trap, hydraulic oil mist filter, and extended vacuum pumping capacity.
Does the LYO-30 support continuous monitoring during unattended operation?
Yes—remote monitoring, email/SMS alarm notification, and real-time dashboard access enable 24/7 oversight without physical presence.
