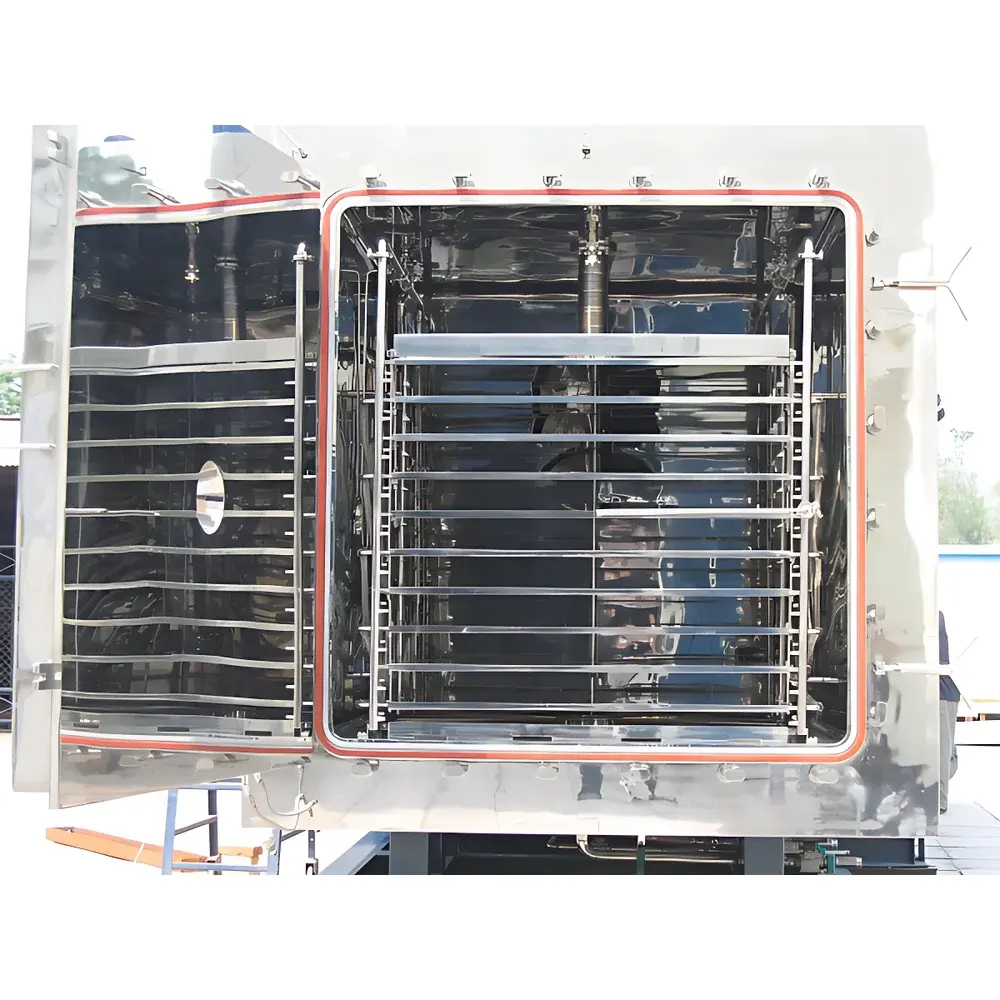

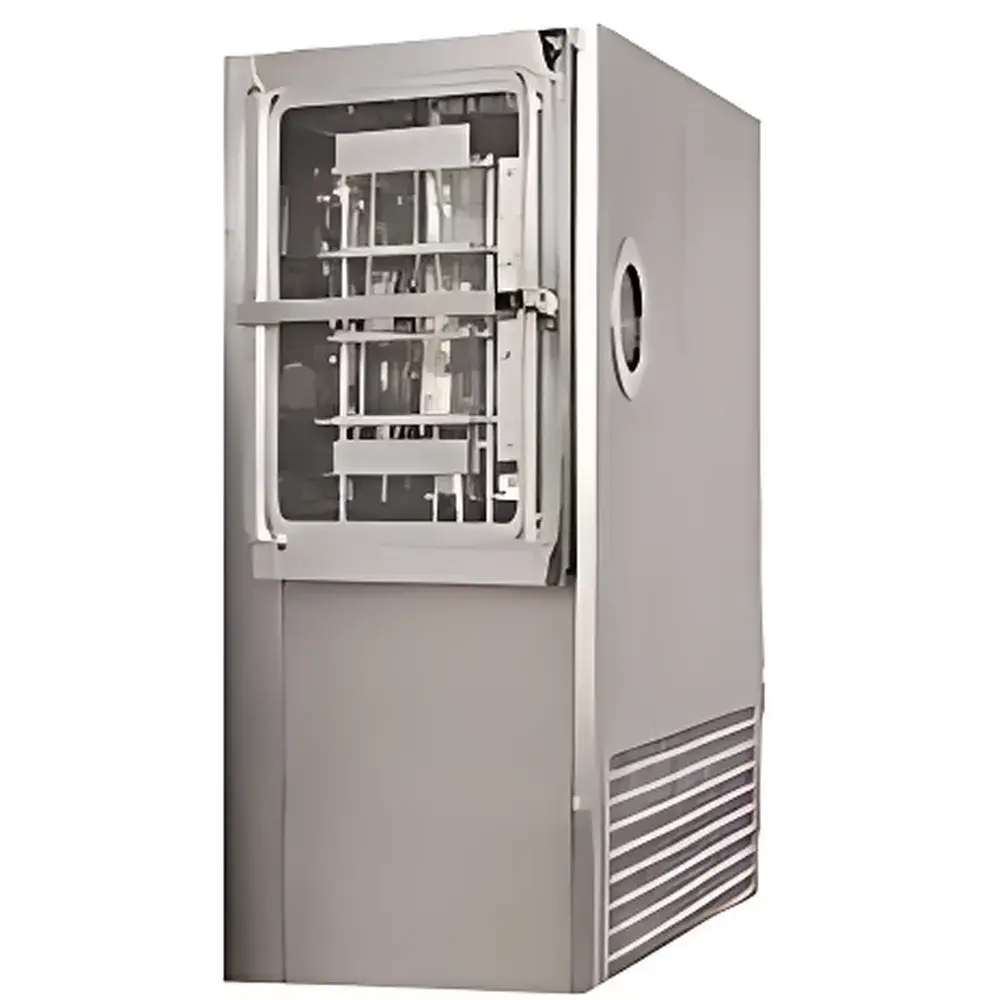

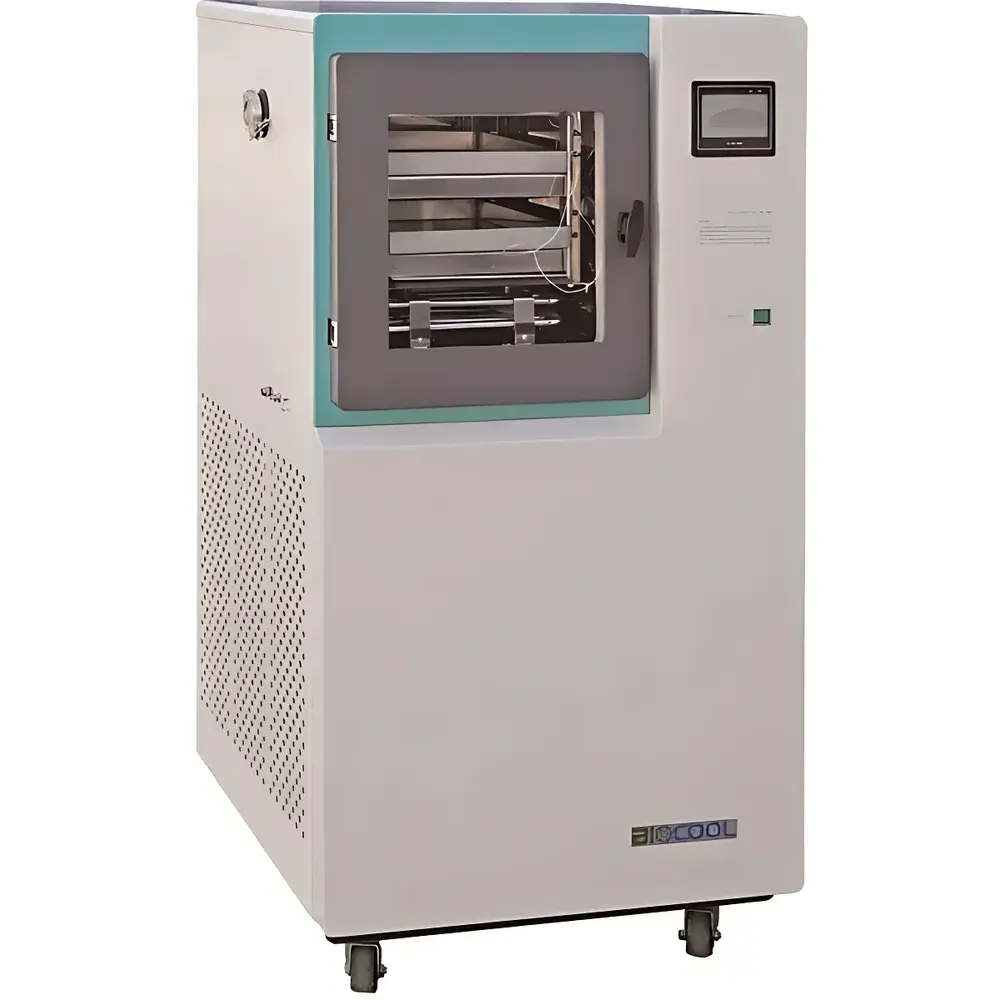

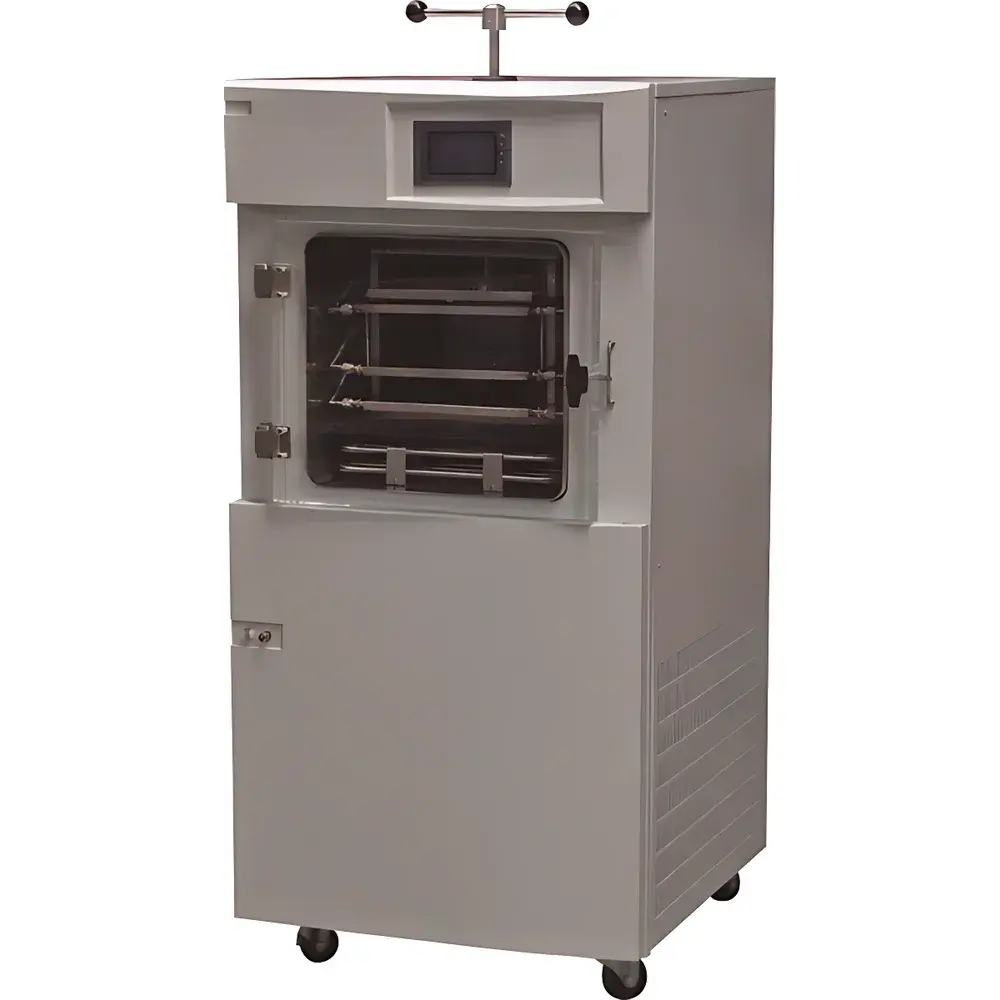

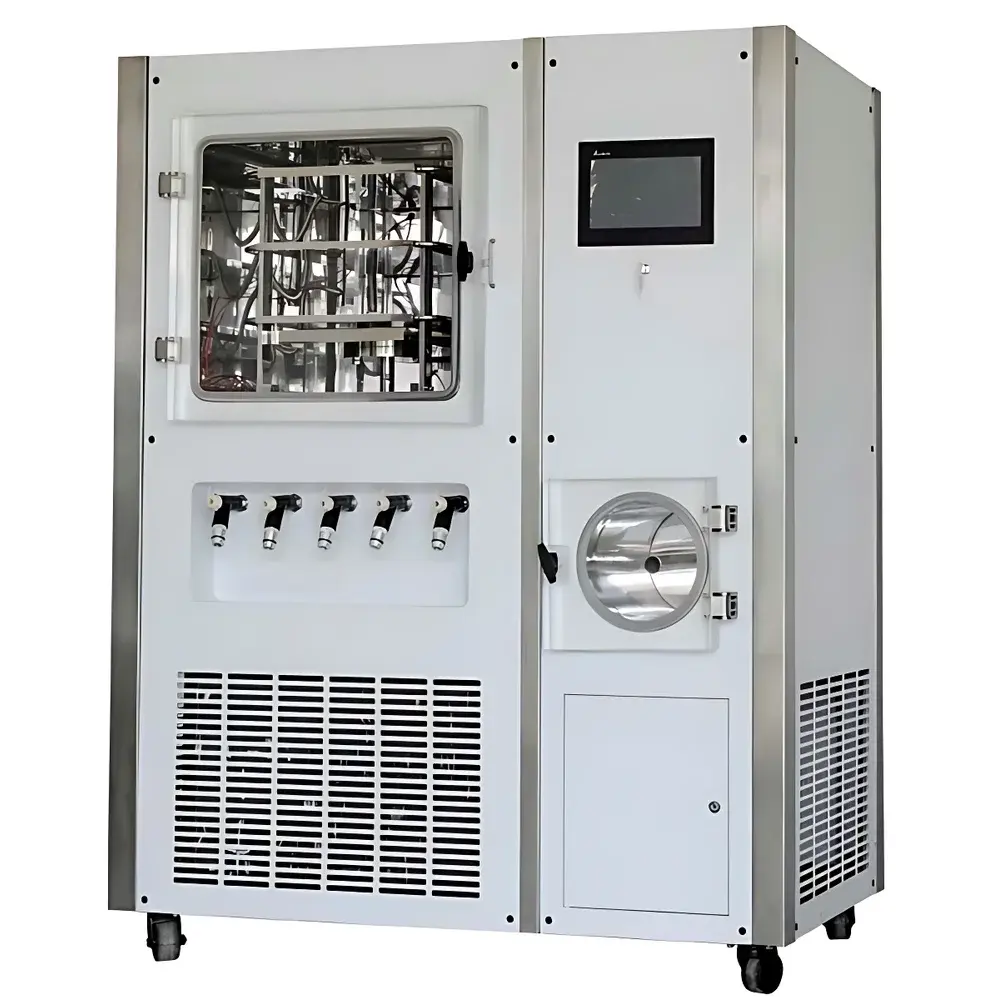

BIOCOOL Pilot10-15T GMP-Compliant Silicone Oil Heated/Chilled Pilot-Scale Freeze Dryer

Overview

The BIOCOOL Pilot10-15T is a fully GMP-compliant, silicone oil-heated and chilled pilot-scale freeze dryer engineered for process development, scale-up validation, and small-batch cGMP manufacturing of sterile pharmaceuticals, biologics, diagnostics, and high-value research compounds. Utilizing a dual-function silicone oil thermal fluid system, it delivers precise, uniform, and repeatable temperature control across all five active shelves and one dedicated radiation shelf—enabling accurate simulation of commercial lyophilization cycles while maintaining full traceability and audit readiness. Unlike vapor compression or electrically heated systems, the silicone oil circuit ensures minimal thermal lag, high thermal stability (±0.5 °C typical shelf uniformity), and seamless transition between freezing, primary drying, and secondary drying phases. Its design adheres strictly to ICH Q5C, Q5A(R2), and Annex 1 (EU GMP) requirements for sterile product processing, with structural integrity validated per ASME BPVC Section VIII Div. 1 and electrical safety conforming to GB/T 5226.1–1996 (equivalent to IEC 60204-1).

Key Features

• GMP-integrated architecture: Full stainless-steel 316L construction (shelves, chamber, condenser), electropolished surfaces (Ra ≤ 0.4 µm), and sloped internal geometry to eliminate dead legs and support clean-in-place (CIP) compatibility.
• Silicone oil thermal management system: Independent heating/cooling loops with PID-controlled circulation pumps; shelf temperature range from ≤ −50 °C to +80 °C (empty), with ramp rates programmable from 0.1 to 5.0 °C/min.
• High-capacity condenser: Dual-stage cascade refrigeration system achieving ≤ −80 °C cold trap temperature under load; 15 kg/24h ice capacity verified per ISO 13485:2016 Annex D test protocols.
• Vacuum performance: Oil-free dry vacuum system (roots + scroll backing) delivering ≤ 2.5 Pa ultimate pressure; integrated vacuum transducer with digital feedback loop and automatic pressure control (APC) during primary drying.
• Shelf configuration: Five 350 mm × 600 mm shelves (70 mm spacing) plus one fixed radiation shelf for vial bottom heating; total effective lyophilization area: 1.0 m²; accommodates up to 2,268 × 22 mL serum vials or ≥15 L bulk liquid load.
• Energy-efficient operation: Rated 8 kW installed power (3-phase, 380 V), but average cycle power draw remains <3.2 kW due to intelligent load-matching control and low-heat-loss insulation (VIP panels + polyurethane foam).

Sample Compatibility & Compliance

The Pilot10-15T supports a broad spectrum of thermolabile and moisture-sensitive materials including monoclonal antibodies, plasmid DNA, mRNA-LNPs, enzyme formulations, probiotics, and botanical extracts. It is qualified for use in GLP and cGMP environments per FDA 21 CFR Part 11 (electronic records/signatures), EU Annex 11 (computerized systems), and ISO 13485:2016. All critical parameters—including shelf temperature, chamber pressure, condenser temperature, and time—are continuously logged with microsecond timestamping and protected against unauthorized modification. The system includes full IQ/OQ/PQ documentation templates aligned with ASTM E2500-13 and ISPE Baseline Guide Vol. 5 (Sterile Manufacturing). Validation packages support media fill studies, cycle mapping, and comparative lyo-cycle transfer from lab-scale (e.g., Labconco FreeZone) to commercial production.

Software & Data Management

Equipped with BIOCOOL’s LyoControl™ v4.2 SCADA platform, the system provides real-time multichannel monitoring, automated alarm escalation (email/SMS), and role-based user access (admin/operator/auditor). All data are stored locally on an encrypted industrial SSD and synchronized via TLS 1.3 to optional cloud-based LyoVault™ for remote review and regulatory submission (eCTD-compliant PDF export). Audit trails meet ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and include full change history for setpoints, recipes, and calibration logs. Optional 21 CFR Part 11 compliance module enables electronic signatures, biometric login, and locked archival mode.

Applications

• Process development and optimization of lyophilization cycles for Phase I–III clinical trial materials.
• Stability study batches under ICH Q1A–Q1E conditions (25 °C/60% RH, 40 °C/75% RH, accelerated and long-term).
• Small-scale commercial release of orphan drugs, vaccines, and personalized therapeutics.
• Lyophilized diagnostic reagent manufacturing compliant with CLIA and CAP standards.
• Academic and contract research organization (CRO) workflows requiring full data integrity and reproducible drying kinetics.

FAQ

What GMP documentation is included with the Pilot10-15T?

Full IQ/OQ/PQ protocols, FAT/SAT reports, material certifications (316L mill test reports), and risk assessment (FMEA) documents are provided pre-installed on the onboard HMI.
Can the system be integrated into an existing facility SCADA or MES?

Yes—via OPC UA (v1.04) and Modbus TCP interfaces; engineering support includes protocol mapping, tag configuration, and cybersecurity hardening per ISA/IEC 62443-3-3.
Is remote monitoring and troubleshooting supported?

Standard remote desktop access (TeamViewer Industrial) with zero-trust authentication; optional 4G LTE failover modem for offsite diagnostics.
What is the expected service life and maintenance interval?

Designed for 15-year operational life; preventive maintenance scheduled every 1,000 operating hours or annually—whichever occurs first—with full OEM spare parts inventory available for 10 years post-discontinuation.
Does the system comply with environmental regulations such as F-Gas or RoHS?

Yes—refrigerant R513A (GWP = 631) is used in the condenser circuit, fully compliant with EU F-Gas Regulation (No. 517/2014) and RoHS Directive 2011/65/EU; no mercury or cadmium components present.
