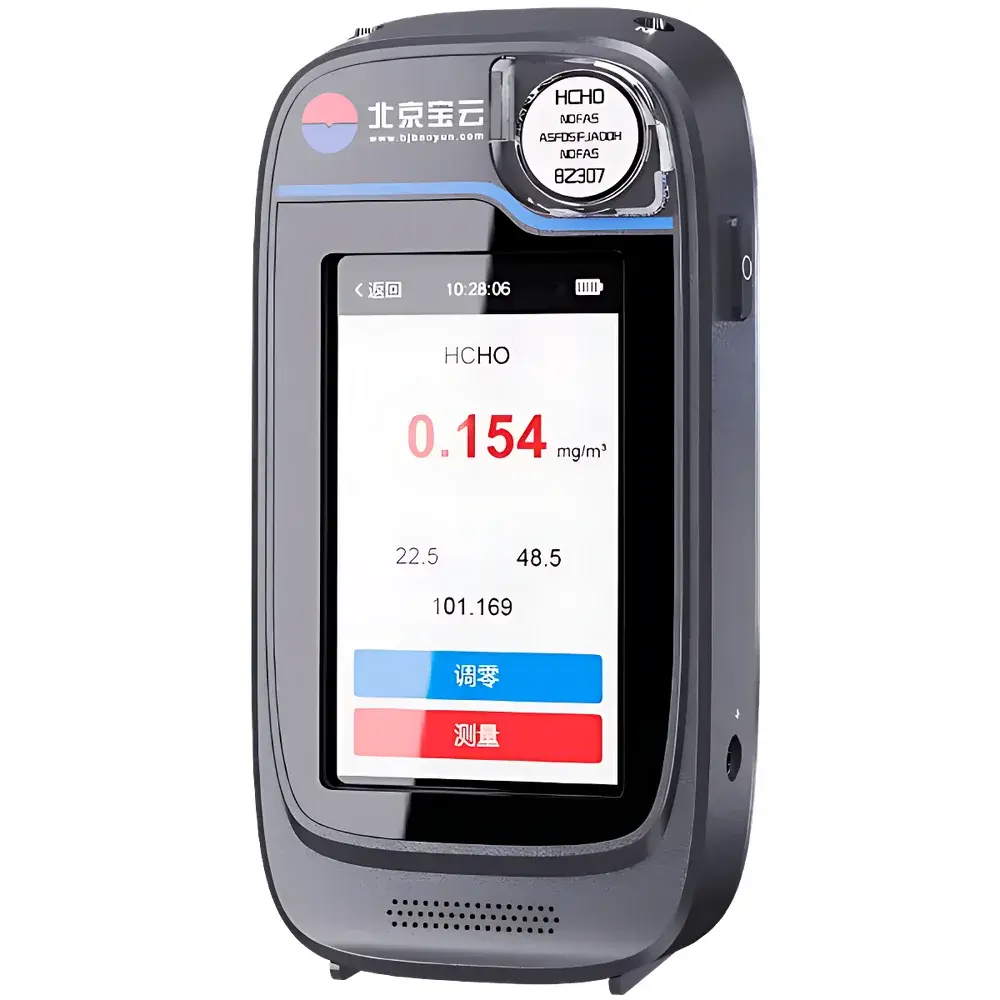

BJBY BY-800-HCHO Formaldehyde Analyzer

Overview

The BJBY BY-800-HCHO Formaldehyde Analyzer is a portable, field-deployable instrument engineered for rapid, quantitative determination of gaseous formaldehyde (HCHO) in ambient air. It operates on the standardized photometric colorimetric principle specified in GB/T 18204.2–2014 — the official Chinese national standard for chemical pollutant analysis in public health environments. Within the measurement chamber, sampled air is drawn at a controlled constant flow rate across a proprietary reagent-impregnated test strip. Formaldehyde molecules react selectively with chromogenic agents (e.g., acetylacetone or phenylhydrazine derivatives) to form stable yellow-colored adducts. The intensity of reflected light from the developed strip — measured via a calibrated silicon photodiode and optical filter set centered at ~412 nm — is linearly correlated to formaldehyde concentration. This reflectance signal is converted into concentration (mg/m³) using a factory-calibrated, multi-point working curve stored in non-volatile memory. The analyzer delivers laboratory-grade reproducibility in a handheld platform suitable for on-site screening, source identification, and post-mitigation verification.

Key Features

• Compliance with GB/T 18204.2–2014: Fully implements the nationally mandated photometric colorimetric method for formaldehyde in indoor and public spaces.
• High-resolution quantification: 0.001 mg/m³ resolution across the full 0.000–1.250 mg/m³ dynamic range, enabling detection below WHO-recommended indoor exposure thresholds (0.08 mg/m³, 30-min average).
• Integrated constant-flow sampling pump: Maintains precise volumetric flow rate independent of filter loading or ambient pressure fluctuations (30–120 kPa), ensuring consistent sample mass delivery.
• Environmental compensation: Real-time correction for temperature (5–40 °C, ±1 °C) and relative humidity (≤90% RH, ±2% RH) to minimize matrix interference on reaction kinetics and color development.
• Robust data integrity architecture: Stores up to 8,000 timestamped measurements with GPS-tagged location metadata (when paired with compatible mobile device), supporting traceability per GLP-aligned workflows.
• Field-optimized interface: 2.2-inch color LCD with high-contrast graphical display; intuitive menu navigation; low-power design powered by a 7.4 V Li-ion battery (≥8 hours continuous operation).

Sample Compatibility & Compliance

The BY-800-HCHO is validated for direct analysis of undiluted ambient air samples from residential interiors, vehicle cabins, office spaces, schools, and hospitality environments. Its compact form factor enables targeted sampling in confined zones — such as inside cabinets, behind wall panels, or beneath flooring — facilitating spatial mapping of emission sources. The instrument meets the physical and performance requirements outlined in GB/T 18204.2–2014 for formaldehyde analysis in public health contexts. While not certified to ISO 16000-23 or EN 16516, its methodology aligns with the fundamental principles of passive/active colorimetric sampling used in accredited laboratories. For regulatory reporting, users are advised to cross-validate critical findings against reference methods (e.g., DNPH-HPLC per ISO 16017-1) where required by local jurisdiction.

Software & Data Management

Data export and reporting are managed via the BJBY SmartAir mobile application (iOS/Android), which establishes secure Bluetooth 5.0 pairing with the analyzer. The app supports batch download of stored records, customizable PDF report generation (including instrument ID, operator name, location stamp, and calibration history), and cloud synchronization to private organizational servers. Audit trails record all configuration changes, calibration events, and firmware updates. The system supports basic 21 CFR Part 11–compatible user authentication (PIN-based login) and electronic signature capture for field technicians, facilitating alignment with quality management systems in environmental consulting and facility management sectors.

Applications

• Routine indoor air quality (IAQ) surveys during real estate transactions or tenant occupancy assessments.
• Post-renovation or new furniture installation verification in residential and commercial buildings.
• Source identification and emission profiling of pressed wood products, adhesives, insulation foams, and textile finishes.
• Compliance monitoring in childcare centers, hospitals, and elderly care facilities where vulnerable populations reside.
• Educational demonstrations of volatile organic compound (VOC) behavior and mitigation efficacy (e.g., before/after ventilation or photocatalytic treatment).
• Pre-commissioning validation of HVAC system performance in newly constructed LEED- or WELL-certified buildings.

FAQ

What formaldehyde measurement standard does the BY-800-HCHO comply with?
It implements the photometric colorimetric method defined in GB/T 18204.2–2014, China’s national standard for formaldehyde detection in public health settings.
Can the instrument be used outdoors or in high-humidity environments?
Yes — it operates reliably at up to 90% RH (±2% RH accuracy) and temperatures between 5–40 °C (±1 °C), though prolonged exposure to condensing conditions is not recommended.
Is calibration traceable to national standards?
Factory calibration uses NIST-traceable formaldehyde gas standards; field recalibration kits (including certified reference strips and zero-air filters) are available through authorized BJBY distributors.
How is data security handled during Bluetooth transmission?
All Bluetooth communication employs AES-128 encryption; no raw sensor data is stored on the mobile device unless explicitly exported by the user.
Does the analyzer require consumables beyond the test strips?
Yes — each measurement consumes one single-use reagent strip; replacement packs (100 strips per box) are supplied with lot-specific calibration certificates.
