BLDC 247 Brushless DC Laboratory Stirrer
| Origin | Taiwan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Domestic Product Classification | Yes |
| Model | BLDC 247 |
| Pricing | Available Upon Request |
Overview

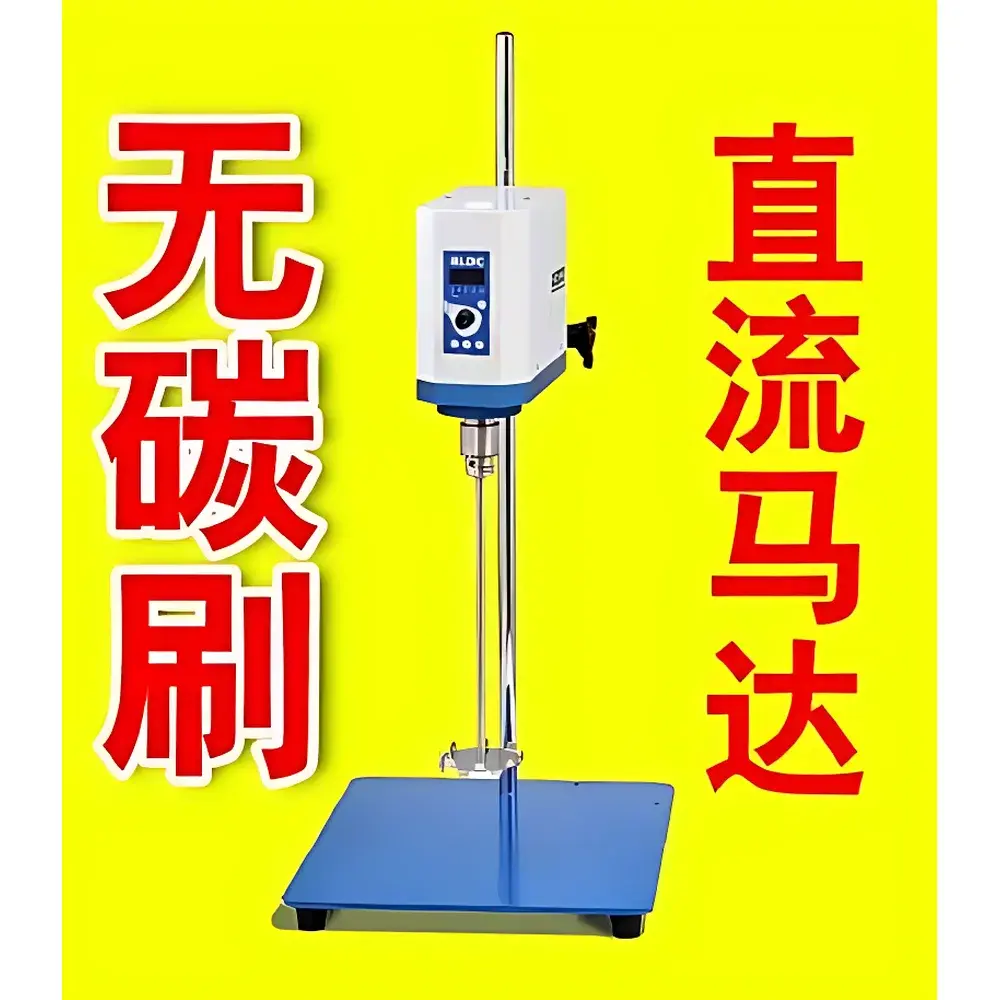

The BLDC 247 Brushless DC Laboratory Stirrer is an engineered solution for precision-controlled mixing and dispersion in demanding research, quality control, and pilot-scale laboratory environments. Built around a high-efficiency brushless DC motor, it eliminates mechanical commutation—removing carbon brush wear, sparking, and associated particulate generation. This architecture enables continuous 24-hour operation with zero maintenance requirements, making it ideal for unattended long-duration experiments, cleanroom applications (ISO Class 5–8), and hazardous atmospheres where flammable vapors or explosive dusts may be present. The system employs a microcontroller-based motion control platform that ensures stable rotational speed without zero-point drift—even under variable load conditions—delivering high reproducibility across repeated runs. Its electromagnetic compatibility (EMC) compliance (per EN 61326-1) guarantees non-interference with adjacent analytical instrumentation such as spectrometers, balances, or chromatography systems.
Key Features
- Precision speed regulation: 70–3000 rpm range with automatic torque compensation to maintain setpoint accuracy ±0.5% under dynamic viscosity changes.

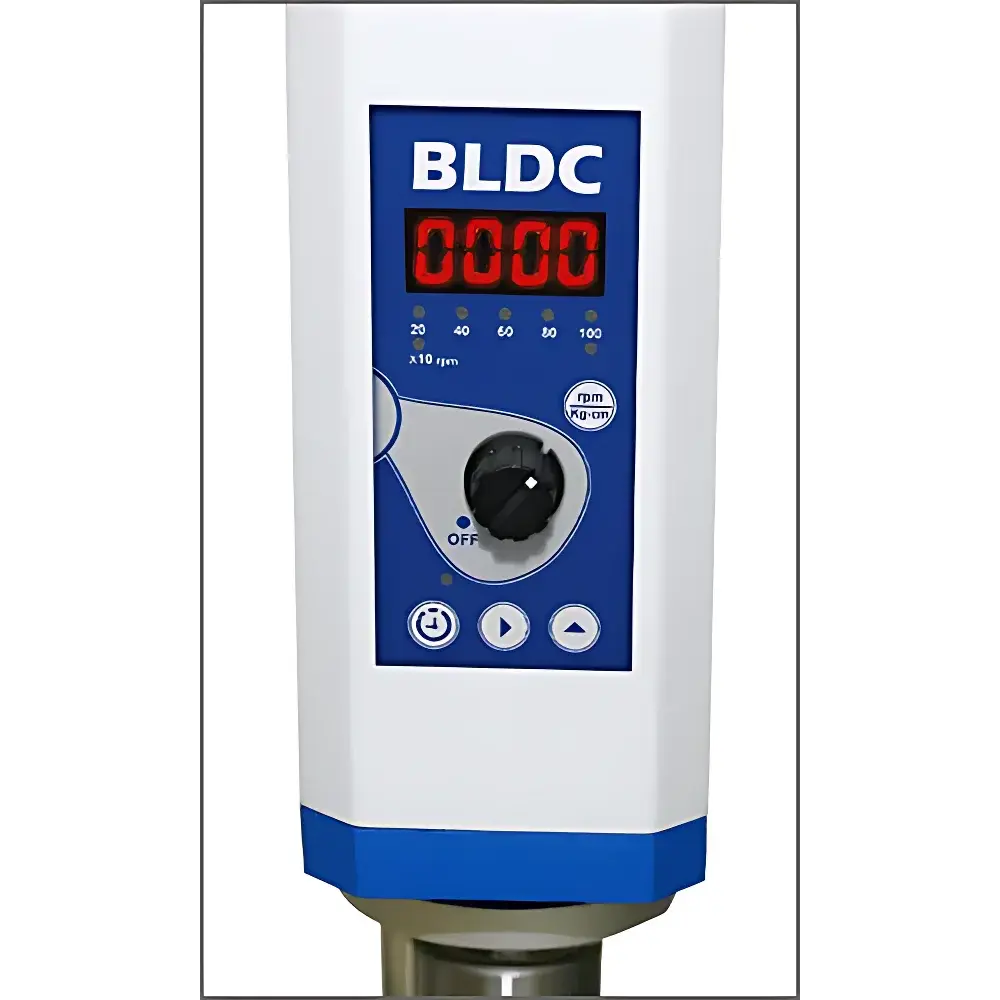

- Dual-display interface: Real-time switching between digital RPM and torque percentage (20%, 40%, 60%, 80%, 100%) readings for process monitoring and method validation.
- Programmable timer function: Adjustable shutdown interval from 0 to 9999 minutes—supporting extended batch processing and overnight protocols.
- Triple-layer safety protection: Integrated overcurrent resettable circuitry, thermal cutoff at 85°C ±5°C, and redundant fuse-level hardware safeguarding against motor overload or ambient overheating.
- Fail-safe error handling: Automatic power interruption on overtorque event (E-03 code); full operational recovery upon restart without firmware reset or recalibration.
- Low-noise operation: <52 dB(A) at 1 m distance—suitable for open-lab layouts and noise-sensitive facilities including GLP-compliant testing laboratories.
Sample Compatibility & Compliance

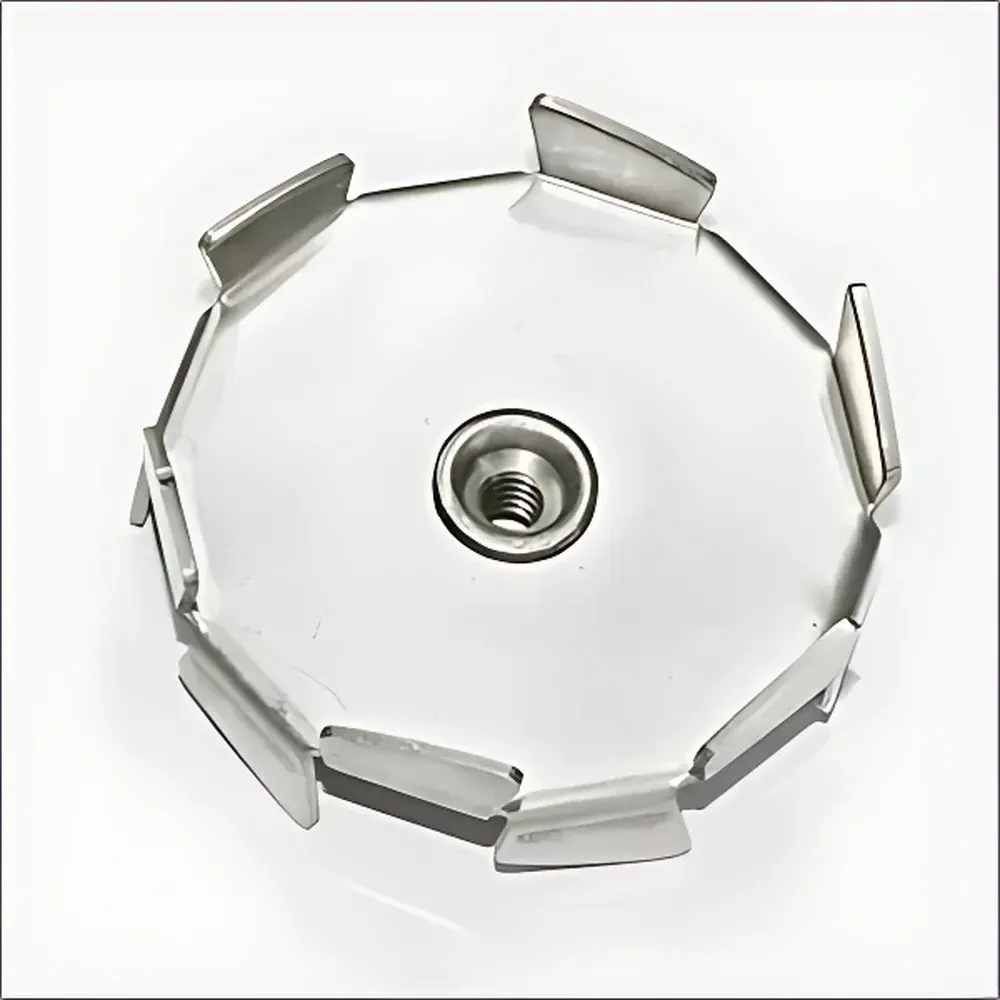

The BLDC 247 accommodates standard laboratory vessels (beakers, flasks, jacketed reactors) up to 5 L volume using the included Φ50 mm impeller and SCF-26 support frame (26 × 38 × 85 cm). It supports common impeller geometries (propeller, paddle, anchor, and turbine types) via interchangeable shaft adapters compliant with ISO 8502-1 mounting standards. The unit meets CE marking requirements for electrical safety (EN 61010-1) and EMC (EN 61326-1), and its spark-free operation satisfies ATEX Zone 2 / IECEx Zone 2 classification prerequisites for use in volatile organic solvent environments. While not intrinsically rated for Zone 1, it is routinely deployed in pharmaceutical QC labs handling ethanol-, acetone-, or THF-based formulations under controlled ventilation per OSHA 1910.1200 and EU CLP Regulation (EC) No 1272/2008.
Software & Data Management
The BLDC 247 operates as a standalone instrument with no proprietary software dependency; all parameters are configured directly via front-panel keypad and LCD. For integration into automated workflows, optional RS-485 Modbus RTU communication enables remote start/stop, speed setpoint adjustment, and real-time torque feedback to LIMS or SCADA platforms. Audit trail functionality—including timestamped parameter changes, error logs, and runtime counters—is retained in non-volatile memory for FDA 21 CFR Part 11–aligned documentation during GMP/GLP audits. Firmware updates are performed via secure USB interface with cryptographic signature verification.
Applications
- Viscosity-dependent homogenization of polymer solutions, suspensions, and colloidal dispersions in materials science R&D.
- Controlled agitation during dissolution testing (USP Apparatus II) and stability studies per ICH Q1A(R2).
- Preparation of uniform cell culture media and buffer solutions in biotechnology labs requiring particulate-free mixing.
- Emulsion formation and phase inversion studies in food science and cosmetic formulation development.
- Accelerated aging protocols involving temperature-controlled stirring in environmental simulation chambers.
FAQ
Is the BLDC 247 compatible with third-party impellers?
Yes—standardized 10 mm keyed shafts accept ISO 8502-1–compliant impellers from major suppliers including IKA, Heidolph, and Thermo Fisher Scientific.
What is the maximum recommended vessel height for use with the SCF-26 stand?
Vessels up to 300 mm tall may be used; ensure minimum clearance of 25 mm between impeller tip and vessel bottom to avoid vortex-induced cavitation.
Does the unit support analog 0–10 V or 4–20 mA external speed control?
No—speed is digitally controlled only via front panel or Modbus RTU; analog input is not supported in this model variant.
Can the BLDC 247 operate in a nitrogen-purged glovebox?
Yes—the absence of carbon brushes and sealed motor housing allows safe deployment in inert-atmosphere enclosures without risk of internal oxidation or contamination.
What documentation is provided for regulatory submissions?
Factory calibration certificate (traceable to NIST standards), CE DoC, EMC test report, and full technical manual—including wiring diagrams, error code definitions, and preventive maintenance checklist—are supplied with each unit.
