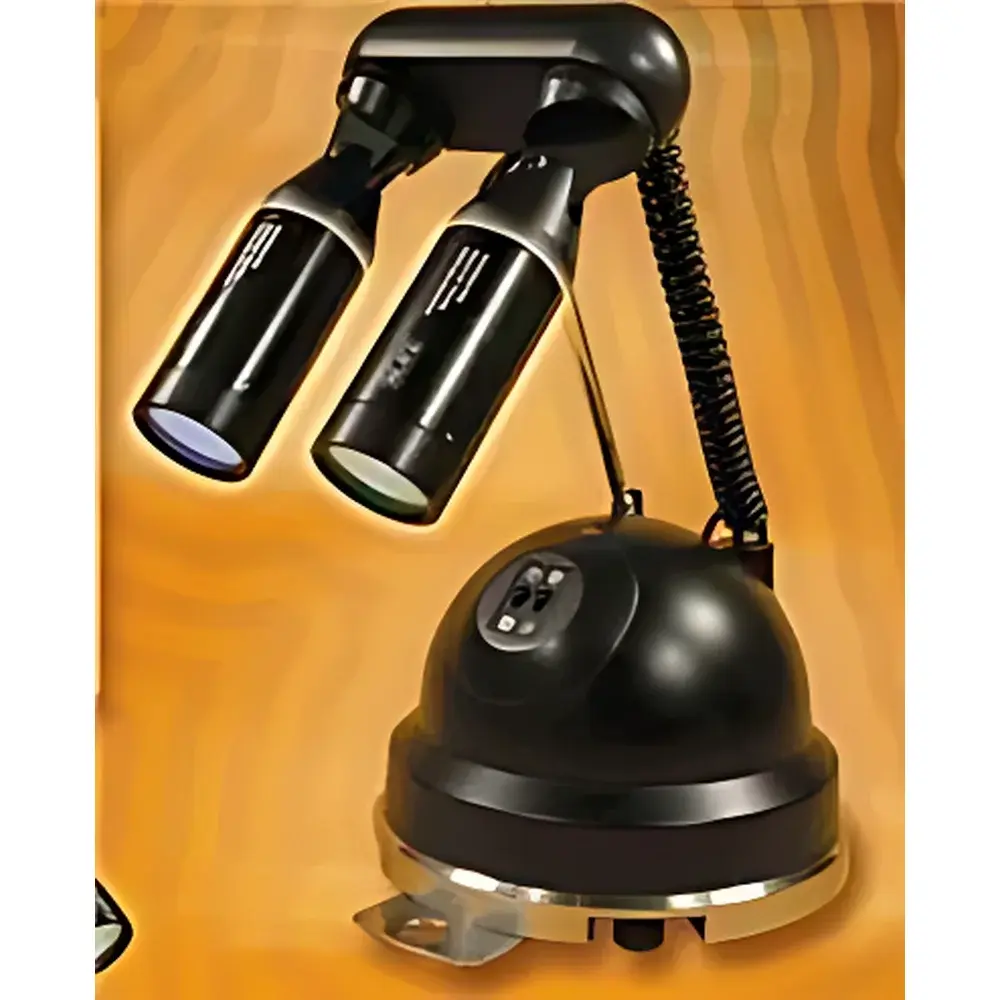

BLS FBL/Basic-B&N-01 Fluorescent Protein Excitation Light Source

Overview

The BLS FBL/Basic-B&N-01 Fluorescent Protein Excitation Light Source is a compact, benchtop-grade optical excitation system engineered for reliable, on-demand visualization of genetically encoded fluorescent proteins in live or fixed cells during transfection, cell fusion, and routine fluorescence screening workflows. Unlike broadband white-light sources or unfiltered LED arrays, this instrument delivers spectrally defined excitation bands—engineered to match the absorption maxima of common fluorescent protein variants including Enhanced Cyan Fluorescent Protein (ECFP), Enhanced Green Fluorescent Protein (EGFP), Enhanced Yellow Fluorescent Protein (EYFP), and Discosoma sp. Red Fluorescent Protein (DsRed). Its core architecture follows Köhler illumination principles optimized for low-heat, high-stability output, minimizing phototoxicity and enabling prolonged observation without significant bleaching. The system operates independently of microscope-integrated light engines, making it especially suitable for low-cost fluorescence validation setups, teaching laboratories, and field-deployable cell manipulation environments where integration with full epifluorescence platforms is impractical.

Key Features

• Dual independent excitation channels—each with dedicated on/off and intensity control—enabling simultaneous or sequential excitation of two distinct fluorescent proteins (e.g., EGFP + DsRed) without cross-talk or spectral bleed-through.
• Modular lamp head compatibility with standardized filter sets: FS/TEF-series (tunable excitation filters) and FS/ULS-series (ultra-low autofluorescence dichroic and emission filters), ensuring precise bandpass alignment with FP excitation/emission profiles per ASTM E2893-22 guidelines.
• Flexible power architecture supporting both rechargeable Li-ion battery operation (up to 4.5 hours continuous use at nominal intensity) and universal AC/DC input (100–240 V, 50/60 Hz), certified to IEC 61000-6-3 EMC standards.
• Integrated thermal management with passive heatsinking and temperature-stabilized LED drivers—maintaining ±0.5% irradiance stability over 60-minute operation at ambient temperatures from 15°C to 30°C.
• Ergonomic gooseneck design with 360° rotational base and 180° vertical tilt, facilitating rapid repositioning over Petri dishes, multi-well plates, or electrofusion chambers without mechanical interference.

Sample Compatibility & Compliance

The FBL/Basic-B&N-01 is validated for use with standard tissue culture formats including 6–96-well plates, glass-bottom dishes, and fusion cuvettes used in electroporation-assisted cell hybridization protocols. It complies with ISO 13485:2016 requirements for ancillary life science instrumentation and meets essential safety criteria under IEC 62471 (Photobiological Safety of Lamps and Lamp Systems), classified as Risk Group 1 (Exempt) when used with supplied protective eyewear. All recommended filter combinations—including FS/TEF-3GY2 (500–515 nm excitation for EGFP) and FS/ULS-02G2W (590–660 nm emission for DsRed)—are tested for out-of-band blocking (>OD6 at ±20 nm from passband), satisfying minimum contrast ratio thresholds defined in USP <1043> for fluorescence-based assay verification. The system supports GLP-compliant documentation when paired with traceable calibration reports available upon request.

Software & Data Management

This is a hardware-only excitation platform with no embedded firmware or digital interface. Operation is fully manual via tactile rotary dials and LED status indicators—eliminating software dependency, driver installation, or cybersecurity vulnerabilities. Intensity settings are reproducible via engraved scale markings (0–100% relative irradiance), and channel activation states are logged manually in laboratory notebooks. For audit-ready workflows, users may integrate external light meters (e.g., Thorlabs PM100D with S120VC sensor) to record time-stamped irradiance values aligned with experimental timestamps—fully compatible with 21 CFR Part 11–compliant electronic lab notebook (ELN) systems when metadata fields include instrument ID, filter set, and operator signature.

Applications

• Real-time monitoring of transient transfection efficiency prior to FACS sorting or clonal expansion.
• Visual confirmation of successful electrofusion between somatic cells or hybridoma lines using dual-FP labeling strategies.
• Teaching laboratory demonstrations of FP spectral separation, Förster resonance energy transfer (FRET) pair selection, and filter-based signal isolation principles.
• Field-deployable quality control in biomanufacturing settings where rapid viability and expression checks are required outside centralized imaging cores.
• Pre-screening of CRISPR-edited clones expressing FP-tagged endogenous proteins under native promoters.

FAQ

Is the FBL/Basic-B&N-01 compatible with inverted microscopes?

Yes—its gooseneck design allows positioning above or beside standard inverted microscope stages; however, it is not intended as a replacement for epi-illumination modules but rather as a complementary gross-visualization tool.
Can I use third-party filter sets with this system?

Only FS/TEF and FS/ULS series filters are mechanically and optically validated; non-BLS filters may compromise alignment, heat dissipation, or spectral purity due to untested mounting tolerances and substrate transmission characteristics.
Does the system include calibration certificates?

Factory calibration data (irradiance vs. dial position at 530 nm and 585 nm) is provided with each unit; NIST-traceable recalibration services are available through authorized BLS service centers on an annual basis.
What is the expected lifetime of the LED emitters?

Rated for 25,000 hours at 70% initial luminous flux (L70), consistent with IES LM-80 testing protocols under continuous DC drive conditions.
Is battery replacement user-serviceable?

Yes—the sealed Li-ion pack is accessible via two Torx T8 screws; replacement kits (BLS-PWR-BAT-01) include updated firmware handshake logic and are shipped with UN38.3 transport certification.
