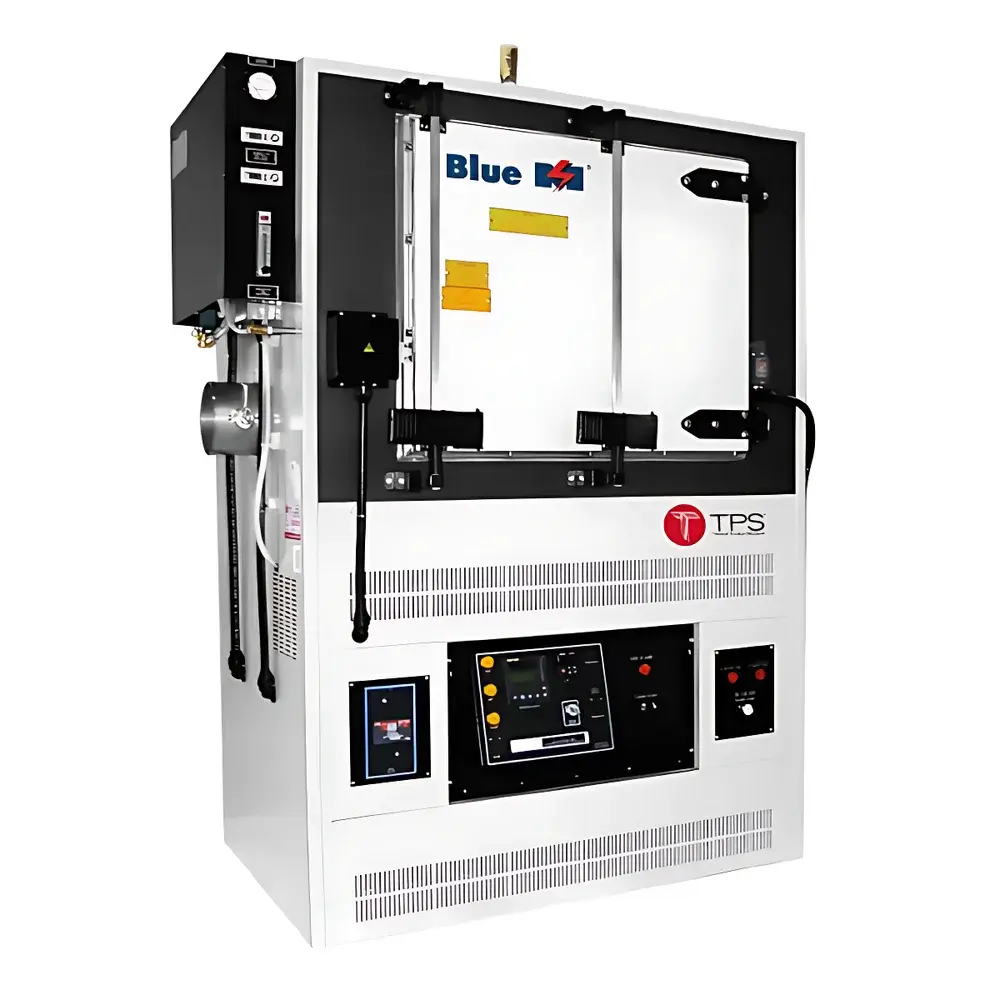

Blue M IGF-6680 Semiconductor BCB Polymer Curing Oven

Overview

The Blue M IGF-6680 Semiconductor BCB Polymer Curing Oven is a precision-engineered, inert-atmosphere high-temperature aging chamber designed specifically for the controlled thermal processing of benzocyclobutene (BCB) and polyimide (PI) dielectric films in semiconductor packaging, MEMS fabrication, and advanced interconnect development. It operates on the principle of convective heat transfer under programmable inert gas environments—enabling solvent evaporation, cross-linking initiation, and final network formation in low-k polymer thin films without oxidation or carbonization. Unlike standard convection ovens, the IGF-6680 integrates pressure-regulated gas purging, real-time chamber pressure monitoring, and fail-safe interlocks to meet stringent process repeatability requirements in cleanroom-adjacent or Class 1000 production environments. Its Ultra-Temp® architecture complies with NFPA 86 Class B standards for heated chambers used with flammable or reactive atmospheres, making it suitable for nitrogen-purged BCB cure cycles requiring ramp-hold-cool profiles across three distinct temperature zones (e.g., 120°C/1 hr → 250°C/1 hr → 350°C/2 hrs).

Key Features

• Robust dual-wall chamber design with 6-inch mineral wool insulation and external cooling air jacket—minimizes thermal bridging and enables stable operation at 400°C continuous duty.
• Open-wire Incoloy® heating elements mounted externally on the rear wall—eliminates particulate shedding and ensures long-term resistance to thermal cycling degradation.
• Horizontal laminar airflow system delivering uniform gas distribution across the 25 × 20 × 20 cm working chamber—critical for eliminating edge effects during spin-coated film curing.
• Integrated inert gas management: front-panel-mounted mass flow controller, digital pressure transducer, purge timer, and automatic pressure-loss shutdown circuitry.
• Fail-safe door interlock system: de-energizes heaters and blower immediately upon door opening—prevents operator exposure to high-temperature surfaces and maintains process integrity.
• Blue M proprietary fiberglass door gasket rated for continuous service up to 593°C—ensures leak-tight sealing under nitrogen backpressure (up to 5 psig).
• Relief valve and exhaust port with adjustable damper—facilitates controlled venting during cool-down and accommodates optional ducted exhaust integration.

Sample Compatibility & Compliance

The IGF-6680 supports wafers, diced dies, ceramic substrates, and leadframes up to 20 cm in width. Its chamber geometry and airflow profile are optimized for flat, planar samples typical in redistribution layer (RDL) and fan-out wafer-level packaging (FOWLP) processes. The oven meets NFPA 86 Class B construction requirements for ovens operating with inert or forming gases. It supports GLP/GMP-aligned validation protocols—including IQ/OQ/PQ documentation templates—and is compatible with FDA 21 CFR Part 11-compliant data logging systems when paired with third-party controllers. All electrical components conform to UL 508A and CE directives. No internal stainless steel welds or epoxy-based seals are used—eliminating outgassing sources that could contaminate low-surface-energy BCB films.

Software & Data Management

While the IGF-6680 ships with a dedicated analog/digital hybrid control panel (including setpoint dial, LED status indicators, and manual gas flow adjustment), it is fully compatible with Blue M’s optional BlueLink™ Ethernet-enabled controller. This upgrade provides RS-485 Modbus RTU and TCP/IP interfaces for integration into factory-wide SCADA or MES platforms. Process recipes—including multi-step temperature ramps, dwell times, gas flow rates, and purge durations—can be stored, version-controlled, and audited with timestamped event logs. Optional data acquisition modules support 0.1°C resolution temperature recording at user-defined intervals (1–60 sec), enabling full traceability per ISO 9001:2015 clause 8.5.2 and JEDEC J-STD-020 moisture sensitivity level (MSL) reflow correlation studies.

Applications

• Curing of spin-coated BCB dielectric layers (e.g., Dow Chemical Cyclotene™ series) for via-first TSV isolation and wafer bonding.
• Thermal stabilization of polyimide passivation films prior to sputter metallization or electroplating.
• Aging qualification of encapsulants and underfill materials under nitrogen to simulate accelerated shelf-life conditions.
• Post-mold curing of molded IC packages where oxygen inhibition must be avoided during imidization.
• High-temperature stress testing of thin-film resistors and capacitors fabricated on silicon or glass carriers.
• Research-scale pyrolysis screening of novel low-k polymers under controlled partial-pressure atmospheres.

FAQ

What inert gases are certified for use with the IGF-6680?

Nitrogen (N₂), argon (Ar), helium (He), carbon dioxide (CO₂), and forming gas (4% H₂ in N₂) are all approved per NFPA 86 Annex D and Blue M’s Type Examination Report.
Can the IGF-6680 be validated for GMP manufacturing?

Yes—the chamber’s construction, sensor layout, and control architecture support full IQ/OQ/PQ execution per ASTM E2500 and ISPE Baseline Guide Vol. 5.
Is the temperature uniformity specification verified per AMS2750E or similar aerospace standards?

Uniformity is measured per Blue M’s internal protocol (9-point thermocouple mapping at 350°C); third-party AMS2750E compliance requires additional sensor calibration and system accuracy verification.
Does the oven support ramp-soak-cool programming natively?

Basic ramp-hold functionality is available via the analog controller; full multi-segment programmability requires the BlueLink™ digital upgrade.
What maintenance intervals are recommended for the gas delivery system?

Mass flow controllers should be recalibrated annually; door gaskets inspected quarterly; and mineral wool insulation integrity assessed every 5 years or after 10,000 thermal cycles.
