Blue M IGF-8880 Inert Atmosphere High-Temperature Bake Oven for Photoresist and Polyimide Curing

Overview

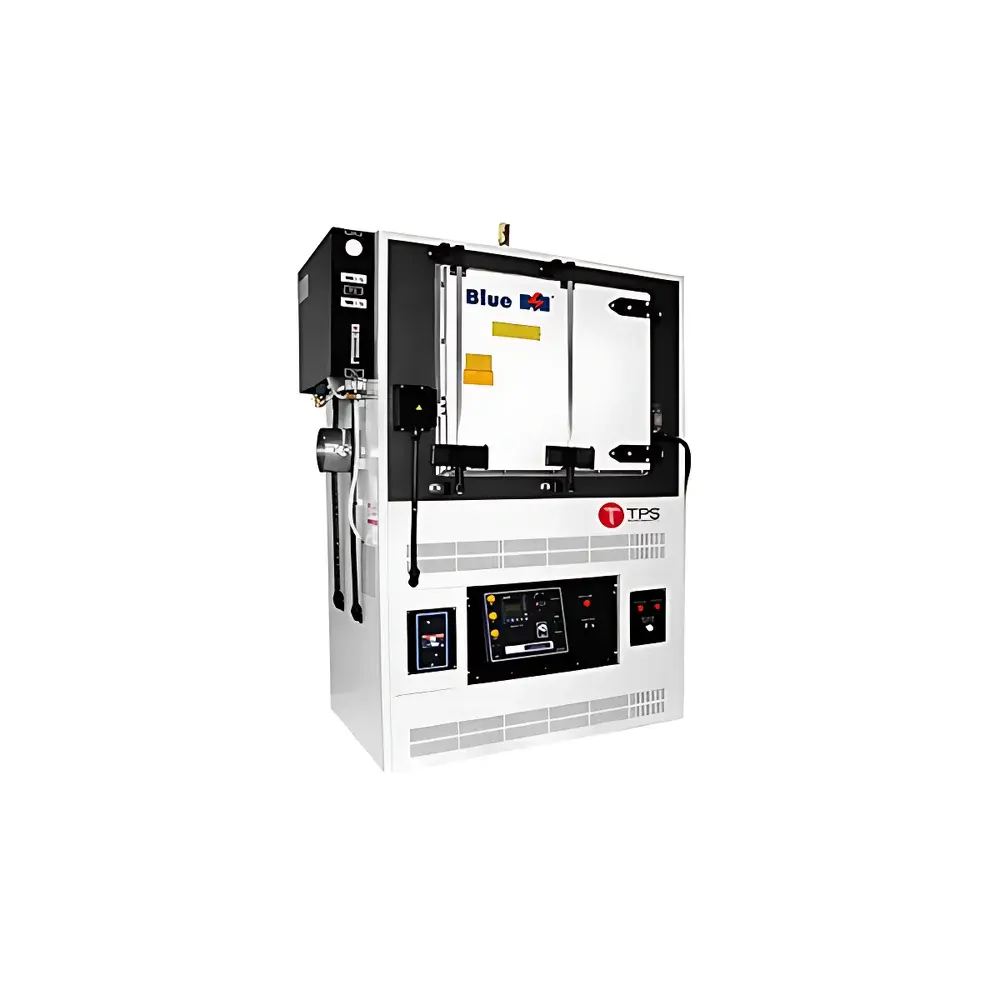

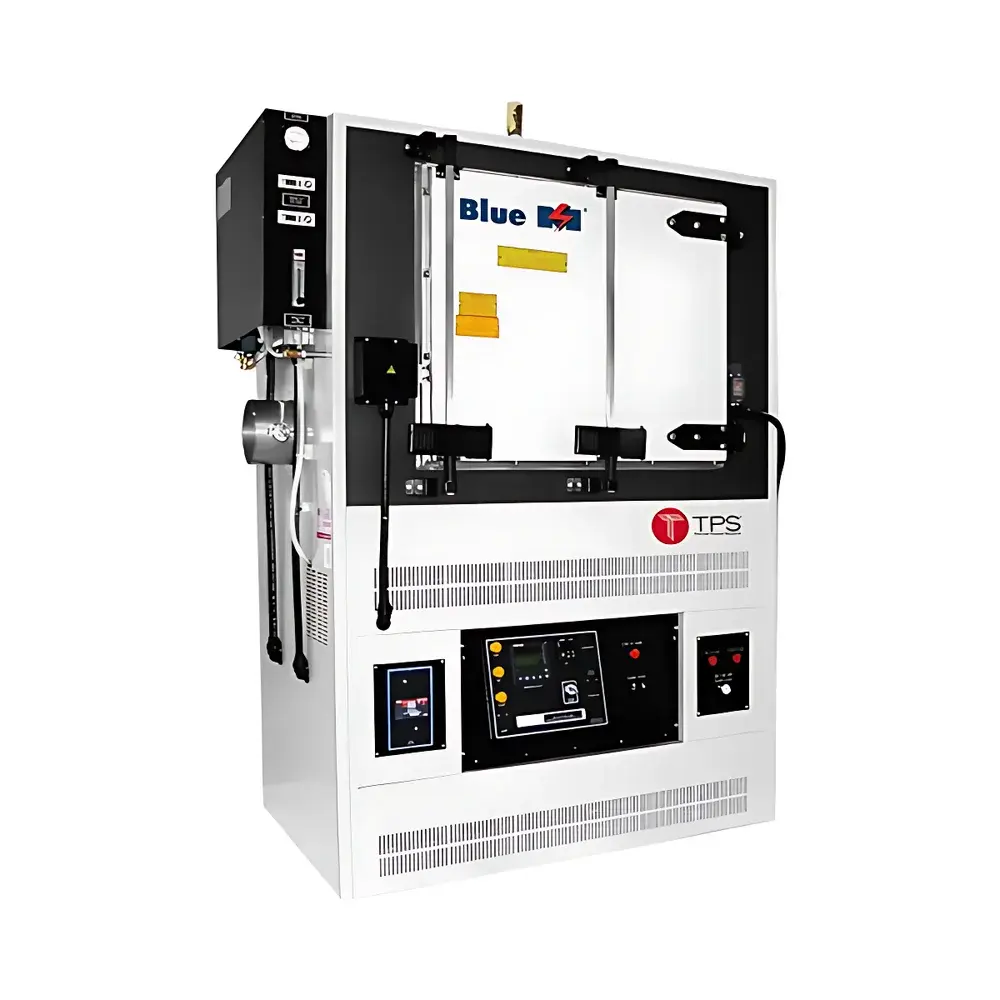

The Blue M IGF-8880 Inert Atmosphere High-Temperature Bake Oven is an engineered solution for thermal processing of photoresist and polyimide (PI) films under controlled inert or reducing atmospheres. Designed specifically for semiconductor fabrication, MEMS packaging, and advanced flexible electronics manufacturing, this oven operates on the principle of convective heat transfer within a sealed, gas-tight chamber—enabling precise thermal curing, post-exposure bake (PEB), imidization, and stress-relief annealing without oxidative degradation. Its structural architecture conforms to NFPA 86 Class B requirements for ovens handling flammable or reactive process gases, including forming gas (4% H₂ in N₂). The chamber’s welded stainless-steel inner shell eliminates porous insulation pathways, preventing outgassing contamination and ensuring long-term stability of critical thin-film properties during extended high-temperature cycles up to 593°C.

Key Features

• Gas-tight welded inner chamber constructed from 304 stainless steel, eliminating insulation migration and minimizing particulate generation during high-temperature operation
• Water-cooled door assembly (standard on IGF-8880 and IGF-9980 models) for sustained thermal integrity at temperatures exceeding 400°C and enhanced operator safety during frequent access
• Dual-stage inert gas management system with real-time chamber pressure monitoring, adjustable mass flow control, and automated purge timing sequences
• High-capacity horizontal airflow design ensures uniform thermal distribution across the full 25 × 20 × 20 cm workspace, validated per ASTM E2207 for temperature uniformity testing
• Integrated safety interlocks: door switch disables heater and circulation blower upon opening; gas leak detection triggers immediate heater shutdown and audible/visual alarm
• 6-inch mineral wool insulation combined with a fiberglass-reinforced silicone door gasket achieves low thermal loss and stable ambient-to-593°C ramp performance
• Open-wire nickel-chromium heating elements mounted externally to the chamber wall reduce contamination risk and extend service life in aggressive gas environments

Sample Compatibility & Compliance

The IGF-8880 accommodates wafers, glass substrates, ceramic packages, and flexible printed circuits requiring inert-atmosphere curing—particularly where oxygen-induced carbonization, interfacial delamination, or PI imidization incompleteness must be avoided. It supports standardized thermal profiles used in JEDEC J-STD-020 moisture sensitivity level (MSL) preconditioning, IPC-TM-650 2.6.26 reflow simulation, and internal stress measurement protocols per ASTM F2591. As an NFPA 86 Class B certified oven, it meets mandatory construction, ventilation, and safety control requirements for equipment operating with flammable or pyrophoric gases. Optional data logging modules support 21 CFR Part 11-compliant audit trails when integrated with validated SCADA systems, fulfilling GLP/GMP documentation needs for qualification batches in regulated R&D and pilot-line environments.

Software & Data Management

While the base IGF-8880 utilizes a dedicated Blue M digital controller with dual PID loops (for chamber and exhaust zones), optional Ethernet-enabled controllers provide Modbus TCP or EtherNet/IP connectivity for integration into centralized MES or LIMS platforms. Real-time temperature, pressure, and gas flow data can be streamed to historian databases with timestamped event logging—including door open/close, gas purge initiation, heater enable/disable, and alarm triggers. All parameter changes are recorded with user ID and timestamp, satisfying traceability requirements under ISO 17025 and FDA-aligned quality systems. Calibration certificates (NIST-traceable) and validation protocols (IQ/OQ/PQ templates) are available upon request to support equipment qualification in regulated laboratories.

Applications

• Post-application and post-exposure baking of positive/negative tone photoresists (e.g., AZ®, Shipley®, TOK®) under nitrogen to suppress standing wave effects and improve line edge roughness
• Thermal imidization of polyimide precursor films (e.g., HD Microsystems PI-2611, Toray APICAL®) for flexible display backplanes and wafer-level packaging
• Curing of low-k dielectric spin-on glasses (SOGs) and SiCOH films under forming gas to minimize Si–OH bond formation and leakage current drift
• Aging studies of encapsulant materials and underfill adhesives per IPC-9701 and JEDEC JESD22-A108
• Pre-bake stabilization of MEMS inertial sensors and RF filters prior to hermetic sealing
• Controlled oxidation inhibition during high-temperature metallization steps involving Cu, Al, or TiW layers

FAQ

Is the IGF-8880 compatible with hydrogen-containing forming gas?
Yes—the IGF-8880 is certified to NFPA 86 Class B and rated for continuous operation with 4% H₂ in N₂, provided proper ventilation, leak detection, and grounding protocols are implemented per local authority having jurisdiction (AHJ) requirements.
What is the maximum recommended ramp rate from ambient to 593°C?
The standard configuration supports a typical ramp rate of 5–10°C/min depending on load mass and gas flow conditions; custom ramp profiling is achievable via optional programmable controller upgrades.
Does the oven include validation documentation for GMP environments?
Factory-installed calibration reports (NIST-traceable) are included; IQ/OQ/PQ protocol templates and on-site commissioning support are available as value-added services.
Can the chamber pressure be actively controlled, or only monitored?
The base unit includes analog pressure monitoring and manual needle-valve regulation; closed-loop pressure control with feedback-driven exhaust modulation is available as an engineered option.
Is remote monitoring supported out of the box?
Ethernet connectivity and basic Modbus register mapping are standard on upgraded controllers; full SCADA integration requires configuration by qualified system integrators using provided communication specifications.
