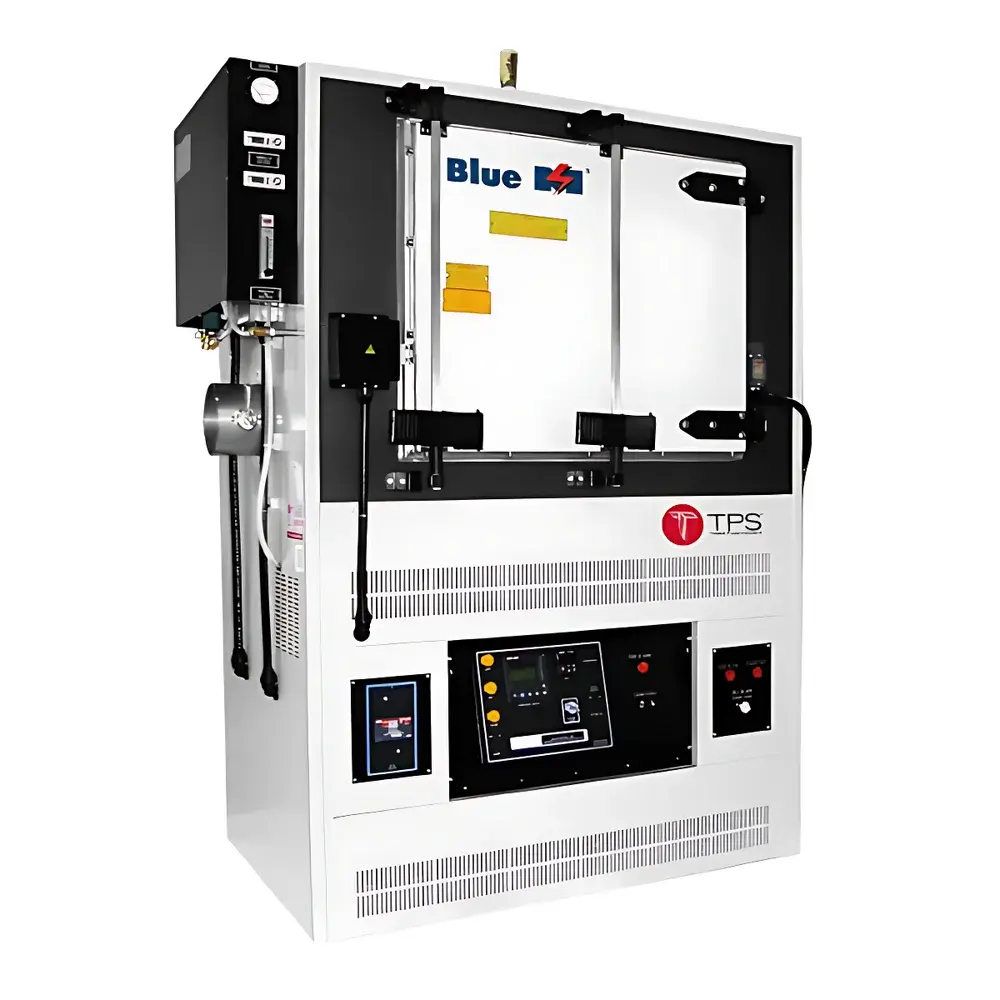

Blue M IGF7780/IGF8880 Ultra-Temp® Inert Atmosphere High-Temperature Aging Oven

Overview

The Blue M IGF7780 and IGF8880 Ultra-Temp® Inert Atmosphere High-Temperature Aging Ovens are engineered for precision thermal processing of semiconductor packaging materials—particularly polybenzoxazole (PBO) films, die-attach adhesives, underfill epoxies, and wafer-level encapsulants requiring controlled inert-gas curing. These ovens operate on the principle of convective heat transfer within a positively pressurized, hermetically sealed chamber, enabling repeatable high-temperature solid-state reactions while eliminating oxidative degradation. Unlike standard convection ovens, the Ultra-Temp® series integrates real-time inert gas flow monitoring, chamber pressure regulation, and fail-safe interlocks to maintain strict atmospheric integrity throughout the entire thermal cycle—from ambient ramp-up to soak and cooldown phases. Designed and manufactured in the United States, each unit complies with NFPA 86 Class B requirements for ovens handling flammable atmospheres, making them suitable not only for nitrogen-purged PBO cure but also for forming gas (4% H₂ / 96% N₂) applications where reducing environments prevent metal oxidation during leadframe or bump metallization annealing.

Key Features

• Dual-wall stainless steel chamber with welded, leak-tested internal cavity—eliminates outgassing and prevents inert gas dilution from insulation materials
• Liquid-cooled door assembly (standard on IGF8880; optional on IGF7780) maintains external surface temperature below 45°C at 593°C internal setpoint, ensuring operator safety and structural longevity
• Horizontal high-volume airflow system ensures uniform thermal distribution across the full working volume, critical for multi-die or panel-level curing consistency
• Integrated gas flow meter, pressure transducer, and purge timer with programmable sequences—supports automated gas exchange protocols per JEDEC J-STD-020 or IPC-TR-579
• Door interlock circuit disables heating elements and blower immediately upon door actuation, meeting OSHA 1910.147 lockout/tagout requirements
• Exhaust damper with manual override and calibrated relief valve for controlled venting during gas transition or emergency depressurization
• Front-panel mounted gas inlet (3/8″ NPT) and exhaust port with integrated silencer and particulate filter to minimize contamination risk

Sample Compatibility & Compliance

The IGF7780/8880 accommodates standard semiconductor substrates including silicon wafers (up to 8″), organic substrates (ABF, BT, FR-4), ceramic packages (QFN, LGA, CSP), and flex circuits. Its inert atmosphere capability supports ASTM F1977 (Standard Guide for Testing Adhesive Bond Strength of Semiconductor Packages), ISO 20482 (High-temperature reliability testing of microelectronic devices), and USP (Thermal Analysis of Pharmaceutical Excipients used in hybrid packaging). All models are supplied with factory-installed validation ports for thermocouple mapping (per IQ/OQ protocols) and include documentation traceable to NIST standards. The chamber’s welded construction and fluorosilicone door gasket (rated to 600°C) ensure compliance with GLP and GMP environmental control requirements for qualification-grade process equipment.

Software & Data Management

Equipped with Blue M’s proprietary AccuTemp™ digital controller, the oven provides 16-segment programmable ramp-soak profiles, real-time graphing of chamber temperature and gas pressure, and CSV export of time-stamped process logs. Optional Ethernet/IP or Modbus TCP interface enables integration into MES platforms (e.g., Siemens Opcenter, Rockwell FactoryTalk) for electronic batch record generation. Audit trail functionality records all parameter changes, door events, gas flow deviations, and alarm triggers—with timestamps and user IDs—supporting FDA 21 CFR Part 11 compliance when paired with validated electronic signature modules. Data retention is configurable up to 30 days onboard; external USB logging is supported for long-term archival.

Applications

• Curing of polybenzoxazole (PBO) passivation layers and interlayer dielectrics in advanced fan-out wafer-level packaging (FOWLP)
• Thermal stabilization of polyimide and benzocyclobutene (BCB) redistribution layers prior to copper plating
• Oxidation-free annealing of Cu–Sn intermetallics in 2.5D/3D TSV stacks
• Moisture removal and residual solvent evaporation from wafer-level underfills (e.g., Namics UFL series)
• Accelerated aging studies per JEDEC JESD22-A108 for high-reliability automotive and aerospace ICs
• Pre-bake and post-etch bake cycles for MEMS encapsulation using low-volatility silicone-based sealants

FAQ

What inert gases are certified for use with the IGF7780/8880?
Nitrogen (N₂), argon (Ar), helium (He), carbon dioxide (CO₂), and forming gas (4% H₂ / 96% N₂) are fully supported. Hydrogen concentrations exceeding 4% require custom engineering review per NFPA 86 Annex D.
Is the oven compatible with automated material handling systems?
Yes—optional conveyor feedthroughs, robotic arm interfaces, and SECS/GEM communication protocols are available upon request for integration into 300mm fab automation lines.
How is temperature uniformity verified and documented?
Each unit ships with a 9-point thermocouple mapping report performed at three temperatures (200°C, 400°C, and 593°C) per ASTM E2203, including uncertainty analysis and calibration certificate traceable to NIST.
Can the oven be validated for GMP production use?
Absolutely—the design includes IQ/OQ-ready features: sensor redundancy ports, hardware interlock logs, and firmware with electronic signature support. Validation templates and URS alignment documentation are provided with purchase.
What maintenance intervals are recommended for sustained inert gas performance?
Gas manifold filters should be replaced every 6 months; door gaskets inspected quarterly; and pressure decay tests conducted weekly per internal SOP-ETC-017. Full preventive maintenance is scheduled annually by Blue M Field Service Engineers.
