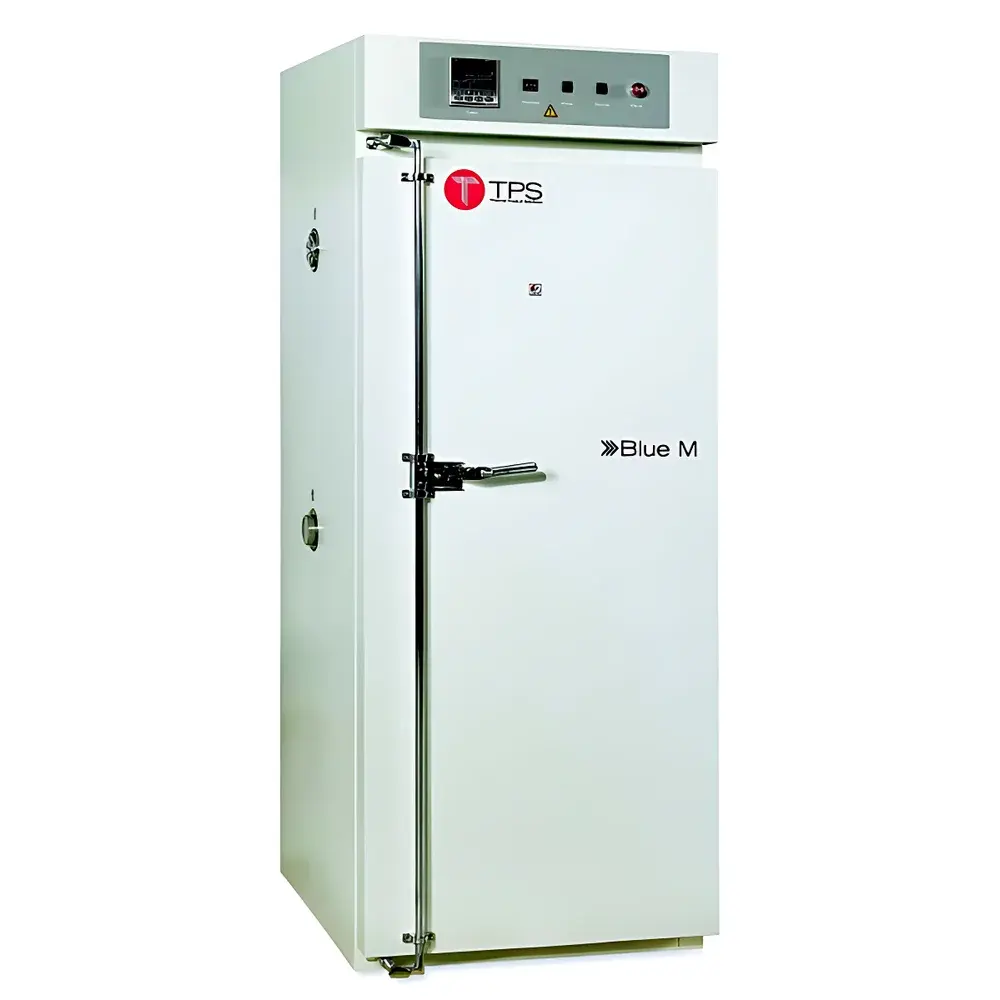

Blue M LO-Series Laboratory Oven with Horizontal Airflow for Debinding and Thermal Processing
| Brand | Blue M |
|---|---|
| Origin | USA |
| Type | Benchtop/Free-Standing Forced-Air Laboratory Oven |
| Max Temperature | 260°C |
| Temperature Uniformity | ≤ ±3% |
| Control Accuracy | ±1°C |
| Heating Method | Horizontal Forced-Air Convection |
| Internal Dimensions | 300 × 300 × 300 mm to 790 × 710 × 1450 mm |
| Max Power | 11 kW |
| Construction | Stainless Steel Interior, Powder-Coated Steel Exterior |
| Compliance | Designed for GLP-compliant thermal processing environments |
Overview
The Blue M LO-Series Laboratory Oven is an engineered-for-precision forced-air convection oven designed specifically for controlled thermal processes in research, quality control, and pilot-scale manufacturing environments. Unlike static or vertical-flow ovens, the LO-Series employs a horizontal airflow architecture—air is drawn across tubular heating elements, conditioned, and directed uniformly across the chamber from side to side—enabling superior temperature uniformity (≤ ±3% across working volume) and rapid thermal recovery after door opening. This design is especially critical for debinding of ceramic and metal injection molded (MIM) parts, where precise, repeatable ramp-hold-cool profiles prevent cracking, blistering, or incomplete binder removal. The oven operates within a validated temperature range of ambient +10°C to 260°C (50°F to 500°F), meeting thermal stability requirements for ASTM E145 Class II and ISO 17025-accredited laboratories.
Key Features
- Horizontal forced-air convection system ensures consistent heat distribution and minimizes thermal stratification
- Tubular heating elements with extended service life and high thermal efficiency; optimized for rapid heat-up and stable dwell performance
- Dual-stage overtemperature protection: primary digital PID controller + independent mechanical limit switch (adjustable up to 280°C)
- Electropolished stainless steel interior chamber (304 grade) resistant to oxidation and thermal cycling fatigue
- Ergonomically positioned door handles, intuitive front-panel controls, and reinforced double-wall construction with high-density mineral fiber insulation
- Modular shelf system: standard perforated shelves (2 included); optional additional shelves with adjustable spacing (0.95″–2″ increments) to accommodate varied sample geometries
- Configurable models: LO-27 (0.95 ft³), LO-90 (3.2 ft³), LO-136 (4.8 ft³), LO-225 (7.9 ft³), LO-430 (15 ft³), and LO-850 (30 ft³)—each certified for continuous-duty operation at rated max temperature
Sample Compatibility & Compliance
The LO-Series is intended for non-volatile, non-corrosive, and non-explosive materials only. It is not rated for use with flammable solvents, halogenated compounds, or reactive organometallics. Chamber geometry and airflow dynamics are validated per Blue M’s internal thermal mapping protocol (performed at three load conditions: empty, 50% loaded, full with inert mass simulators). All units comply with UL 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and meet electromagnetic compatibility (EMC) requirements under FCC Part 15 Subpart B. For regulated environments, optional data logging modules support 21 CFR Part 11-compliant audit trails when paired with validated software platforms. The oven supports GLP/GMP documentation workflows through traceable calibration certificates (NIST-traceable RTD sensors available upon request).
Software & Data Management
Standard configuration includes a high-resolution digital PID controller with setpoint programming, ramp/soak capability, and real-time temperature display. Optional upgrades include Ethernet-enabled controllers with Modbus TCP or RS-485 interfaces for integration into SCADA or LIMS environments. Data logging functionality (up to 10,000 points) is supported via USB export or continuous SD card recording. When used with Blue M’s optional Validation Package, users receive IQ/OQ documentation templates aligned with ISO/IEC 17025 Annex A.3 and ASTM E2500-13 guidelines for equipment qualification in regulated labs.
Applications
- Debinding of MIM and CIM green parts prior to sintering
- Moisture removal and pre-drying of powders, ceramics, and composites
- Thermal aging studies per ASTM D573 and ISO 188
- Stability testing of pharmaceutical excipients and medical device polymers
- Preheating and conditioning of substrates for coating adhesion testing
- Controlled drying of biological specimens and chromatography media
FAQ
Can this oven be used for solvent-based debinding?
No. The LO-Series is not explosion-proof and lacks solvent exhaust integration. It is strictly intended for thermal debinding of low-volatility binders (e.g., polyethylene glycol, paraffin wax) under atmospheric conditions.
Is NIST-traceable calibration available?
Yes. Factory calibration with NIST-traceable RTD probes is offered as an optional add-on at time of order, including certificate of calibration valid for 12 months.
What is the typical thermal recovery time after door opening?
For the LO-430 model at 200°C, recovery to ±1°C of setpoint takes ≤ 8 minutes with door open for 15 seconds (tested per ASTM E145 Annex A3). Recovery varies slightly by model and load mass.
Are custom shelving configurations supported?
Yes. Perforated shelves, solid shelves, wire mesh trays, and custom-sized inserts can be ordered separately. Maximum shelf load capacity is 25 kg per shelf (evenly distributed).
Does Blue M provide installation support for international customers?
All LO-Series ovens ship fully assembled and tested. Electrical specifications (voltage, phase, frequency) are configured per destination region. Technical documentation includes multilingual safety instructions and CE/UL compliance statements. Remote commissioning assistance is available via secure screen-sharing sessions.
