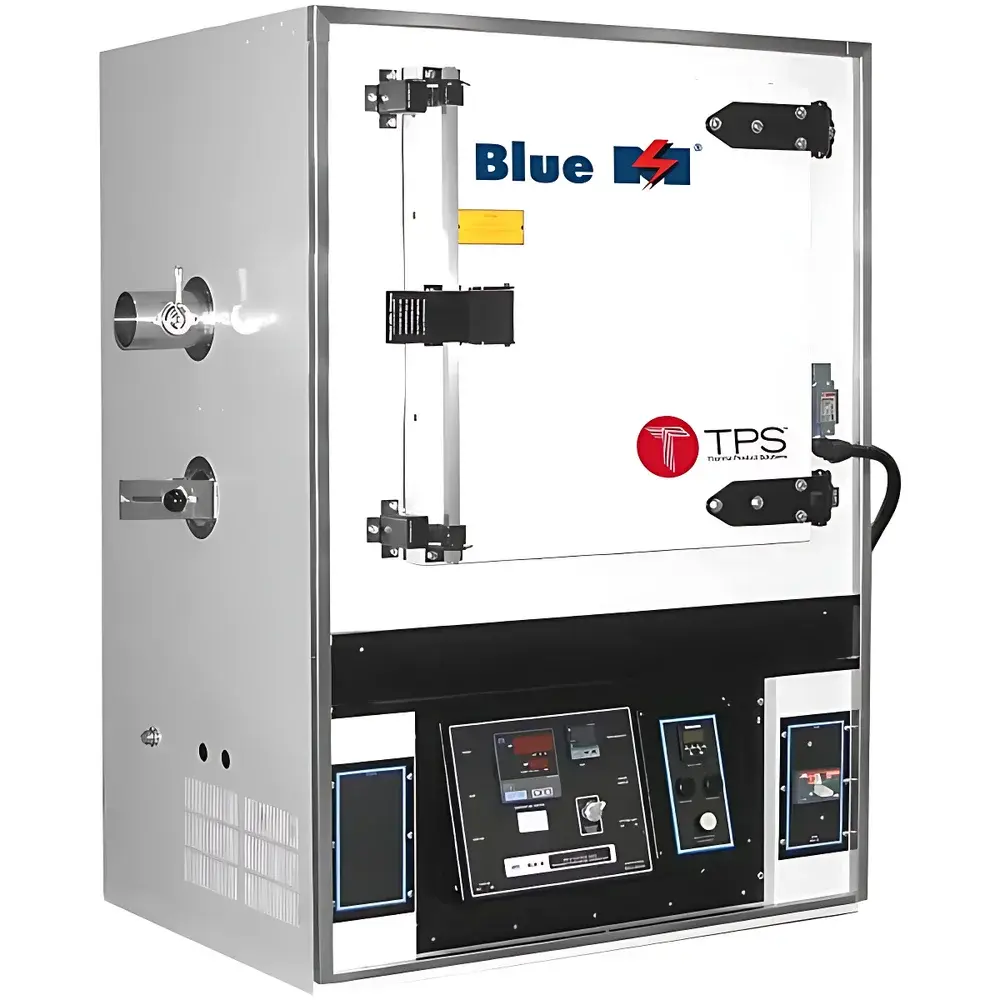

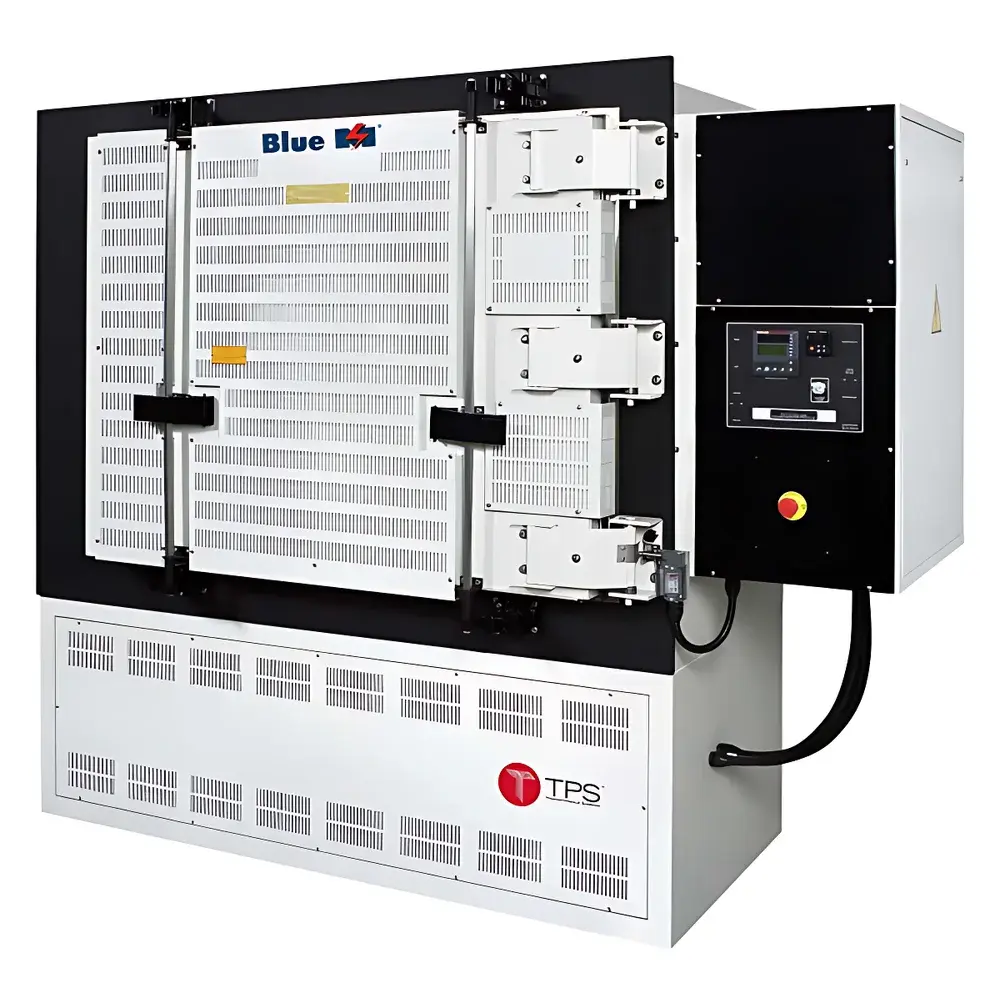

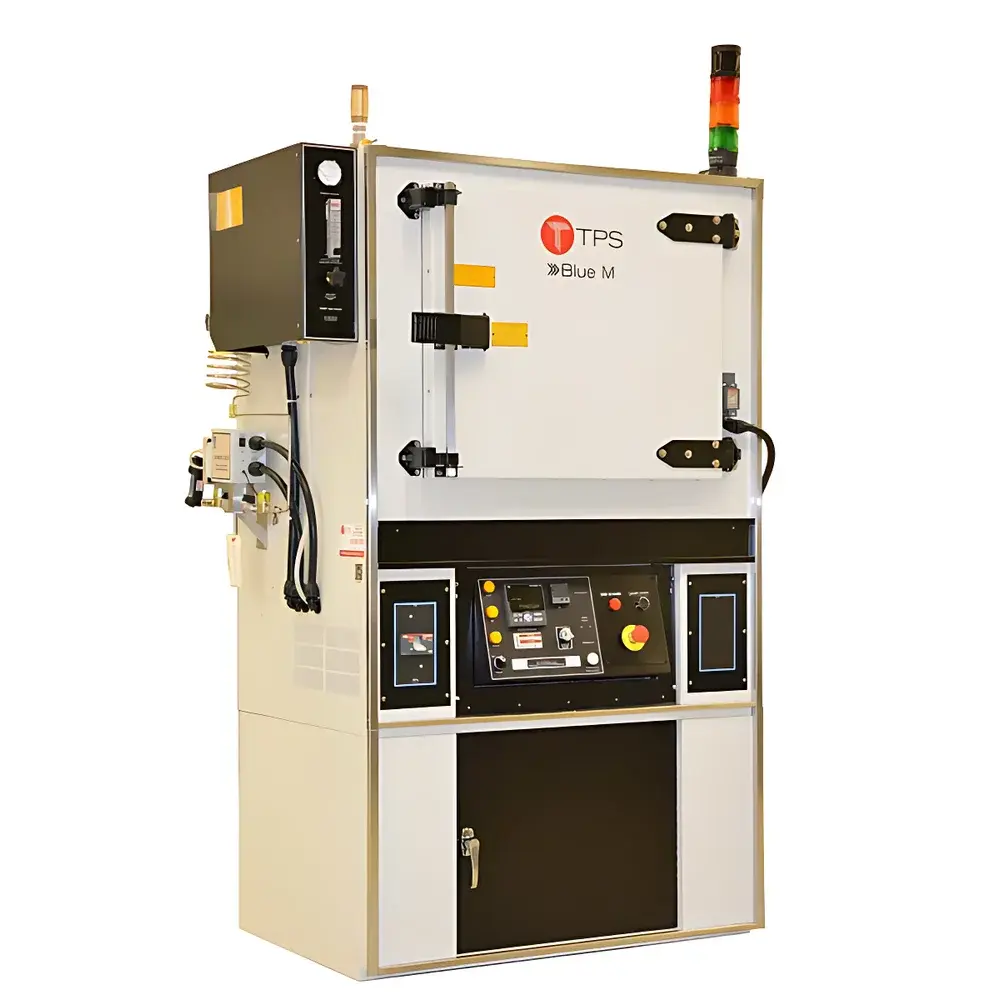

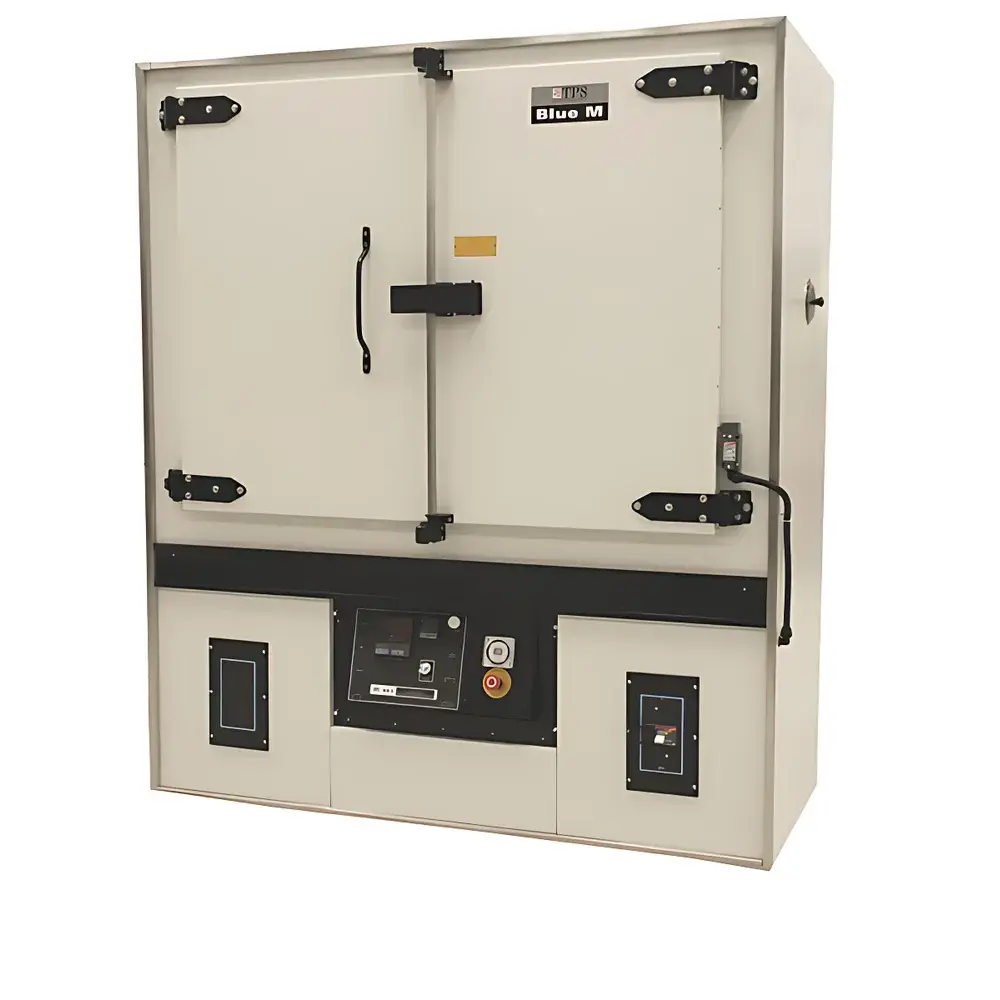

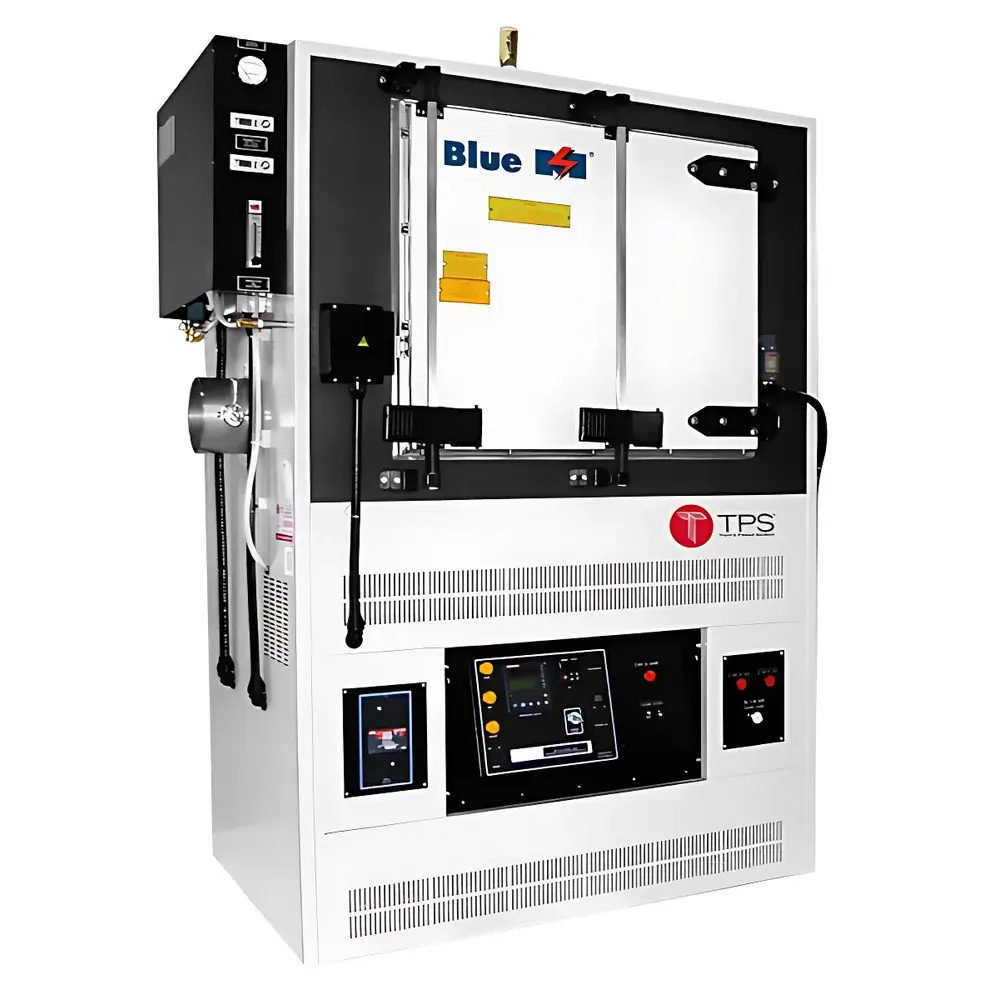

Blue M Nitrogen Purge Drying Oven

Overview

The Blue M Nitrogen Purge Drying Oven is an engineered thermal processing system designed for applications requiring oxygen-free, controlled-atmosphere heating in research, semiconductor fabrication, and advanced materials manufacturing. Unlike standard convection ovens, this unit integrates a fully sealed 304 stainless steel chamber with inert gas purging capability—primarily nitrogen—to suppress oxidation, prevent moisture reabsorption, and eliminate trace contaminants during high-temperature treatments. Its operational principle relies on continuous or batch-mode inert gas flow through a hermetically sealed cavity, combined with precision forced-air convection heating to ensure rapid thermal response and spatial uniformity. The oven meets the fundamental thermal management requirements of wafer-level processing, die attach curing, photomask pre-bake, BGA reflow support, and post-plating annealing—where even sub-ppm oxygen exposure can compromise metallurgical integrity or polymer crosslinking fidelity.

Key Features

• Fully welded 304 stainless steel interior chamber with zero weld seams exposed to insulation layers—eliminating gas migration paths and ensuring long-term purge integrity.
• 4-inch thick mineral wool insulation layer minimizes thermal loss and stabilizes chamber wall temperatures under sustained 350°C operation.
• Heavy-gauge steel outer cabinet (minimum 16-gauge construction) provides structural rigidity and electromagnetic shielding for cleanroom-compatible installations.
• High-compression fiberglass-reinforced door gasket maintains leak-tight sealing across repeated thermal cycles and pressure differentials.
• Dual-stage gas control architecture supports independent purge, process, and cooldown flow regimes—each programmable per ASTM F1980 and JEDEC J-STD-033B standards.
• Integrated safety interlock system disables heating when door is unlatched, preserving inert atmosphere integrity and complying with NFPA 86 Class A requirements for inert gas ovens.
• Electrostatically applied powder coating on exterior surfaces delivers corrosion resistance suitable for ISO Class 7–8 laboratory environments.

Sample Compatibility & Compliance

The Blue M Nitrogen Purge Drying Oven accommodates substrates ranging from silicon wafers and ceramic packages (e.g., QFN, BGA, MCM-L) to flexible printed circuits and thin-film photovoltaic stacks. Its chamber geometry supports standard SEMI E10 carriers, JEDEC trays, and custom fixtures without airflow obstruction. All models comply with UL 746C (polymeric materials), CSA C22.2 No. 61010-1 (electrical safety), and IEC 61000-6-3 (EMC emissions). For regulated pharmaceutical or medical device manufacturing, optional validation packages support IQ/OQ/PQ execution aligned with FDA 21 CFR Part 11 data integrity expectations and EU Annex 11 electronic record controls. The sealed architecture inherently satisfies ISO 14644-1 Class 5 particulate limits when installed with HEPA-filtered purge gas supply.

Software & Data Management

Equipped with a microprocessor-based PID controller featuring dual-loop temperature regulation (chamber air + optional thermocouple probe input), the oven logs real-time temperature, gas flow rate, and door status at user-defined intervals (1–60 sec resolution). Data export is available via RS-485 Modbus RTU or optional Ethernet/IP interface for integration into LIMS or MES platforms. Audit trail functionality records operator ID, parameter changes, alarm events, and cycle start/stop timestamps—meeting GLP/GMP documentation requirements. Optional Blue M DataLink software enables remote monitoring, alarm escalation via email/SMS, and automated report generation compliant with ISO/IEC 17025 clause 7.7.

Applications

• Semiconductor packaging: Leadframe drying, mold compound post-cure, silver paste sintering, and wafer-level passivation bake.
• Photolithography: Pre-bake (soft bake) and post-exposure bake (PEB) of organic photoresists under nitrogen to minimize standing wave effects and solvent retention.
• Advanced electronics: Reflow support for low-voiding solder pastes, conformal coating cure, and MEMS cavity sealing anneals.
• Materials science: Graphene oxide reduction, metal-organic framework (MOF) activation, and battery electrode drying under inert conditions.
• Quality assurance labs: Moisture removal from hygroscopic ceramics prior to density measurement per ASTM C20, or residual solvent extraction from polymer composites.

FAQ

What inert gases are compatible with this oven?
Nitrogen (N₂), argon (Ar), and forming gas (N₂/H₂) are supported; all configurations exclude flammable or corrosive gases per NFPA 55 and CGA G-1 guidelines.
Can the oven be validated for GMP use?
Yes—optional qualification kits include calibrated reference thermocouples, flow meter calibration certificates, and protocol templates aligned with ISO 13485 and FDA Process Validation Guidance.
Is vacuum capability available?
No—this model is designed exclusively for positive-pressure inert gas purging; vacuum-rated variants require separate engineering consultation.
How is temperature uniformity verified?
Uniformity is characterized per ASTM E2207 using nine-point sensor mapping across the working volume at 100°C, 200°C, and 300°C—data provided in factory acceptance test reports.
What maintenance is required for long-term purge integrity?
Annual verification of door gasket compression force and helium leak testing of chamber welds are recommended; Blue M provides certified service technicians for scheduled PM.
