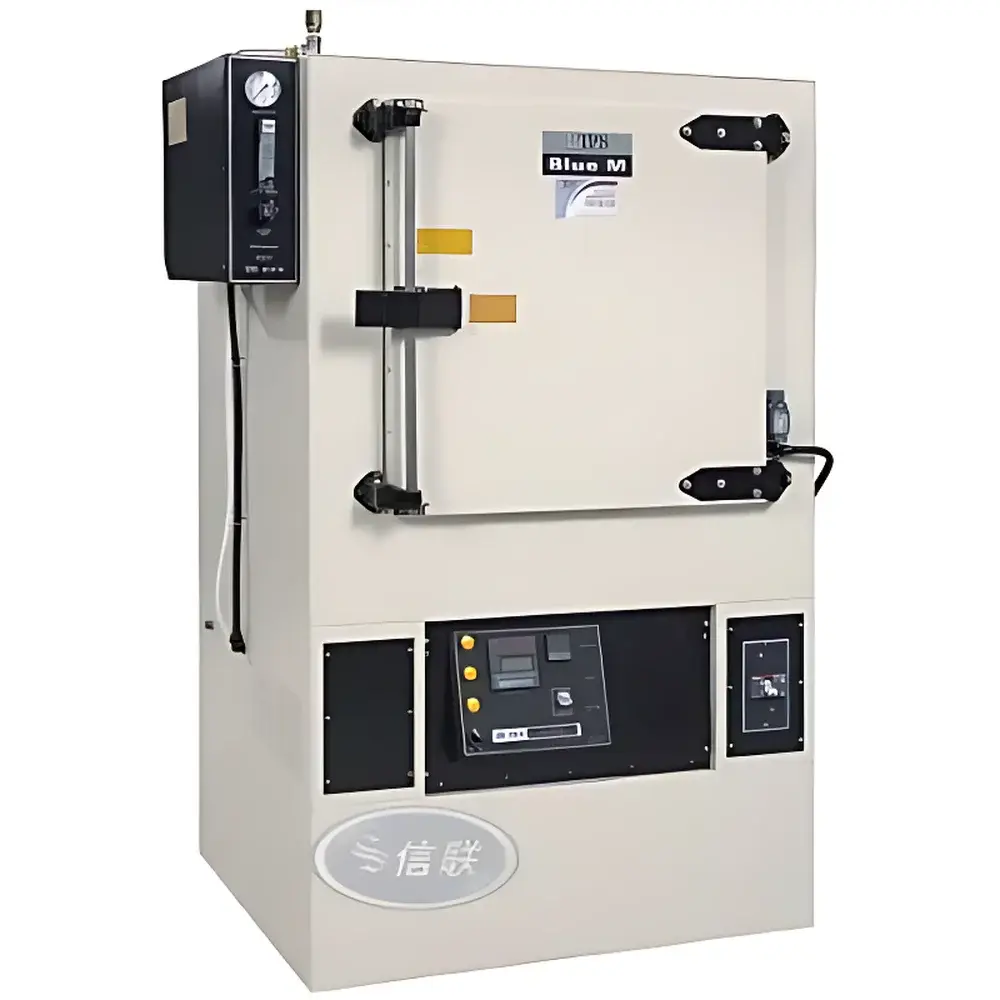

Blue M TPS Series High-Temperature Forced-Air Circulating Oven

Overview

The Blue M TPS Series High-Temperature Forced-Air Circulating Oven is an industrial-grade thermal processing system engineered for precision, repeatability, and long-term operational integrity in demanding laboratory and pilot-scale manufacturing environments. Built by Lunaire Thermal Systems — a U.S.-based thermal equipment manufacturer with over 75 years of heritage in controlled-environment ovens — the TPS platform employs a robust horizontal or vertical forced-air circulation architecture, ensuring uniform heat distribution across the entire working chamber. Its core measurement principle relies on high-efficiency impeller-driven airflow combined with PID-controlled resistive heating elements and dual-sensor feedback loops (one for control, one for independent verification). This configuration enables stable thermal profiles essential for applications requiring strict adherence to time-temperature protocols, including annealing of metallic substrates, stress-relief baking of composite laminates, binder burnout in ceramic green bodies, and solvent-free curing of high-performance coatings.

Key Features

• Full-welded 304 stainless steel interior chamber with seamless corners and non-porous surface finish — optimized for corrosion resistance, cleanability, and vacuum/gas-purged operation
• Programmable temperature controller with 0.1 °C resolution, ±0.5 °C stability (at steady state), and multi-segment ramp-soak capability
• Dual airflow configuration options: horizontal laminar flow (standard) or vertical down-draft (optional) — selectable based on sample geometry and process sensitivity
• Independent over-temperature protection circuit with mechanical cut-off (UL-listed Class 3 safety device)
• Exhaust damper with calibrated position indicator — supports inert-atmosphere processing (N₂, Ar) and volatile emission management
• Front-access door with high-integrity silicone gasket and dual-latch mechanism — maintains chamber integrity up to 350 °C
• Compliance-ready design: traceable calibration documentation available; optional 21 CFR Part 11–compliant software package with audit trail and electronic signature support

Sample Compatibility & Compliance

The TPS Series accommodates a broad range of sample types and container formats — from standard petri dishes and crucibles to large-area coated metal coils (up to 48 cm width) and stacked ceramic wafers. Its chamber geometry and airflow dynamics are validated per ASTM E145-22 Annex A3 for forced-ventilation ovens, confirming uniformity within ±1% of setpoint across all standard volumes. The unit meets electrical safety requirements under UL 61010-1 and CSA C22.2 No. 61010-1, and carries CE marking for EMC and Low Voltage Directive compliance. For regulated environments (e.g., ISO 17025 labs, GMP manufacturing), optional IQ/OQ documentation packages and factory-installed NIST-traceable temperature mapping sensors (12-point grid) are available to support validation against USP , ISO 9001, or internal SOPs.

Software & Data Management

Standard operation utilizes the Blue M SmartControl™ interface — a 7-inch color touchscreen with intuitive menu navigation, real-time graphing, and USB data export (CSV format). Optional Blue M Connect™ software enables remote monitoring, centralized fleet management, and automated report generation. When configured with the FDA-compliant module, the system provides full 21 CFR Part 11 functionality: user-level access controls, immutable audit trails for all parameter changes and cycle executions, electronic signatures for batch release, and encrypted local database storage. All temperature logs include timestamp, sensor ID, setpoint, actual reading, and deviation — supporting GLP/GMP traceability without third-party middleware.

Applications

• Thermal debinding and sintering support in powder metallurgy and MIM processes
• Curing of aerospace-grade epoxies and polyimide adhesives (e.g., FM-73, EA9394)
• Stress relief of welded assemblies and machined aluminum/titanium components
• Moisture removal from hygroscopic ceramics and battery electrode slurries
• Accelerated aging studies per ASTM D3045 and ISO 2812-3
• Pre-bake conditioning of optical substrates prior to thin-film deposition
• Residual solvent evaporation in coil-coating and automotive OEM paint lines

FAQ

What is the maximum operating temperature for the TPS Series?

The standard TPS configuration is rated for continuous operation up to 350 °C. Custom variants supporting 704 °C are available upon request and require upgraded insulation, heating elements, and thermocouple grade.
Can the oven be purged with inert gas?

Yes — all TPS models feature dual-port gas inlet/outlet fittings and a manually adjustable exhaust damper, enabling nitrogen or argon purge protocols. Optional mass flow controllers and O₂ analyzers are available for closed-loop atmosphere management.
Is temperature mapping included in factory commissioning?

Temperature mapping is not standard but can be performed during installation qualification (IQ) using calibrated 12-point thermocouple arrays. A full mapping report compliant with ISO/IEC 17025 is provided upon request.
Does the oven meet requirements for pharmaceutical stability testing?

While primarily designed for industrial thermal processing, the TPS Series can be validated for ICH Q1A(R3) stability chambers when equipped with enhanced humidity control (add-on module), redundant sensors, and 21 CFR Part 11 software — subject to site-specific risk assessment and protocol approval.
What maintenance intervals are recommended?

Routine inspection of door gaskets, airflow grilles, and exhaust filters is advised every 200 operating hours. Full preventive maintenance — including thermocouple calibration verification, fan bearing lubrication, and controller firmware update — is recommended annually or after 2,000 hours of runtime, whichever occurs first.
