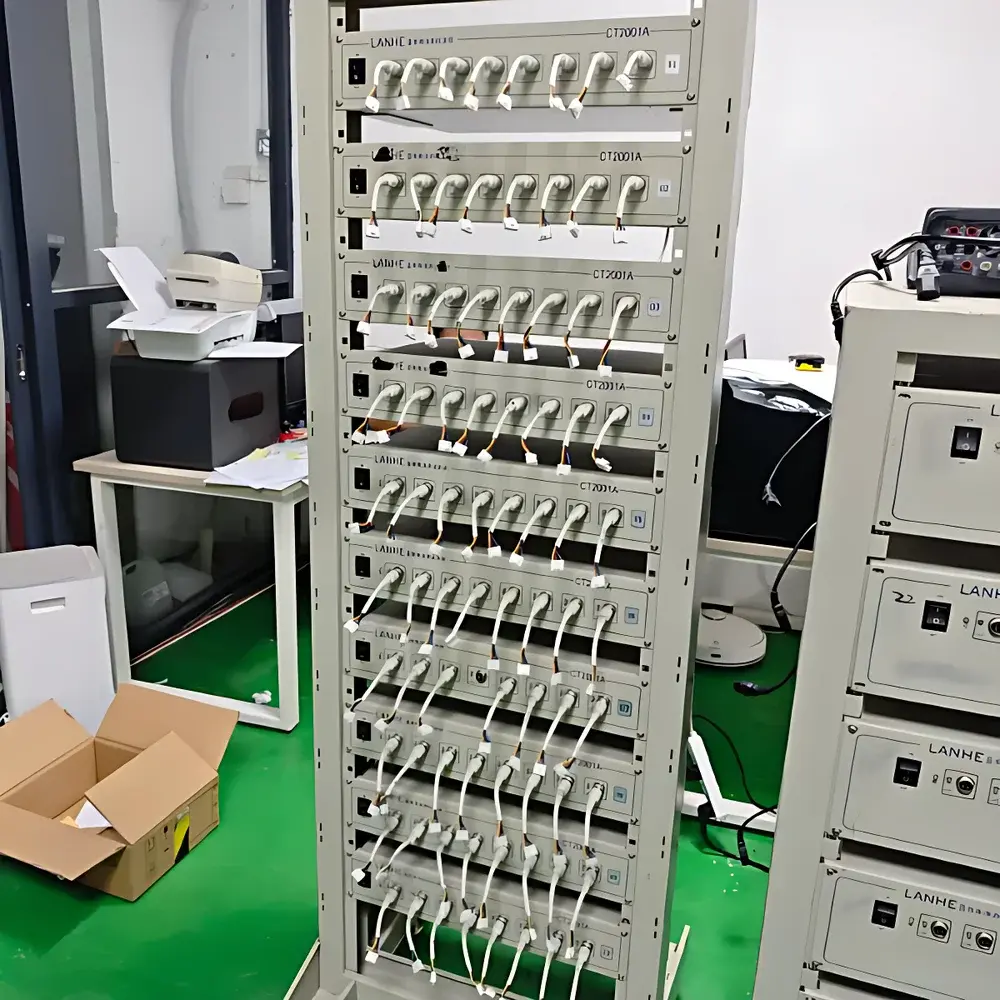

Bluepower Battery Testing System CT3001A (Refurbished)

Overview

The Bluepower Battery Testing System CT3001A is a precision-engineered, refurbished electrochemical test platform designed for controlled galvanostatic and potentiostatic charge/discharge cycling of lithium-ion, lithium-metal, solid-state, and other rechargeable battery cells. Built upon a constant-current/constant-voltage (CC/CV) architecture with high-stability analog front-end circuitry, the system implements four-quadrant operation to support both charging and discharging with bidirectional current control. Its core measurement principle relies on real-time digitization of voltage and current signals via 16-bit ADCs, coupled with embedded digital signal processing to minimize thermal drift and noise-induced error—enabling reproducible capacity, coulombic efficiency, and impedance trend analysis over hundreds or thousands of cycles.

Key Features

• High-accuracy dual-channel measurement: ±0.05% full-scale accuracy for both voltage (0–5 V) and current (±5 A), verified against traceable metrological standards prior to refurbishment.
• Modular hardware architecture: Supports up to 8 independent channels per mainframe (CT3001A base configuration); scalable via synchronized multi-unit deployment.
• Programmable test protocols: Full support for standard IEC 61960, GB/T 31484–2015, and ASTM F3072-compliant cycling profiles—including pulse discharge, rate capability testing, differential voltage (dV/dQ), and open-circuit voltage (OCV) relaxation sequences.
• Robust thermal management interface: Integrated GPIO and analog output ports enable direct coupling with environmental chambers (e.g., -20 °C to +60 °C) for temperature-dependent aging studies.
• Refurbishment validation: Each unit undergoes functional verification, calibration certificate issuance (NIST-traceable reference instruments used), and 72-hour burn-in testing under load prior to release.

Sample Compatibility & Compliance

The CT3001A accommodates cylindrical (18650, 21700), prismatic, pouch, and coin-cell formats via interchangeable fixture modules—including spring-loaded probes, vacuum-held fixtures, and custom-machined holders (available upon request). All electrical safety circuits comply with GB 4943.1–2022 (equivalent to IEC 62368-1) for laboratory-grade power equipment. Data integrity meets GLP and pre-GMP documentation requirements; audit trails, user access logs, and electronic signatures are supported through optional software licensing. The system is compatible with ISO/IEC 17025-accredited lab workflows when paired with documented calibration records and uncertainty budgets.

Software & Data Management

Control and analysis are performed using Bluepower’s proprietary BTStudio v4.x software suite (Windows 10/11 compatible), which provides intuitive protocol scripting, real-time waveform visualization, and automated report generation in PDF/XLSX formats. Raw data is stored in binary .btd files with embedded metadata (timestamp, operator ID, cell ID, ambient conditions), ensuring FAIR (Findable, Accessible, Interoperable, Reusable) principles. Export options include CSV with header annotations compliant with MATLAB, Python (pandas), and commercial battery modeling platforms (e.g., COMSOL Battery Module, PyBaMM). Optional FDA 21 CFR Part 11 compliance package includes role-based permissions, electronic signature capture, and immutable audit logs.

Applications

• Academic and industrial R&D: Cycle life evaluation of novel cathode/anode materials (e.g., Ni-rich NMC, silicon composites, LiFePO₄), electrolyte screening, and SEI growth kinetics quantification.
• Quality assurance: Incoming material qualification, batch consistency verification, and accelerated aging validation per UN 38.3 and UL 1642 protocols.
• Cell-to-pack simulation: Multi-step dynamic loading profiles emulating EV drive cycles (e.g., UDDS, WLTC) using programmable current waveforms.
• Failure mode analysis: Detection of micro-short events, voltage hysteresis shifts, and capacity fade mechanisms through differential capacity (dQ/dV) peak tracking.
• Training and education: Modular design enables hands-on instruction in battery electrochemistry fundamentals, BMS algorithm development, and safety boundary mapping.

FAQ

Is this unit supplied with a valid calibration certificate?
Yes—each CT3001A undergoes post-refurbishment calibration using certified reference standards, and a dated, signed calibration report (including uncertainty values) is provided with shipment.
Can the system be integrated into an existing LabVIEW or Python automation environment?
Yes—the device supports SCPI-compliant ASCII command sets over RS485 or TCP/IP, and official Python API wrappers (bluepower-sdk) are available for seamless integration.
What is the expected service life after refurbishment?
Based on component-level stress analysis and field telemetry, units exhibit ≥5 years of operational reliability under standard lab usage (≤8 hrs/day, ambient temperature control), assuming adherence to scheduled maintenance intervals.
Are firmware updates and technical support available post-purchase?
Yes—free firmware patches and remote diagnostics are provided for 24 months; extended support contracts (including on-site service) are available upon request.
Does the system meet CE or UL certification requirements for use in EU or North American labs?
While the base unit complies with EMC and safety fundamentals per GB standards (harmonized with IEC equivalents), formal CE/UL marking requires end-user responsibility for final system-level assessment and declaration; documentation packages supporting such assessments are included.
