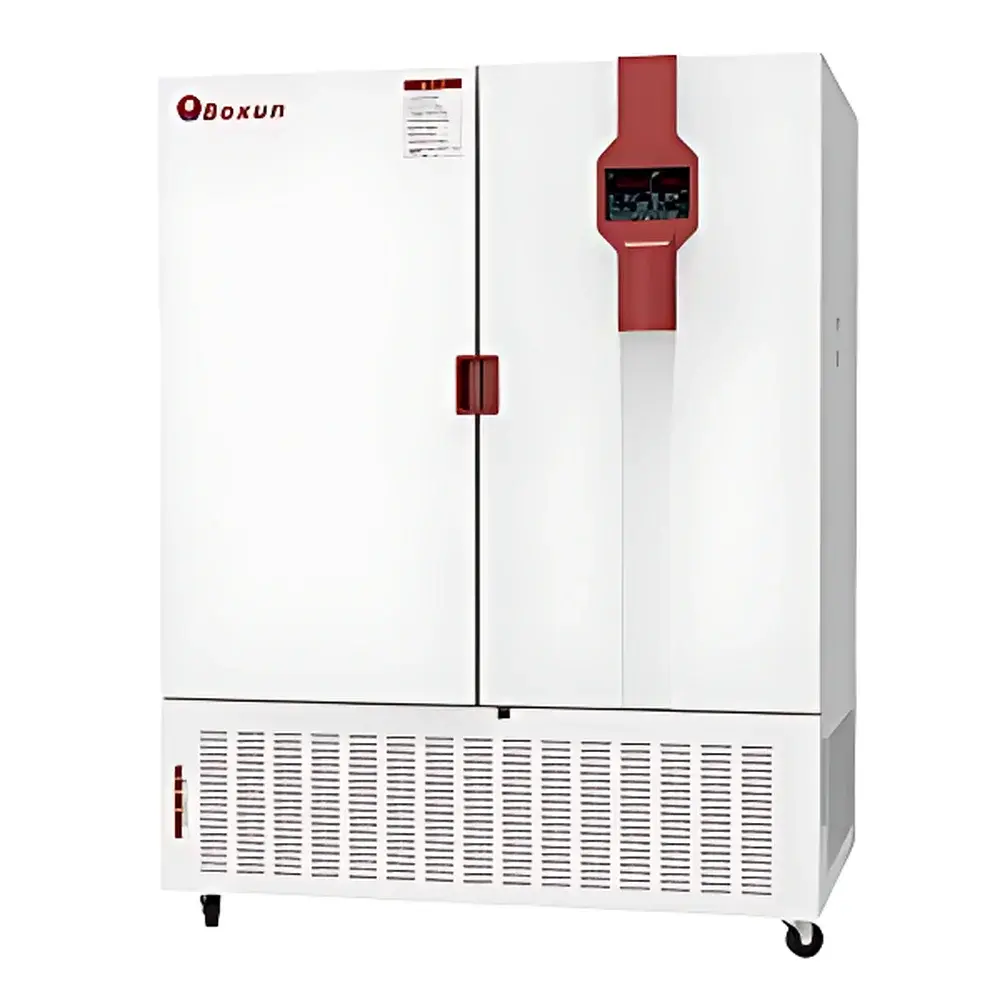

Boxun BXS-800S Expandable Drug Stability Testing Chamber

Overview

The Boxun BXS-800S Expandable Drug Stability Testing Chamber is an ICH-compliant environmental simulation system engineered for long-term, accelerated, and stress-condition stability studies of pharmaceutical products in accordance with ICH Q1A(R3), Q1B, Q5C, and relevant national pharmacopoeial guidelines (e.g., USP , EP 2.2.45, ChP 9001). It integrates precise temperature, humidity, visible light, and near-ultraviolet (UV-A) irradiation control within a single robust chamber architecture—enabling concurrent or independent execution of ICH Q1B photostability testing (total exposure ≥1.2 × 10⁶ lux·hr; near-UV energy ≥200 W·hr/m²) alongside temperature/humidity stress protocols. The chamber employs a dual-loop fuzzy PID control algorithm, coupled with high-stability imported sensors (±0.3% RH accuracy, ±0.15°C thermal drift), to maintain reproducible environmental conditions across extended durations (up to 180 days continuous operation). Its C.H. (Circulating Heat) thermal recovery system minimizes overshoot and accelerates post-door-opening stabilization—critical for GLP/GMP-compliant sample integrity during routine access.

Key Features

• 7-inch high-resolution capacitive touchscreen HMI running on Windows CE OS with 512 MB RAM and 2 GB flash storage—supporting intuitive multi-segment programming (30 segments × 99 cycles, each segment 1–9999 hours)
• Triple-mode environmental control: precision temperature (0–85°C, ±0.5°C fluctuation at 25°C), programmable humidity (20–98% RH, ±5% RH fluctuation), and independently configurable visible light/UV-A irradiation modules
• Modular illumination architecture: up to three user-installable shelf-mounted lighting units; each supports continuous 0–10,000 lux adjustment (±500 lux uniformity) and real-time lux metering with print-enabled logging
• UV-A irradiation system: spectral range 320–400 nm, intensity 0–2 W/m², integrated UV dose accumulator with auto-shutoff upon reaching user-defined cumulative exposure targets
• Comprehensive data governance: onboard storage for ≥1 million timestamped environmental records; USB export of raw logs (including power events, parameter changes, alarms) with ISO 8601 timestamps; RS232/RS485/USB interfaces for external SCADA or LIMS integration
• Regulatory-grade safeguards: dual-stage overtemperature cutoff, door-open detection with audible/visual alert, low-water level alarm, sensor fault diagnostics, and password-protected screen lock (ISO 27001-aligned access control)
• Factory-calibrated hardware: imported hermetic compressor, EC centrifugal fan, and NIST-traceable Pt100 temperature/humidity sensors; optional 3Q validation documentation (IQ/OQ/PQ) compliant with EU Annex 15 and FDA Guidance for Industry

Sample Compatibility & Compliance

The BXS-800S accommodates up to 12 adjustable stainless-steel shelves (standard: 4), supporting vials, blister packs, bottles, and syringes under static or low-airflow conditions per ICH Q5C recommendations. Internal dimensions (1200 × 610 × 1100 mm) ensure uniform exposure across all load configurations, validated via ASTM E2234-22 mapping protocols. All operational modes comply with 21 CFR Part 11 requirements when paired with FDA Edition monitoring software—including electronic signatures, audit trails for parameter modifications, and immutable record archiving. Humidity control meets ISO 17025-accredited calibration standards (certified points: 15°C/40% RH, 20°C/60% RH, 30°C/80% RH); thermal uniformity conforms to ISO 14644-3 Class 5 airflow modeling criteria.

Software & Data Management

The embedded controller provides native data visualization: real-time trend curves (6.5-hour rolling window), tabular history (1600 most recent entries), and event-triggered alarm summaries. Optional GMP Edition software enables remote supervision via Ethernet/WiFi, automated report generation (PDF/CSV/XLSX), and seamless integration with LabVantage or Thermo Fisher SampleManager LIMS. FDA Edition adds role-based user permissions, biometric or token-based authentication, and full 21 CFR Part 11 compliance—including digital signature capture, electronic record retention policies, and tamper-evident audit logs covering all configuration changes, runtime interruptions, and calibration interventions. USB-exported datasets include metadata headers compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• ICH Q1A(R3) long-term (25°C/60% RH) and accelerated (40°C/75% RH) stability studies for APIs and finished dosage forms
• ICH Q1B Option 1 & 2 photostability testing—including daylight, cool white fluorescent, and near-UV exposure sequences
• Forced degradation studies under oxidative, thermal, and hydrolytic stress per ICH Q5C
• Real-time stability monitoring for clinical trial supply chains (WHO TRS 992 Annex 9)
• Environmental qualification of packaging systems per ASTM D4332 and ISTA 3A
• Biologics stability assessment at controlled ambient and refrigerated conditions (2–8°C, 15–25°C)

FAQ

Does the BXS-800S meet ICH Q1B photostability requirements?
Yes. Its shelf-mounted LED light modules deliver ≥1.2 × 10⁶ lux·hr total exposure and its UV-A subsystem achieves ≥200 W·hr/m² near-UV energy—both verified using calibrated spectroradiometers traceable to NIST SRM 2253.
Can humidity and UV irradiation operate simultaneously?
Yes. The system supports concurrent temperature/humidity/light/UV control without cross-interference; each subsystem features independent PID tuning and fail-safe interlocks.
Is 21 CFR Part 11 compliance built-in or software-dependent?
Hardware-level security (password protection, event logging) is native; full Part 11 compliance requires FDA Edition software license and implementation of documented SOPs for electronic records management.
What validation support is available?
Boxun provides IQ/OQ/PQ protocols aligned with EU Annex 15, plus optional on-site commissioning and third-party certification by ISO 17025-accredited labs.
How is temperature uniformity verified across the working volume?
Per ISO 14644-3, 15-point mapping is performed at three load conditions (empty, 50%, full) using calibrated thermocouples; reports include max deviation, standard deviation, and spatial gradient analysis.
