Brabender ViscoQuick Rapid Viscometer by Anton Paar

Overview

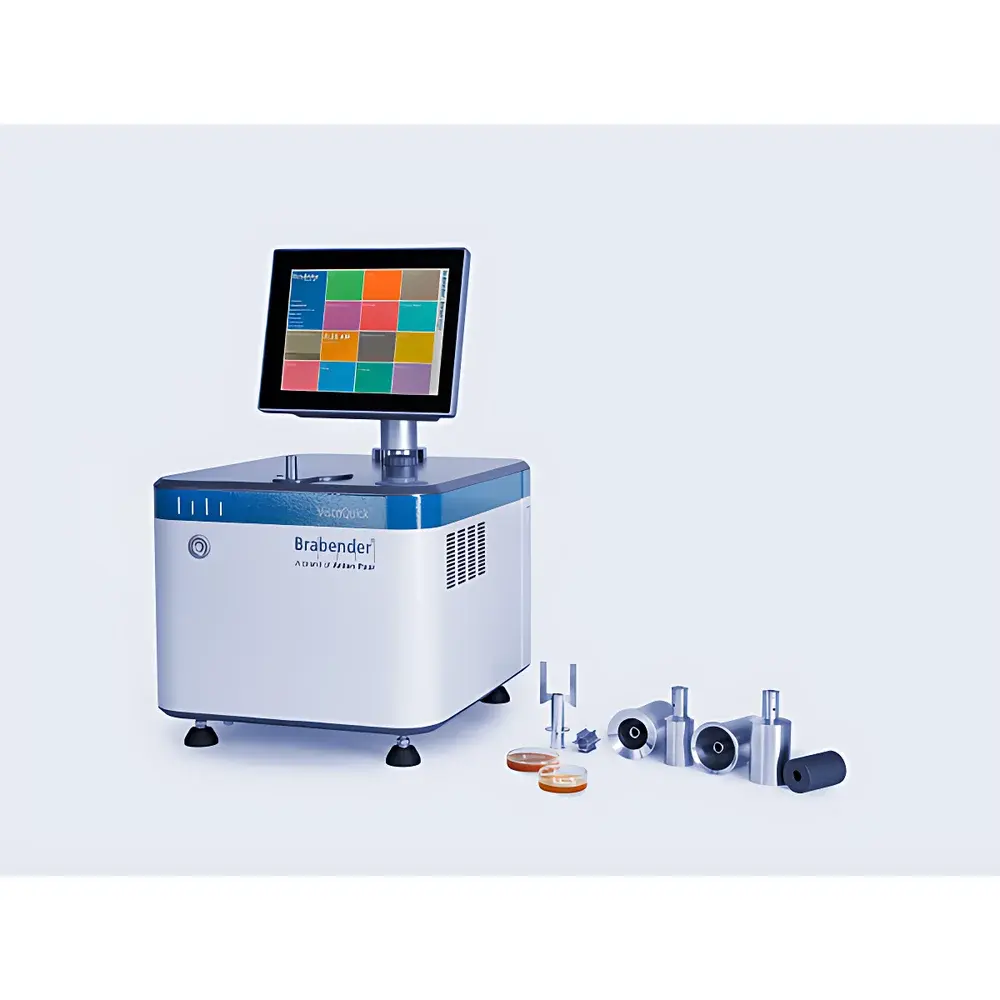

The Brabender ViscoQuick Rapid Viscometer by Anton Paar is a compact, benchtop rotational viscometer engineered specifically for rapid, high-reproducibility rheological profiling of starches, flours, and other food-grade suspensions. Leveraging precision torque-sensing technology and Peltier-based thermal control, the instrument implements controlled shear-rate-dependent viscosity measurement under dynamically programmed temperature ramps—enabling full糊化 (gelatinization), pasting, gelation, and retrogradation profiles in under 10 minutes. Its design reflects decades of domain-specific expertise from Brabender, now integrated into Anton Paar’s global quality infrastructure following the 2023 acquisition and rebranding under Anton Paar TorqueTec GmbH. The ViscoQuick operates on the fundamental principle of measuring resistance to rotational motion of a standardized paddle or spindle immersed in a sample, converting torque signals into viscosity values reported in Brabender Units (BU), centipoise (cP), or millipascal-seconds (mPa·s)—all traceable to international standards including ISO 2555 and ASTM D445.

Key Features

• Ultra-fast thermal response: Achieves heating rates up to +20 °C/min and cooling rates down to −15 °C/min—80% faster than prior-generation instruments—without compromising thermal uniformity or measurement fidelity.
• Sub-ambient capability: Unique Peltier cooling extends operational range below 20 °C (down to ~5 °C), enabling characterization at physiologically and industrially relevant storage or processing temperatures—e.g., refrigerated dough or chilled starch slurries.

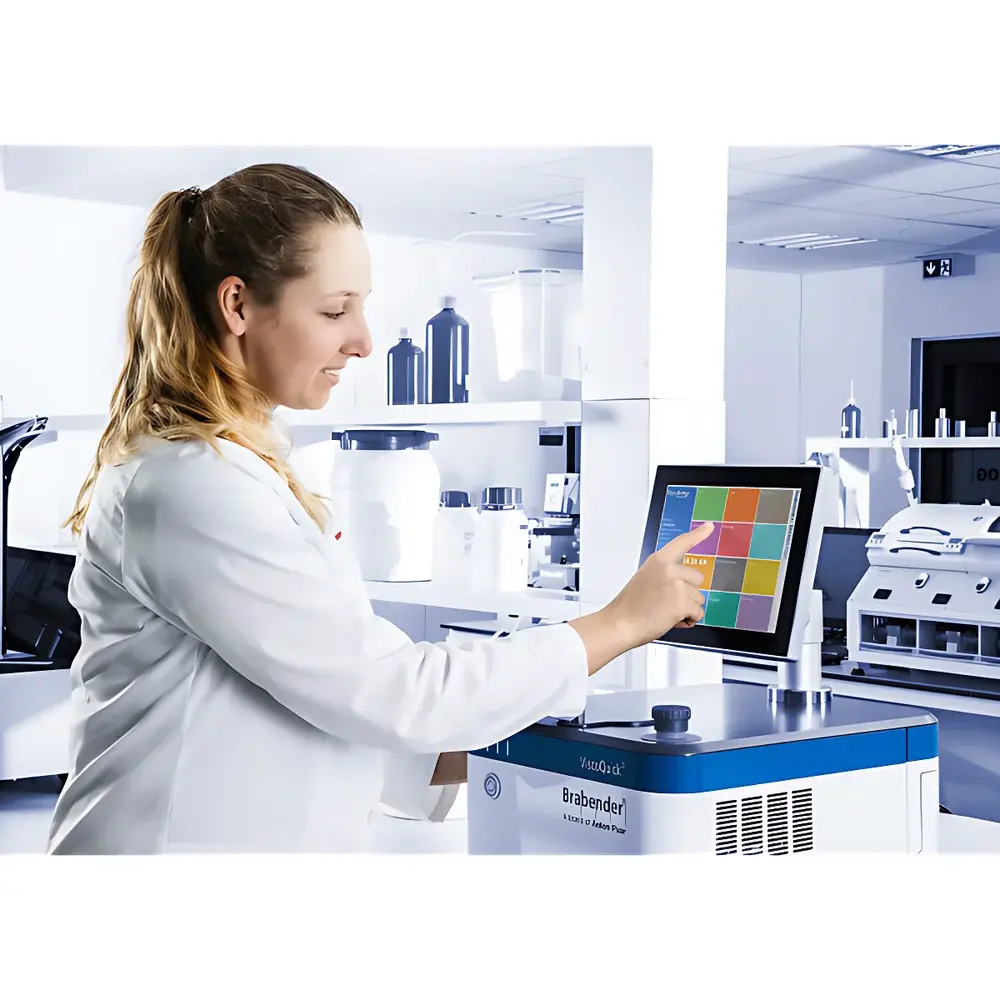

• Integrated computing platform: Onboard touchscreen interface with embedded Windows OS eliminates external PC dependency; supports local method execution, real-time curve visualization, and immediate parameter adjustment during measurement.
• Real-time dosing feedback: Simultaneous monitoring of viscosity changes during incremental additive introduction (e.g., enzymes, hydrocolloids, salts) enables precise endpoint detection and process optimization.
• Modular compliance architecture: Firmware and software support configurable audit trails, electronic signatures, and data integrity controls aligned with FDA 21 CFR Part 11 and EU Annex 11 requirements for regulated environments.

Sample Compatibility & Compliance

The ViscoQuick is validated for use with aqueous dispersions of native and modified starches (corn, wheat, potato, tapioca), cereal flours (wheat, rye, barley), gluten-free blends, and hydrocolloid systems. Sample volumes range from 25–50 mL depending on cup geometry and spindle configuration. All standard methods—including AACC 22–10 (wheat starch pasting), ICC 162 (durum semolina), and ISO 7973 (cereal starch)—are preloaded in MetaBridge. Instrument calibration adheres to ISO/IEC 17025-accredited procedures, with traceability to NIST-traceable reference oils and certified temperature standards. Routine verification includes thermal ramp linearity checks, torque zero-point validation, and BU-to-cP correlation across three viscosity decades.

Software & Data Management

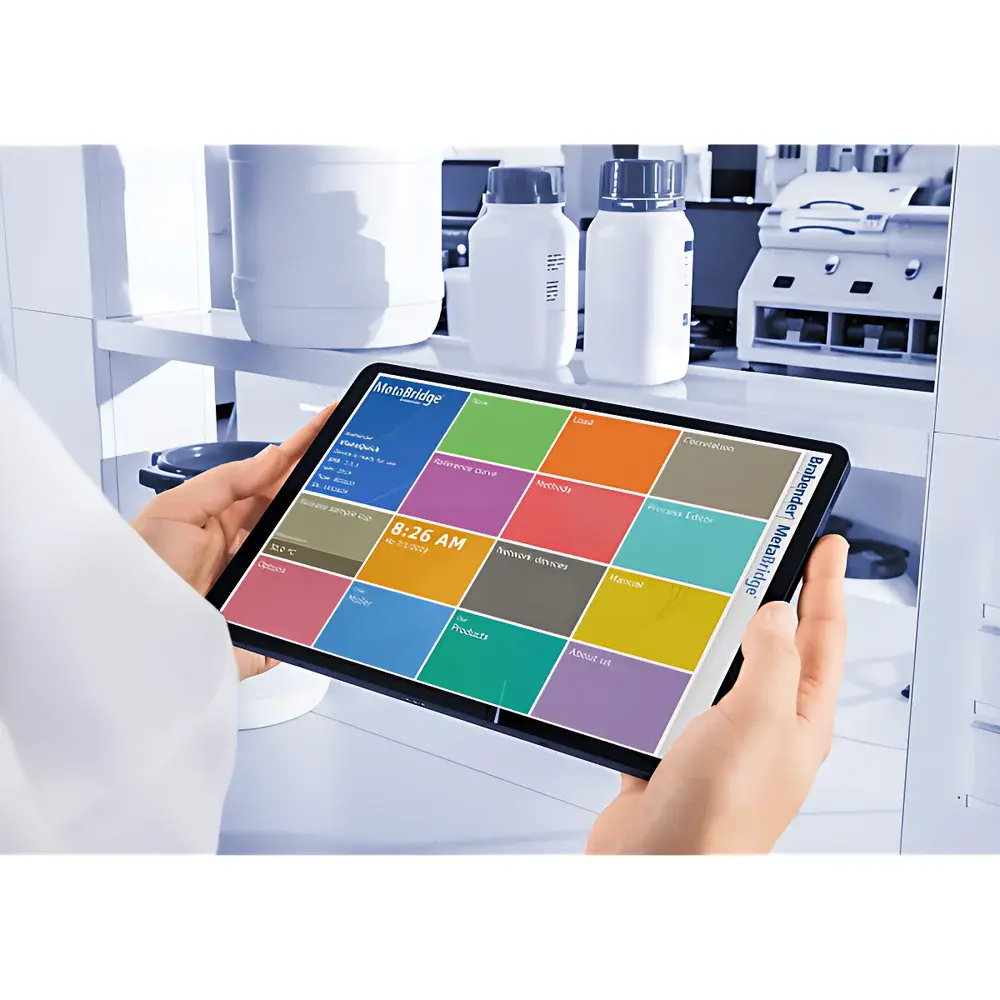

MetaBridge is a browser-based, server-hosted application supporting cross-platform access via desktop, tablet, or smartphone. It provides centralized method management, role-based user permissions, and automated report generation compliant with GLP and GMP documentation standards. Raw torque/time/temperature datasets are stored in vendor-neutral CSV and HDF5 formats. Integration with LIMS (e.g., LabWare, STARLIMS), ERP (SAP, Oracle), and statistical analysis platforms (JMP, Minitab) is achieved via RESTful API or scheduled file export. Reference curve overlay functionality allows side-by-side comparison of up to 16 historical runs; deviation alerts trigger automatically when critical parameters (peak viscosity, setback, pasting temperature) exceed user-defined thresholds.

Applications

• Determination of starch gelatinization onset, peak viscosity, breakdown, and retrogradation behavior in R&D and QC labs.
• Flour functionality assessment—water absorption, mixing tolerance, and enzyme activity screening (e.g., α-amylase impact on falling number simulation).
• Formulation development for gluten-free products, instant noodles, baby foods, and plant-based dairy alternatives.
• Batch release testing per internal specifications or customer technical agreements requiring BU-based pass/fail criteria.
• Stability studies under accelerated cooling protocols mimicking cold-chain distribution conditions.

FAQ

What temperature range does the ViscoQuick support?
The instrument operates from approximately 5 °C to 95 °C, with programmable ramp rates optimized for both heating and sub-ambient cooling.

Can I use ViscoQuick data for regulatory submissions?
Yes—when deployed with validated methods, enabled audit trail, and calibrated per ISO/IEC 17025 protocols, data meets evidentiary requirements for FDA, EFSA, and Health Canada filings.

Is Brabender Unit (BU) conversion to SI units supported?
Yes—MetaBridge includes built-in BU/cP/mPa·s conversion tables traceable to Brabender’s original calibration matrix; users may apply custom scaling factors if required.

How is instrument maintenance performed?
Daily cleaning of the measurement cup and spindle is recommended; annual torque sensor verification and Peltier efficiency calibration are performed by Anton Paar Field Service Engineers using certified hardware.

Does ViscoQuick comply with 21 CFR Part 11?
Full compliance requires deployment in a validated MetaBridge environment with enabled electronic signature, audit trail, and secure user authentication—configurations documented in the Anton Paar Validation Support Package.
