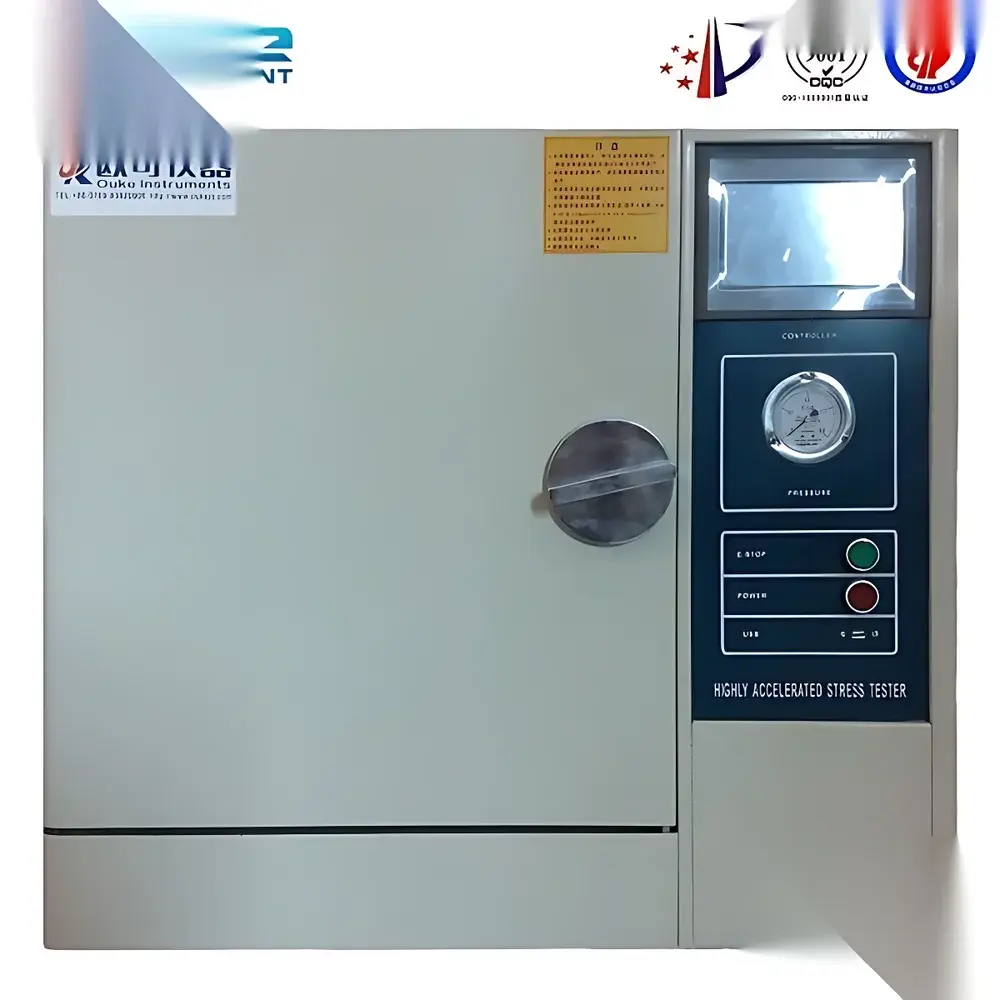

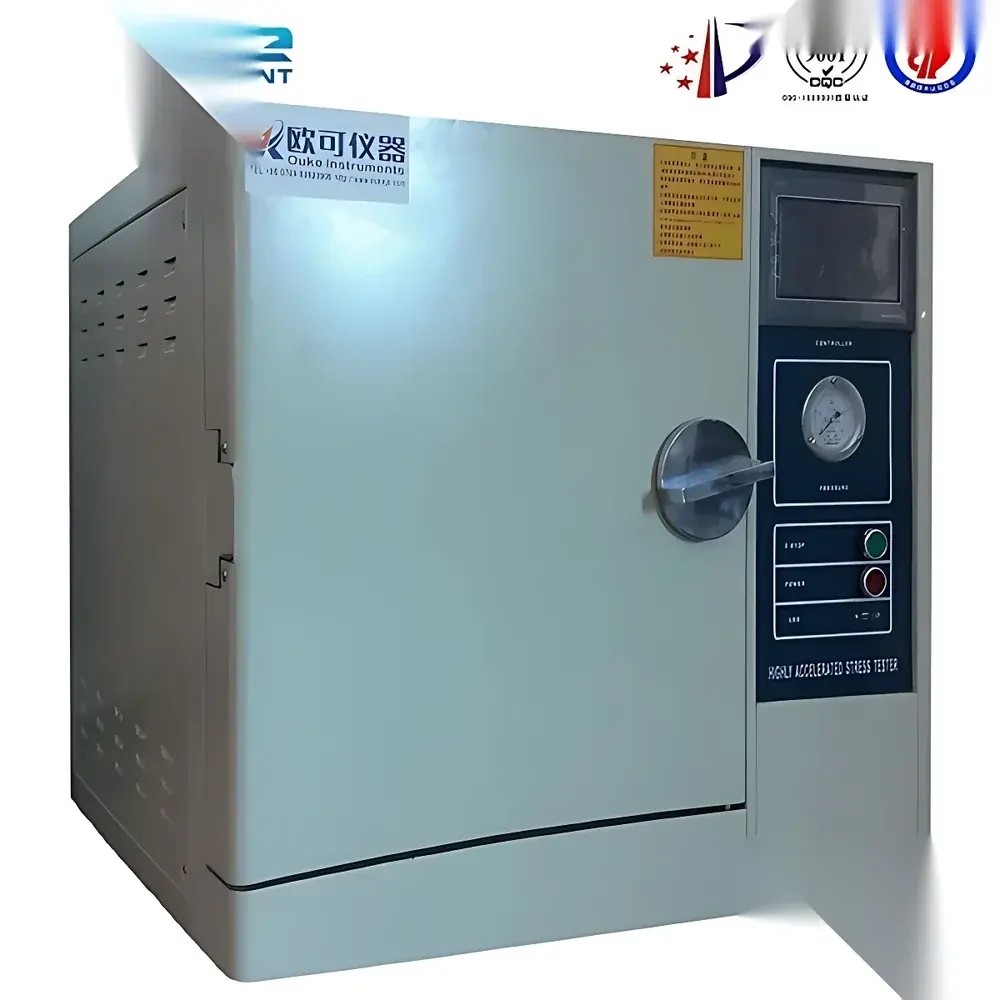

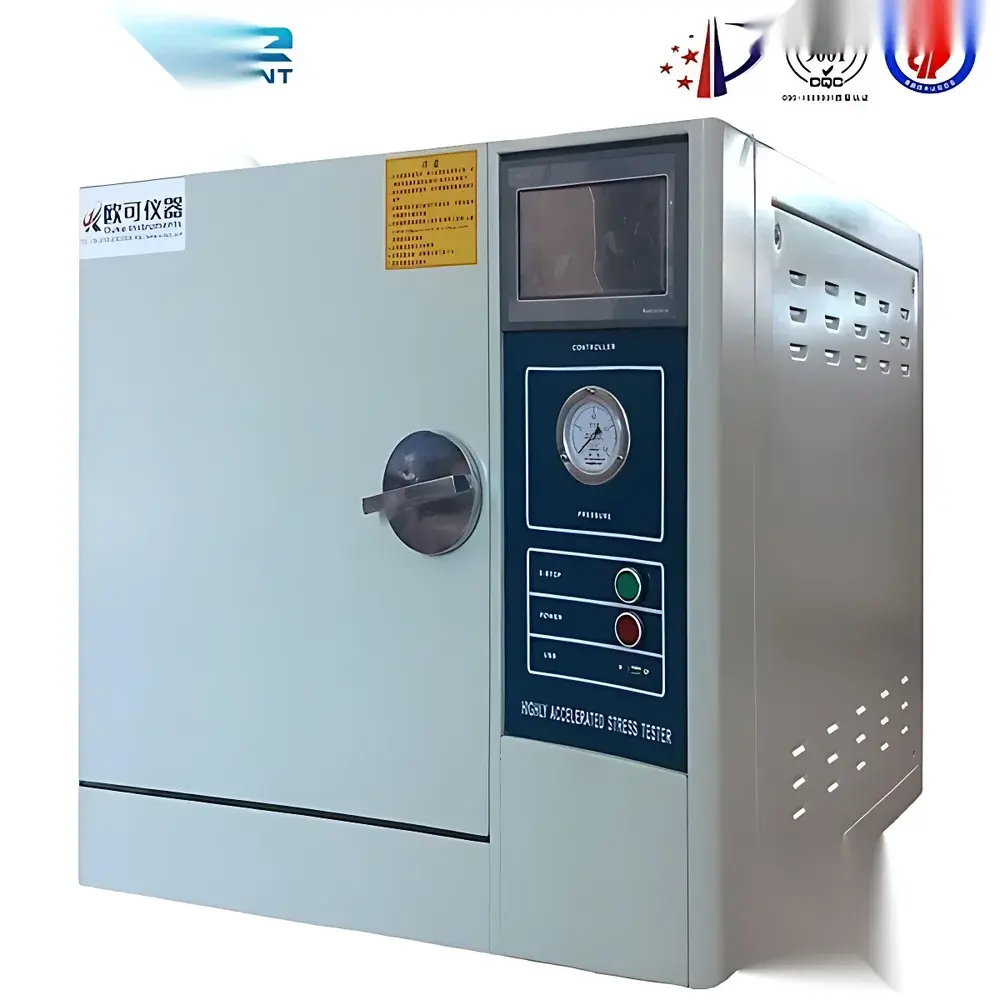

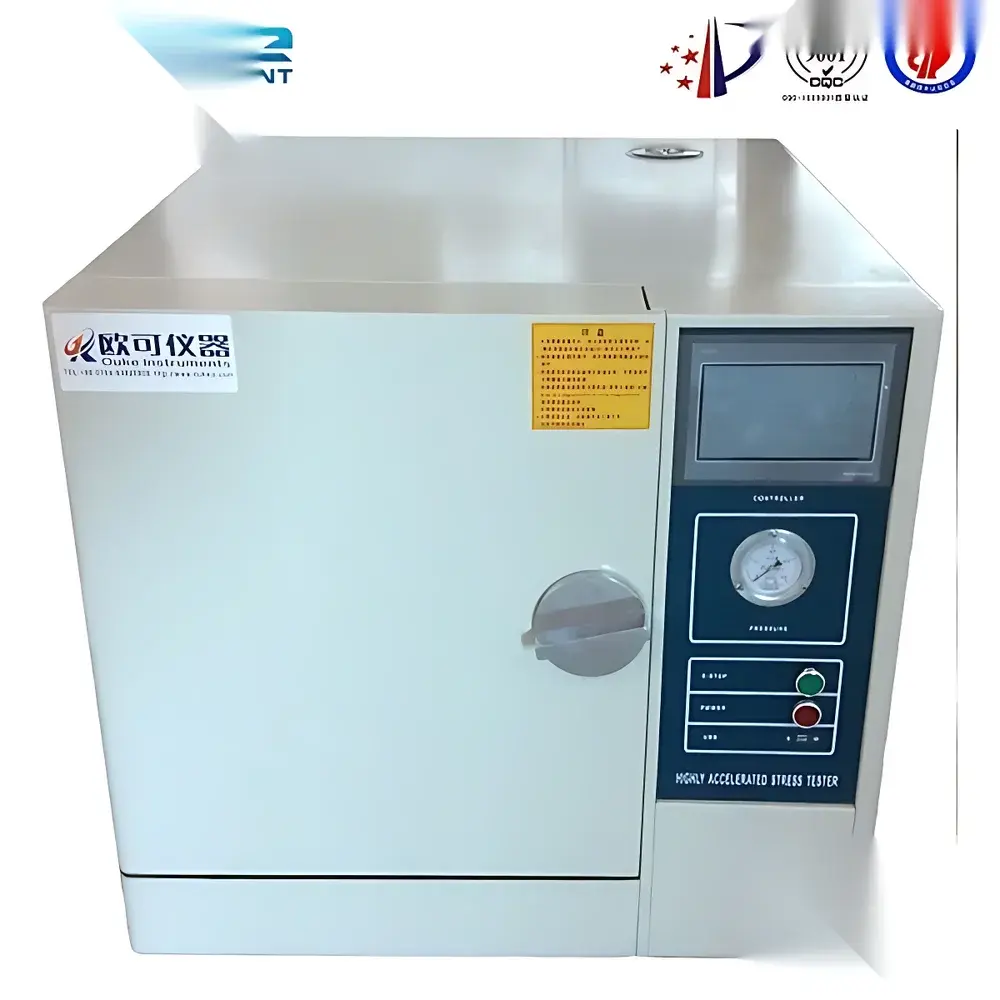

Other Brands HAST-132 High-Accelerated Stress Test Chamber

Overview

The Other Brands HAST-132 High-Accelerated Stress Test (HAST) Chamber is an engineered environmental stress screening system designed for reliability qualification and failure mechanism analysis of electronic components, printed circuit boards (PCBs), semiconductor packages, and hermetic seals under accelerated humidity-temperature-pressure conditions. Unlike conventional temperature-humidity chambers, the HAST-132 operates above atmospheric boiling point by pressurizing saturated steam—enabling rapid diffusion of moisture into microstructures without condensation-induced thermal shock. It implements the fundamental physics of accelerated moisture ingress via elevated partial pressure of water vapor (per ISO 16750-4, JESD22-A110, and JEDEC Standard No. 22-A118), significantly reducing test duration from weeks to hours while maintaining thermodynamic equivalence to 85 °C/85 % RH baseline conditions.

Key Features

• Programmable dual-parameter control: simultaneous regulation of chamber temperature (105–132 °C), relative humidity (75–100 % RH), and absolute pressure (0.05–0.196 MPa) with independent feedback loops.
• PID-based digital temperature controller with ±0.1 °C setpoint accuracy and real-time deviation monitoring; integrated LED display for concurrent visualization of actual vs. target temperature and pressure values.
• Automated saturation management: dynamic venting of non-saturated vapor during ramp phases ensures consistent steam quality and eliminates superheated pockets that compromise test validity.
• Fail-safe mechanical architecture: door interlock prevents operation unless fully sealed; pressure relief valve activates at 0.21 MPa (±0.01 MPa tolerance); redundant thermal cutoffs interrupt heating if internal sensor readings exceed 135 °C.
• Self-regulating water level system: ultrasonic level detection triggers automatic deionized water replenishment during extended tests—maintaining uninterrupted cycle execution and eliminating manual intervention.
• Ergonomic safety design: ABS polymer door housing with thermal barrier properties; compression-molded silicone gasket providing >10,000-cycle sealing integrity and leak rate <1 × 10⁻⁶ mbar·L/s (helium-tested).

Sample Compatibility & Compliance

The HAST-132 accommodates standard JEDEC trays (MO-118, MO-220), wafer-level packages, bare die on carriers, and assembled PCBAs up to 450 mm × 450 mm × 300 mm (W×D×H). Its chamber geometry supports uniform exposure per IEC 60068-2-66 requirements for spatial temperature/humidity homogeneity. The system complies with critical industry standards including JEDEC JESD22-A110 (Unbiased HAST), JESD22-A118 (Biased HAST), AEC-Q200 stress validation protocols, and ISO/IEC 17025 calibration traceability frameworks. All firmware logic adheres to GLP-aligned audit trail principles: timestamped event logging (start/stop, alarm triggers, parameter deviations), non-volatile memory retention (>10 years), and exportable CSV reports compatible with LIMS integration.

Software & Data Management

Equipped with embedded RS-485 and Ethernet interfaces, the HAST-132 supports remote configuration and real-time telemetry via optional PC-based control software compliant with FDA 21 CFR Part 11 Annex 11 requirements—including electronic signatures, role-based access control, and immutable data archiving. Test profiles are stored in encrypted flash memory with checksum verification; historical run logs include full parameter traces (temperature, pressure, RH, elapsed time) sampled at 1 Hz resolution. Data export conforms to ASTM E2917-21 metadata schema for accelerated testing, enabling direct import into Weibull++ or JMP Reliability platforms for failure distribution modeling.

Applications

• Qualification of flip-chip CSP, WLP, and fan-out packages against popcorning and delamination under high moisture drive conditions.
• Screening of conformal coating integrity on automotive ECUs subjected to cyclic thermal-hygric stress.
• Validation of MEMS cavity seal performance per MIL-STD-883 Method 1013.1.
• Process window definition for mold compound curing parameters using Arrhenius-derived acceleration factors.
• Root cause analysis of corrosion-related opens in Cu/low-k interconnect stacks through controlled chloride ion migration studies.

FAQ

What distinguishes HAST from traditional THB (Temperature-Humidity-Bias) testing?
HAST replaces ambient-pressure 85 °C/85 % RH conditioning with pressurized saturated steam at elevated temperatures (e.g., 130 °C/85 % RH @ 0.15 MPa), achieving ~10× acceleration without altering failure physics—validated by correlation studies against field return data.
Can the HAST-132 perform unbiased and biased testing simultaneously?
No—bias application requires external power supplies connected via feedthrough terminals; the chamber itself provides only environmental control. Biased operation must comply with JEDEC JESD22-A118 electrical safety limits and is configured externally.
Is calibration certification included with shipment?
Yes—NIST-traceable as-found/as-left calibration certificates for temperature, pressure, and humidity sensors are provided, covering initial verification per ISO/IEC 17025 Clause 6.5.2.
What maintenance intervals are recommended for long-term reliability?
Quarterly inspection of door gasket compression set, semiannual verification of safety valve setpoint, and annual recalibration of all transducers—documented in the included Preventive Maintenance Log template.
Does the system support custom test profiles beyond JEDEC standards?
Yes—up to 99 programmable multi-step profiles with variable ramp rates, dwell times, and conditional branching based on real-time sensor thresholds.
