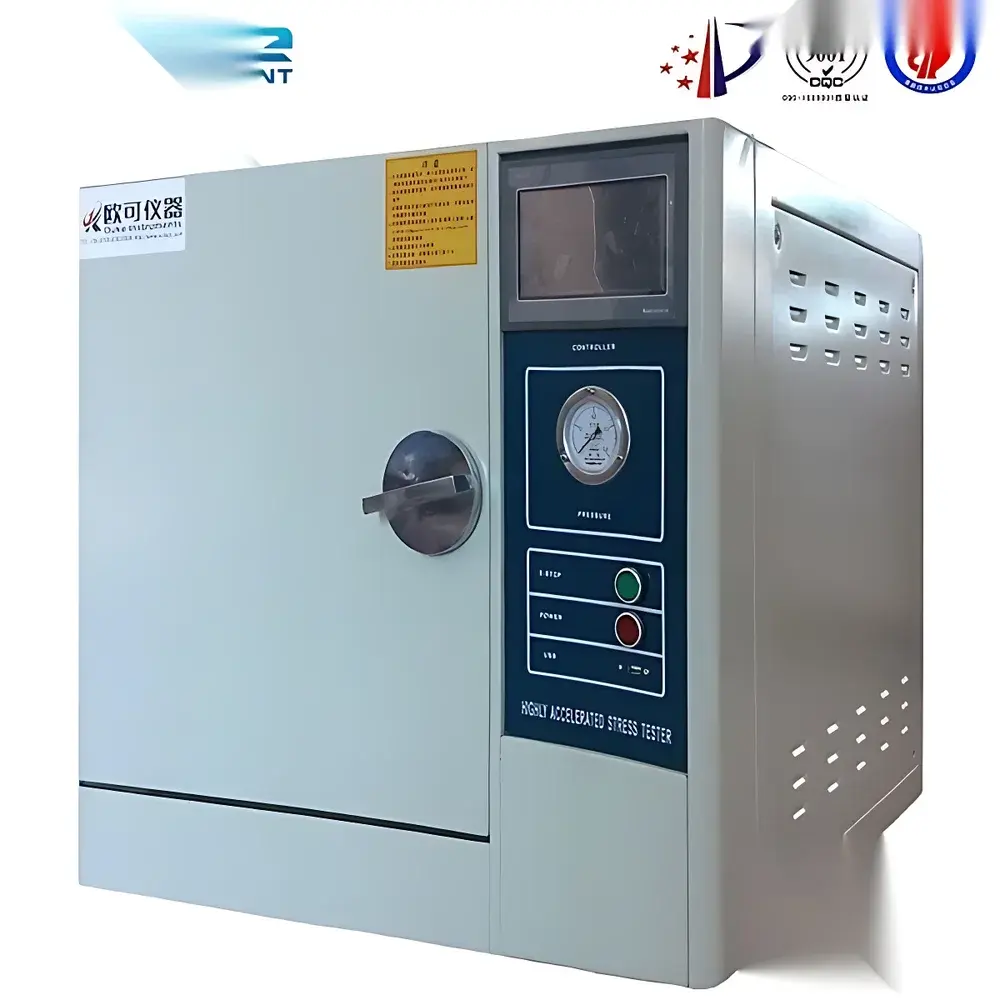

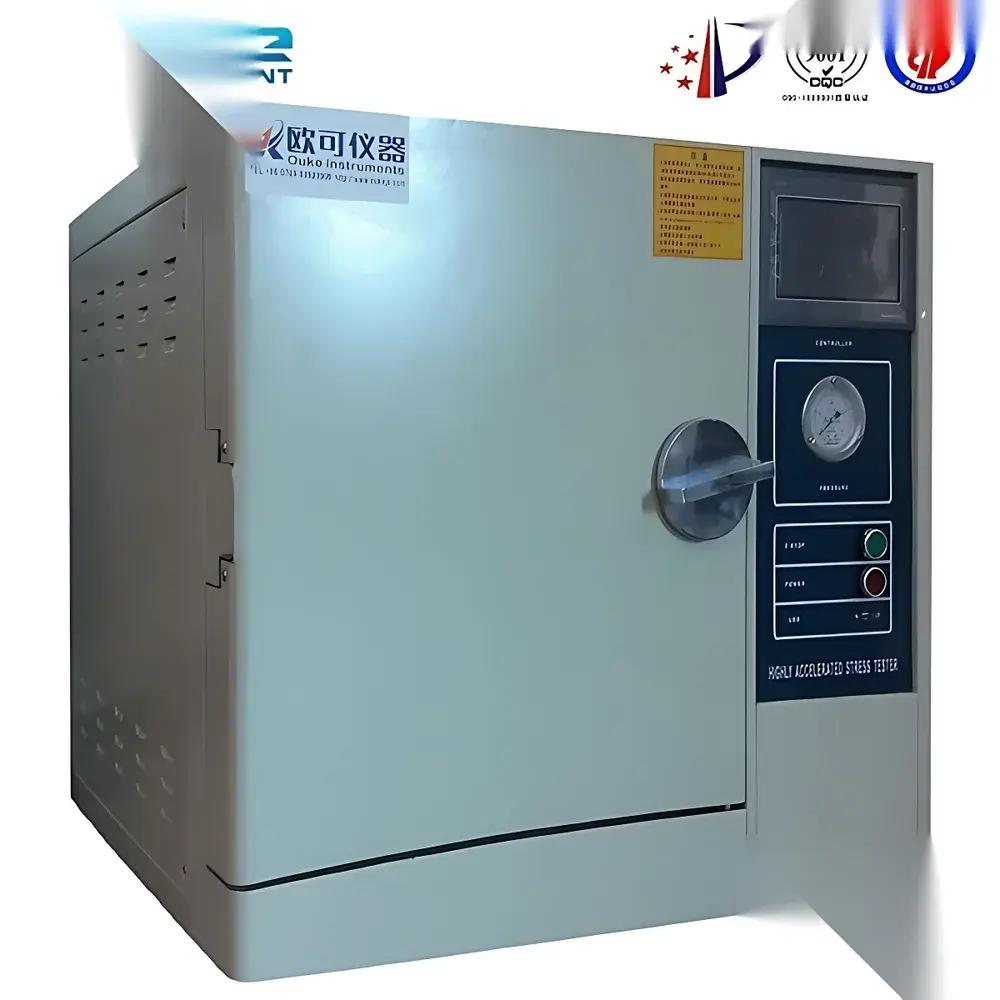

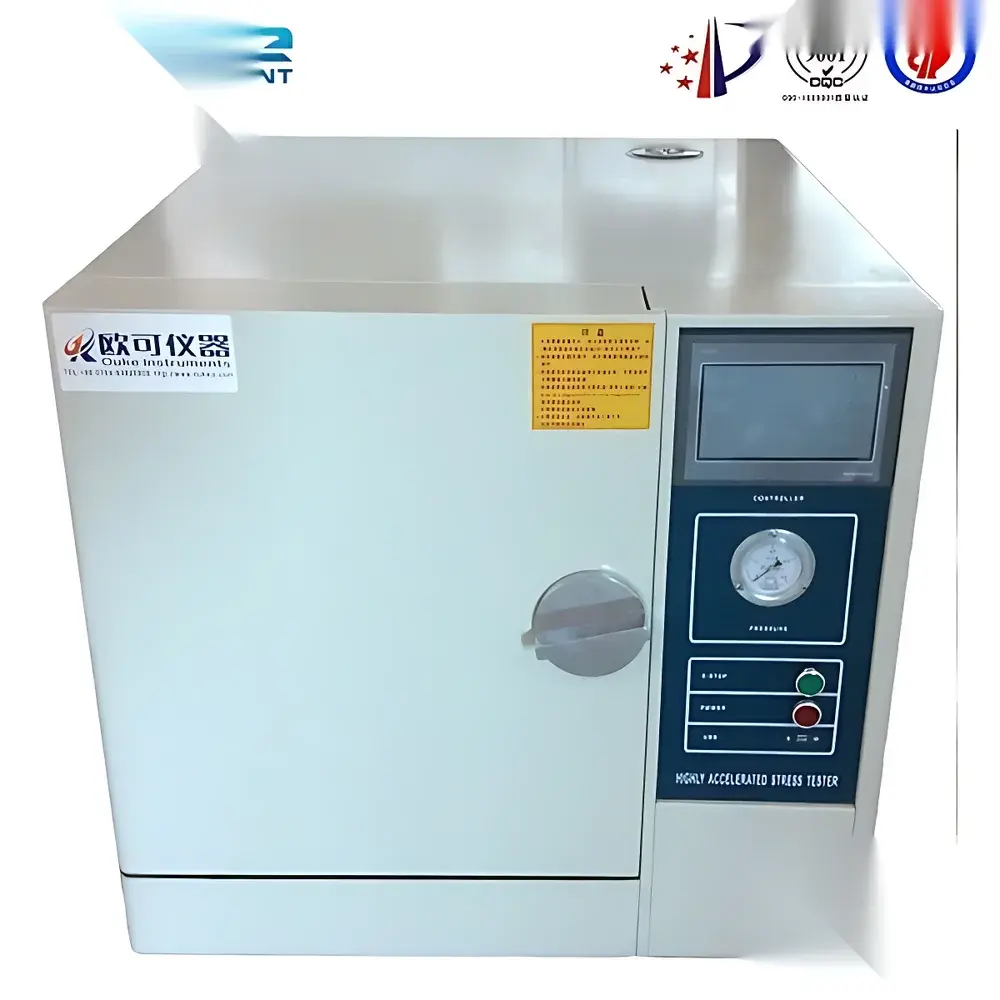

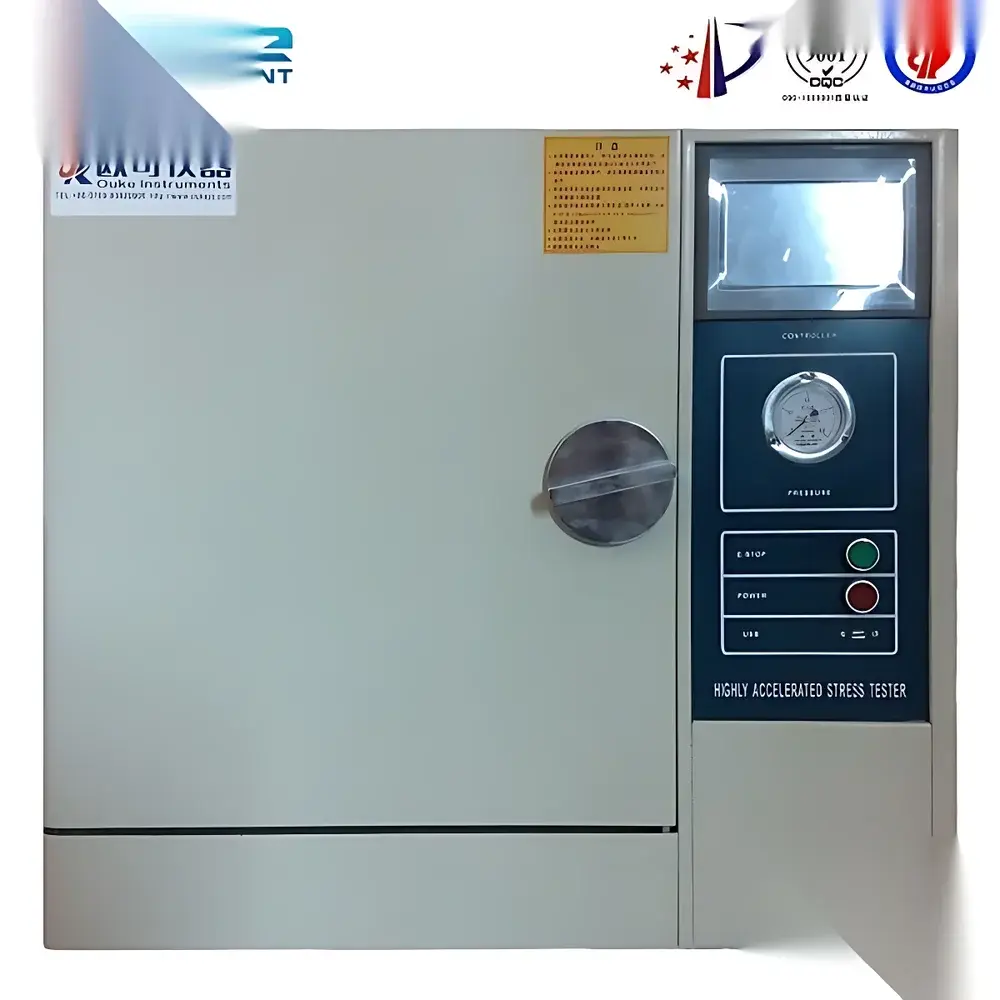

Other Brands HAST Environmental Stress Test Chamber

Overview

The Other Brands HAST (Highly Accelerated Stress Test) Environmental Stress Test Chamber is an engineered solution for reliability validation of electronic interconnects—particularly crimped, soldered, or welded terminals—under extreme combined thermal, humidity, and pressure stress conditions. Based on the physics of moisture diffusion and electrochemical migration under elevated temperature and pressure, the HAST chamber accelerates failure mechanisms such as corrosion, intermetallic growth, insulation resistance degradation, and delamination far beyond standard THB (Temperature-Humidity-Bias) testing. Unlike conventional damp heat testing, HAST operates in a saturated steam environment at absolute pressures exceeding ambient (1.0–3.0 kg/cm²), significantly increasing water vapor partial pressure and driving rapid moisture ingress into encapsulants, conformal coatings, and micro-gaps at terminal interfaces. This enables qualification-level reliability assessment in days rather than weeks or months—critical for high-volume automotive, aerospace, and industrial connector supply chains requiring IATF 16949-aligned process validation.

Key Features

• Two configurable cabinet architectures: compact benchtop models for R&D labs and high-capacity floor-standing units for production QA environments—each optimized for distinct thermal-hygrometric performance envelopes.
• Precision-engineered air-steam circulation system utilizing stainless steel long-shaft motors and high-efficiency aluminum alloy multi-wing centrifugal impellers, ensuring uniform distribution of saturated vapor without mechanical turbulence-induced condensation artifacts.
• Robust pressure containment design rated to 4.0 kg/cm² (equivalent to ~392 kPa absolute), with redundant mechanical pressure relief valves and real-time digital pressure monitoring compliant with ISO 16750-4 and JEDEC JESD22-A110E safety requirements.
• Stable thermal control architecture achieving ±0.5°C temperature stability and ±1.5°C spatial uniformity across the working volume—validated per ASTM E742 and IEC 60068-3-5 protocols.
• Humidity delivery system maintains 75–100% RH saturation within ±1.5% RH temporal stability and ±3.0% RH spatial uniformity, verified using traceable NIST-calibrated hygrometers positioned at multiple chamber locations.
• Programmable test sequencing with up to 999-hour duration support, adjustable pressurization ramp profiles, and non-linear heating algorithms that emulate realistic thermal transient behavior during chamber soak phases.

Sample Compatibility & Compliance

The chamber accommodates standard terminal blocks, PCB-mounted connectors, wire harness assemblies, and discrete crimped contacts mounted on FR-4 or polyimide carriers. Sample trays are designed for unrestricted steam permeation and minimal shadowing effects. All operational parameters align with industry-standard HAST test methods including JEDEC JESD22-A110E (for semiconductor packages), AEC-Q200 Annex C (for passive components), and IPC-9701A (for interconnect reliability). The system supports GLP-compliant test execution when integrated with validated data acquisition hardware and audit-trail-enabled software—meeting foundational requirements for FDA 21 CFR Part 11 and ISO/IEC 17025 documentation integrity.

Software & Data Management

Equipped with embedded programmable logic controller (PLC) interface supporting Modbus TCP and RS-485 connectivity, the chamber integrates seamlessly into centralized MES or LIMS platforms. Optional PC-based control software provides full test protocol definition, real-time parameter logging (temperature, humidity, pressure, elapsed time), alarm event timestamping, and CSV-exportable raw data files. All recorded values include sensor calibration metadata and uncertainty budgets traceable to national standards. Audit trail functionality records operator login/logout events, parameter modifications, and emergency stop activations—enabling full compliance with GMP Annex 11 and ISO 9001:2015 clause 7.5.3 requirements for documented information control.

Applications

• Accelerated life testing of automotive-grade blade, ring, and spade terminals under ISO 16750-4 Clause 4.3 (humidity resistance) and GMW3172 Section 5.4.2.2 (HAST validation).
• Qualification of crimp joint integrity in high-voltage EV battery interconnect systems per UL 2251 and SAE J1742.
• Reliability screening of aerospace-grade MIL-DTL-38999 and AS39029 connector terminations prior to flight hardware release.
• Process capability studies for automated crimping equipment—correlating tooling wear, insertion force, and post-HAST pull strength retention.
• Root cause analysis of field failures linked to humidity-induced creep corrosion or tin whisker initiation at terminal-to-PCB interfaces.

FAQ

What statistical confidence level does HAST testing provide for failure rate estimation?
Statistical validity of HAST results follows exponential distribution assumptions under constant failure rate (CFR) conditions. As referenced in JEDEC JEP122G, recommended significance levels are set at α = 0.10—meaning there is a 10% probability of rejecting a truly CFR process. For low-failure-count scenarios (≤3 observed failures), the CFR assumption remains acceptable per industry practice when resource constraints preclude extended testing.

Can this chamber perform both unsaturated and saturated HAST protocols?
This model is specifically engineered for saturated steam HAST (100% RH, elevated pressure), per JESD22-A110E. It does not support unsaturated variants (e.g., 85°C/85% RH + bias) which require separate environmental chamber configurations.

Is third-party calibration certification available for temperature, humidity, and pressure sensors?
Yes—NIST-traceable calibration certificates (ISO/IEC 17025 accredited) can be provided for all primary measurement channels upon request, including uncertainty budgets and as-found/as-left data.
