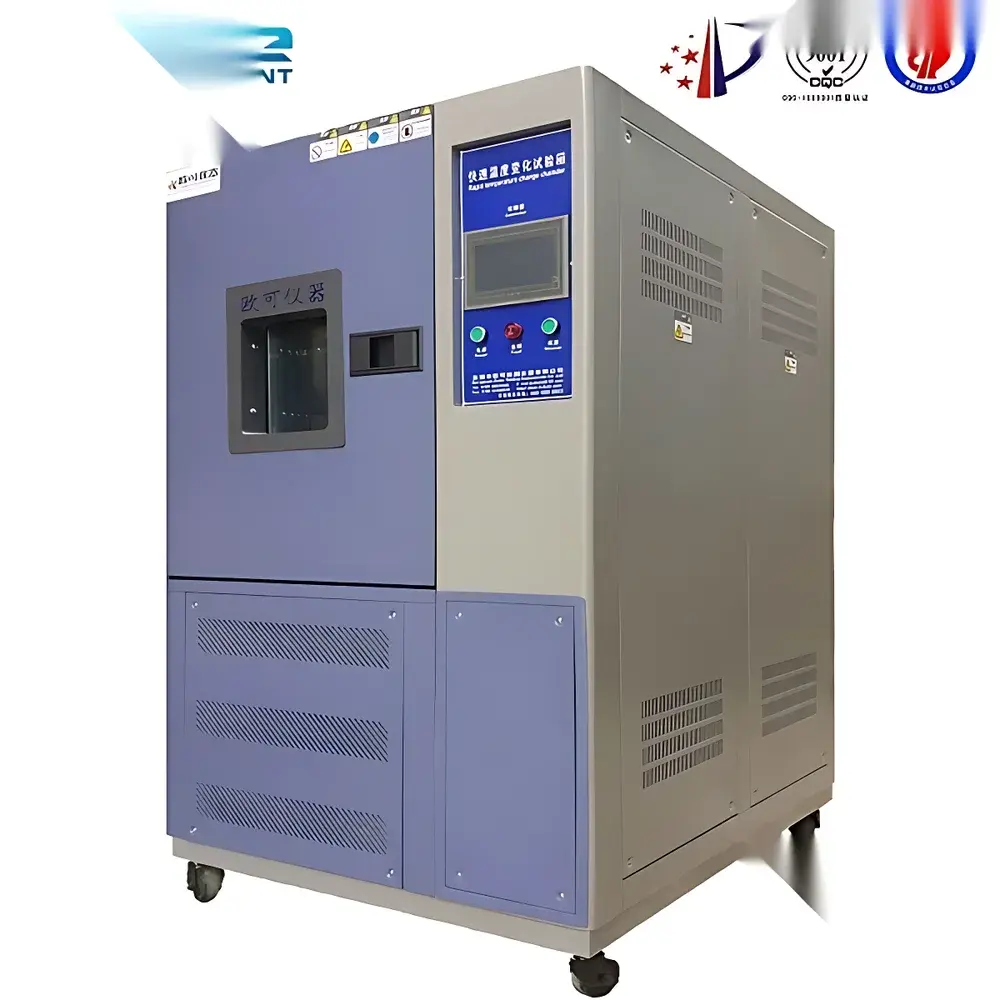

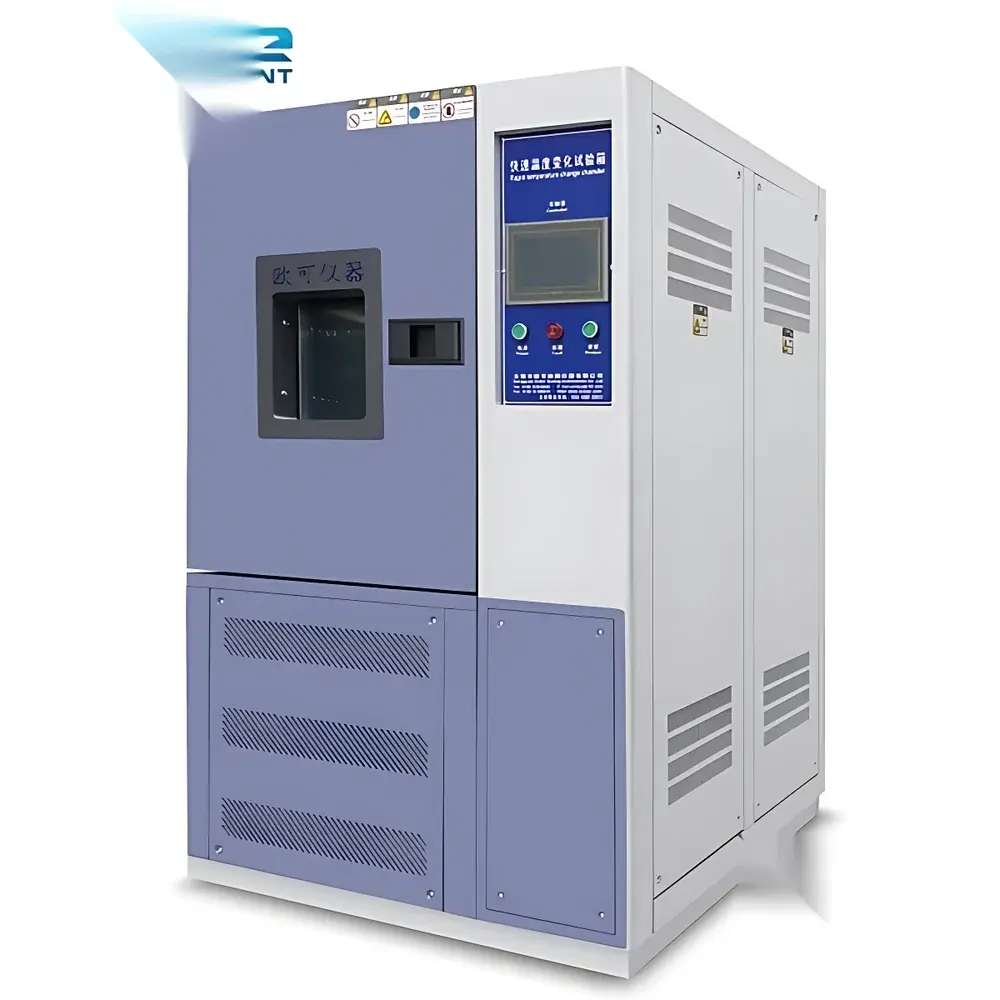

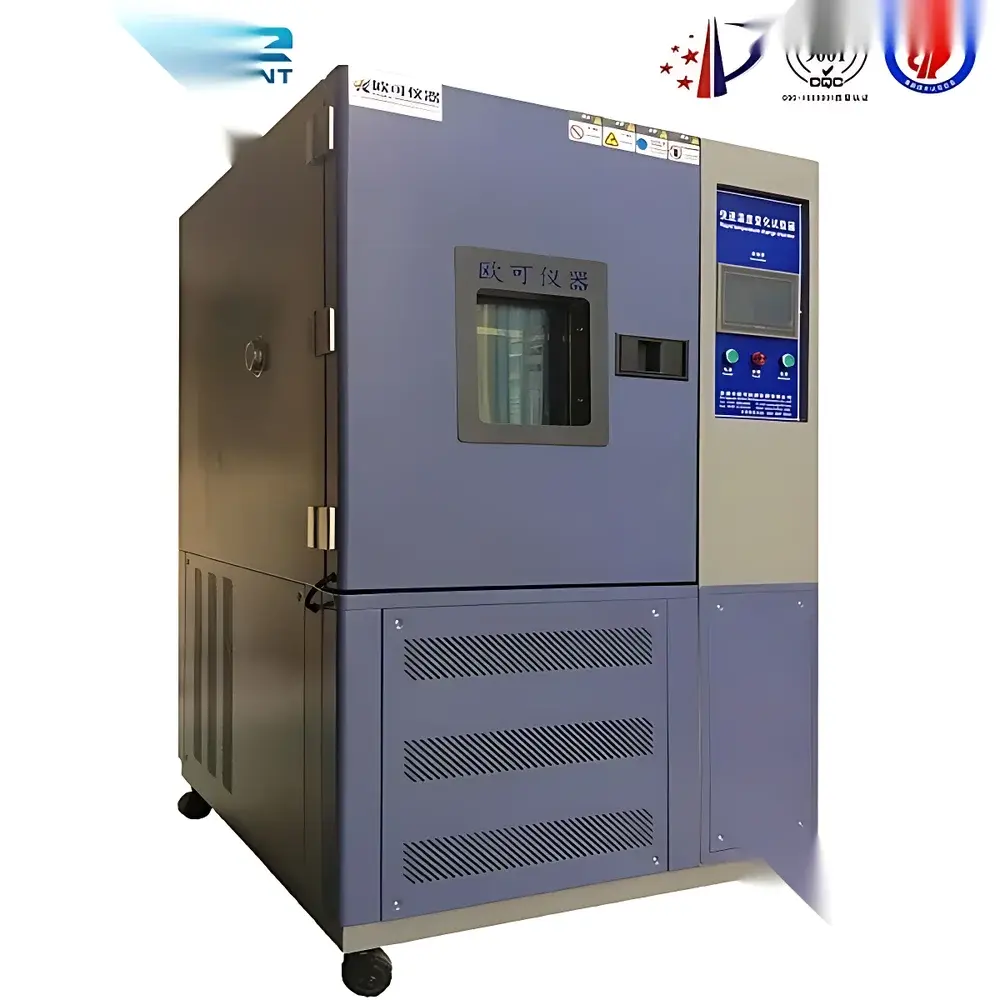

Other Brands KS-TH Series Rapid Temperature & Humidity Cycling Test Chamber

Overview

The Other Brands KS-TH Series Rapid Temperature & Humidity Cycling Test Chamber is an environmental simulation system engineered for accelerated stress testing of aerospace components, electronic instrumentation, electrical materials, and semiconductor devices under controlled thermal and hygrothermal conditions. It operates on the principle of forced-air convection combined with precision PID-controlled heating and surface-evaporation humidification to replicate dynamic climatic transitions—particularly rapid temperature ramping and sustained high-humidity exposure. Designed to meet the functional requirements of MIL-STD-810H Method 503.5 (Temperature Shock), IEC 60068-2-14 (Change of Temperature), and JEDEC JESD22-A104 (Temperature Cycling), this chamber supports reliability qualification, design validation, and failure mode analysis across R&D and production quality assurance workflows. Its architecture prioritizes thermal stability, humidity reproducibility, and long-term operational consistency in laboratory and pilot-line environments.

Key Features

• Microprocessor-based integrated controller with real-time digital display of temperature (°C) and relative humidity (%RH), enabling simultaneous dual-parameter setpoint programming and profile execution.
• High-fidelity sensing via calibrated PT100 platinum resistance thermometers and capacitive humidity transducers, ensuring traceable measurement integrity per ISO/IEC 17025 guidelines.
• Independent heating circuit using nickel-chromium alloy heating elements—electrically isolated from the humidification and air circulation systems—to minimize cross-interference and improve thermal response linearity.
• Externally mounted stainless steel boiler-type humidifier with shallow-surface evaporation design, reducing mineral deposit accumulation and enhancing RH stability at elevated saturation levels (≥80% RH).
• Low-noise, high-temperature-rated centrifugal blower with multi-vane impeller ensures uniform airflow distribution and minimizes thermal gradients across the working volume, meeting ≤±2°C uniformity specification.
• Robust chamber construction with double-wall insulation, silicone-sealed observation window, and corrosion-resistant interior finish (electro-polished stainless steel or optional epoxy-coated steel) for extended service life in aggressive test regimes.

Sample Compatibility & Compliance

The KS-TH series accommodates a broad range of sample geometries—from PCB assemblies and IC packages to avionics enclosures and passive electronic components—within standardized internal volumes ranging from 80 L to 1000 L. All models comply with electromagnetic compatibility (EMC) requirements per EN 61326-1 and safety standards per IEC 61010-1. While not certified to UL or CSA as original equipment, the chambers are routinely deployed in GLP-compliant laboratories where user-defined validation protocols (IQ/OQ/PQ) are executed in accordance with ASTM E2877 (Standard Guide for Thermal Validation of Environmental Chambers) and FDA 21 CFR Part 11–aligned data governance frameworks. Humidity control performance (±0.1% RH setpoint accuracy) supports testing aligned with IPC-9701A (Performance Requirements for Lead-Free Solder Attachments) and IPC-J-STD-020 (Moisture Sensitivity Levels).

Software & Data Management

The embedded controller supports up to 100 programmable test profiles, each with up to 99 segments—including ramp, soak, and cycling modes—with adjustable rate limits and hold conditions. Optional RS485/Modbus RTU or Ethernet TCP/IP interface enables integration into centralized lab management systems (LIMS) or SCADA platforms. When paired with validated third-party software (e.g., WinTest Pro or TestCommander), the chamber delivers full audit trail functionality—including operator ID, timestamped parameter logs, alarm history, and electronic signature support—meeting ALCOA+ principles for data integrity in regulated industries. Raw sensor output is recorded at ≥1 Hz sampling frequency and exportable in CSV or Excel-compatible formats for post-test statistical analysis (e.g., Cpk, Weibull, Arrhenius modeling).

Applications

• Thermal shock screening of solder joints and wire bonds in automotive ECUs and 5G RF modules.
• Moisture-induced failure evaluation of conformal-coated printed circuit boards per IPC-CC-830B.
• Qualification testing of optical sensors and MEMS accelerometers under combined temperature/humidity stress.
• Accelerated aging studies of polymer encapsulants and dielectric films used in power electronics.
• Environmental stress screening (ESS) of flight-critical avionics per DO-160 Section 4 (Operating Temperature) and Section 5 (Humidity).
• Pre-conditioning of lithium-ion battery cells prior to electrochemical performance characterization.

FAQ

Does this chamber support sub-zero temperature operation?

No. The specified operating range is RT+10°C to 100°C; cryogenic capability is not included in the KS-TH series configuration.

Is humidity control available below 80% RH?

The system is optimized for high-humidity regimes (80–98% RH); stable dehumidification is not supported without auxiliary desiccant or refrigeration-based dry air purge integration.

Can test profiles be exported and shared between multiple units?

Yes—via USB memory stick or serial/Ethernet communication—enabling standardized test method replication across distributed QA labs.

What calibration documentation is supplied with delivery?

A factory calibration report traceable to NIST standards is provided, covering temperature and humidity sensor verification at three points within the operational range.

Is remote monitoring possible without additional hardware?

Basic status monitoring (current setpoints, actual values, alarm flags) is accessible via built-in web server; full remote control requires optional communication module and licensed software license.
