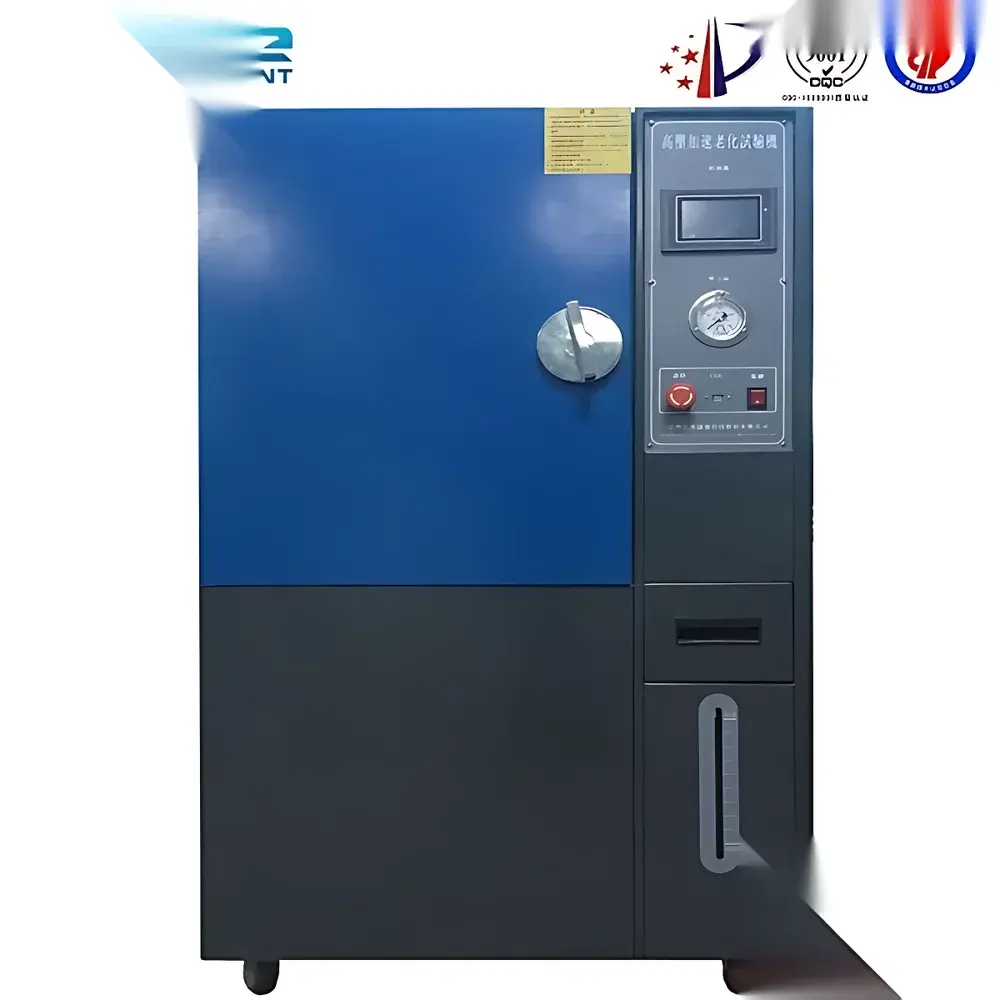

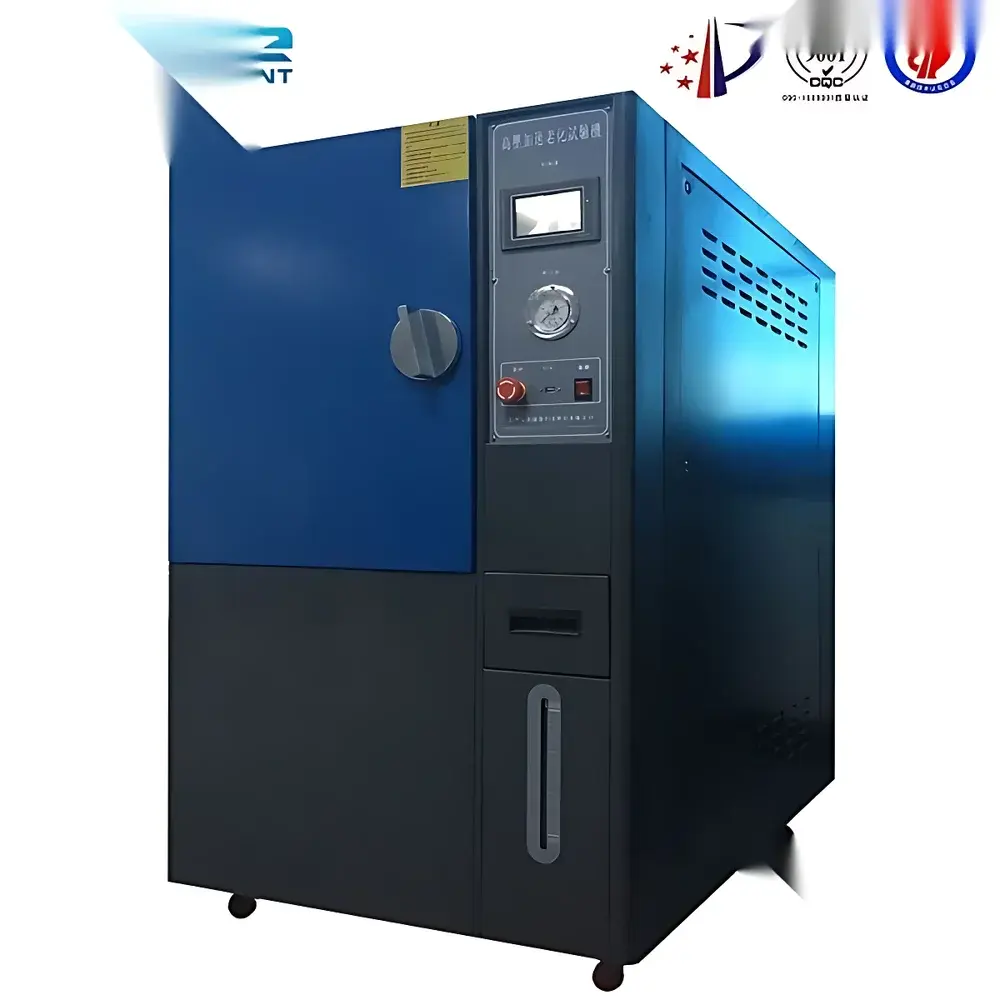

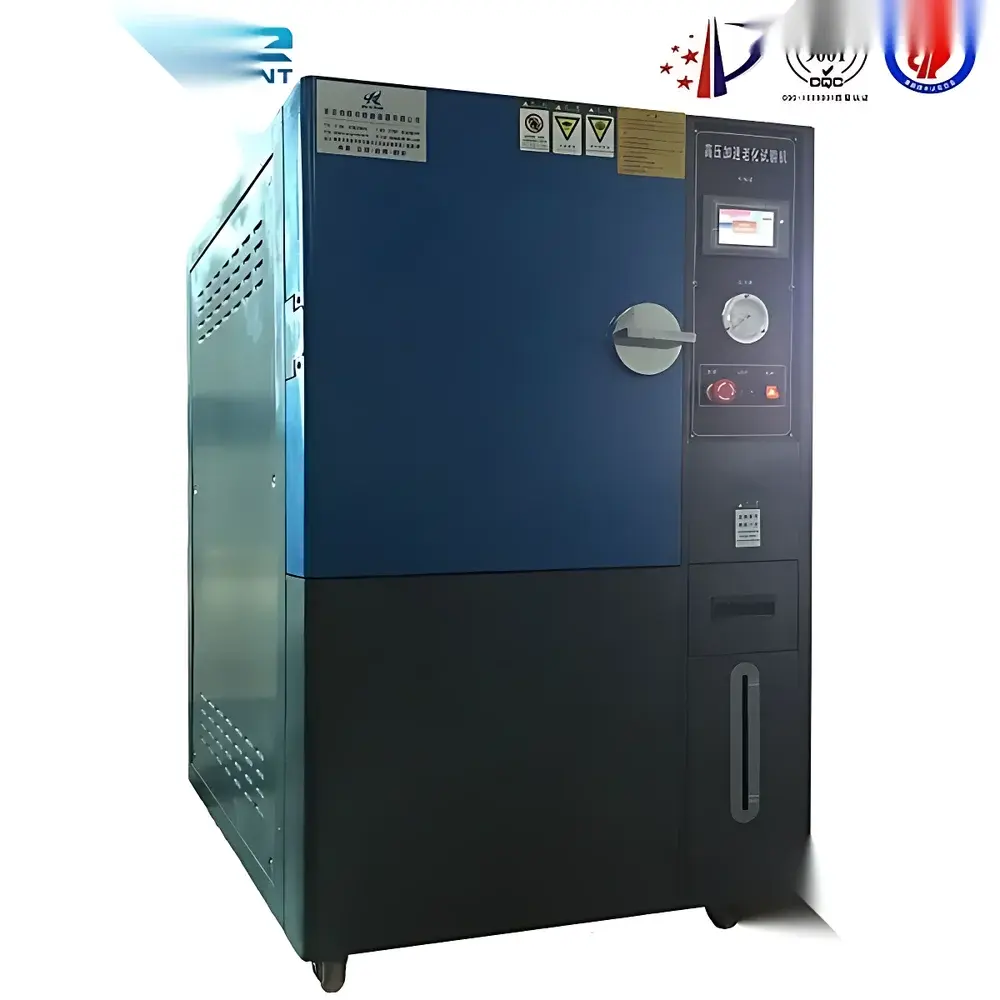

Other Brands PCT Accelerated Aging Test Chamber
| Key | Temperature Range: 105–132 °C (control point) |
|---|---|
| Temp. Uniformity | ±2.0 °C |
| Temp. Stability | ±0.5 °C |
| Humidity Control Point | 100 % RH |
| Humidity Stability | ±2.5 % RH |
| Humidity Uniformity | ±5.0 % RH |
| Pressure Range | 0.05–0.196 MPa (0.5–2 kgf/cm²) |
| Ramp Time (Ambient to 132 °C) | ≤35 min |
| Pressure Ramp Time (Ambient to 0.196 MPa) | ≤40 min |
| Auto-refill Function | Yes |
| Safety Interlocks | Door latch, overpressure relief, dual overtemperature cutoff, steam quality management via condensate purge |
Overview
The Other Brands PCT Accelerated Aging Test Chamber is an engineered environmental stress test system designed for highly controlled pressure-cooker testing of electronic components, packaging materials, and polymer-based devices under saturated steam conditions. It operates on the principle of accelerated moisture ingress simulation—combining elevated temperature, full saturation humidity (100 % RH), and regulated overpressure (up to 0.196 MPa) to replicate long-term field exposure in compressed timeframes. This chamber complies with standardized PCT protocols referenced in JEDEC JESD22-A102F, IPC-9701A, and MIL-STD-202 Method 108, enabling reliable evaluation of moisture sensitivity levels (MSL), solder joint integrity, delamination resistance, and hermetic seal performance. Its robust stainless-steel interior, polished electropolished surface finish, and precision-engineered steam generation architecture ensure high reproducibility across repeated test cycles—critical for qualification labs operating under GLP or internal QA/QC audit frameworks.
Key Features
- Integrated PID temperature control with ±0.1 °C setpoint accuracy and real-time digital LED display for precise thermal regulation within the 105–132 °C range
- Dual-stage overtemperature protection: primary electronic cutoff plus independent mechanical thermostat for fail-safe thermal shutdown
- Automatic water replenishment system maintains uninterrupted operation during extended test cycles; detects low water level and initiates refill without user intervention
- Interlocked door mechanism prevents chamber pressurization unless fully sealed—compliant with ISO 13857 safety clearance requirements
- Pressure-activated safety valve automatically vents excess pressure when exceeding maximum working limit (0.196 MPa)
- Condensate purge system continuously removes non-saturated vapor during operation to sustain optimal steam quality and minimize condensation variability
- Heat-resistant ABS door shield provides operator protection against surface temperatures exceeding 80 °C during active cycles
- One-piece molded silicone gasket ensures long-term sealing integrity, low compression set, and resistance to hydrolytic degradation under repeated thermal cycling
Sample Compatibility & Compliance
This chamber accommodates standard JEDEC trays (312 mm × 235 mm × 50 mm max), component-level PCB assemblies, plastic-encapsulated microcircuits (PEMs), and medical device packaging (e.g., Tyvek-laminated pouches). Internal dimensions support up to 30 L usable volume, allowing multi-sample parallel testing while maintaining uniform exposure conditions. The unit meets essential electrical safety standards including IEC 61010-1 and is constructed to facilitate traceability in regulated environments: all critical parameters—including temperature, pressure, and elapsed time—are logged digitally with timestamped records suitable for FDA 21 CFR Part 11-compliant data review workflows when paired with validated external software.
Software & Data Management
While the base configuration utilizes embedded LED controllers for local operation, optional RS-485 or Ethernet interfaces enable integration with laboratory information management systems (LIMS) or SCADA platforms. Real-time analog outputs (4–20 mA) are available for external data acquisition units. All controller firmware supports audit-trail-enabled parameter logging—including setpoints, actual readings, alarm events, and cycle completion status—with configurable retention periods. Calibration certificates traceable to NIST standards can be supplied upon request, supporting ISO/IEC 17025-accredited calibration intervals every 12 months.
Applications
- Moisture sensitivity level (MSL) classification per JEDEC J-STD-020
- Qualification testing of conformal coatings and encapsulants for automotive electronics
- Reliability assessment of MEMS sensors exposed to humid tropical environments
- Accelerated aging of biodegradable medical packaging under ASTM F1980 conditions
- Failure analysis root cause determination for popcorning, wire bond lift-off, or mold compound cracking
- Process validation of reflow soldering profiles prior to high-volume manufacturing ramp
FAQ
What standards does this PCT chamber support?
It is configured to execute test methods aligned with JEDEC JESD22-A102F, IPC-9701A, MIL-STD-202 Method 108, and ASTM F1980—subject to user-defined profile programming and calibration verification.
Is remote monitoring possible?
Yes—via optional serial or Ethernet connectivity, enabling integration with centralized lab monitoring infrastructure and automated report generation.
How is steam quality maintained during prolonged tests?
An integrated condensate purge line actively drains sub-saturated vapor from the chamber cavity, ensuring consistent steam saturation and minimizing localized condensation gradients.
Does the chamber support automated test sequencing?
The controller supports programmable multi-step profiles (e.g., soak, ramp, hold), though advanced sequence logic requires external PLC or LIMS coordination.
What maintenance is required for long-term reliability?
Monthly inspection of the silicone gasket integrity, quarterly descaling of the heating element and water reservoir, and annual recalibration of temperature and pressure transducers are recommended per manufacturer guidelines.
