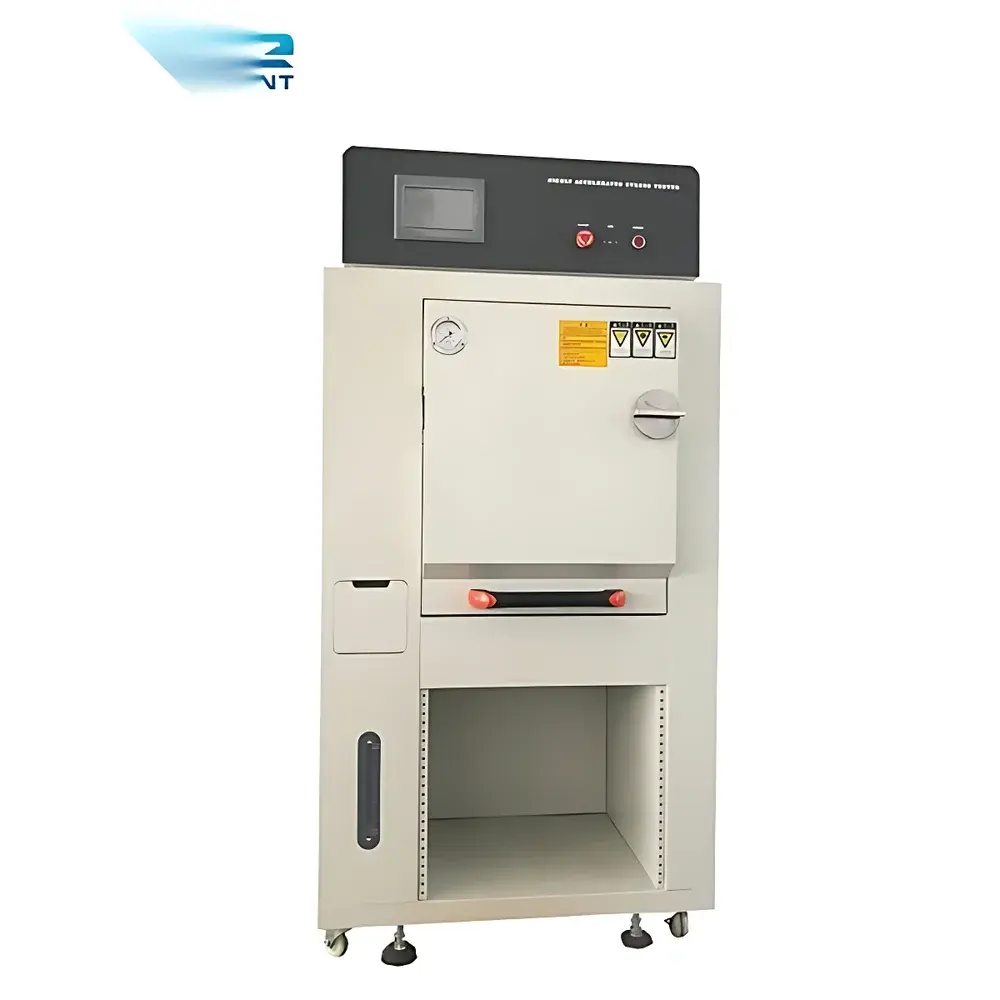

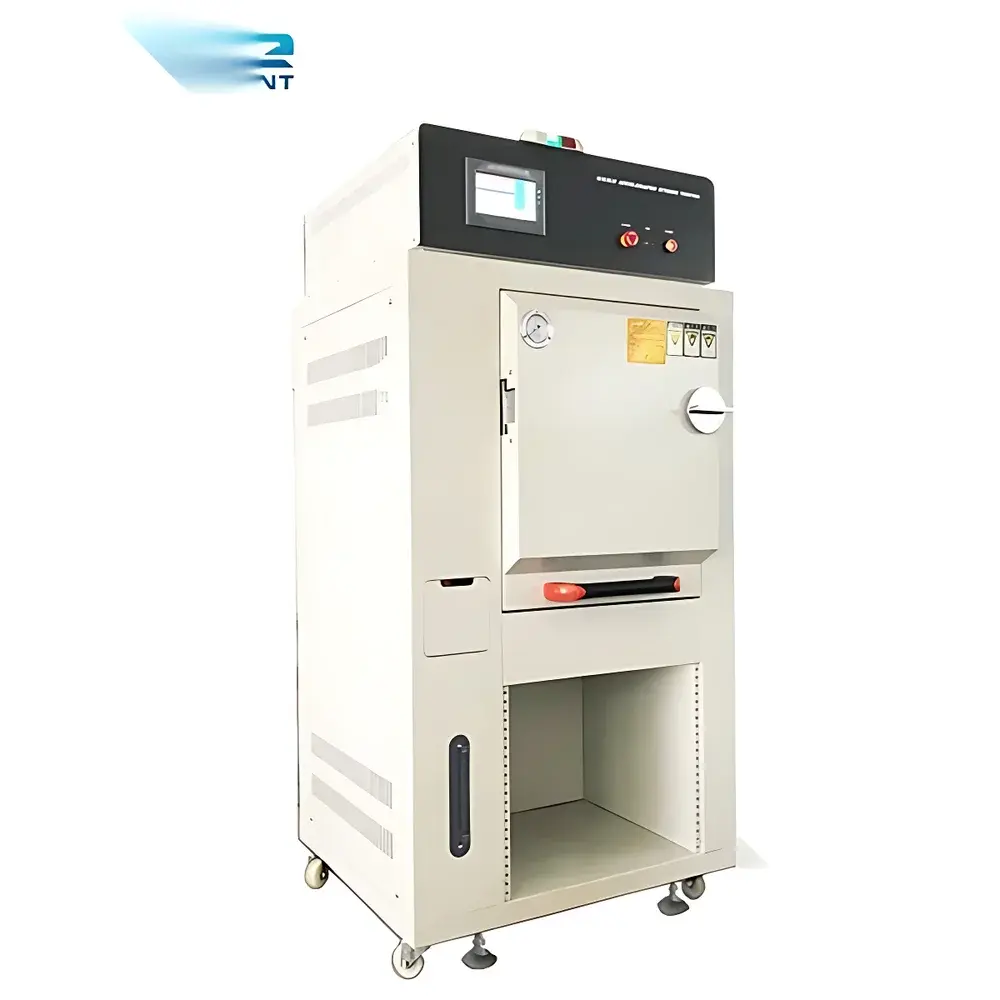

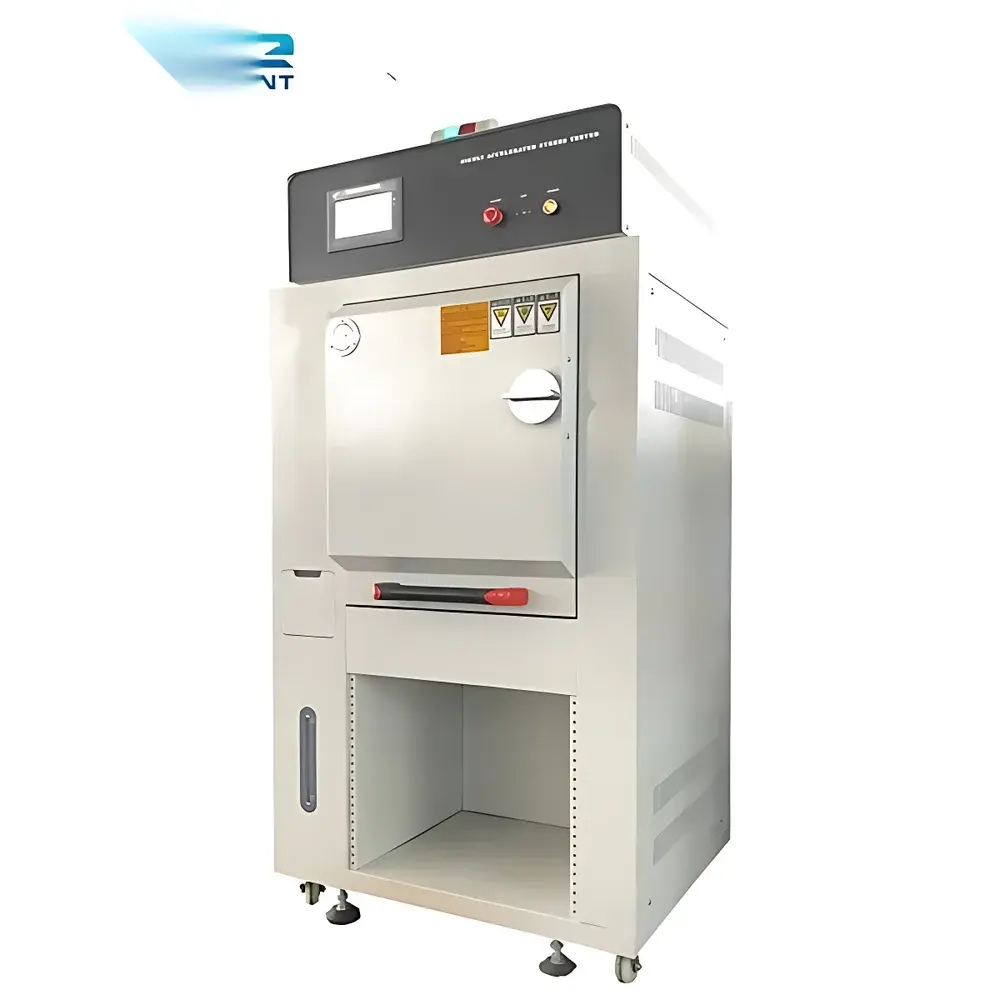

Other Brands PCT Aging Test Chamber for Thin-Film Materials

Overview

The Other Brands PCT Aging Test Chamber for Thin-Film Materials is a precision-engineered accelerated aging system designed specifically for evaluating the long-term reliability and moisture-induced degradation behavior of polymer-based thin films, encapsulants, adhesives, and flexible electronic substrates under pressurized saturated steam conditions. It operates on the principle of Pressure Cooker Test (PCT), an internationally recognized stress methodology defined in JEDEC JESD22-A102, IPC-TM-650 2.6.25, and IEC 60068-2-66. By simultaneously elevating temperature, relative humidity (100% RH), and partial pressure of water vapor—while maintaining full saturation—the chamber accelerates hydrolytic degradation mechanisms such as delamination, blistering, interfacial corrosion, and dielectric breakdown. Unlike conventional humidity chambers, this system achieves true thermodynamic saturation at elevated pressures (up to 3.2 kgf/cm²), enabling rapid diffusion of water molecules into micropores and interfacial layers—critical for qualification testing of OLED barriers, PV backsheet laminates, and wafer-level packaging.

Key Features

• Programmable LCD controller with high-contrast backlight and wide viewing angle, supporting both fixed-condition and multi-step ramp/soak profiles.
• Up to 10 independent test programs, each configurable with up to 100 time–temperature–pressure segments; segment repetition and cross-program chaining supported (max 999 total cycles).
• Power-fail recovery function with non-volatile memory retains active program state and resumes from exact interruption point upon restoration.
• Linear ramp control for temperature and pressure transitions, minimizing thermal shock and ensuring reproducible stress profiles across validation batches.
• Integrated self-calibration routine for temperature and pressure reference points, reducing drift-related uncertainty over extended operational life.
• Robust mechanical architecture: mirror-finished SUS#304 interior chamber, full stainless steel outer casing, and high-density fire-retardant polyurethane insulation (thermal conductivity ≤0.022 W/m·K).
• Dedicated anti-sweat system using K-type thermocouple heat tracing combined with embedded film heaters—prevents condensation on observation windows and internal fixtures during cooldown phases.
• Standard 50 mm access port (left-side mounted) with sealed plug for external sensor feedthrough, power supply integration, or real-time data logging via external DAQ systems.

Sample Compatibility & Compliance

This chamber accommodates standard thin-film coupons (e.g., 100 × 100 mm), wafer fragments (≤8″ diameter), and multilayer flexible PCBs without requiring custom fixtures. Its pressure-rated inner tank (designed to 4.0 kgf/cm²) ensures safe operation well beyond typical PCT protocols (JEDEC limits: 2.0–3.0 kgf/cm²). The system meets structural and safety requirements outlined in ISO 17025-accredited laboratory environments and supports audit-ready documentation for GLP/GMP-regulated materials qualification. While not pre-certified to UL/CE, its electrical design complies with IEC 61000-6-3 (EMC) and IEC 61000-6-4 (immunity) standards; final certification responsibility rests with end-user’s local regulatory authority.

Software & Data Management

The embedded controller logs timestamped temperature, pressure, and elapsed time at user-defined intervals (default: 1 min), storing up to 30 days of continuous data internally. Export is supported via USB flash drive in CSV format—compatible with MATLAB, JMP, and Minitab for statistical process control (SPC) analysis. Optional RS-485 Modbus RTU interface enables integration into centralized lab monitoring networks (e.g., LabVantage, Thermo Fisher SampleManager). All logged parameters are traceable to NIST-traceable calibration records maintained by the distributor; annual recalibration services include verification against primary pressure transducers and PT100 reference probes per ISO/IEC 17025 Clause 6.5.

Applications

• Qualification of moisture barrier performance in OLED display encapsulation layers (e.g., ALD Al₂O₃, SiNₓ).
• Accelerated lifetime modeling of photovoltaic module backsheets (TPT, TPE, fluoropolymer laminates) per IEC 61215-2 MQT18.
• Evaluation of adhesive bond integrity in MEMS packaging under humid thermal stress.
• Failure mode analysis of printed electronics subjected to cyclic PCT exposure (e.g., conductive ink delamination, PEDOT:PSS oxidation).
• Supporting ASTM F2627–22 (Standard Practice for Evaluating Moisture Permeation Through Packaging Films) when coupled with gravimetric post-test analysis.

FAQ

What is the maximum allowable sample volume inside the chamber?
The usable internal volume is 42 L (W450 × D450 × H210 mm); maximum load should not exceed 60% free air volume to ensure uniform steam circulation and pressure equilibration.
Does the system support automated pressure ramping according to JEDEC JESD22-A102 Annex A?
Yes—programmable pressure profiles allow precise replication of the 45-minute linear ramp to 1.04 kgf/cm² followed by stabilization, as specified in the standard’s Method A.
Can humidity be reduced below 100% RH in this chamber?
No—this is a saturated steam PCT system only; it does not incorporate dehumidification or dry-air purge capability. For mixed-mode testing (e.g., damp heat), a separate climatic chamber is required.
Is third-party calibration documentation included with shipment?
A factory calibration report (including as-found/as-left data for temperature and pressure sensors) is provided; NIST-traceable certificates require optional add-on service at time of order.
What maintenance intervals are recommended for long-term reliability?
Monthly visual inspection of door gasket integrity and drain valve operation; quarterly verification of pressure relief valve setpoint (3.5 kgf/cm²); annual full sensor recalibration and insulation resistance test per IEC 60204-1.
