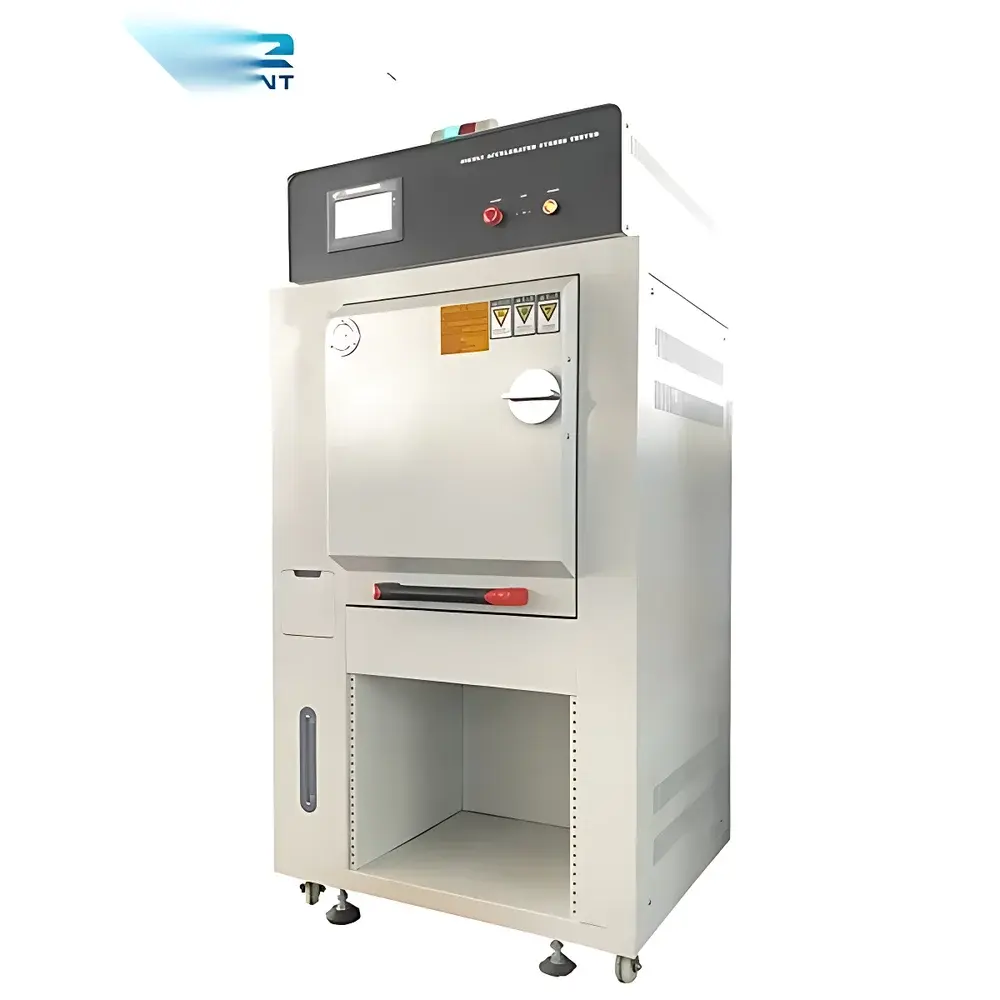

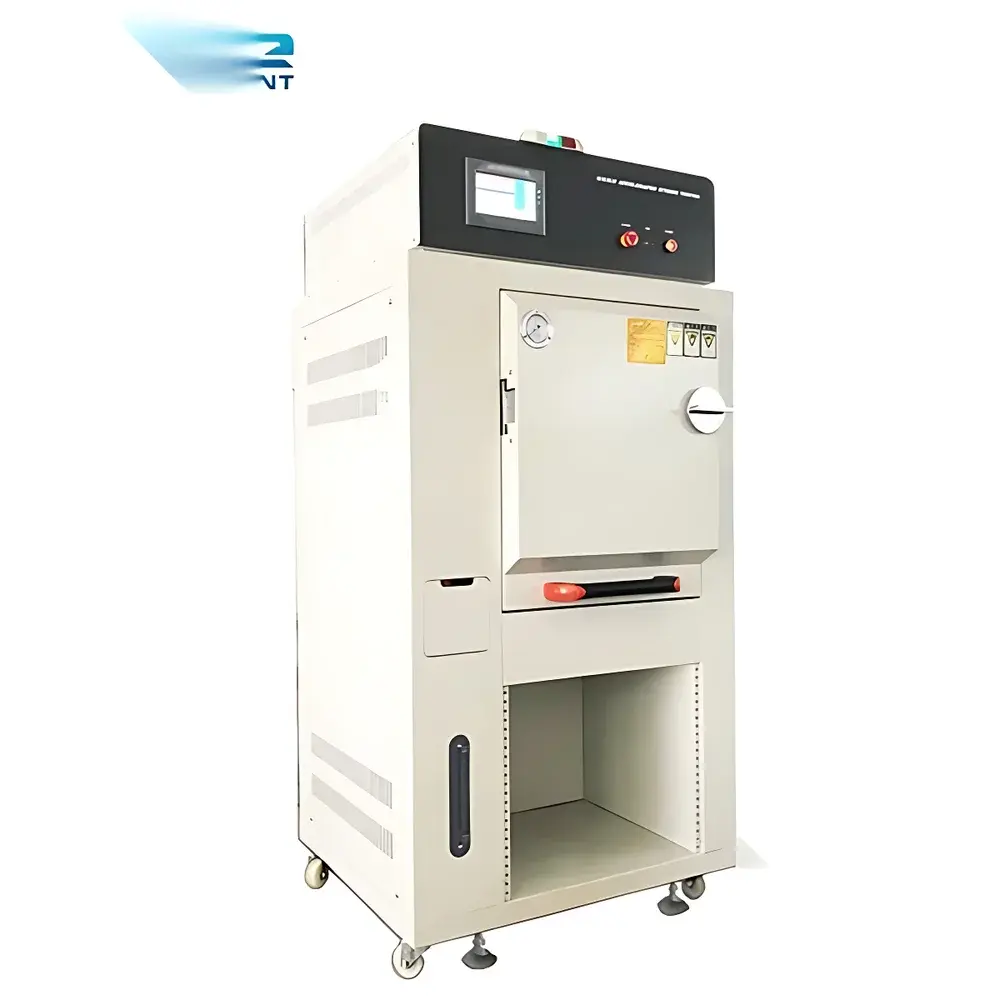

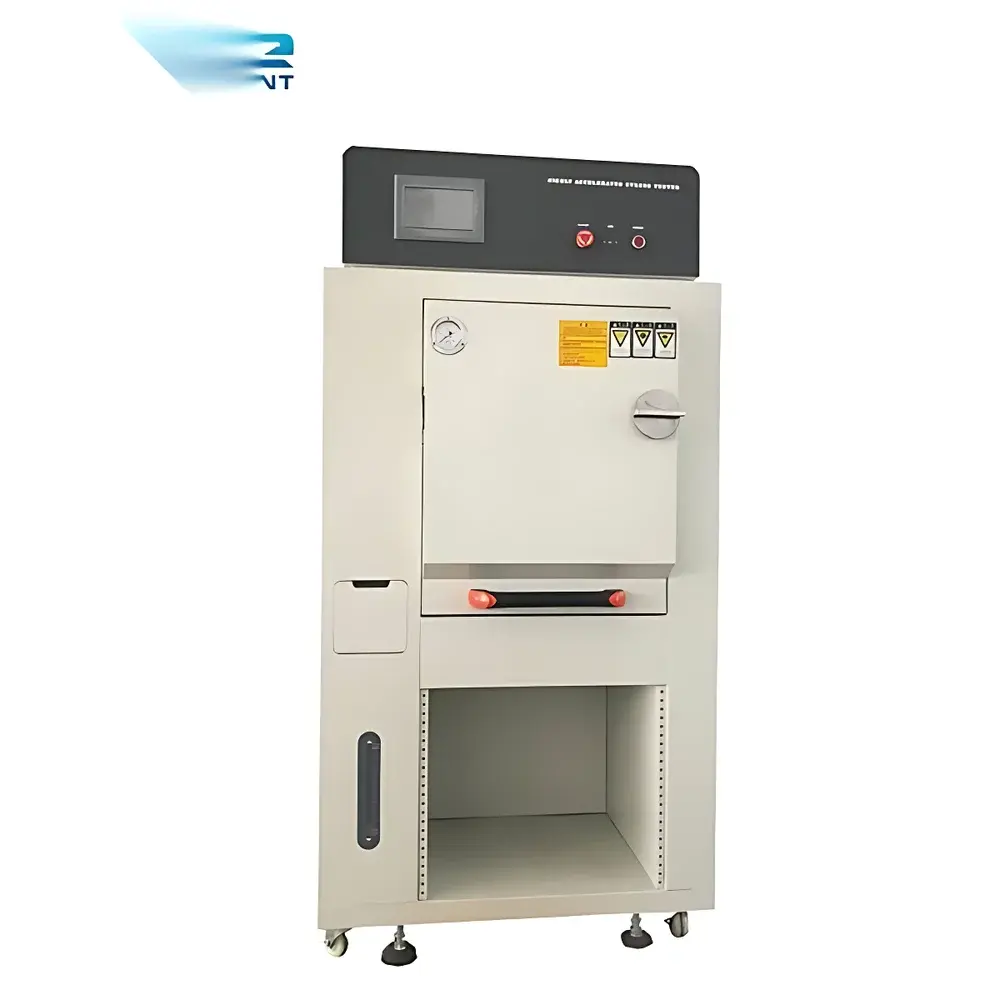

Other Brands PCT High-Pressure Accelerated Aging Test Chamber for Zinc Alloy Electroplating

Overview

The PCT (Pressure Cooker Test) High-Pressure Accelerated Aging Test Chamber is a precision environmental stress chamber engineered for reliability evaluation of zinc alloy electroplated components under accelerated moisture and thermal stress conditions. Operating on the principle of saturated steam pressurization, the chamber subjects test specimens to elevated temperature, 100% relative humidity, and controlled overpressure—mimicking decades of field exposure in days or weeks. Unlike conventional damp heat testing (e.g., IEC 60068-2-78), PCT leverages the thermodynamic properties of saturated water vapor above atmospheric pressure to dramatically accelerate electrochemical corrosion mechanisms—including white rust formation, intergranular attack, and coating delamination—common in zinc-based plating systems. This makes it indispensable for qualifying surface finishes used in automotive fasteners, electronic connectors, and outdoor hardware where long-term corrosion resistance is mission-critical.

Key Features

• Stainless steel 316L inner chamber construction with reinforced dual-seal door gasket system for leak-tight integrity up to 3.5 kg/cm² safety limit
• Independent microprocessor controller with real-time digital display of saturated steam temperature, chamber pressure, and elapsed test time
• PID + SSR (Solid State Relay) temperature regulation with ±0.5°C control accuracy and 0.1°C resolution at the saturation reference point
• Automated pressure ramping profile with programmable rate control (0.0 → 2.0 kg/cm² in ≤40 minutes)
• Uniform thermal distribution verified at ±2.0°C across working volume per ASTM E145 and ISO 17025 calibration protocols
• Integrated safety interlocks including overpressure relief valve, dry-run protection, and emergency depressurization circuit
• Compliance-ready architecture supporting audit trails for GLP/GMP environments (optional data logging with timestamped event records)

Sample Compatibility & Compliance

This chamber accommodates standard test specimens up to 300 mm × 300 mm × 300 mm (W×D×H), including plated sheet coupons, threaded fasteners, stamped parts, and assembled subcomponents. It supports standardized sample mounting via non-reactive stainless steel racks or ceramic fixtures to prevent galvanic interference. The system meets the technical requirements of multiple international reliability standards: CNS Z 2101, ISO 16750-4 (road vehicles), JIS C 60068-2-66, ASTM B117 (modified for high-pressure), DIN EN 60068-2-66, BS EN 60068-2-66, IEC 60068-2-66, NACE TM0177 Method A (for stress corrosion screening), UL 746C, and MIL-STD-202G Method 108. While not certified as a Class I medical device tester, its operational envelope aligns with IPC-TM-650 2.6.25.1 for printed board finish qualification.

Software & Data Management

The embedded controller provides local parameter configuration and real-time monitoring but does not include PC connectivity as standard. Optional RS-485/Modbus RTU interface enables integration into centralized lab management systems (LIMS) or SCADA platforms for remote supervision and automated report generation. When configured with external data loggers compliant with FDA 21 CFR Part 11, the system supports electronic signatures, user access levels, and immutable audit trails—fulfilling documentation requirements for ISO 9001:2015 clause 8.5.2 and IATF 16949 section 8.5.1.2. All calibration certificates (temperature, pressure, time) are traceable to NIST or PTB standards upon request.

Applications

• Accelerated corrosion validation of zinc-nickel, zinc-iron, and trivalent chromium passivated electroplated parts
• Qualification of pre-treatment chemistries (e.g., phosphating, silane coupling agents) prior to plating
• Comparative lifetime modeling between different plating thicknesses (e.g., 5 µm vs. 12 µm Zn) under identical PCT stress profiles
• Failure analysis root cause isolation—distinguishing coating porosity defects from substrate metallurgical inconsistencies
• Supplier qualification audits requiring third-party witnessed PCT runs per OEM-specific protocols (e.g., Ford WERCS, GM GMW14872)
• Supporting PPAP submissions with documented reproducibility data across ≥3 consecutive test cycles

FAQ

What is the maximum allowable test duration for continuous operation?
The chamber supports uninterrupted operation for up to 999 hours; however, for optimal sensor longevity and pressure vessel fatigue management, we recommend limiting individual cycles to ≤168 hours unless validated per ASME BPVC Section VIII Division 1.

Does the system include pressure calibration certification?
Yes—each unit ships with a factory-issued pressure transducer calibration certificate (traceable to national metrology institutes), valid for 12 months from date of shipment.

Can non-zinc substrates be tested in this chamber?
While optimized for zinc alloy electroplating, the chamber is technically suitable for aluminum anodized parts, tin-plated copper alloys, and cadmium-free alternatives—provided corrosion mechanisms remain moisture-driven and do not involve volatile decomposition byproducts.

Is operator training included with purchase?
Basic on-site startup commissioning and safety protocol briefing are provided; advanced method development workshops (e.g., DOE-based PCT parameter optimization) are available as billable services.
