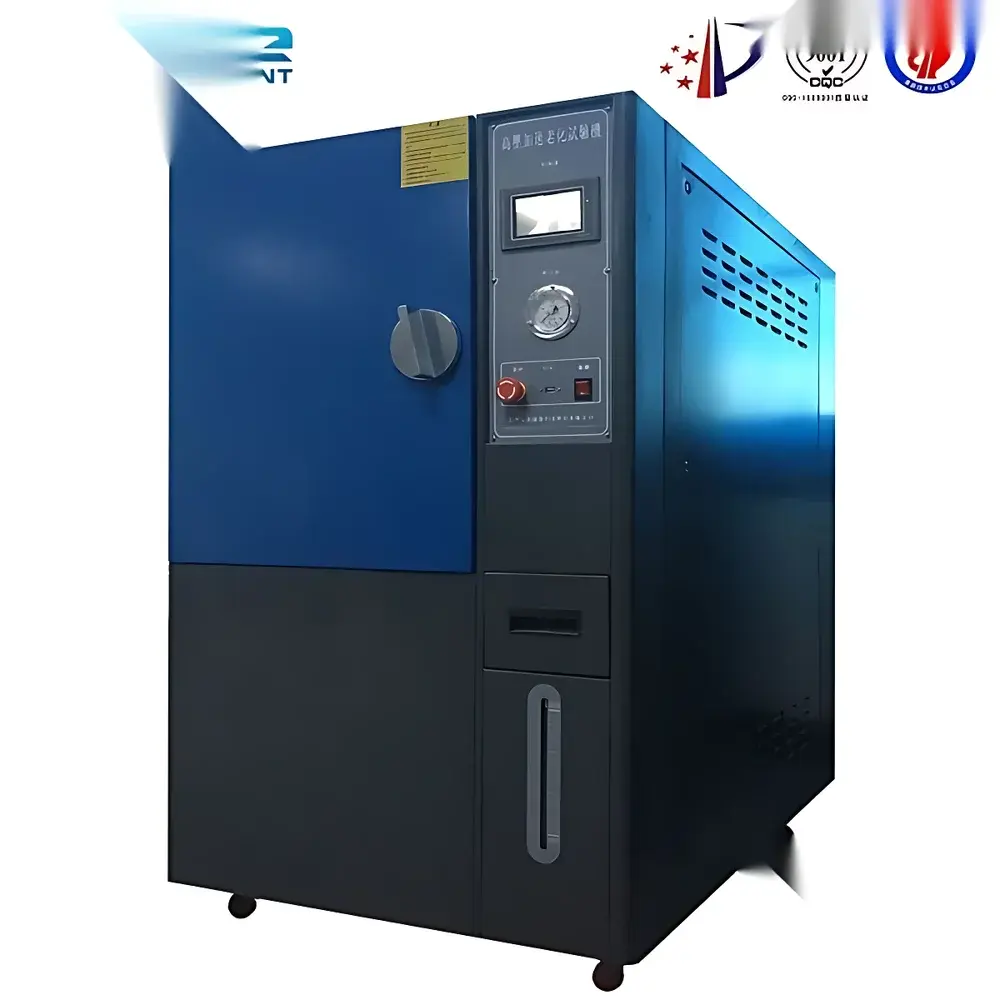

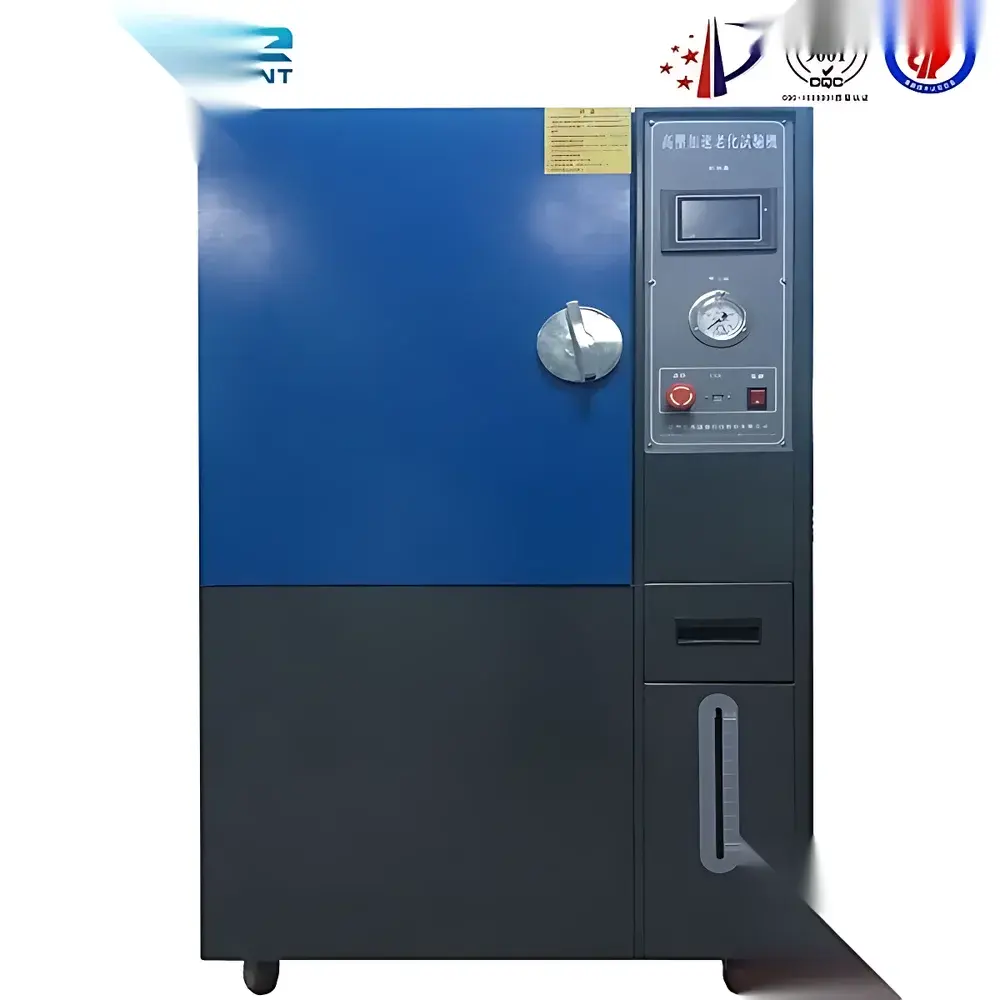

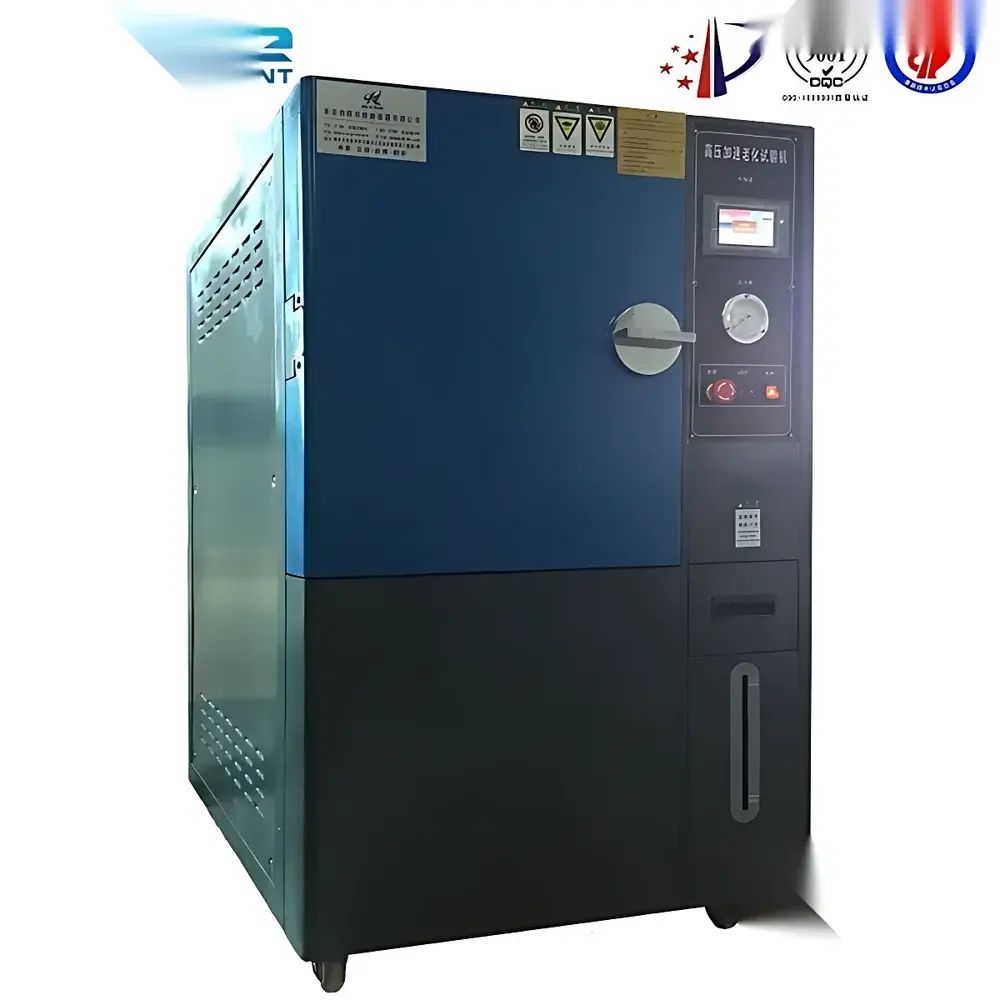

Other Brands PCT Series High-Pressure Steam Aging Test Chamber
| Brand | Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Temperature Range | 100–132 °C |
| Humidity Range | 100 % RH (Saturated Steam) |
| Pressure Range | 0–4 kg/cm² above atmospheric pressure |
| Chamber Dimensions (Internal) | Φ25×40 cm (PCT-25) |
Overview
The Other Brands PCT Series High-Pressure Steam Aging Test Chamber is a precision-engineered environmental stress testing system designed to accelerate material degradation under controlled saturated steam, elevated temperature, and over-atmospheric pressure conditions. Based on the fundamental principles of accelerated aging via hydrothermal stress—where moisture diffusion, polymer chain scission, and hydrolytic decomposition are thermally intensified—the chamber replicates long-term service exposure in compressed timeframes. It complies with standardized test methodologies including JIS C 60068-2-66, IEC 60068-2-66, MIL-STD-202 Method 108, and ASTM F1980 for accelerated aging of medical device packaging and polymeric components. The chamber operates exclusively in saturated steam mode, eliminating superheated vapor interference to ensure reproducible, thermodynamically consistent aging profiles across repeated cycles.
Key Features
- Fully automated test sequence—from chamber pressurization and temperature ramping to dwell, depressurization, and cooldown—with programmable end-of-cycle signaling.
- Dual independent overtemperature protection circuitry: primary PID-controlled heating cutoff and secondary mechanical thermal cutout, both triggering audible alarm and immediate power interruption.
- PID-based digital LED temperature controller with ±0.1 °C setpoint accuracy and real-time display; integrated with pressure transducer for concurrent temperature–pressure correlation monitoring.
- Delay-start digital timer activated only after target temperature and pressure stabilization, ensuring precise dwell timing aligned with thermodynamic equilibrium.
- Automatic unsaturated steam purge system: condensate drainage during initial warm-up phase maintains steam quality at >99.5 % dryness fraction per ASME PTC 19.3.
- Auto-refill water level management: ultrasonic sensor-driven replenishment prevents test interruption during extended cycles without manual intervention.
- Interlocked door safety mechanism: microswitch verification of ABS-framed door closure is required prior to system initialization.
- Pressure relief valve certified to ISO 4126-1, calibrated to activate at 4.0 ±0.1 kg/cm² gauge pressure for fail-safe overpressure mitigation.
- One-piece molded silicone door gasket providing Class III sealing integrity (per ISO 5208) and rated for ≥5,000 thermal cycles without compression set degradation.
Sample Compatibility & Compliance
The PCT Series accommodates rigid and flexible packaging systems (e.g., Tyvek®/PET-laminated pouches), elastomeric seals, silicone tubing, PCB conformal coatings, and thermoplastic housings. Internal chamber geometry supports vertical or horizontal sample orientation with unobstructed steam circulation. All models meet CE marking requirements for electromagnetic compatibility (EN 61326-1) and low-voltage directive (2014/35/EU). The control architecture supports audit-ready operation under GLP and GMP environments, with optional data logging compliant with FDA 21 CFR Part 11 when paired with validated third-party software.
Software & Data Management
While the base configuration features standalone LED interface operation, optional RS-485 Modbus RTU connectivity enables integration into centralized lab monitoring systems (e.g., LabVantage, Siemens Desigo, or custom SCADA). Logged parameters—including chamber temperature, absolute pressure, elapsed time, and water level status—are timestamped with millisecond resolution. Raw data export is supported in CSV format for post-test statistical analysis (Weibull, Arrhenius modeling). Firmware updates follow IEC 62443-2-4 secure update protocols, and configuration backups preserve calibration offsets and user-defined test profiles.
Applications
This system is routinely deployed in quality assurance laboratories for shelf-life prediction of sterile barrier systems, validation of autoclave-resistant materials, reliability screening of automotive under-hood electronics, and accelerated corrosion testing of coated metallic substrates. In semiconductor manufacturing, it assesses die-attach adhesion stability under high-humidity thermal stress. Research applications include hydrolysis kinetics studies of biodegradable polymers (e.g., PLA, PCL) and moisture-induced delamination analysis in multilayer thin-film devices.
FAQ
What standards does this chamber support for medical packaging validation?
It fulfills the environmental stress requirements of ISO 11607-1, ASTM F1980, and AAMI TIR17 for accelerated aging of terminally sterilized packaging systems.
Is calibration traceability provided with the unit?
Yes—each shipment includes a NIST-traceable calibration certificate for the integrated temperature sensor and pressure transducer, valid for 12 months from date of factory verification.
Can the chamber operate continuously for 96-hour cycles?
Yes—designed for uninterrupted operation up to 168 hours, supported by redundant water reservoirs, thermal-stable insulation, and continuous-duty heating elements rated for >10,000 operating hours.
What electrical supply is required?
Single-phase 220–240 V AC ±10 %, 50/60 Hz, 30 A dedicated circuit with grounded TN-S earthing system.
Does the system include installation and operator training?
Yes—on-site commissioning, mechanical and electrical hook-up verification, functional performance testing, and hands-on operator training are included per contractual scope of work.
