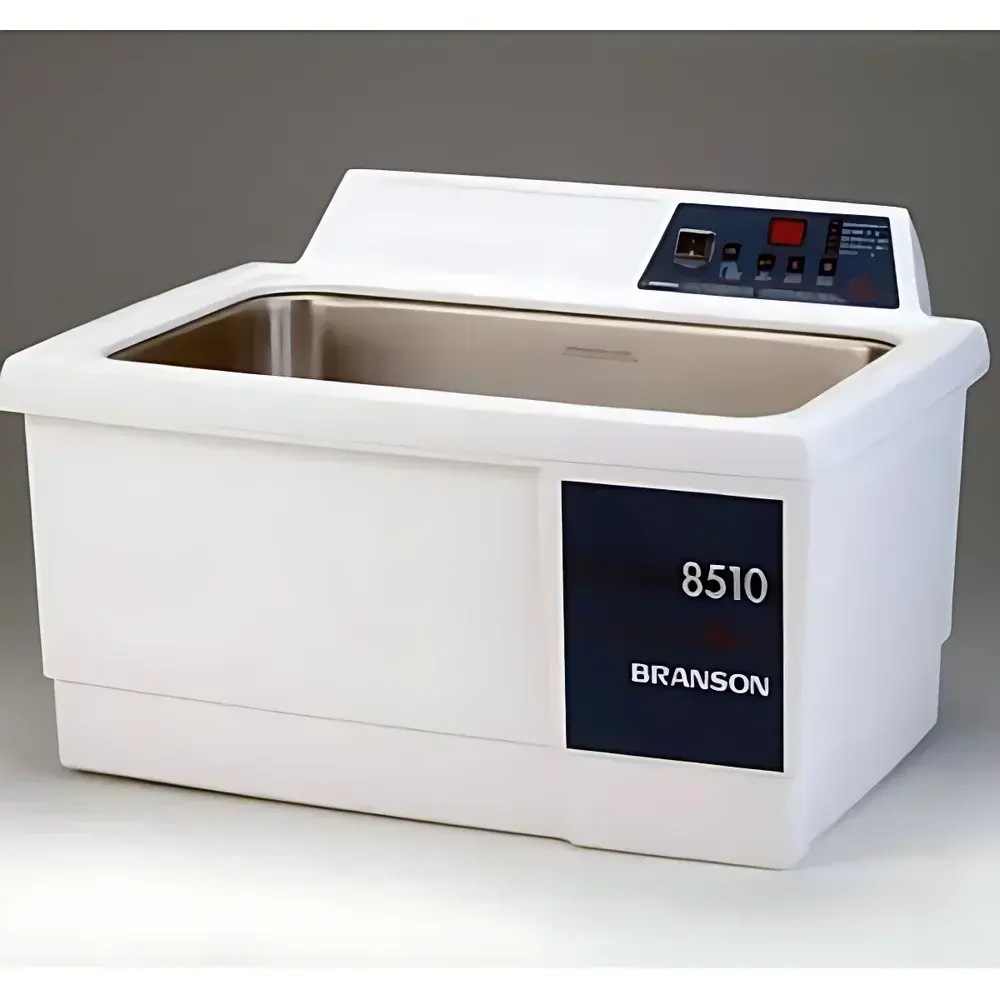

Branson B8510E-DTH Digital Ultrasonic Cleaner

Overview

The Branson B8510E-DTH Digital Ultrasonic Cleaner is an engineered solution for precision cleaning in regulated laboratory, quality control, and R&D environments. It operates on the principle of acoustic cavitation—generating high-frequency (40 kHz) mechanical vibrations via piezoelectric Langevin-type transducers bonded to the tank bottom. These vibrations propagate through aqueous or solvent-based cleaning media, inducing controlled microbubble formation and implosive collapse. This transient cavitation delivers localized energy densities sufficient to dislodge particulate contaminants, organic residues, biofilms, and sub-micron debris from complex geometries—including blind holes, threaded surfaces, and porous substrates—without mechanical abrasion or surface damage. Designed for reproducible, non-destructive cleaning of glassware, metal components, surgical instruments, optical elements, and semiconductor wafers, the B8510E-DTH complies with foundational requirements for cleaning validation under ISO 13485, ASTM D2603, and USP for cleaning efficacy assessment.

Key Features

• Digital microprocessor control with dual-display interface showing real-time bath temperature and user-defined setpoint—enabling precise thermal management during temperature-sensitive cleaning protocols.
• Polypropylene (PP) tank construction provides chemical resistance to common alkaline, acidic, and mild organic cleaning solutions, ensuring long-term integrity in corrosive environments.
• Spherical wave propagation design ensures uniform cavitation distribution across the full 20.81 L tank volume, minimizing dead zones and enhancing cleaning consistency per ASTM F2797.
• Langevin-type transducers integrate metallized ceramic elements with aluminum alloy horns for high electromechanical coupling efficiency and extended service life under continuous operation.
• Active frequency sweeping (not fixed-frequency resonance) mitigates standing wave formation and prevents localized hotspots or uneven cleaning performance.
• Vertical PCB orientation and sealed control panel placement above the tank rim reduce exposure to condensation, splashing, and ambient humidity—supporting stable operation in high-humidity labs.
• Integrated sound-reducing lid doubles as a drip tray and incorporates a manual drain valve for rapid, spill-free fluid evacuation—facilitating efficient media exchange between cleaning cycles.
• Optimized standard water level marking ensures consistent ultrasonic energy transfer and cavitation intensity across operational batches, supporting method transfer and SOP compliance.

Sample Compatibility & Compliance

The B8510E-DTH accommodates a broad range of sample types: stainless steel fixtures, borosilicate glassware (vials, cuvettes, pipettes), ceramic substrates, printed circuit boards, and polymer-based medical devices. Its 40 kHz frequency balances penetration depth and cavitation intensity—ideal for general-purpose cleaning where particle removal down to ~5 µm is required. The unit supports GLP/GMP-aligned workflows through traceable parameter logging (when paired with optional Branson Connect software), and its temperature and timer controls meet baseline requirements for cleaning process documentation per FDA 21 CFR Part 11 Annex 11 when integrated into validated systems. All electrical components conform to UL 61010-1 and IEC 61000-6-3 EMC standards.

Software & Data Management

While the B8510E-DTH operates as a standalone instrument with embedded digital controls, it is compatible with Branson’s optional PC-based Connect software suite (sold separately). This software enables remote configuration, automated protocol sequencing, time-stamped event logging (start/stop, temp ramp, power modulation), and export of CSV-formatted cleaning logs for audit trails. When deployed in regulated environments, the software supports user-level access control, electronic signatures, and audit trail generation compliant with ALCOA+ principles—facilitating integration into enterprise quality management systems (QMS) such as TrackWise or MasterControl.

Applications

• Pre-analytical preparation of HPLC vials, GC autosampler trays, and ICP-MS sample introduction components to eliminate carryover and background contamination.
• Cleaning of reusable surgical instruments prior to sterilization—validated per AAMI ST79 and ISO 15883-1 for residual protein and bioburden reduction.
• Removal of photoresist residues and etch byproducts from silicon wafers and MEMS devices in microfabrication cleanrooms.
• Decontamination of electron microscopy grids and TEM specimen holders to prevent imaging artifacts from hydrocarbon films.
• Routine maintenance of analytical balances, pipette tips, and calibration standards where particulate-free surfaces are critical.

FAQ

What is the maximum recommended operating temperature for aqueous cleaning solutions?
The heater is rated for sustained operation up to 69 °C; however, for optimal cavitation stability and transducer longevity, temperatures between 40–55 °C are recommended for most aqueous formulations.
Can this unit be used with flammable solvents?
No. The B8510E-DTH is not explosion-proof and must only be operated with non-flammable, water-based or halogenated cleaning solutions approved for ultrasonic use.
Is the 40 kHz frequency adjustable?
No—the transducer is fixed at 40 kHz, but the built-in sweep function dynamically modulates the drive signal within ±1.5 kHz to maintain uniform energy distribution.
How often should the tank be descaled or cleaned internally?
Routine inspection every 50 operating hours is advised; descaling with 5% citric acid solution is recommended if mineral deposits accumulate—especially in hard water regions.
Does the unit include a degas function?
No dedicated degas mode is provided; however, initiating ultrasonics at low power for 5–10 minutes before loading samples achieves effective dissolved gas removal in most applications.
