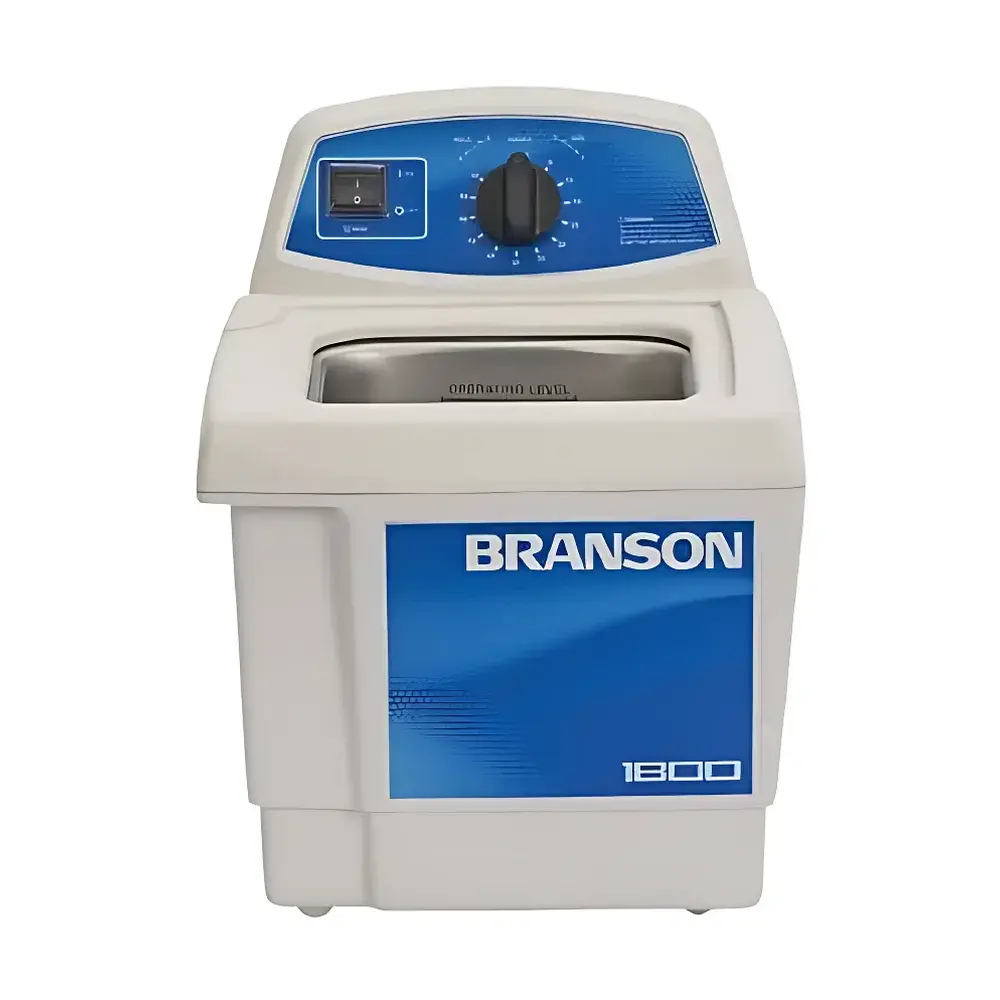

Branson M1800H-C Benchtop Ultrasonic Cleaner

Overview

The Branson M1800H-C is a precision-engineered benchtop ultrasonic cleaner designed for consistent, repeatable cleaning performance in analytical laboratories, quality control environments, and research settings. It operates on the principle of high-frequency acoustic cavitation—generating controlled micro-bubbles in liquid media that collapse with localized energy release, effectively dislodging particulate contaminants, organic residues, and thin films from delicate surfaces. With a fixed operating frequency of 40 kHz—a widely adopted standard for general-purpose laboratory cleaning—the M1800H-C delivers optimal balance between penetration depth and surface agitation. Its compact 1.9 L tank volume makes it ideal for small-volume applications such as cleaning HPLC vials, optical components, surgical instruments, printed circuit boards, and semiconductor wafers. The unit integrates Branson’s proprietary power-tracking circuitry and sweep-frequency modulation to maintain stable acoustic output despite load variations, temperature drift, or changes in solution composition—ensuring reproducible cleaning efficacy across multiple users and protocols.

Key Features

• Auto-tracking ultrasonic power delivery: Dynamically adjusts drive signal amplitude to sustain constant energy transfer regardless of transducer loading or bath temperature fluctuations.
• Sweep-frequency operation (±1 kHz around 40 kHz): Eliminates standing wave nodes and ensures uniform cavitation distribution throughout the tank, minimizing dead zones and improving cleaning homogeneity.
• Langevin-type piezoelectric transducers: Metal-ceramic composite design optimized for long-term stability, thermal resistance, and mechanical durability under continuous duty cycles.
• Vertically mounted PCB architecture: Enhances moisture resistance and extends electronic component service life in humid lab environments.
• Polypropylene (PP) tank construction: Chemically inert, acid- and alkali-resistant material compatible with common aqueous and mild solvent-based cleaning solutions (e.g., isopropyl alcohol, sodium hydroxide dilutions, citric acid).
• Integrated thermostatic heating system: Adjustable up to 69 °C with PID-controlled feedback loop for precise temperature maintenance during warm cleaning or degassing protocols.
• Ergonomic top-mounted control panel: Positioned above the tank rim to prevent liquid ingress; features tactile rotary timer and dedicated heater activation switch.
• Optimized water-level indicator: Factory-calibrated fill line ensures maximum acoustic coupling efficiency and minimizes energy loss at air–liquid interfaces.
• Acoustic lid with integrated drip tray function: Hinged cover doubles as a spill containment surface and incorporates a quick-release drain valve (not present on M1800H-C variant).

Sample Compatibility & Compliance

The M1800H-C supports a broad range of sample types including glassware (vials, cuvettes, pipettes), stainless steel tools, ceramic substrates, and polymer-based microfluidic devices. It is compatible with deionized water, enzymatic detergents, low-surface-tension solvents, and pH-adjusted aqueous solutions—provided compatibility with PP tank material is verified per manufacturer guidelines. All Branson MH-series units comply with electromagnetic compatibility (EMC) and electrical safety standards required for global deployment: EN 61000-6-3 (EMI), EN 61000-6-1 (immunity), UL 61010-1, CSA C22.2 No. 61010-1, FCC Part 15 Subpart B, and CE marking under the Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU). Independent verification by TÜV Rheinland confirms compliance with IEC 61010-1:2010 for laboratory equipment safety—including dielectric strength, creepage/clearance distances, and fault-condition testing.

Software & Data Management

As a standalone analog-controlled instrument, the M1800H-C does not incorporate digital firmware or data logging capabilities. Operation is managed via mechanical timer and manual heater toggle—intentionally selected to maximize operational robustness, minimize failure points, and ensure uninterrupted use in regulated environments where software validation burdens (e.g., FDA 21 CFR Part 11, Annex 11) would otherwise apply. This architecture aligns with GLP and GMP-aligned labs requiring deterministic, non-programmable cleaning processes traceable via logbook entries. Optional external temperature dataloggers (e.g., calibrated thermistors with USB interface) may be used to record bath temperature profiles during qualification studies.

Applications

• Routine cleaning of chromatography sample vials and autosampler components prior to trace-level analysis.
• Removal of polishing compounds and oxide layers from optical lenses and mirrors in metrology labs.
• Preparation of metal coupons for corrosion testing per ASTM G1–21.
• Degassing of mobile phase solvents before HPLC system priming.
• Cleaning of MEMS devices and microelectrodes without mechanical abrasion.
• Disassembly-free decontamination of reusable surgical instruments in ISO 13485-certified facilities.
• Supporting ISO 14644-1 cleanroom garment laundering validation through standardized ultrasonic exposure cycles.

FAQ

Is the M1800H-C suitable for cleaning delicate optics or MEMS devices?

Yes—its 40 kHz frequency, sweep modulation, and precisely controlled power output minimize surface pitting while achieving effective contaminant removal on fragile substrates.
Does this model support remote monitoring or Ethernet connectivity?

No—it is an analog-operated unit without digital interfaces; all functions are locally actuated via front-panel controls.
Can I use flammable solvents like acetone or ethanol in the tank?

Not recommended. The M1800H-C lacks explosion-proof certification; only aqueous or non-flammable, low-volatility cleaning agents should be used.
What is the expected service life of the transducers under continuous operation?

Branson specifies ≥10,000 hours of nominal operation when operated within rated temperature and fill-level parameters, validated through accelerated life testing per MIL-STD-810G.
Is calibration documentation provided with the unit?

Factory calibration certificates for frequency stability and heater accuracy are available upon request; periodic verification using NIST-traceable thermometers and acoustic power meters is advised per ISO/IEC 17025.
